JOHANSON
High Voltage
Surface Mount Chip Capacitors
DESCRIPTION

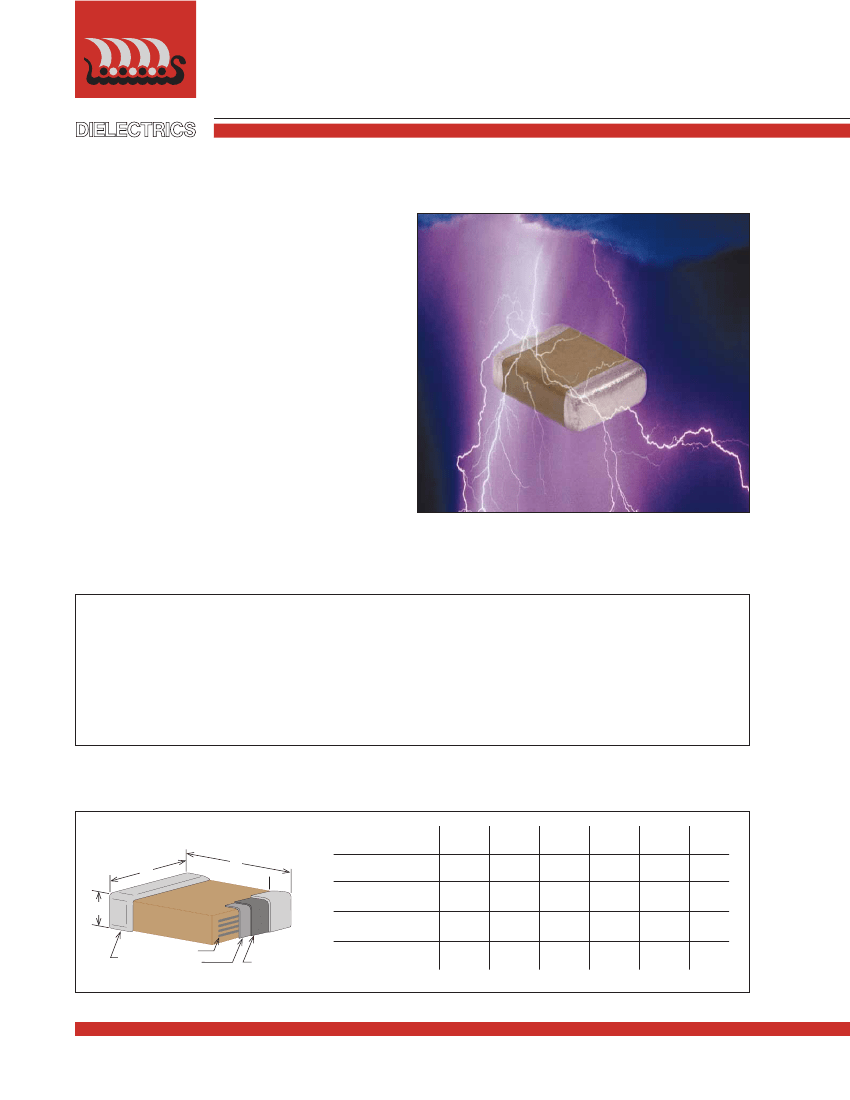

Johanson Dielectrics has developed this series
of high voltage surface mount ceramic chip
capacitors specifically for circuits requiring
higher working voltage ratings. The product line
consists of six EIA standard SMT chip sizes with
nickel barrier terminations and tape & reel pack-
aging. Capacitance selection includes standard
RETMA values of up to .018µF in stable NPO
dielectric and up to 0.39 µF in extended range
X7R dielectric. These chips are designed and
manufactured to meet or exceed the require-
ments of Mil-C-55681 making them well suited
for use in commercial, industrial, military, and
telecommunications equipment. Applications
include filtering, surge protection, noise suppres-
sion, power supplies, and voltage multiplier
circuits.
ELECTRICAL CHARACTERISTICS
NPO DIELECTRIC
Temperature Coefficient:
Dissipation Factor:
Ageing:
Insulation Resistance:
NPO & X7R Dielectric Strength:
Test Parameters:
0% ± 30 ppm / °C, -55 to +125°C
.001 (0.1%) max, 25°C
None
X7R DIELECTRIC
± 15% , -55 to +125°C
.025 (2.5%) max, 25°C
2.5% / decade hour, typical
1000
ΩF
or 100 GΩ, whichever is less @ WVDC; 125°C IR is 10% of 25°C rating.
For WVDC
≥
500V: 750 VDC min; For WVDC> 500 WVDC = 1.2 X WVDC ( min, 25°C, 50 mA max)
For Values > 100 pF: 1Khz ±50Hz, 1.0±0.2 VRMS ; For Values
≤
100 pF:1Mhz ±50kHz, 1.0±0.2 VRMS
COMMON PARAMETERS
MECHANICAL CHARACTERISTICS
PHYSICAL
DIMENSIONS
W
L
E/B
R18
1206
.125
(3.18)
S41
1210
.125
(3.18)
R29
1808
.180
(4.57)
S43
1812
.175
(4.45)
S49
1825
.180
(4.57)
S48
2225
.225
(5.72)
LENGTH (± .010")
(Millimeters)
WIDTH (± .010")
(Millimeters)
.062
(1.58)
.095
(2.41)
.080
(2.03)
.125
(3.18)
.250
(6.35)
.250
(6.35)
T
THICKNESS (MAX")
(Millimeters)
Tin
Plating
Electrodes
Silver Base
.050
(1.27)
.065
(1.65)
.065
(1.65)
.085
(2.16)
.085
(2.16)
.085
(2.16)
END BAND (± .010")
Nickel Barrier Layer
.020
(.508)
.020
(.508)
.020
(.508)
.020
(.508)
.020
(.508)
.020
(.508)
(Millimeters)
Johanson Dielectrics, Inc. reserves the right to make design and price changes without notice.
Datasheet HVSMT.984
VOLTAGE AND CAPACITANCE RANGE
CAPACITOR
CASE SIZE
RATED
WVDC
500 V
1,000 V
2,000 V
500 V
1,000 V
2,000 V
500
1,000
2,000
3,000
4,000
500
1,000
2,000
3,000
4,000
500
1,000
2,000
3,000
4,000
5,000
500
1,000
2,000
3,000
4,000
5,000
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
10pF
100 pF
AVAILABLE CAPACITANCE
1000 pF
102
680
471
471
222
102
181
152
332
221
121
470
471
472
222
331
221
101
681
103
102
471
101
271
391
821
222
562
562
473
182
332
273
NPO or X7R
X7R only
124
102
152
182
183
683
153
472
.01 µF
223
.10 µF
R18 (1206)
S41 (1210)
R29 (1808)
473
S43 (1812)
S49 (1825)
224
S48 (2225)
183
122
102
152
681
822
103
392
104
394
471
181
HOW TO ORDER (High Voltage)
501
VOLTAGE
Standard Voltages:
501 = 500 V
102 = 1000 V
202 = 2000 V
302 = 3000 V
402 = 4000 V
502 = 5000 V
R18
CASE SIZE
See Chart
DIELECTRIC
N = NPO
W = X7R
W
102
CAPACITANCE
1st two digits are signifi-
cant; third digit denotes
number of zeros.
100 = 10 pF
102 = 1,000 pF
224 = 0.22 µF
N
P
O X
7
R
K
TOLERANCE
J = ± 5%
K = ± 10 %
M = ± 20 %
V
TERMINATION
V = Nickel Barrier
4
Tape
Code
E
U
None
E
TAPE MODIFIER
Tape
Reel
Type
Size
Embossed
7"
Embossed
13"
Bulk Packaged
MARKING
4 = Unmarked
6 = EIA "J" Code
JDI tape specifications
conform to EIA RS481.
15191 Bledsoe Street • Sylmar, California 91342 • (818) 364 9800 • FAX (818) 364 6100
