Lamina Light Engines
As the market leader in the development and manufacture of super-bright LED
arrays, Lamina brings solid state lighting to applications which until now were
only possible with traditional lighting sources.
Lamina’s LED arrays are manufactured by combining high brightness LEDs from
industry-leading LED manufacturers with Lamina's proprietary packaging tech-
nology, multilayer Low Temperature Co-Fired Ceramic on Metal (LTCC-M). LTCC-M
is a breakthrough in thermal performance for LED packaging technology, a key
factor in determining LED life and reliability. Unmatched thermal performance
coupled with package interconnectivity allows Lamina to densely cluster multiple
LEDs to achieve exceptionally high luminous intensity in very small footprints.
Lamina’s arrays are available in white, RGB and monochrome, from 1W to
100W, and also are available in custom packages.
Typical Applications
A
RCHITECTURAL
L
IGHTING
•D
ECORATIVE AND
A
CCENT
•A
RCHITAINMENT
•S
TAGE AND
S
TUDIO
•W
ALLWASHERS
LCD B
ACKLIGHTING
LCD P
ROJECTORS
S
IGNALS
M
ACHINE
V
ISION
P
HOTOGRAPHY
•H
IGH
L
UMINOUS
F
LUX IN
S
MALL
F
OOTPRINT
•S
UPERIOR
T
HERMAL
P
ERFORMANCE FOR
I
MPROVED
R
ELIABILITY
•L
ONG
L
IFE AND
H
IGH
L
UMEN
M
AINTENANCE
•N
O
M
ERCURY OR
L
EAD
•C
USTOM
S
IZES AND
S
HAPES
A
VAILABLE

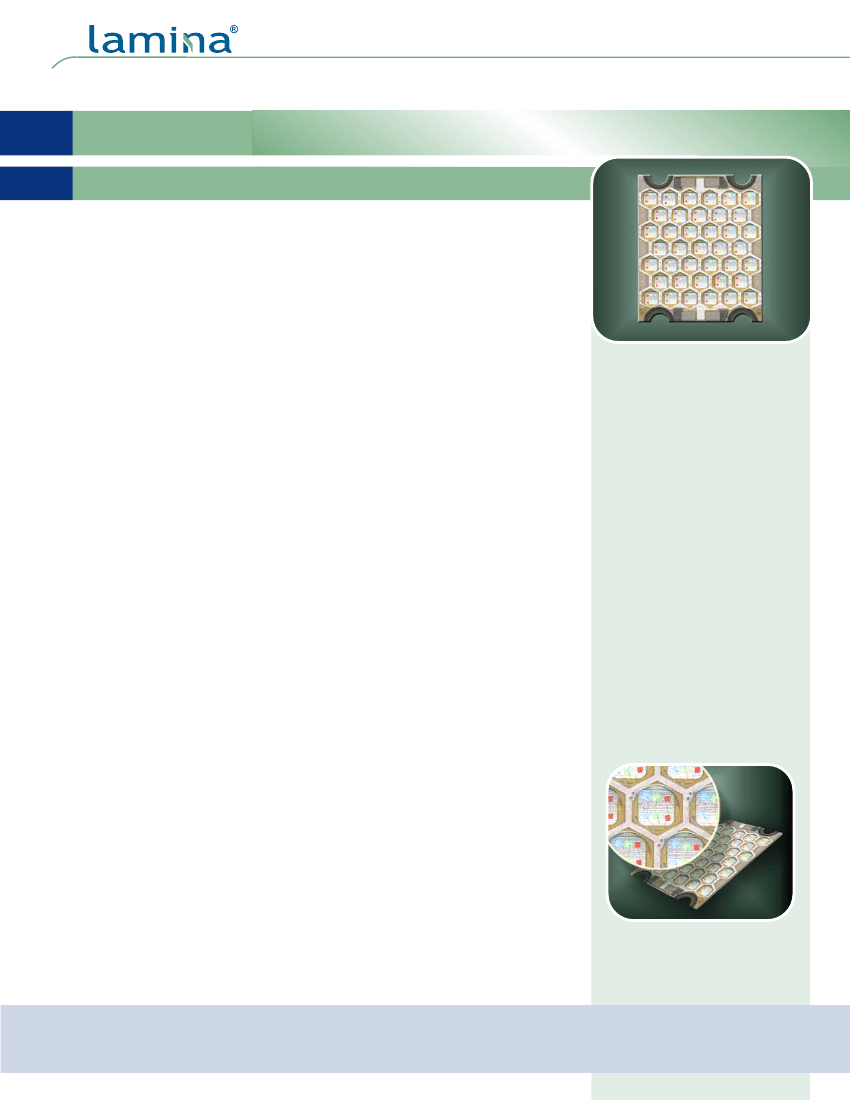

BL-3000 RGB+
Lamina's high power RGB+ LED arrays have independent color control for
dynamic or preset display of colors. Through additive color mixing there is
complete control of the various colors and white which can be displayed.
Lamina BL-3000 LED arrays are configured with 39 cavities, each populated
with multiple LEDs. In the RGB light engine each cavity contains multiple red,
green and blue LED die for optimal color uniformity, a unique feature made
possible with Lamina’s packaging technology.
laminaceramics.com
REV.01.20.05
To see how you can realize all these design benefits, to request a sample, or to speak with an engineer
about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com.
Part # BL-33F0-0142
Page 1
Bright Lights.
Bright Ideas.
TM
Technical Data
Part # BL-33F0-0142 Symbol
3
0
Min
Typical
Max
Unit
nm
Dominant Wavelength R:
λ
619
-
629
G:
λ
515
-
535
nm
B:
λ
465
-
475
nm
Voltage*
R: VF
-
4.8
-
V
G: VF
-
7.2
-
V
B: VF
-
7.2
-
V
Test Current
R: IF
-
1.17
-
A
G: IF
-
1.17
-
A
B: IF
-
1.17
-
A
Power*
R: P
-
5.6
-
W
G: P
-
8.4
W
B: P
-
8.4
-
W
Luminous Flux*
R:
Φ
V
-
114
-
lm
G:
Φ
V
-
145
-
lm
B:
Φ
V
-
47
-
lm
Thermal Resistance** R: TR
-
0.66
-
ºC/W
G: TR
-
0.66
-
ºC/W
B: TR
-
0.66
-
ºC/W
*Note 1. Optical and Electrical specifications are given for the specified drive
current at a 25ºC junction temperature.
**Note 2. Values for operating all colors at rated current.
A
TTACHMENT
R
ECOMMENDATIONS
Lamina’s BL-3000 Series is
configured with solder pads
compatible with Sn63 or Sn62
solder. As with many electrical
devices, non-acid RMA type sol-
der flux should be used to pre-
pare the solder pads before
application of solder. If wire
attachment is performed with a
soldering iron, care must be
taken to minimize heat transfer
to the die and minimize leach-
ing of the solderable pads.
A
SSEMBLY
R
ECOMMENDATIONS
Lamina's BL Series Light
Engines, are designed for
attachment to heatsinks with
conductive epoxy or screw
down for flange mount devices
with thermal grease in the
joint.
For attachment using screws, a
6-32 UNC fillister head slotted
machine screw, 18-8 SS is rec-
ommended. Maximum torque
is 4 inch pounds (45 newton
centimeter). Required flatness
of surface light engine is
mounted to is 0.001 inch/inch.

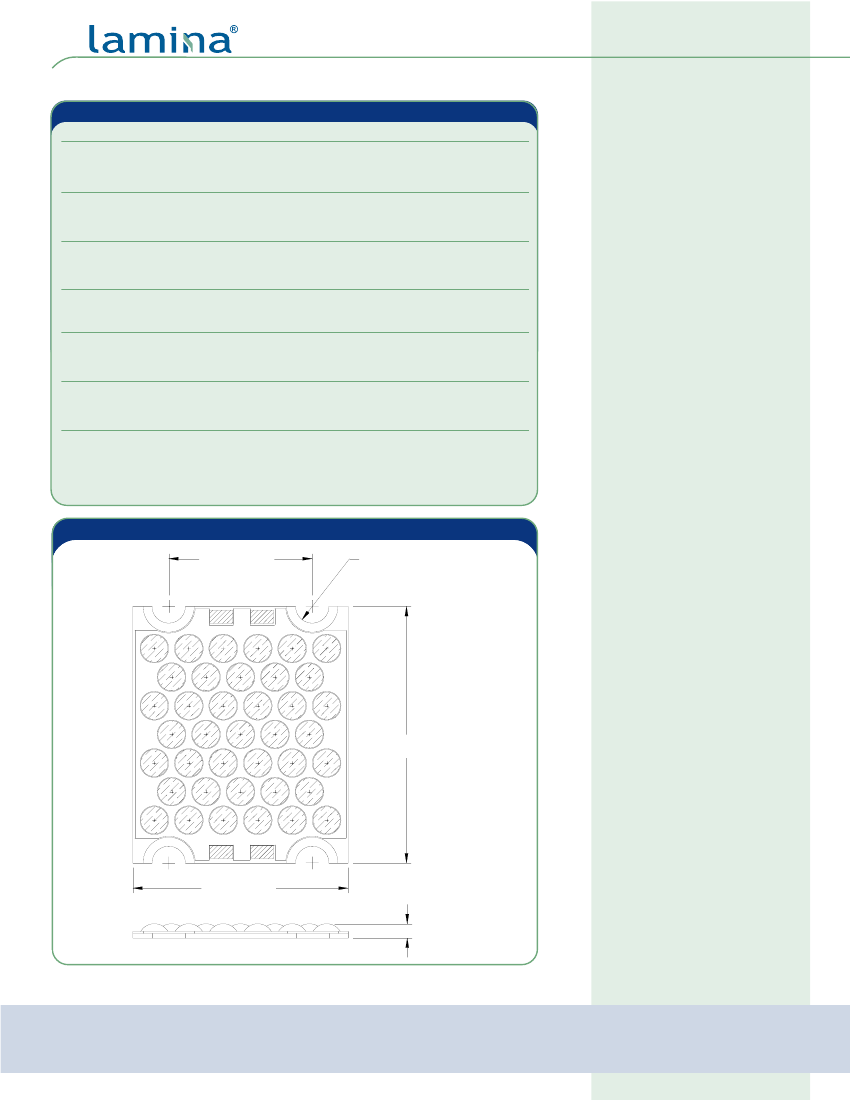

Mechanical Specifications
0.700 [17.78]
4X MOUNTING HOLE
FOR 6-32 SCREW
2
3
1.250 [31.75]
1
1.050 [26.67]
4
0.090 [2.29] MAX
laminaceramics.com
REV.01.20.05
To see how you can realize all these design benefits, to request a sample, or to speak with an engineer
about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com.
Part # BL-33F0-0142
Page 2
Bright Lights.
Bright Ideas.
TM

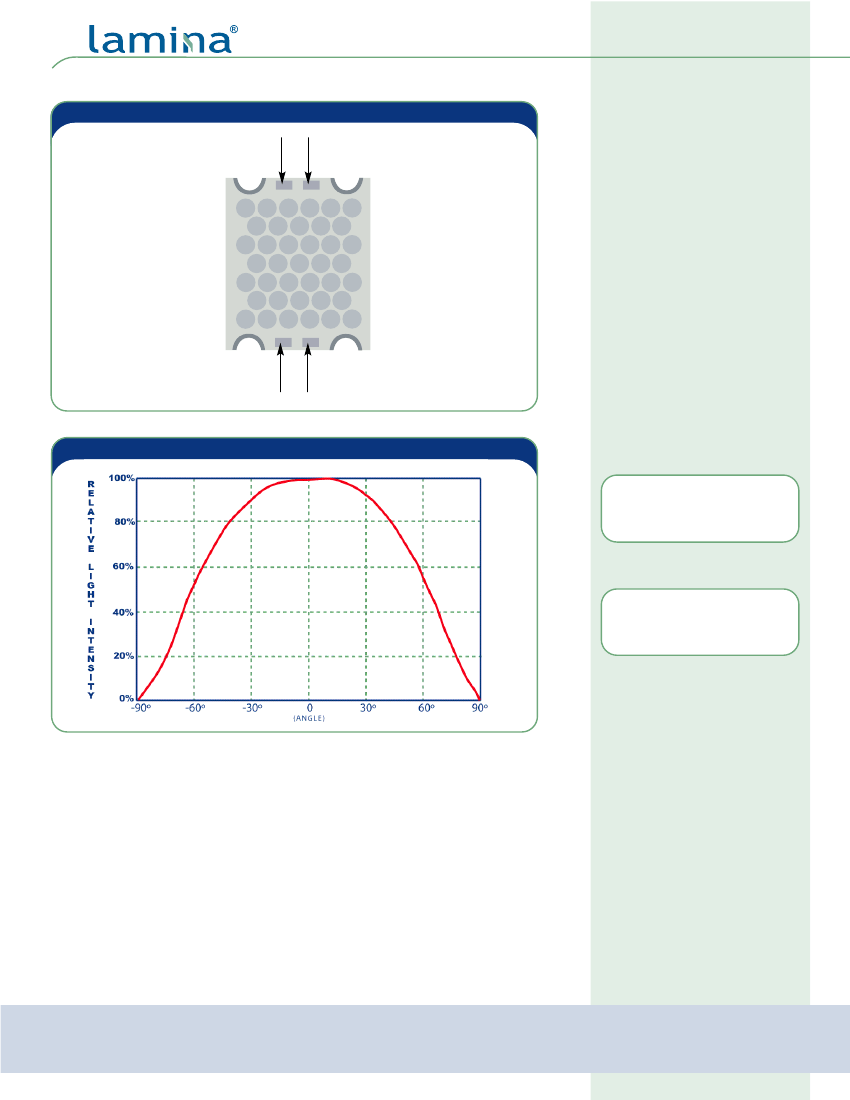

Electrical Connections
GREEN
APPLY
(V-)
VOLTAGE
2
BLUE
APPLY
(V-)
VOLTAGE
3
H
EAT
S
INK
R
ECOMMENDATIONS
Lamina LED arrays provide effi-
cient transfer of heat from the
individual LED die to a cus-
tomer supplied heat sink. All
Lamina LED arrays must be
operated at or below 125ºC. A
heat sink must be attached to
the array with sufficient cooling
capacity to keep the die junc-
tion below 125ºC. The tempera-
ture rise from the array base to
the die junction may be deter-
mined by calculating the prod-
uct of the maximum package
thermal resistance and the
desired operating power level.
Junction Temperature Rise (Tj
(rise)) = Operating Power (P) x
Lamina Array Thermal
Resistance (Tr)
1
4
RED
APPLY
(V-)
VOLTAGE
APPLY
(V+)
VOLTAGE
Typical Beam Pattern
The appropriate heat sink may
then be determined by:
Heat Sink Thermal Resistance
(ºC/W) = (125 - Tj (rise) -
Maximum Ambient
Temperature)/P
O
PTICAL
R
ECOMMENDATIONS
Lamina LED arrays project a
Lambertian radiation pattern,
with projection angles built into
the package cavity at approxi-
mately 125º. It will be neces-
sary for users to create an opti-
cal reflector and lens structure
that meets their light disper-
sion requirements. Please con-
tact Lamina Application
Engineering for support with
your optical needs.
laminaceramics.com
REV.01.20.05
To see how you can realize all these design benefits, to request a sample, or to speak with an engineer
about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com.
Part # BL-33F0-0142
Page 3
Bright Lights.
Bright Ideas.
TM

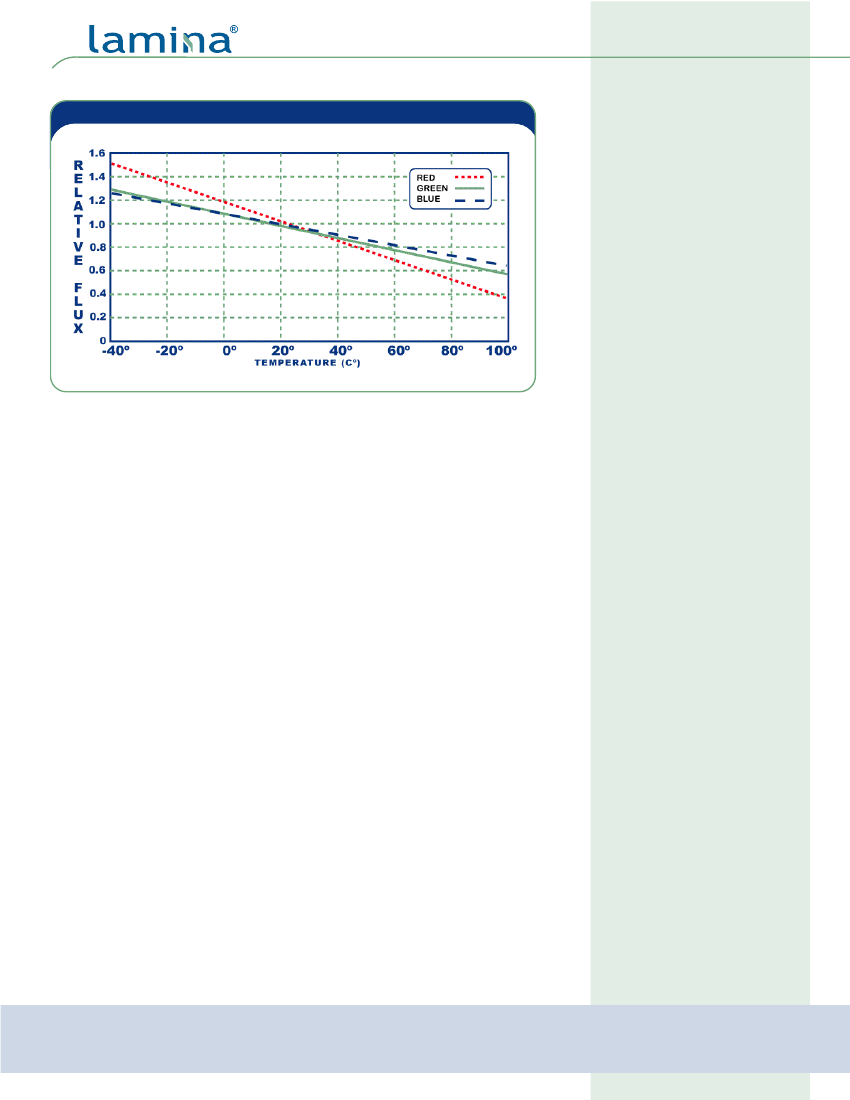

Luminous Flux with Junction Temperature
L
IGHT
O
UTPUT VS
.
J
UNCTION
T
EMPERATURE
Light output from LED die will
decrease with increasing junc-
tion temperature. This effect is
particularly acute for die in the
580 to 750 nm range. As a
result we recommend that the
LED array heat sink design be
optimized to maintain the die
junction temperature as low as
possible.
ESD P
ROTECTION
LEDs are static sensitive and
susceptible to Electrostatic
Discharge (ESD) damage.
Lamina LED arrays must be
handled using ESD damage
control precautions.
H
ANDLING
P
RECAUTION
Contact with the silicone based
encapsulant on the surface of
the light engine must be avoid-
ed to prevent damage. Do not
apply pressure to the silicone
based encapsulant or allow it to
come into contact with sharp
objects. Lamina LED arrays
must be handled from the
sides.
Lamina Ceramics
120 Hancock Lane
Westampton, NJ 08060
Specifications subject to change
without notice.
©2005 Lamina Ceramics
laminaceramics.com
REV.01.20.05
To see how you can realize all these design benefits, to request a sample, or to speak with an engineer
about your design, contact Lamina at 800.808.5822 or 609.265.1401 or visit www.laminaceramics.com.
Part # BL-33F0-0142
Page 4
