BX7481: Description15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1, TO-8; CategoryWireless rf/communication Radio frequency and microwave; File Size626KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX7481 Overview

15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1, TO-8

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL
Gain	27 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	300 MHz
Minimum operating frequency	15 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

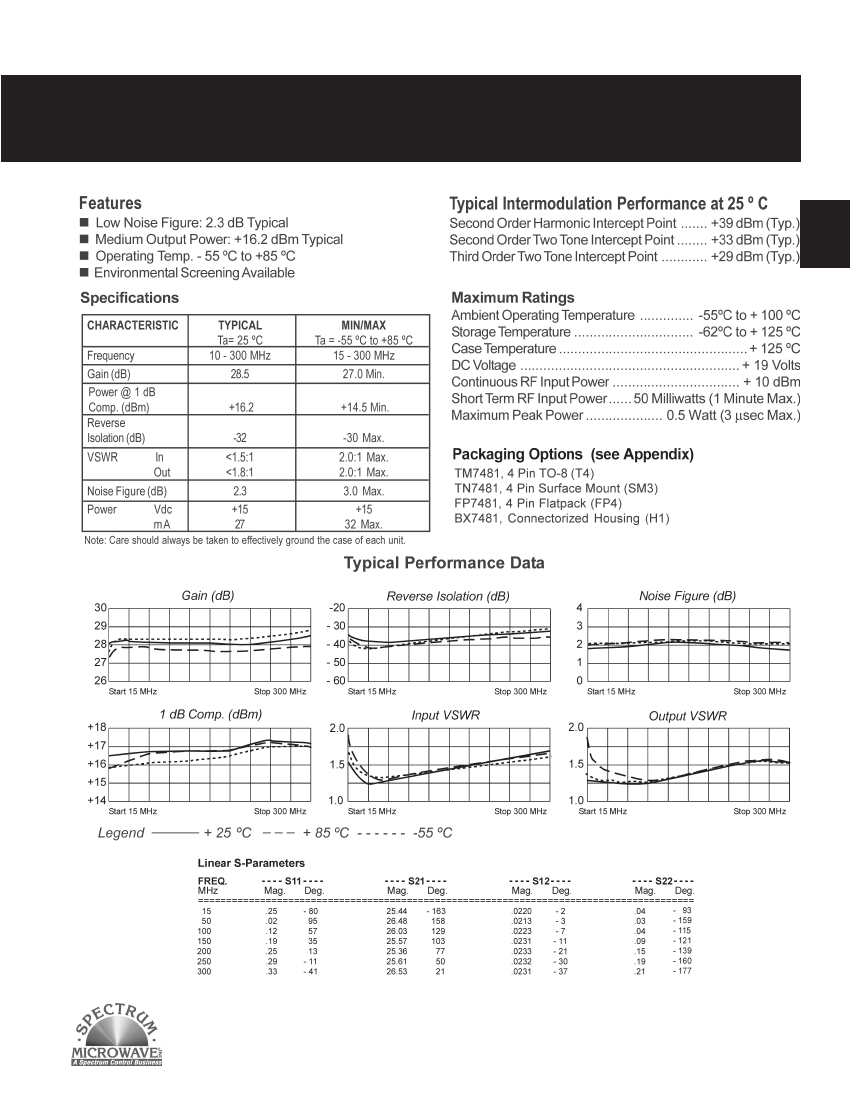

RF Amplifier

Low Noise: 2.3 dB

Model TM7481

10 to 300 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

387

Amplifiers

	BX7481	FP7481	TN7481	TM7481
Description	15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1, TO-8	15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	15 MHz - 300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	27 dB	27 dB	27 dB	27 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm	10 dBm
Maximum operating frequency	300 MHz	300 MHz	300 MHz	300 MHz
Minimum operating frequency	15 MHz	15 MHz	15 MHz	15 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
