8449070000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> 8449070000

8449070000: Descriptionovp 115vac/DC 1.25a; CategoryPower/power management; File Size74KB，3 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

8449070000 Overview

ovp 115vac/DC 1.25a

8449070000 Parametric

Parameter Name	Attribute value
Datasheets
8449070000
Standard Package	1
Category	Line Protection, Distribution, Backups
Family	Power Distribution, Surge Protectors
Other Names	MCZ OVP SL 115VAC/DC

Preview

Download Datasheet

View All

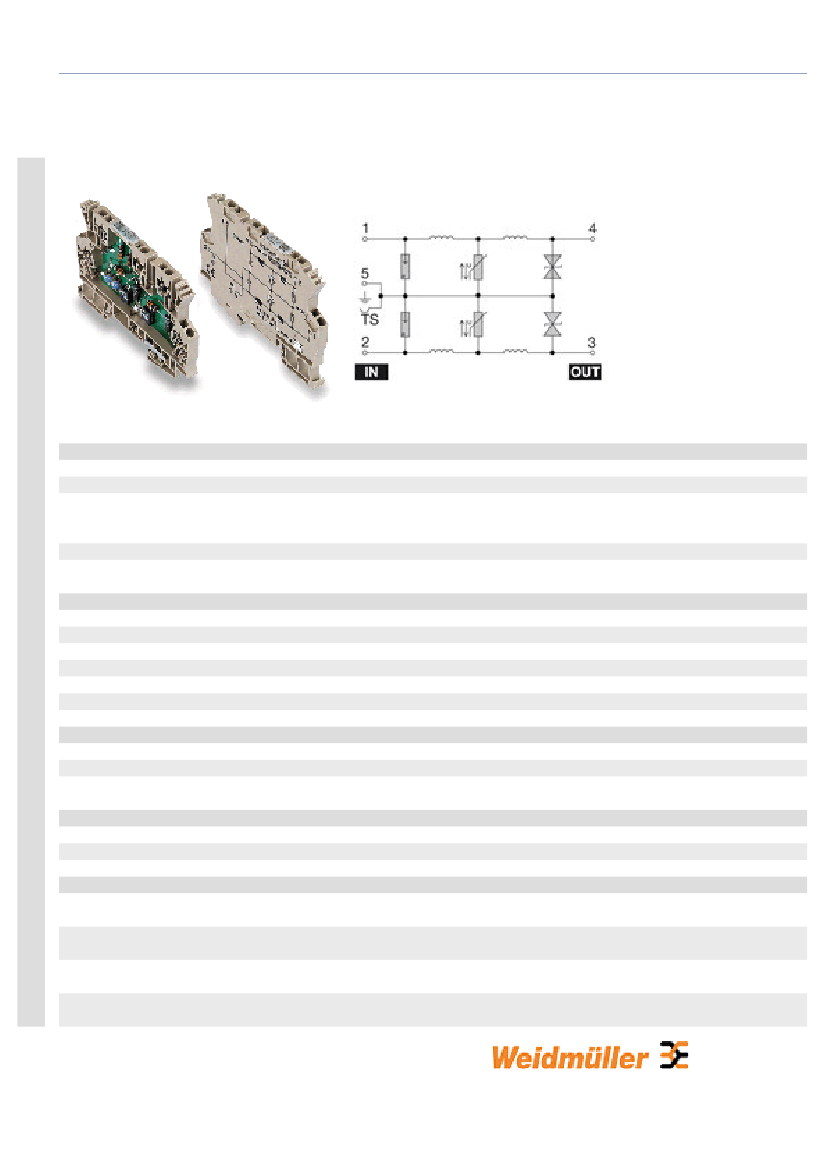

Product catalogue | Functional Electronics | Surge protection | Instrumentation and control | 3-, 2- or 1- stage protection

with tension spring connection | MCZ OVP 115/230 V UC

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Clamped conductors

Flexible w. ferrule, min. (DIN 46228-1)

Flexible, max.

Flexible, min.

Rated cross-section for solid/flexible with ferrule

Rated cross-section, max. ferrules

Type of connection

General data

Design

Storage temperature

Ambient temperature (operational)

Insulation coordination acc. to EN 50178

Overvoltage category

Pollution severity

Interference voltage

Protection level on output side sym., input 1 kV/

µs, typ.

Protection level on output side sym., input 8/20 µs,

typ.

Protection level on output side unsym., input 1kV/

µs, typ.

Protection level on output side unsym., input 8/20

µs, typ.

8449070000

MCZ OVP SL 115VUC 1,25A

Surge protection for instrumentation and control,

{Reference (AttributeDefinition) not found:

pattr2500833906422}, Rated voltage: 115 V

4008190129552

10 pc(s).

0.5 mm²

1.5 mm²

0.5 mm²

1.5 mm²

1 mm²

Tension clamp connection

Terminal

-40 ... 85°C

-40 ... 60°C

III

440 V

720 V

220 V

360 V

-1-
