855-12901 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> 855-12901

855-12901: Descriptionmcpc/pci-gigabit, TX/LX-sm1310-S; CategoryModule/solution; File Size708KB，2 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric Compare View All

855-12901 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	855-12901	-	-	View	Buy Now

855-12901 Overview

mcpc/pci-gigabit, TX/LX-sm1310-S

855-12901 Parametric

Parameter Name	Attribute value
Datasheets
McPC Series Datashee
Product Photos
855-1xxxx Series
Standard Package	1
Category	Networking Solutions
Family	Miscellaneous

Preview

Download Datasheet

View All

McPC Series

PC Card Ethernet Media Converters

Ideal for Fiber-to-the-Desktop

applications, McPC installs directly

inside a PC.

Features and Benefits

Convert twisted pair to fiber.

Plug-and-play operation

• Easily installs inside a desktop PC

• No configuration required,

connects to existing NIC card

• No drivers to install; McPC

mounts inside any PC or

workstation with a standard

PCI or ISA slot

Meets a multitude of installation

requirements

• Available in 100 Mbps, 1000

Mbps and 10/100 Mbps auto-

sensing versions

• Available for multimode or single-

mode fiber

• Available with ST or SC

connectors

Eases troubleshooting

• Status LEDs assist in diagnosing

network problems

• Some models also offer advanced

troubleshooting such as LinkLoss,

FiberAlert or Link Fault Detection

McPC Series Media Converters are ideal for Fiber-to-the-

Desktop (FTTD) applications and for companies with frequent

workstation moves and changes. Installing inside a PC or

workstation, and plugging into an adjacent network interface

card (NIC), these compact units eliminate the need to place

Media Converters on top of desks or computers, reducing

clutter of cords and adapters at the workspace.

The McPC series includes:

• 100 Mbps Fast Ethernet (TX/FX)

- Designed to connect

to NIC cards running at Fast Ethernet speeds

• 10/100 Mbps

- A media converter that auto-senses the

connected device’s rate (10 Mbps or 100 Mbps) and

duplex mode (Half-Duplex/Full-Duplex)

• 1000 Mbps Gigabit Ethernet (TX/SX or /LX)

- Converts

1000 Mbps over copper to 1000 Mbps over fiber. Ideal

for bringing Gigabit speed connectivity to the desktop

McPC converters accommodate crossover or pass through

cables, with either a pushbutton MDI/MDIX switch or

AutoCross, a feature which automatically selects the correct

operating mode. Units also feature handy status LEDS to assist

in network diagnostics and troubleshooting. In addition, McPC

TX/FX and McPC 10/100 include troubleshooting features that

make it easy to isolate fiber breaks.

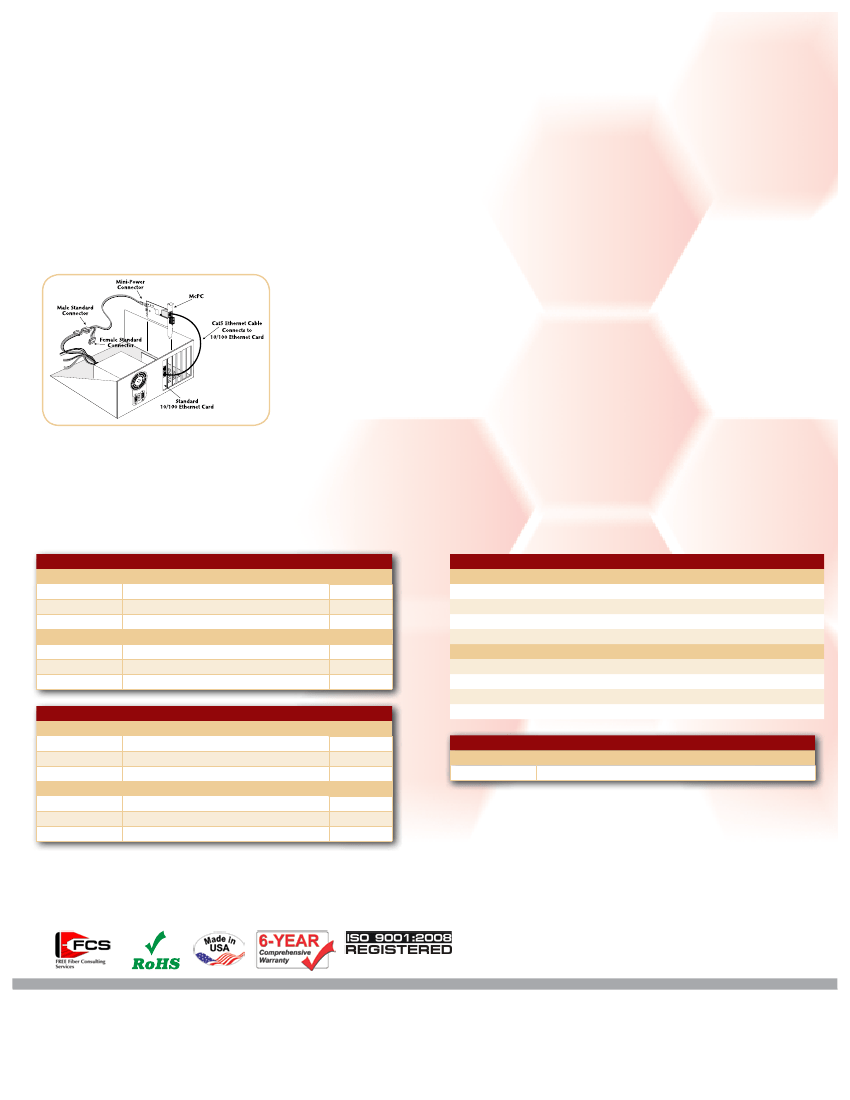

Application Example

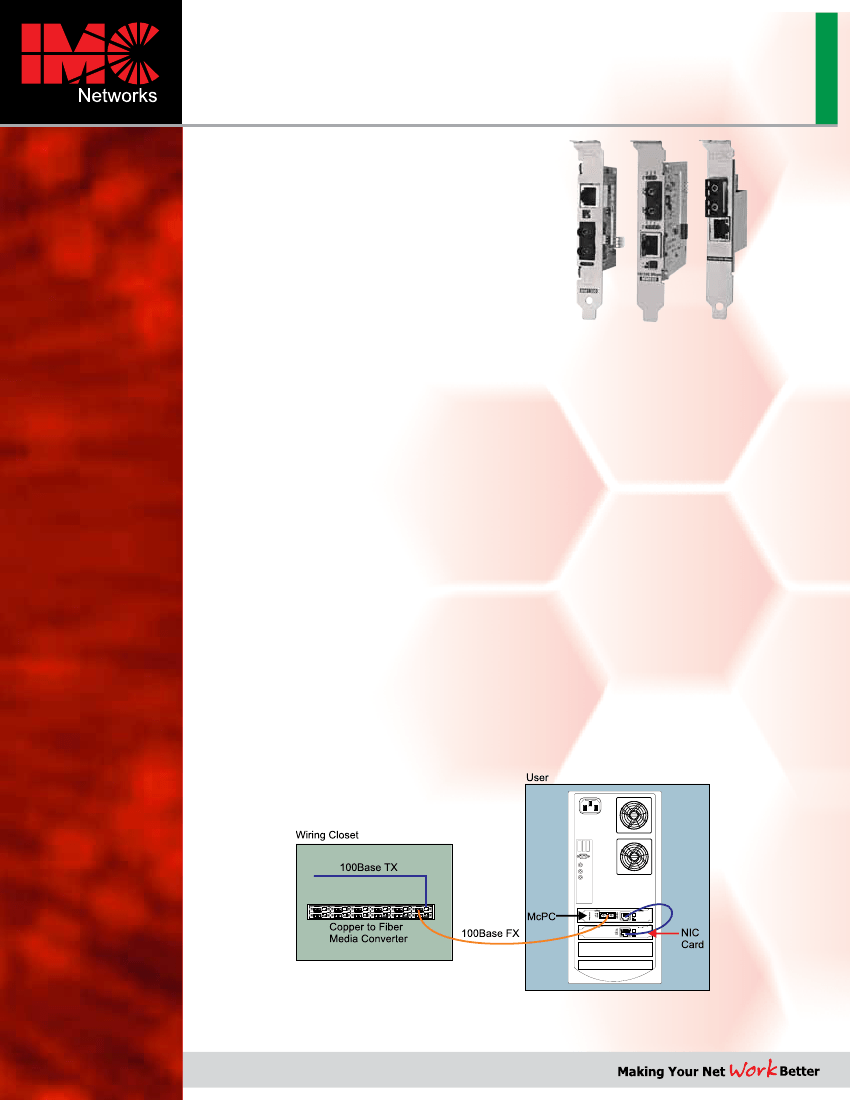

The McPC series is ideal for delivering FTTD applications to employees in an environment of changing workstation

locations. Run fiber from the wiring closet to users and install McPC inside the PC to connect to a twisted pair NIC.

www.imcnetworks.com

800-624-1070

RoHS Compliant

855-12901 Related Products

	855-12901	855-12906	855-12905	855-12907	855-12903
Description	mcpc/pci-gigabit, TX/LX-sm1310-S	mcpc/pci-gigabit, TX/sslx-sm1310	mcpc/pci-gigabit, TX/sslx-sm1550	mcpc/pci-gigabit, TX/sslx-sm1550	mcpc/pci-gigabit, TX/LX-sm1550/L
Standard Package	1	1	1	1	1
Category	Networking Solutions	Networking Solutions	Networking Solutions	Networking Solutions	Networking Solutions
Family	Miscellaneous	Miscellaneous	Miscellaneous	Miscellaneous	Miscellaneous
