HAA1105W-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HAA1105W-TR

HAA1105W-TR: Descriptionled orange clear 1206 smd; CategoryLED optoelectronic/LED photoelectric; File Size537KB，21 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

HAA1105W-TR Overview

led orange clear 1206 smd

HAA1105W-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
color	ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	20.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.85 mm
method of packing	TAPE AND REEL
peak wavelength	605 nm
shape	ROUND
size	1.6 mm
surface mount	YES
Terminal pitch	3.3 mm
perspective	40 deg
Base Number Matches	1

Preview

Download Datasheet

View All

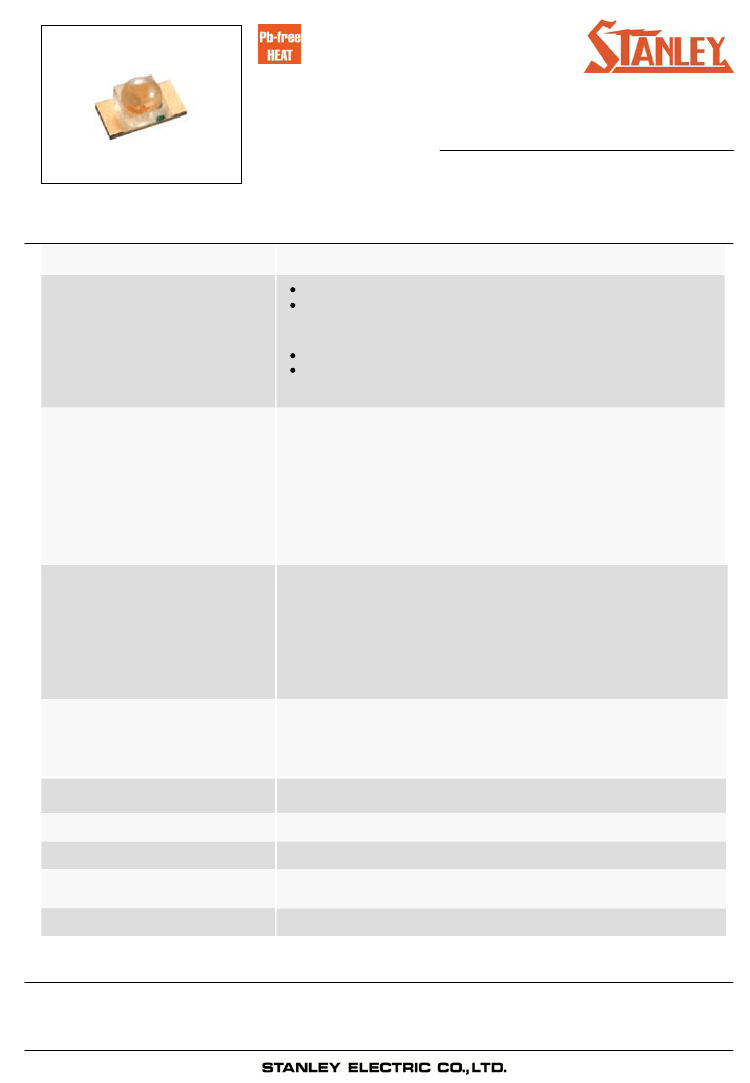

1105W Series

Single Color 3216 Dome Lenz Type

Features

Package

Product features

3216 Dome Lens Type, Water Clear resin

Outer Dimension 3.2 x 1.6 x 1.85mm ( L x W x H )

Temperature range

Storage Temperature

: -40℃½100℃

Operating Temperature : -40℃½120℃

Lead–free soldering compatible

RoHS compliant

Green

Yellow Green

Yellow

Orange

Red

: 558nm(HBG),567nm(HPG)

: 572nm(HPY)

: 590nm(HAY)

: 606nm(HAA)

: 647nm(HBR)

Dominant wavelength

Half Intensity Angle

HBG,HPG,HPY,HAY,HAA : 40 deg.

HBR

: 50 deg.

Die materials

HBG,HPG,HPY : GaP

HAY,HAA

: GaAsP

HBR

: GaAlAs

Sorted by luminous intensity per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering and manual soldering

2,000pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

More than 2kV (HBM)

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESD

Recommended Applications

Amusement Equipment, Electric Household Appliances, OA/FA, Other General Applications

2007.8.31

Page 1

HAA1105W-TR Related Products

	HAA1105W-TR	HBG1105W-TR	HAY1105W-TR	HPG1105W-TR	HBR1105W-TR	HPY1105W-TR
Description	led orange clear 1206 smd	led pure green clear 1206 smd	led yellow clear 1206 smd	led green clear 1206 smd	led red clear 1206 smd	led yellow-green clear 1206 smd
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	compli	compliant	compli	compliant
color	ORANGE	PURE GREEN	YELLOW	GREEN	RED	YELLOW GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	20.0 mcd	12.0 mcd	20.0 mcd	30.0 mcd	50.0 mcd	50.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.85 mm	1.85 mm	1.85 mm	1.85 mm	1.85 mm	1.85 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	605 nm	555 nm	580 nm	560 nm	660 nm	570 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
surface mount	YES	YES	YES	YES	YES	YES
Terminal pitch	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm	3.3 mm
perspective	40 deg	40 deg	40 deg	40 deg	50 deg	40 deg
Base Number Matches	1	1	1	1	1	1
