851-18200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> 851-18200

851-18200: DescriptionIE-imcv-vdsl2-lanextender; CategoryModule/solution; File Size679KB，20 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric View All

851-18200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	851-18200	-	-	View	Buy Now

851-18200 Overview

IE-imcv-vdsl2-lanextender

851-18200 Parametric

Parameter Name	Attribute value
Datasheets
IE-iMcV-VDSL2-LANex Manual
851-18200 Datashee
Product Photos
851-18200
Standard Package	1
Category	Networking Solutions
Family	Miscellaneous

Preview

Download Datasheet

View All

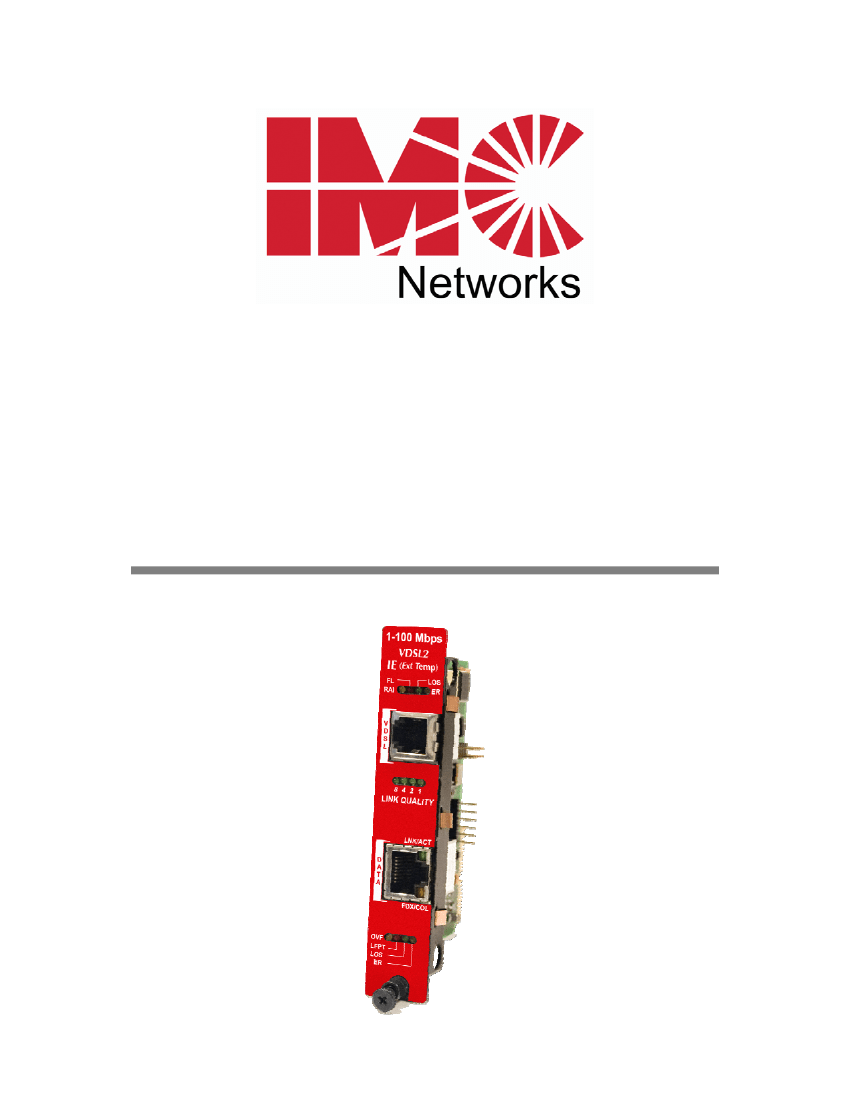

IE-iMcV-VDSL2-LANextender

Operation Manual

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which the user will be required to correct the interference at their expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class B

limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe B

prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.

Warranty

IMC Networks warrants to the original end-user purchaser that this product, EXCLUSIVE OF SOFTWARE, shall be free

from defects in materials and workmanship under normal and proper use in accordance with IMC Networks' instructions

and directions for a period of six (6) years after the original date of purchase. This warranty is subject to the limitations set

forth below.

At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such

warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable

use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician

or by any other causes unrelated to defective materials or workmanship. Any replaced or repaired products or parts carry

a ninety (90) day warranty or the remainder of the initial warranty period, whichever is longer.

To receive in-warranty service, the defective product must be received at IMC Networks no later than the end of the

warranty period. The product must be accompanied by proof of purchase, satisfactory to IMC Networks, denoting

product serial number and purchase date, a written description of the defect and a Return Merchandise Authorization

(RMA) number issued by IMC Networks. No products will be accepted by IMC Networks which do not have an RMA

number. For an RMA number, contact IMC Networks at PHONE: (800) 624-1070 (in the U.S and Canada) or (949) 465-

3000 or FAX: (949) 465-3020. The end-user shall return the defective product to IMC Networks, freight, customs and

handling charges prepaid. End-user agrees to accept all liability for loss of or damages to the returned product during

shipment. IMC Networks shall repair or replace the returned product, at its option, and return the repaired or new

product to the end-user, freight prepaid, via method to be determined by IMC Networks. IMC Networks shall not be

liable for any costs of procurement of substitute goods, loss of profits, or any incidental, consequential, and/or special

damages of any kind resulting from a breach of any applicable express or implied warranty, breach of any obligation

arising from breach of warranty, or otherwise with respect to the manufacture and sale of any IMC Networks product,

whether or not IMC Networks has been advised of the possibility of such loss or damage.

EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, IMC NETWORKS MAKES NO OTHER WARRANTIES,

WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS IMC NETWORKS PRODUCT, INCLUDING WITHOUT

LIMITATION ANY SOFTWARE ASSOCIATED OR INCLUDED. IMC NETWORKS SHALL DISREGARD AND NOT BE

BOUND BY ANY REPRESENTATIONS OR WARRANTIES MADE BY ANY OTHER PERSON, INCLUDING EMPLOYEES,

DISTRIBUTORS, RESELLERS OR DEALERS OF IMC NETWORKS, WHICH ARE

INCONSISTENT WITH THE WARRANTY SET FORTH ABOVE. ALL IMPLIED WARRANTIES INCLUDING THOSE OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY LIMITED TO THE DURATION OF THE

EXPRESS WARRANTY STATED ABOVE.

Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials

accurately describe IMC Networks product specifications and capabilities at the time of publication. However, because of

ongoing improvements and updating of IMC Networks products, IMC Networks cannot guarantee the accuracy of printed

materials after the date of publication and disclaims liability for changes, errors or omissions.

Table of Contents

FCC Radio Frequency Interference Statement ........................................................... ii

Warranty................................................................................................................... ii

About the IE-iMcV-VDSL2-LANextender ...................................................................1

Configuration Instructions .........................................................................................1

Installing IE-iMcV-VDSL2-LANextender Modules.......................................................2

LED Operation..........................................................................................................3

DIP Switch Settings ...................................................................................................4

Host (CO) Module Configuration ..............................................................................5

Remote (CPE) Module Configuration.........................................................................5

DATA Port Features ..................................................................................................5

Auto Negotiation.......................................................................................................5

Selective Advertising .................................................................................................6

SNMP Management ..................................................................................................6

LINK Quality .............................................................................................................7

Forcing Duplex Mode ...............................................................................................7

Forcing the Data Port Speed......................................................................................7

Flow Control .............................................................................................................7

Link Fault Pass-Through ............................................................................................8

Fault Loopback (FL)...................................................................................................8

Maximum Bandwidth IE-iMcV-VDSL2-LANextender Link LEDS ................................9

Primary Line Protector ........................................................................................11

Appendix—Pinouts .................................................................................................12

RJ-45 Data Port Pinout (MDI)..............................................................................12

RJ-11 Port Pinout ................................................................................................12

Troubleshooting ......................................................................................................13

Specifications ..........................................................................................................14

IMC Networks Technical Support............................................................................15

Safety Certifications.................................................................................................16

iii

About the IE-iMcV-VDSL2-LANextender

The IE-iMcV-VDSL2-LANextender enables LAN and Campus network managers, and

service providers, to use an existing phone-grade wiring to support high bandwidth

Ethernet connections. Industry standard 2Base-TL provisions symmetric data delivery

over the outside plant defined by IEEE802.3ah. 10Pass-TS transport is designed to

meet short-range, high data rate requirements over standard copper wire defined by

IEEE802.3ah for inside a plant environment. They can achieve this by using Ethernet

over VDSL where the 100m distance limitation of twisted pair data cabling is no

longer a challenge.

Designed with VDSL (second generation Very high-bit-rate Digital Subscriber Line)

technology, the IMC Networks Ethernet-to-VDSL converter allows the transmission of

data over a single pair of sub-standard CAT3 and other telephone cabling to achieve

substantially longer distances. As a media and protocol converter, the IE-iMcV-

VDSL2-LANextender includes the ability to transfer data both symmetrically and

asymmetrically to meet the customer's needs. In either mode, the VDSL2 port

automatically adjusts to an operating point that maximizes the Full-Duplex bandwidth

capability of the line for true plug-and-play operation.

Two IE-iMcV-VDSL2-LANextender media converters are configured as pairs for each

link. One is configured as a Host (Central Office (CO)) IE-iMcV-VDSL2-LANextender

module and is typically deployed at the CO close to network management systems.

The other is configured as a Remote Customer Premise (CPE) IE-iMcV-VDSL2-

LANextender module and is deployed at the CPE. Full CNMP remote line

management is provided through an IMC Networks managed chassis, providing

remote notification of all line fault conditions.

IE-iMcV-VDSL2-LANextender modules include:

•

One VDSL port with an RJ-11 connector (VDSL)

One 10/100BaseT Ethernet port with an RJ45 connector (DATA Port)

Configuration Instructions

IE-iMcV-VDSL2-LANextender modules include various user-configurable features.

These features are selectable by using DIP Switches and software. The following

sections describe the DIP Switches for the Host (CO) and Remote (CPE) module

configuration.
