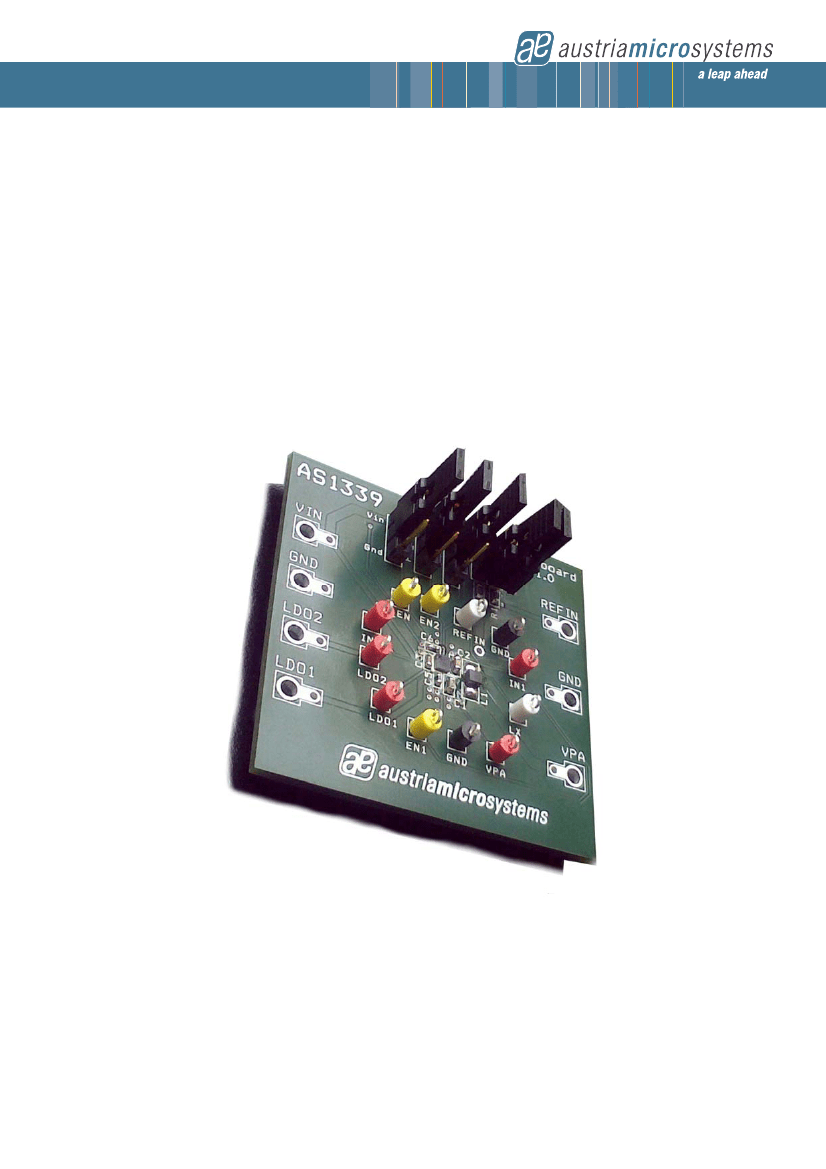

AS1339 - Evaluation Board
Application Note
General Description
Board Description

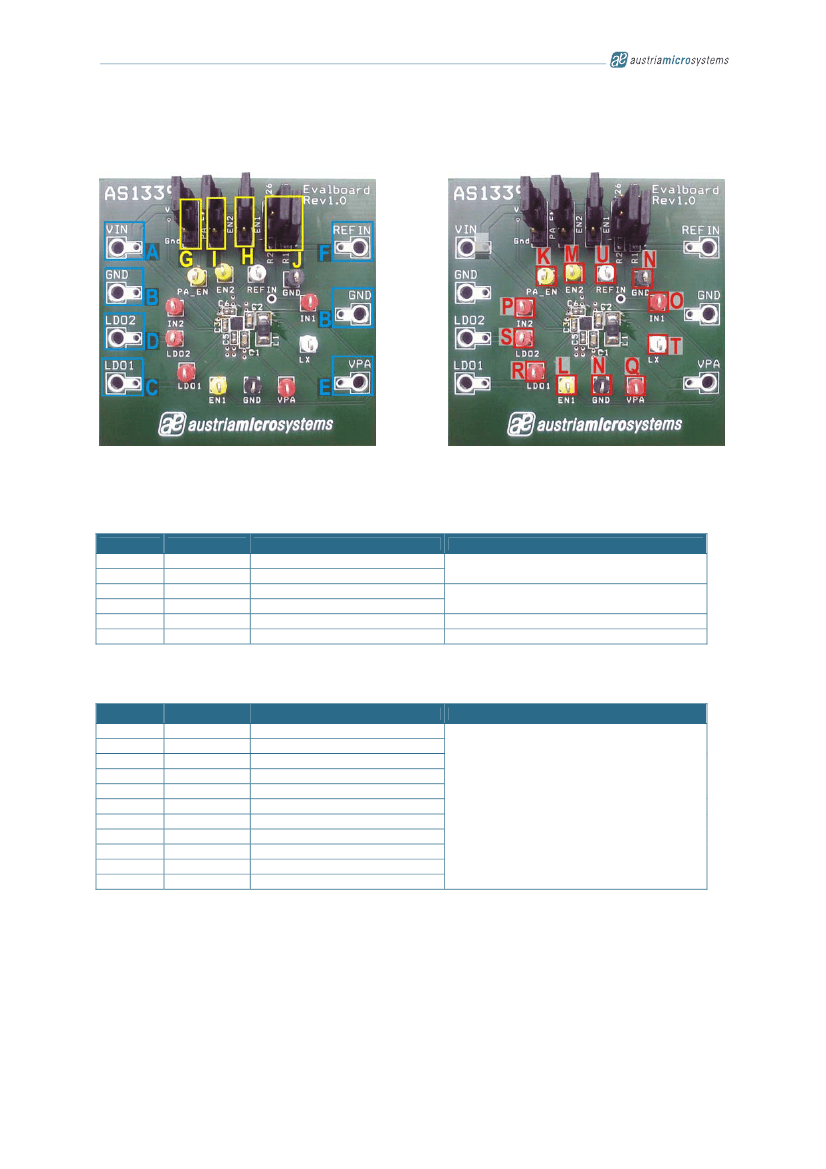

Figure 1: Board Description - Connector
Figure 2: Board Description – Measurement Points
Connector Description
Label
Name
Description
Info
A
B
C
D
E
F
VIN
GND
LDO1
LDO2
VPA
REFIN
Input Voltage
Ground
LDO1 Output Connector
LDO2 Output Connector
Step-Down Output Connector
DAC Controlled Input
Input voltage ranging from 2.7V to 5.5V
Output voltage: 2.85V
Output voltage ranging from 0.8V to 3.75V
Reference voltage for step-down converter
Measurement Points Description
Label
Name
Description
Info
K
L
M
N
O
P
Q
R
S
T
U
PA_EN
EN1
EN2
GND
IN1
IN2
VPA
LDO1
LDO2
LX
REFIN
Enable for Step-Down
Enable for LDO1
Enable for LDO2
Ground.
Power Input for the Step-Down
Power Input for the LDO’s
Output of the Step-Down
Output of the LDO1
Output of the LDO2
External Inductor
Reference Input
Measurement Points
www.austriamicrosystems.com
Revision 1.00
2-5

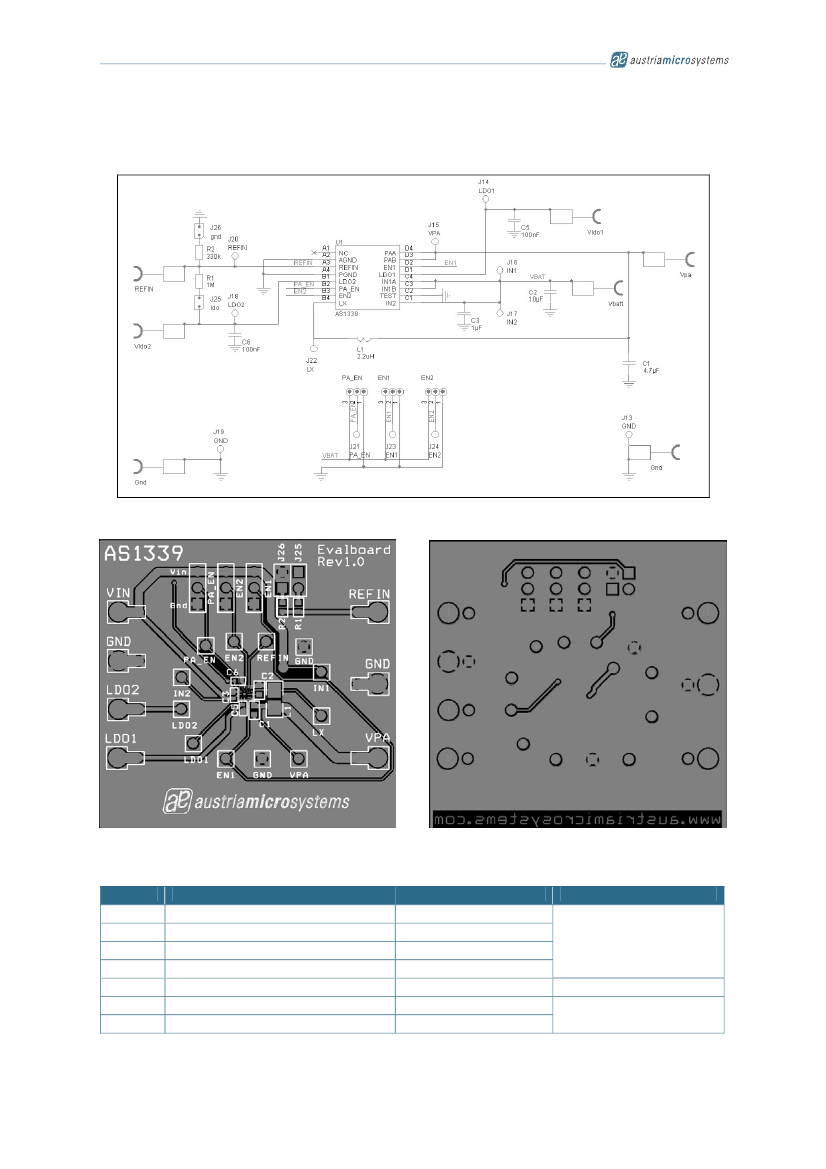

AS1339 - Evaluation Board
Application Note
Jumper Description
Label
Name
Description
Info
G
PA_EN
Enable Jumper Step-
Down
ON = The Step-Down of the AS1339 is on.
OFF = The Step-Down of the AS1339 is off.
ON = The LDO1 of the AS1339 is on.
H
EN1
Enable Jumper LDO1
OFF = The LDO1 of the AS1339 is off.
ON = The LDO2 of the AS1339 is on.
I
EN2
Enable Jumper LDO2
OFF = The LDO2 of the AS1339 is off.
R2 and R1 are set;
The Output Voltage of the Step-Down is regulated to
1.8V.
R2 is open, R1 is set;
The Output Voltage of the Step-Down is regulated to
3.75V or is in Bypass Mode.
R2 is set, R1 is open;
The Output Voltage of the Step-Down is regulated to
maximum 0.8V.
R2 and R1 are open;
The Output Voltage of the Step-Down can be set via an
external source on Connector
“F”
(REFIN). Allowed
Voltage Range on REFIN: GND to VIN
Voltage Divider
Pull - up
J
R2, R1
Pull - down
Connector F (REFIN)
Note:
-
-
For all current measurements remove both jumper
“J”
(R1 and R2).
Due to the tolerances of the external resistances R1 and R2, the stated output voltages of the Step-
Down converter are not guaranteed.
Operational sequence
This evaluation board comes with the AS1339.
1.
2.
3.
Drive the IC on the evaluation board only with the recommended settings and values as described in the
datasheet.
Connect a 2.7V to 5.5V power supply (VIN
“A”
and GND
“B”).
Perform measurements at the measurement points
“K”
to
“U”.
If there are questions do not hesitate to contact us. See contact information at the end of the application note.
