VSPC 1CL PW 24V EX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

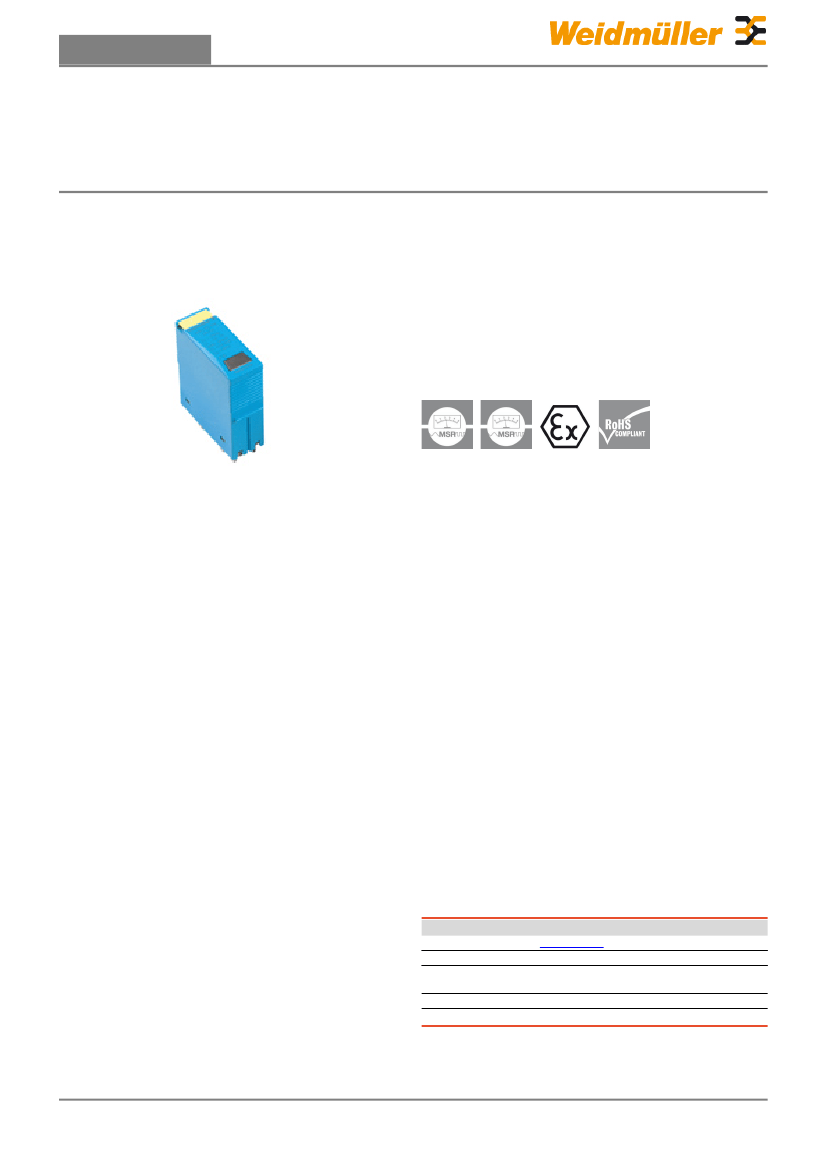

Analogue signal / CL (current loop) protection includes
the following signals:
• Signals from current loops (analogue measurements of
transmitters over long distances) 4-20 mA, 0-20 mA,
etc.
• Two-wire, three-wire and four-wire, without a common
reference potential
• for example: fill-level measurement signals from voltage
transmitters (analogue measurements of transmitters
over short distances) 0-10 V, PT 100 etc.; for example:
temperature measurements
• Pluggable arrester, with no-interrupt and impedance-
neutral plug-in and pull-out
• Can be tested with the V-TEST testing device
• Space-saving design for 2 analogue signals
• Version with floating-earth PE connection used to avoid
differences in voltage potential
• Can be used in compliance with the IEC 62305 (D1,
C1, C2 and C3) installation standard
• Integrated PE foot, safely discharges up to 20 kA (8/20
μs) and 2.5 kA (10/350 μs) to PE
• Quick identification in the electrical cabinet with
coloured labelling of the voltage levels
• Coding element for the different voltage levels provides
safety
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8953610000
VSPC 1CL PW 24V EX
Surge protection for instrumentation and control,
without warning function / function indicator
4032248745760
1 pc(s).
Creation date April 29, 2013 5:24:35 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
1
Data sheet...
VSPC 1CL PW 24V EX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
17.8 mm
69 mm
Height
Net weight
Dimensions and weights
Width
Depth
90 mm
50 g
Temperatures
Humidity
Storage temperature
5...96 %
-40 °C...+80 °C
Operating temperature
-40 °C...+70 °C
Probability of failure
λges
PFH in 1*10 per hour
SIL in compliance with IEC 61508
-9
45
1.95
3
MTTF
SFF
2,537 Years
95.67 %
General data
Colour
Light Blue
IP 20
V-0
Optical function display
Segment
For Class III protection,
green = OK; red = arrester
is defective - replace
Instrumentation and
Control
Protection degree
UL 94 flammability rating
Insulation coordination acc. to EN 50178
Pollution severity
2
Surge voltage category
III
Interference voltage
Protection level on output side Wire-wire
1 kV/µs, typically
60 V
Protection level on output side Wire-PE
1kV/µs, typically
450 V
Protection level on output side Wire-wire
8/20 µs, typically
60 V
Protection level on output side Wire-PE
8/20 µs, typically
650 V
Protection level
Protection level, U
P
GND - PE
Protection level, U
P
wire - wire
450 V
40 V
Protection level, U
P
wire - PE
450 V
Creation date April 29, 2013 5:24:35 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
2
Data sheet...
VSPC 1CL PW 24V EX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
technical data
Rated voltage (AC)
34 V
Rated current
350 mA
Max. continuous voltage, Uc (AC)
27 V
Discharge current I
n
(8/20µs) wire-wire
2.5 kA
Discharge current I
n
(8/20µs) wire-PE 2.5 kA
Discharge current I
max
(8/20µs) GND-PE 10 kA
Combined pulse U
OC
6 kV
Protection level on output side Wire-wire
8/20 µs, typically
60 V
Standards
IEC 61643-21, IEC 62305,
DIN EN 60079-0.2009,
DIN EN 60079-11:2007,
DIN EN 60079-26:2007,
DIN EN 61241-11:2006
Humidity
5...96 %
Lightning test current I
imp
(10/350 µs)
2.5 kA
Lightning test current I
imp
(10/350 µs)
[N-PE]
2.5 kA
Residual voltage, U
P
typical
800 V
Overload - failure mode
Modus 2
Rated voltage (DC)
Rated voltage (DC), max.
Max. continuous voltage, Uc (DC)
Discharge current I
max
(8/20µs) wire-
wire
Discharge current I
n
(8/20µs) GND-PE
Discharge current I
max
(8/20µs) wire-PE
Protection level U
P
(typ.)
Protection level on output side Wire-PE
8/20 µs, typically
Colour
24 V
38 V
28 V
10 kA
2.5 kA
10 kA
< 650 V
650 V
Requirements category acc. to IEC
61643-21
Lightning test current I
imp
(10/350 µs)
[L-PE]
Volume resistance
Dielectric strength at FG against PE
Light Blue
C1, C2, C3, D1
2.5 kA
2.20 Ω
≥ 500 V
EX protection data
Certificate No. (ATEX)
Internal capacitance, max. C
I
Temperature class T4/135°C (-40°C ...
+85°C) li
Temperature class T6/85 °C (-40 °C ...
+60°C) li
KEMA10ATEX0148X
< 4 nF
350 mA
250 mA
Input power, max. P
I
3W
Internal inductance, max. L
I
0 µH
Temperature class T5/100°C (-40 ° C ...
+75°C) li
250 mA
Further details of approvals
GOST certificate
GOST-Zertifikat
Rated data UL
UL certificate
UL 497b Certificate
Ratings IECEx/ATEX
ATEX certificate
IEC Ex certificate
ATEX Certificate
IECEX Zertifikat
Certificate No. (ATEX)
KEMA10ATEX0148X
Classifications
ETIM 3.0
eClass 4.1
eClass 6.2
EC000943
27-13-08-01
27-13-08-02
UNSPSC
eClass 5.1
eClass 7.1
30-21-19-21
27-13-08-01
27-13-08-02
Creation date April 29, 2013 5:24:35 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
3
Data sheet...
VSPC 1CL PW 24V EX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Approvals
Approvals
ROHS
Conform
Probability of failure
SIL PAPER
SIL Paper
Downloads
Package insert
Declaration of Conformity
EPLAN
Selection matrix
Instruction Sheet
K346_07_10.pdf
8953610000.ema
Preference selection VSPC
Creation date April 29, 2013 5:24:35 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
4
Data sheet...
VSPC 1CL PW 24V EX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

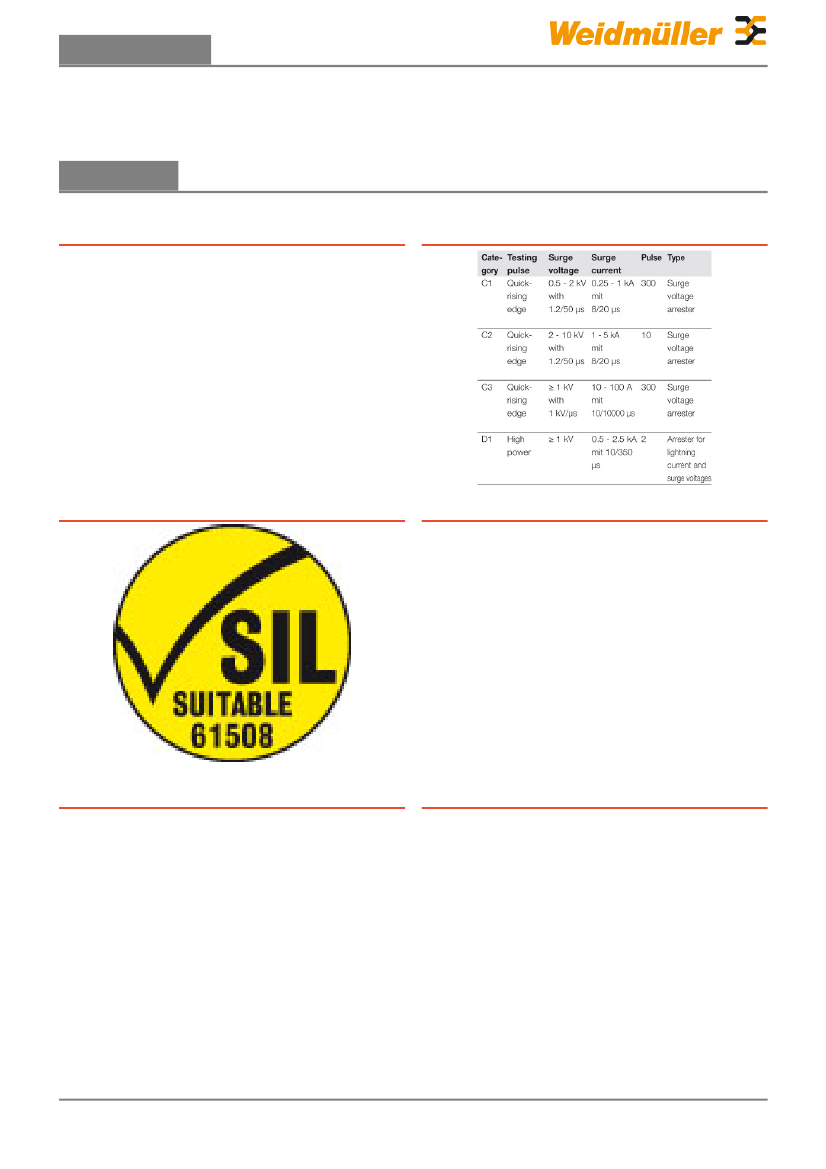

Drawings
Circuit diagram
Discharge capacity
Creation date April 29, 2013 5:24:35 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
5
