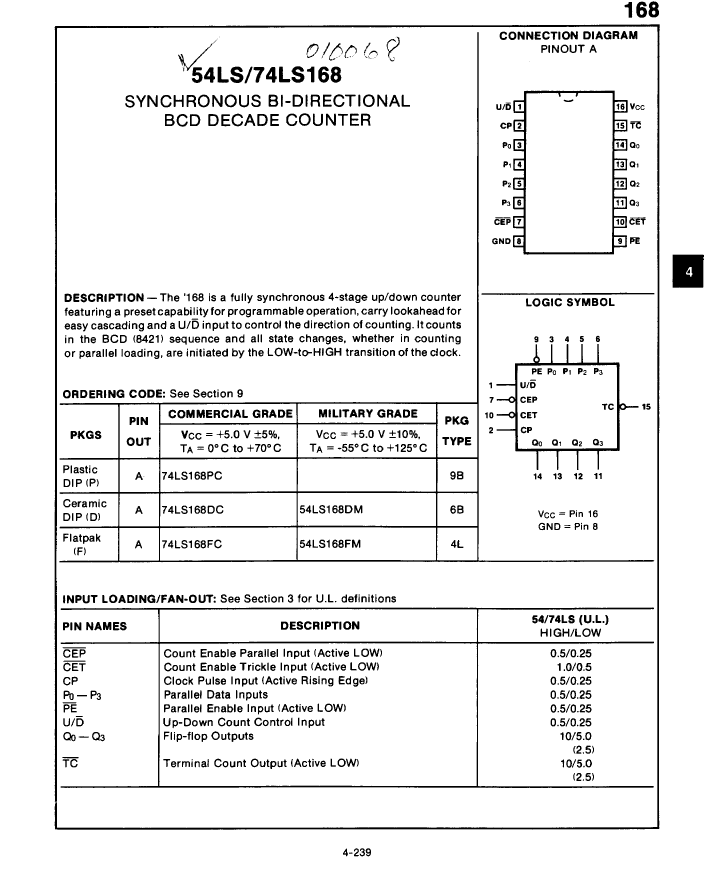

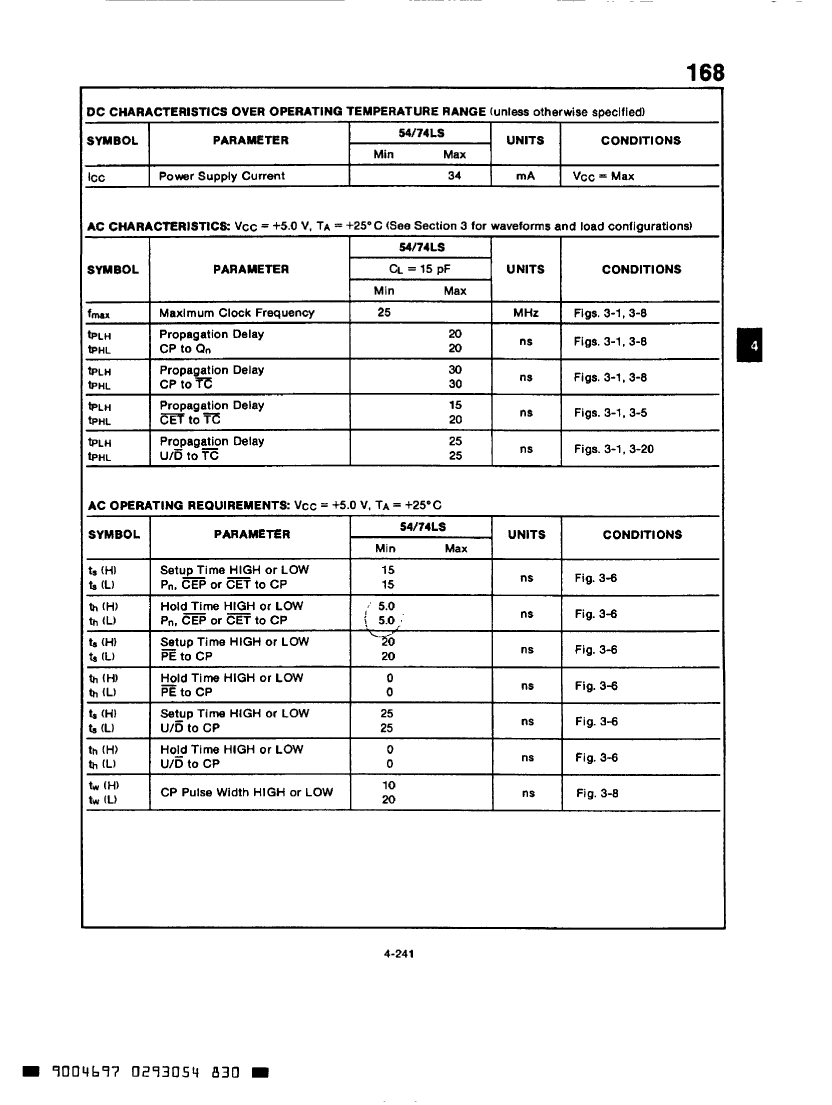

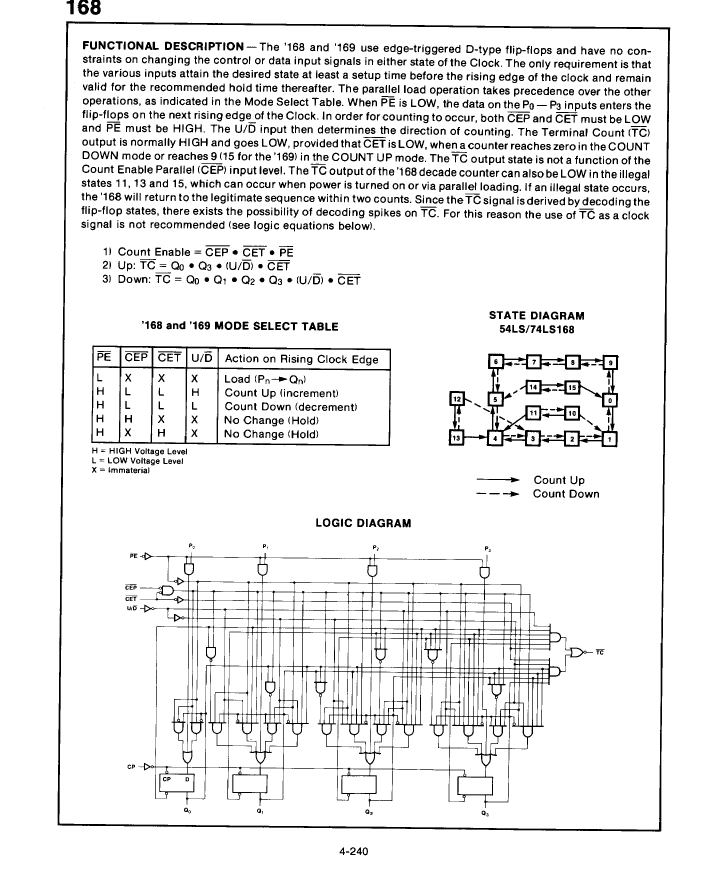

Decade Counter, Synchronous, Bidirectional, TTL, PDFP16,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DFP, FL16,.3 |
| Reach Compliance Code | compliant |
| Counting direction | BIDIRECTIONAL |
| JESD-30 code | R-PDFP-F16 |
| JESD-609 code | e0 |
| Load/preset input | YES |
| Logic integrated circuit type | DECADE COUNTER |
| Operating mode | SYNCHRONOUS |
| Humidity sensitivity level | 2A |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | 250 |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| Base Number Matches | 1 |
| 74LS168PCQM | 74LS168PCQR | 74LS168DCQM | 74LS168DCQR | 74LS168FCQR | RSB3RM1217223 | 74LS168FCQM | |
|---|---|---|---|---|---|---|---|
| Description | Decade Counter, Synchronous, Bidirectional, TTL, PDFP16, | Decade Counter, Synchronous, Bidirectional, TTL, PDFP16, | Decade Counter, Synchronous, Bidirectional, TTL, CDFP16, | Decade Counter, Synchronous, Bidirectional, TTL, CDFP16, | Decade Counter, Synchronous, Bidirectional, TTL, CDFP16, | 15A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK | Decade Counter, Synchronous, Bidirectional, TTL, CDFP16, |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | unknown | compliant |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | - | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | - | incompatible |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | - | Fairchild |
| package instruction | DFP, FL16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | - | DFP, FL16,.3 |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | - | BIDIRECTIONAL |
| JESD-30 code | R-PDFP-F16 | R-PDFP-F16 | R-XDFP-F16 | R-XDFP-F16 | R-XDFP-F16 | - | R-XDFP-F16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | - | e0 |
| Load/preset input | YES | YES | YES | YES | YES | - | YES |
| Logic integrated circuit type | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | DECADE COUNTER | - | DECADE COUNTER |
| Operating mode | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | - | SYNCHRONOUS |
| Humidity sensitivity level | 2A | 2A | 2A | 2A | 2A | - | 2A |
| Number of functions | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | - | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | - | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | - | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC | CERAMIC | CERAMIC | - | CERAMIC |
| encapsulated code | DFP | DFP | DFP | DFP | DFP | - | DFP |
| Encapsulate equivalent code | FL16,.3 | FL16,.3 | FL16,.3 | FL16,.3 | FL16,.3 | - | FL16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | FLATPACK | FLATPACK | FLATPACK | - | FLATPACK |
| Peak Reflow Temperature (Celsius) | 250 | 250 | 250 | 250 | 250 | - | 250 |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | - | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | - | 5 V |
| surface mount | YES | YES | YES | YES | YES | - | YES |
| technology | TTL | TTL | TTL | TTL | TTL | - | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT | - | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | - | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | - | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | 30 | 30 | 30 | - | 30 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | 1 |
