LN81CPHL datasheet, PDF - EEWORLD Datasheet

LN81CPHL: Descriptionled orange (water clear lense); CategoryLED optoelectronic/LED photoelectric; File Size79KB，1 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

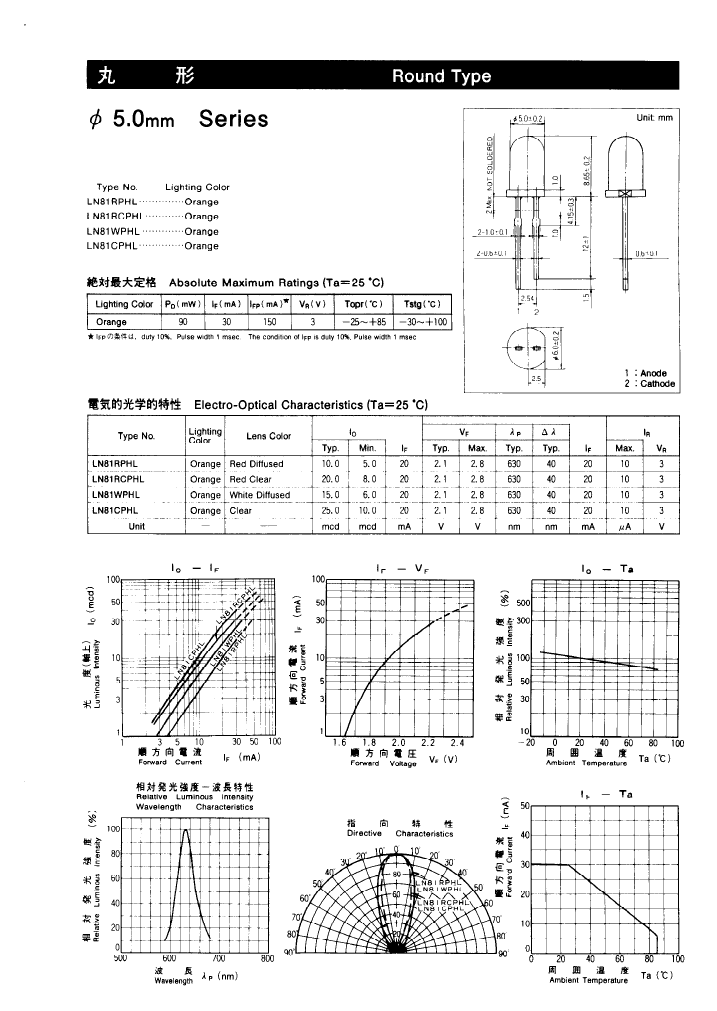

LN81CPHL Overview

led orange (water clear lense)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Panasonic
Reach Compliance Code	unknow
color	ORANGE
color@wavelength	Ambe
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Lens type	CLEAR
Nominal luminous intensity	25.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.65 mm
method of packing	BULK
peak wavelength	630 nm
Maximum reverse voltage	3 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	30 deg

	LN81CPHL	LN81RCPHL	LN81RPHL	LN81WPHL
Description	led orange (water clear lense)	led orange (red clear lens) rnd	led orange (red diffsd lens) rnd	led orange/white diff 5mm round
Maker	Panasonic	Panasonic	Panasonic	Panasonic
Reach Compliance Code	unknow	unknow	unknow	unknow
color	ORANGE	ORANGE	ORANGE	ORANGE
color@wavelength	Ambe	Ambe	Ambe	Ambe
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A
Maximum forward voltage	2.8 V	2.8 V	2.8 V	2.8 V
Lens type	CLEAR	RED CLEAR	RED DIFFUSED	WHITE DIFFUSED
Nominal luminous intensity	25.0 mcd	20.0 mcd	10.0 mcd	15.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.65 mm	8.65 mm	8.65 mm	8.65 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	630 nm	630 nm	630 nm	630 nm
Maximum reverse voltage	3 V	3 V	3 V	3 V
shape	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	30 deg	30 deg	40 deg	40 deg
Is it Rohs certified?	incompatible	-	incompatible	incompatible
JESD-609 code	e0	-	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
