Part Number

Search

52892-2459

Description
Card Edge Connector, 24 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size385KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

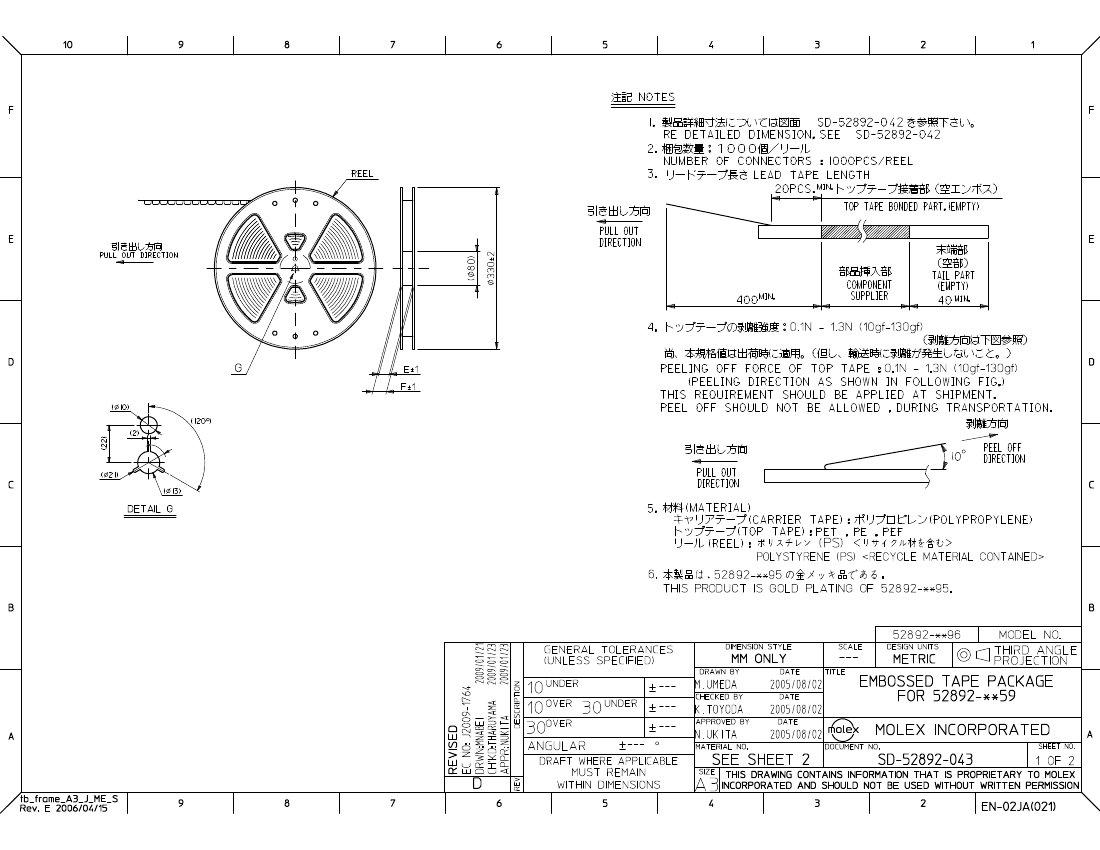

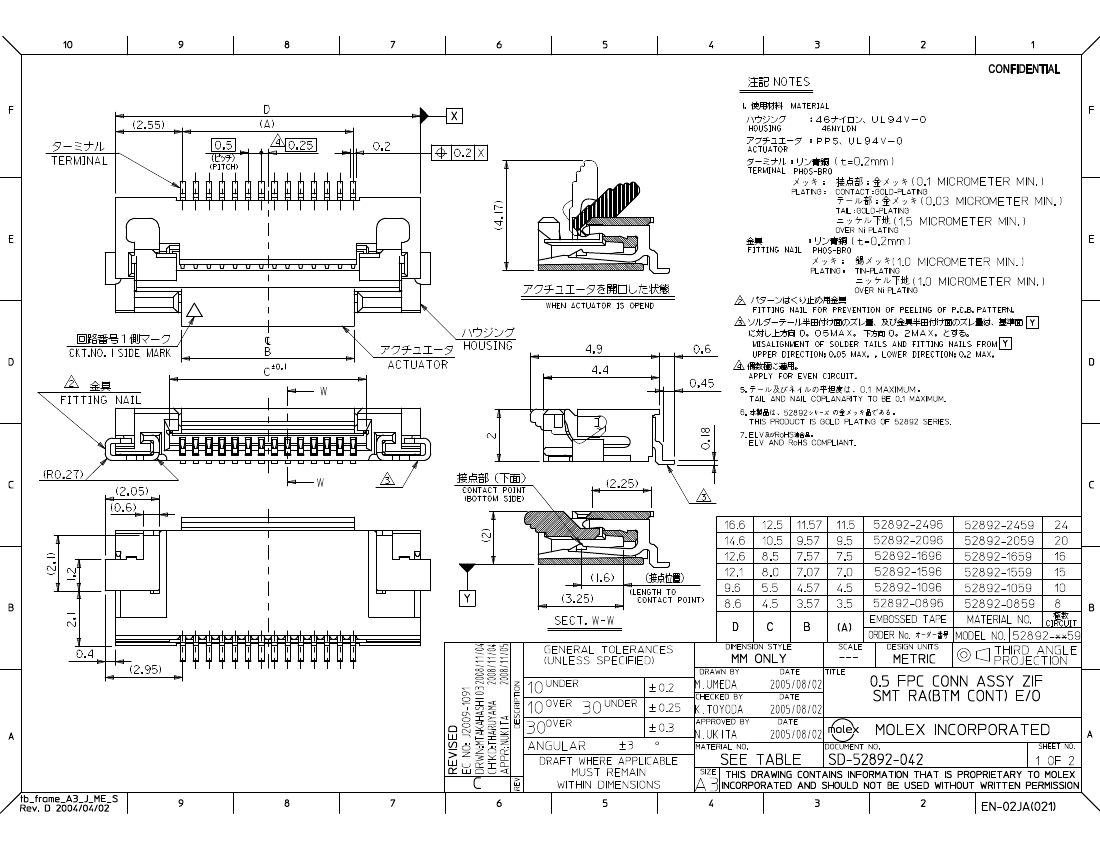

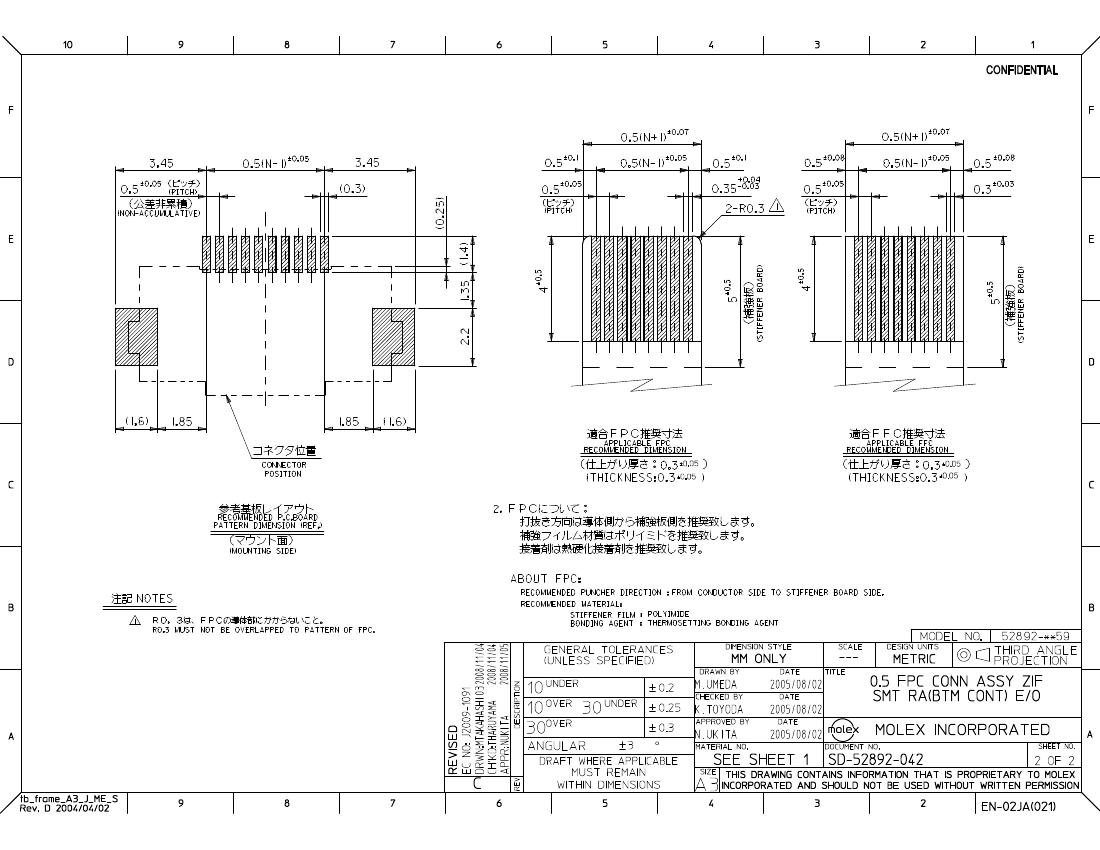

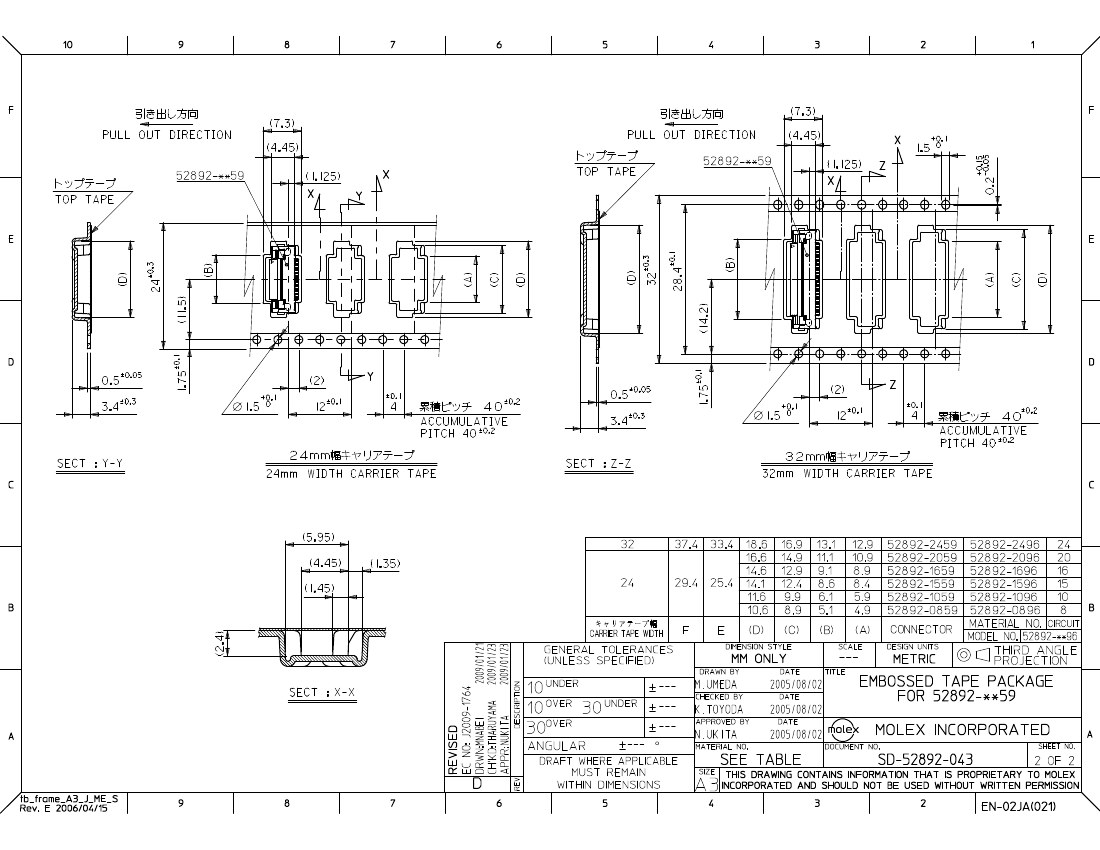

52892-2459 Overview

Card Edge Connector, 24 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking

52892-2459 Parametric

Parameter NameAttribute value
Objectid304029305
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL7.78
Board mount optionsFITTING NAIL
body width0.079 inch
subject depth0.216 inch
body length0.654 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Insulation resistance50000000 Ω
insulator materialPOLYAMIDE
Plug contact pitch0.020 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts24
