FEATURES AND SPECIFICATIONS
Features and Benefits
n
n
n
n
n
n
Sizes 3 to 14 circuits
High voltage
Rising cage pressure clamp
130
o
C operating rating
High flammability rating
Molded to length
Electrical
Voltage: 300V
Maximum Current: 30 Amp
Insulation Resistance:
>5000
Gigaohms
8.0 mm (.315”) Pitch
Beau Eurostyle®
Fixed Blocks
39960
High Power
Mechanical
Max. Tightening Torque: 12 in. lbs, 1.36 Nm
Operating Temperature:
130
o
C
Wire Strip Length: 9/32” or 7mm
Physical
Reference Information
UL :
CSA:
File No. E48521
Guide No. XCFR2
File No. 025562
Insulator: Polymide UL94V-0, Black
Screws: Steel
Screw Plating: Zinc chromate
Pressure Clamp: Brass
Pressure Clamp Plating: Nickel
Contacts: Copper Alloy
Contact Plating: Bright Tin Dip
Wire Range: 10 to 22 AWG, 4 TO 0.5mm
2

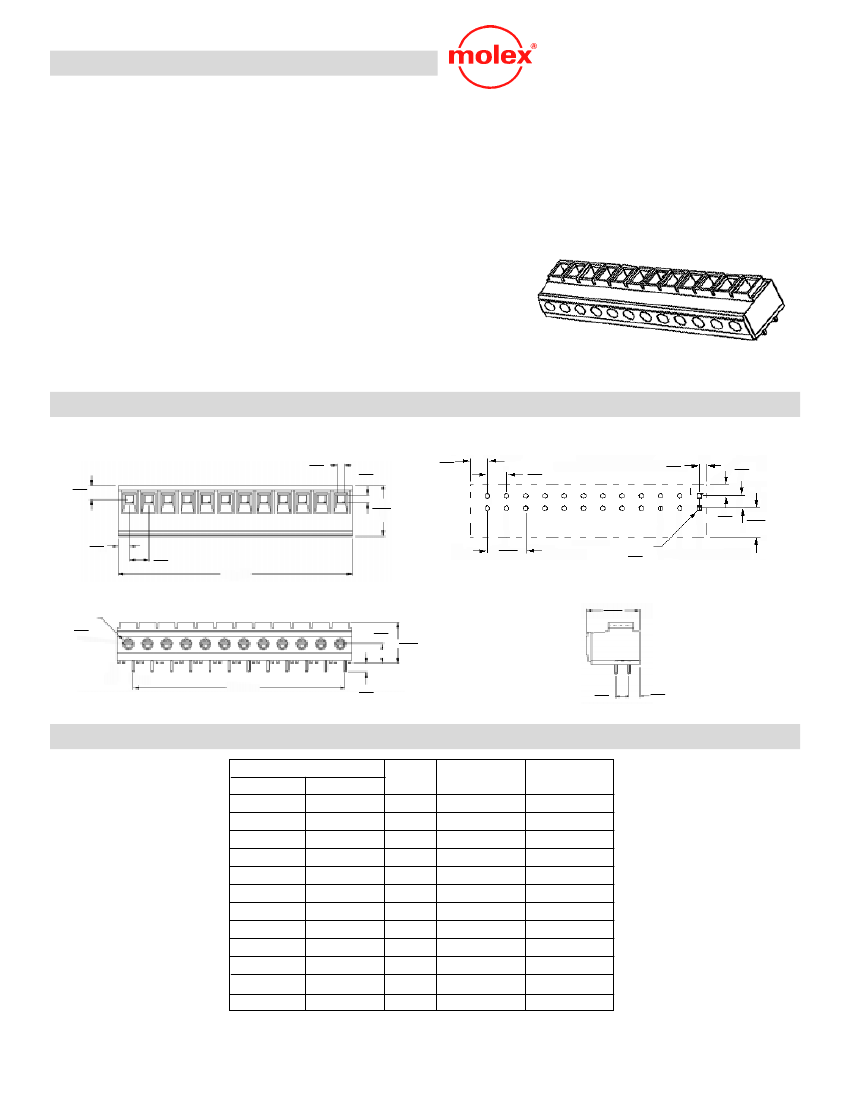

CATALOG DRAWING (FOR REFERENCE ONLY)
RECOMMENDED PTH PATTERN
6.37
.265”
3.18
.125”
6.09
.240”
3.18
.125”
8.00
.315”
2.79
.110”
5.08
.200”
21.34
.840”
4.39
.173”
16.00
.630”
Diameter
1.78
.070”
11.86
.467”
4.83
.190”
8.00
.315”
C
Diameter
3.96
.156”
23.88
.940”
8.13
.320”
17.02
.670”
A
3.81
.150”
5.08
.200”
4.39
.173”
ORDERING INFORMATION AND DIMENSIONS
Part Number *
Order #
Engineering #
39960-0203
960803
39960-0204
960804
39960-0205
960805
39960-0206
960806
39960-0207
960807
39960-0208
960808
39960-0209
960809
39960-0210
960810
39960-0211
960811
39960-0212
960812
39960-0213
960813
39960-0214
960814
# of
Circuits
3
4
5
6
7
8
9
10
11
12
13
14
A
in
.63
.94
1.26
1.58
1.89
2.20
2.52
2.84
3.15
3.46
3.78
4.10
mm
16.0
24.0
32.0
40.0
48.0
56.0
64.0
72.0
80.0
88.0
96.0
104.0
in
1.01
1.32
1.64
1.95
2.27
2.58
2.90
3.21
3.53
3.87
4.16
4.47
B
mm
25.6
33.5
41.6
49.5
57.6
65.5
73.6
81.5
89.6
97.5
105.6
113.5
* Consult factory for sequential numbering and special marking
