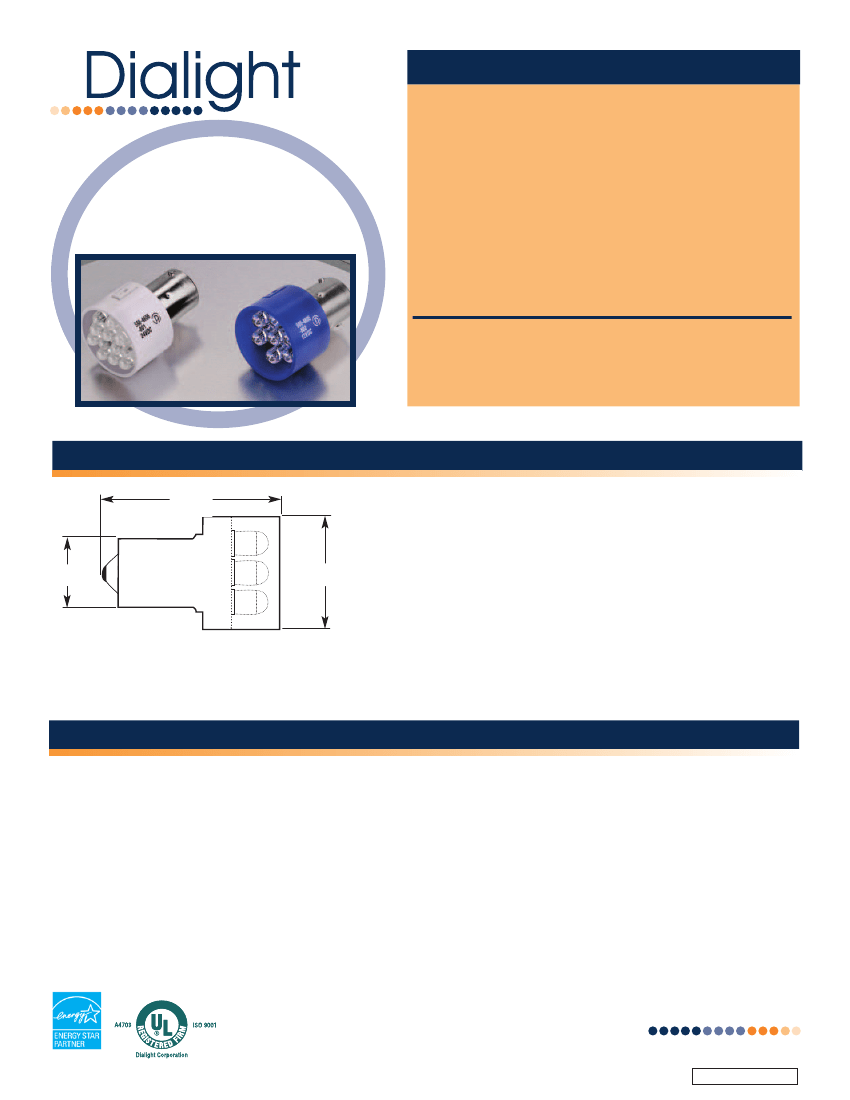

FEATURES / BENEFITS
High brightness with low current draw - uses up to
90% less energy than an incandescent
Long life - up to 100K hours
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
AIlnGaP and InGaN technology
Colors include red, green, amber, blue and white
Dialight’s line of based LED lamps is designed to directly replace
many popular subminiature and miniature incandescent lamps. The
benefits of LED technology over incandescent are significant: they
offer long life, are shock resistant, withstand vibration and provide
energy conservation.
586 Series
CLUSTER BASED LED
15mm BAYONET
(BA15S)
SPECIFICATIONS
1.525 max
[38.74]
.590
[14.99]
.980
[24.89]
Operating voltages - 14 and 28 VDC
Multiple LED construction
Operating temperature: -30
o
C to 85
o
C
Storage temperature: -40
o
C to 100
o
C
Replaces incandescent lamps*: 67, 71, 89, 93, 97,
98, 105, 199, 303, 305, 307, 315, 623, 631, 1003,
1093, 1095, 1129, 1141, 1155, 1156, 1159, 1203,
1251, 1295, 1308, 1591, 1665, 1683, 1691, 2233
*May replace other incandescent lamps.
Measurements are typical
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the color of the wavelength of the
LED. Dialight recommends using transparent lenses, which will optimize light output.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
a Roxboro Group Company
MDEL586I001_B
586 Series
CLUSTER BASED LED
15mm BAYONET
(BA15S)
15mm BAYONET (BA15S) - POLARIZED
PART NUMBER
586-4601-103
586-4602-103
586-4603-103
586-4605-103
586-4606-103
586-4601-105
586-4602-105
586-4603-105
586-4605-105
586-4606-105
COLOR
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
VOLTAGE
14
14
14
14
14
28
28
28
28
28
CURRENT
30
20
30
20
20
30
20
30
20
20
INTENSITY
17325
21000
17325
6300
23800
17325
21000
17325
6300
23800
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent
lamp when used in similar packages. These advancements have created a new type of product called the based
LED - an LED with the functionality of an incandescent bulb.
The following styles are currently available in red, green, amber, blue and white:
T 1 3/4 Midget Flange
T 1 3/4 Bi-Pin
T 1 3/4 Wedge (T5)
T 2 Telephone Slide
T 3 1/4 Miniature Bayonet (BA9S)
T 3 1/4 Miniature Screw (E10)
T 3 1/4 Wedge (T10)
15mm SC Bayonet (BA15S)
Dialight’s line of based LEDs continues to grow.
Please visit out website for more information.
www.dialight.com
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
a Roxboro Group Company
MDEL586I001_B
