DIALIGHT
PART NUMBER
COLOR
RED
LED DIE
AlGaInP
InGaN
LED EPOXY
COLOR
597-7717-502F,-507F
GREEN
BLUE
DIFFUSED WHITE
Part Numbers with the "F" suffix ending are RoHS Compliant.
For example: 597-7717-502F
Reel and bag packaging are marked with "RoHS Compliant"
label or equivalent markings. These parts can be used with
RoHS reflow profile. Parts can be wave soldered, dip soldered
or hand soldered using typical lead-free soldering process
with max 260°C temp. for 5 sec.
RoHS COMPLIANT 597-7717-50XF
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
WFB JTD
NO 12-5-12
C
300.0
260 C MAX WITHIN 10 SEC
250.0
200.0
140~180 C
230~260 C
3
4
CATHODE MARK
4
3
TEMPERATURE
.039
[1]
.008
[0,2]
150.0
100.0
50.0
1min
MINIMUM
40sec
MAX
.024
[0,6]
.039
[1]
1
2
.016
[0,4]
TYP
0.0
TIME
RECOMMENDED RoHS SOLDER PROFILE
2
ANODE MARK
1
.003
[0,08]
NOTES:
1.
2.
3.
4.
DIALIGHT PART NUMBERS: 597-7717-50XF.
TAPE & REEL MAY REQUIRE RE-TAPING AFTER 12 MONTHS.
PIN NUMBERS ARE FOR REFERENCE ONLY. DESIGNATION NON-EXISTENT ON PART OR REEL
TAPE.
...502F SUFFIX MEANS PARTS PACKAGED ON A 20 PC SAMPLE STRIP.
...507F SUFFIX MEANS PARTS PACKAGED ON A 7" [
180mm] REEL, 5,000 PCS/REEL.
5. MOISTURE SENSITIVITY LEVEL: 3
6. PACKAGING TO INCLUDE LABEL CONTAINING DIALIGHT PART NUMBER, DATE
CODE/LOT NO., LUMINOUS INTENSITY AND COLOR BINS, QTY/REEL, AND COUNTRY OF
ORIGIN.
7. THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE
DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING
ASSEMBLY, HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.
OPERATING CHARACTERISTICS AT 25 AMBIENT
C
LUMINOUS INTENSITY FORWARD VOLTAGE
COLOR
I
RED
GREEN
BLUE
5 mA
F
MIN
TYP
(mcd) (mcd)
14
35
56
28
110
45
I
F
TYP
(V)
2.2
3.3
3.2
COLOR
ABSOLUTE MAXIMUM RATINGS AT 25 AMBIENT
C
CONTINUOUS FORWARD CURRENT
PEAK FORWARD CURRENT
(LESS THAN OR EQUAL TO 1/20 DUTY CYCLE, 1kHz)
DERATE LINEARLY FROM 40 C
REVERSE VOLTAGE
STORAGE TEMPERATURE
OPERATING TEMPERATURE
RED
GREEN BLUE
20
100
0.33
5
-40 TO +100
-40 TO +85
UNITS
mA
mA
mA/ C
V
C
C
PIN 1
ANODE
REVERSE
CURRENT
V
R
MAX
(mA)
10
I
F
DOMINANT
WAVELENGTH
MIN
(nm)
619
520
465
TYP MAX
(nm) (nm)
624 629
527
470
535
475
VIEWING
ANGLE
TYP
(DEG)
120
116
120
.016
[0,4]
.157 .004 TYP
[4 0,1 ]
.069 .004 TYP
[1,75 0,1 ]
.059
[
+.004
-.000
+0,1
1,5
-0,0
TYP
]
.016
[0,4]
.018
[0,45]
TYP
.018
[0,45]
TYP
RECOMMENDED SOLDER PAD LAYOUT
.138 .002
[3,5 0,05 ]
TYP
3
2
4
1
.217
[5,5]
.315
[8]
CATHODE TOWARDS
SPROCKET
.079 .002
[2 0,05 ]
TYP
USER FEED DIRECTION
TAPE AND REEL CONFIGURATION
.000 -.020
[0,0 -0,5 ]
5 mA
5V
5 mA
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
PIN 2
RED CATHODE
PIN 3
BLUE CATHODE
PIN 4
GREEN CATHODE
SCALE: 30.000
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
DRAWING NUMBER
REV
C-18002
TITLE
MATERIAL
A
FRACTIONS:
1/64
DECIMALS (.XX):
.01
DECIMALS (.XXX):
.004
DECIMALS (.XXXX):
.0005
ANGLES:
1

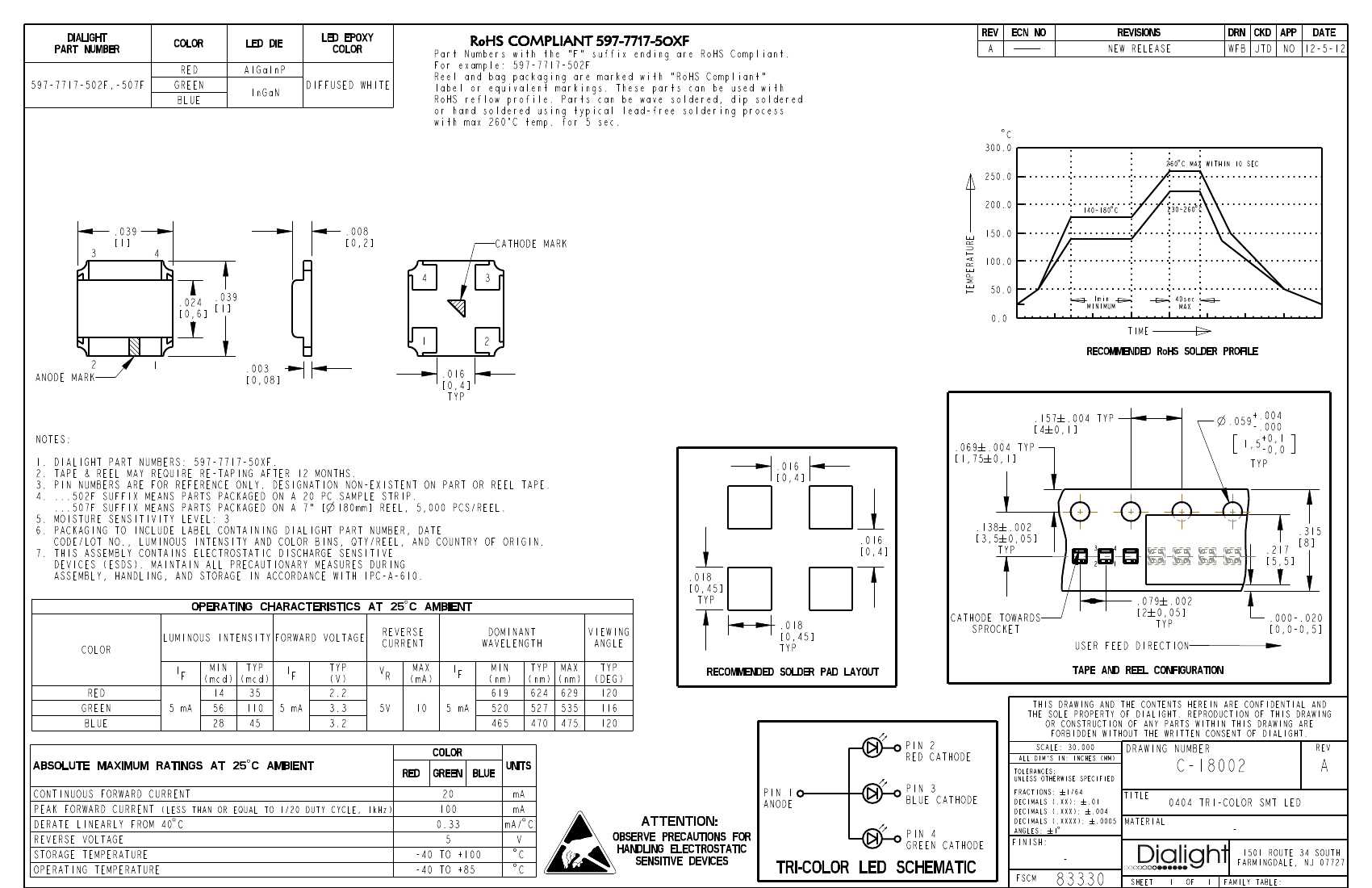

0404 TRI-COLOR SMT LED
-
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FINISH:
TRI-COLOR LED SCHEMATIC
-
FSCM
83330
SHEET
1
OF
1
