Y50535K00000K21L: Descriptiontrimmer 5K ohm 0.5W PC pin; CategoryPassive components; File Size1MB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

Y50535K00000K21L Overview

trimmer 5K ohm 0.5W PC pin

Y50535K00000K21L Parametric

Parameter Name	Attribute value
Datasheets
1240 Series Accutrim (RJ26 Style)
Standard Package	1,000
Category	Potentiometers, Variable Resistors
Family	Trimmer Potentiometers
Packaging	Bulk
Resistance (Ohms)	5k
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficie	±10ppm/°C
Number of Turns	21
Adjustment Type	Side Adjustme
Resistive Material	Metal Foil
Mounting Type	Through Hole
Termination Style	PC Pi
Size / Dimensi	Rectangular - 0.250" x 0.175" Face x 0.250" L (6.35mm x 4.45mm x 6.35mm)

Preview

Download Datasheet

View All

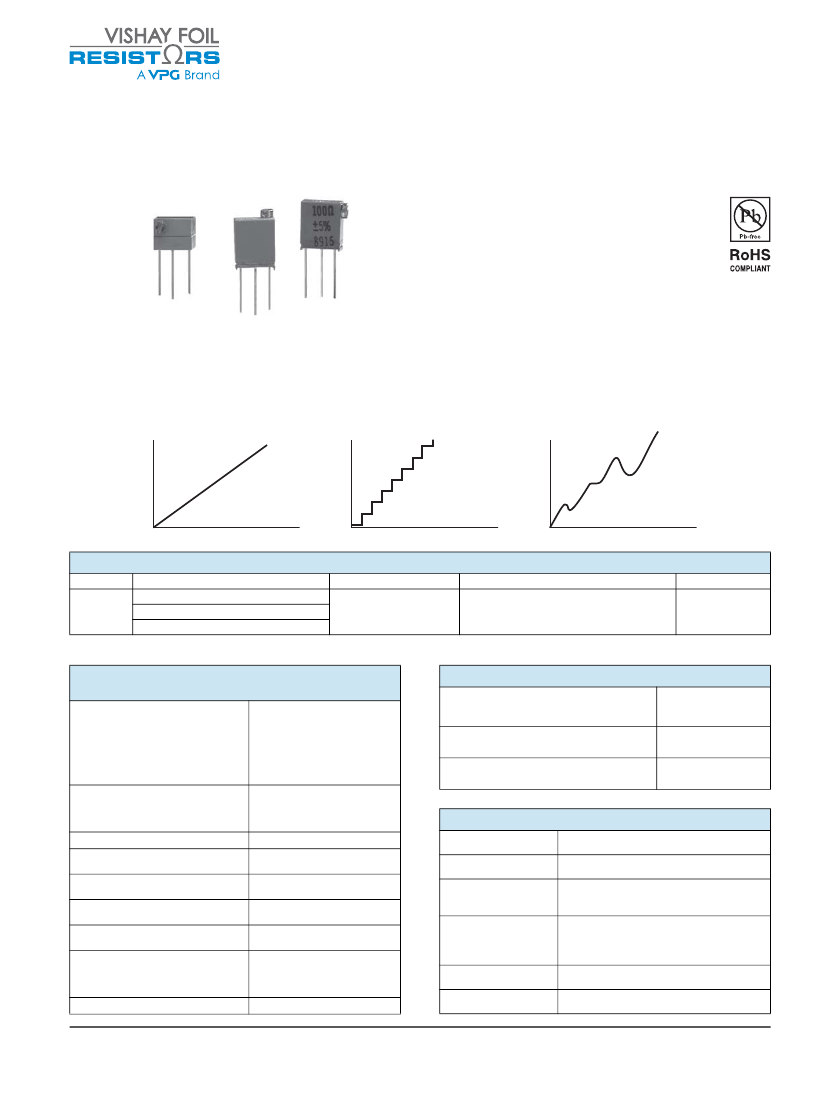

Accutrim™ 1240 (RJ26 Style)

Bulk Metal

Foil Technology Ultra High Precision Trimming Potentiometers,

/ " Square, RJ26 Style, Designed to Meet or Exceed The Requirements of

MIL-PRF-39035, Char. H with a Smooth and Unidirectional Output



Temperature coefficient of resistance (TCR):



± 10 ppm/°C. (- 55 °C to + 150 °C ref. at + 25 °C);

through the wiper

(3)

; ± 25 ppm/°C (see table 2 for

low values)



A smooth and unidirectional resistance with

leadscrew adjustment



Load life stability: 0.1 % typical

R,

1.0 % maximum

R

under full rated power at + 85 °C for 10 000 h



Settability: 0.05 % typical; 0.1 % maximum



Setting stability: 0.1 % typical; 0.5 % maximum, DSS



Power rating: 0.25 W at + 85 °C



Resistance range: 5



to 10 k



Tolerance: ± 5 %, ± 10 %



Electrostatic discharge (ESD) at least to 25 kV



Terminal finish: gold plated (tin/lead finish is available on

request)

FEATURES

INTRODUCTION

Vishay Foil Resistors’ (VFR) precision trimmers have the

Bulk Metal

Foil resistive element which possesses a unique

inherent temperature and load life stability. Plus, their

advanced virtually back lash-free adjustment mechanism

makes them easy to set quickly and accurately and keeps

the setting exactly on target.

Resistance

BULK METAL

FOIL

WIREWOUND

Resistance

CERMET

Wiper Travel

TABLE 1 - MODEL SELECTION

MODEL

1240

TERMINATION STYLE

W-edge mount, top adjust

X-edge mount, side adjust

P-horizontal mount, side adjust

AVERAGE WEIGHT (g)

0.4

POWER RATING at + 85 °C AMBIENT

0.25 W

NO. OF TURNS

21 ± 2

Note

• See Figure 1, next page

TABLE 2 - 1240 (RJ26) SERIES



ELECTRICAL SPECIFICATIONS

Temperature Coefficient of

Resistance (TCR) 50



to 10 k

End-to-end

(2)

Temperature Coefficient of

Resistance 5, 10 and 20



Through the wiper

(3)

Stability

Load life at 10 000 h

End-to-end

(2)

Power Rating

Settability

Setting Stability

Contact Resistance

Variation - CRV (noise)

(5)

Hop-off

High-Frequency Operation

Rise time

Inductance

Capacitance

Operating Temperature Range

Document Number: 63053

Revision: 2-Mar-15

(4)

TABLE 3 - VALUES VS. TOLERANCES

STANDARD RESISTANCE VALUES

(in

)

5, 10

20, 50, 100, 200, 500, 1K, 2K, 5K, 10K

STANDARD

TOLERANCE

± 10 %

±5%

± 10 ppm/°C maximum

(- 55 °C to + 150 °C,

+ 25 °C ref.)



± 20 ppm/°C

± 25 ppm/°C

0.1 % typical

R

1.0 % maximum

R

(under full rated power of

0.25 W at + 85 °C)

0.25 W at + 85 °C

0.05 % typical;

0.1 % maximum

0.1 % typical;

0.5 % maximum



typical;





maximum

0.25 % typical;

1.0 % maximum



1.0 ns without ringing

0.08 µH typical

0.5 pF typical

- 55 °C to + 150 °C

TABLE 4 - MECHANICAL SPECIFICATIONS

Adjustment Turns

Mechanical Stops

Internal

Terminations

Case Material

Shaft Torque

Backlash

21 ± 2

Wiper idles - no discontinuity

All welded - no flux

1240X - diallyl-phthalate: green (DAP)

1240W - diallyl-phthalate: green (DAP)

1240P - thermoplastic: black

3 oz. in. maximum

0.005 % typical

www.vishayfoilresistors.com

For any questions, contact

foil@vpgsensors.com

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014

www.vpgsensors.com
