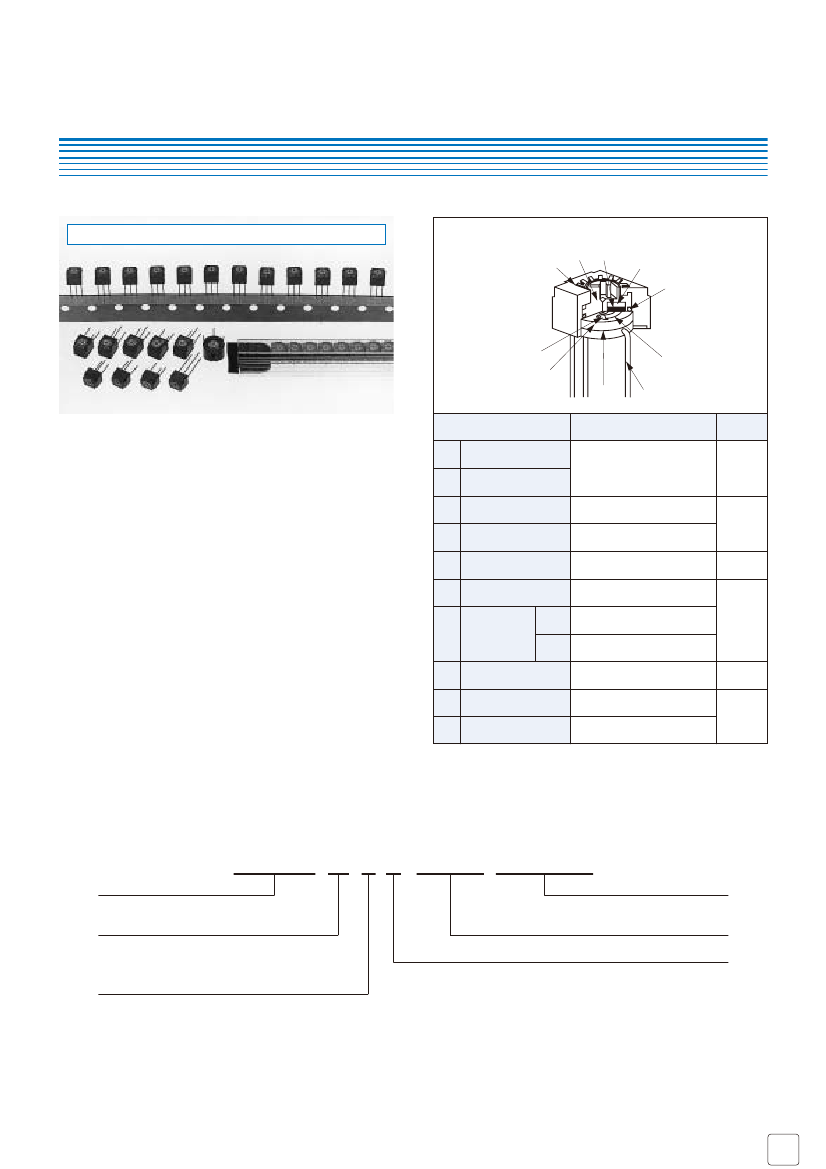

PART NUMBER DESIGNATION
C T - 6
□
T V 5 k
Ω
( 5 0 2 )
Series name
Resistance code
Terminal pin
Blank : Sn-Pb
E : Sn (Lead-free)
Resistance value
Product shape
P : Top adjustment
W : Top adjustment
R : Top adjustment
V : Top adjustment
F : Rear adjustment
S : Side adjustment
X : Side adjustment
H : Side adjustment
N : Side adjustment
Form of packaging
T : Taping (Ammo pack type)
M : Magazine (stick)
Blank : Bulk in vinyl bags
❈
Please refer to the LIST OF PART NUMBERS when placing orders.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
Oct,
2004
COPAL ELECTRONICS
CERMET TRIMMERS
CT-6
■
LIST OF PART NUMBERS
Form of packaging
Adjustment
position
Shape of terminal
(Top view)
Sn-Pb
2
1
3
Taping
Sn (Lead-free)
Magazine (stick)
Sn-Pb
Sn (Lead-free)
Vinyl bag
Sn-Pb
Sn (Lead-free)
Remarks
CT-6TP
Ammo pack
type
CT-6ETP
Ammo pack
type
CT-6MP
CT-6EMP
CT-6P
CT-6EP
The pin length of CT-6TP & CT-6MP is different
from CT-6P.
Top adjustment
1
2
3
CT-6W
CT-6EW
—
1
2
3
A
CT-6R
A
CT-6ER
—
2
1
3
CT-6TV
Ammo pack
type
CT-6ETV
Ammo pack
type
CT-6V
CT-6EV
—
2
1
3
CT-6MS
CT-6EMS
CT-6S
CT-6ES
The pin length of CT-6MS is different from
CT-6S.
3
1
CT-6X
CT-6EX
—
Side adjustment
(↑Adjustment
direction)
1
2
2
3
CT-6TH
Ammo pack
type
CT-6ETH
Ammo pack
type
CT-6H
CT-6EH
The pin length of CT-6TH is different from
CT-6H.
1
3
CT-6N
2
CT-6EN
—
2
Rear adjustment
1
3
A
CT-6F
A
CT-6EF
—
Pieces in package
: Not manufactured
1000 pcs./taping
75 pcs./stick
50 pcs./pack
—
<Nominal resistance values>
A
10
Ω
1 kΩ
100 kΩ
A
20
Ω
2 kΩ
200 kΩ
50
Ω
5 kΩ
500 kΩ
100
Ω
10 kΩ
1 MΩ
200
Ω
20 kΩ
2 MΩ
Fig. 1
500
Ω
50 kΩ
The products indicated by
A
mark are manufactured upon receipt of
order basis.
❈
: The above part numbers are all available with the respective
combination of <Nominal resistance values> (Fig. 1).
❈
: Verify the above part numbers when placing orders.
❈
: Taping and magazine specifications are not sold separately and
must be purchased in taping or stick units.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
Oct,
2004
COPAL ELECTRONICS
CERMET TRIMMERS
CT-6
■
ELECTRICAL CHARACTERISTICS
Nominal resistance range
Resistance tolerance
Power ratings
Resistance law
Maximum input voltage
Maximum wiper current
Effective electrical angle
End resistance
C.R.V.
Operating temp. range
Temp. coefficient
Insulation resistance
Dielectric strength
Net weight
10
Ω
~ 2 MΩ
±
10 %
0.5 W (70 °C) 0 W (120 °C)
Linear law (B)
DC200 V or power rating, whichever is smaller
■
MECHANICAL CHARACTERISTICS
Mechanical angle
Operating torque
Stop strength
Rotational life
Teminal strength
Thrust to rotor
Solderability
260 ° (1 turn)
2 ~ 20 mN·m {20 ~ 204 gf·cm}
50 mN·m {510 gf·cm} minimum
200 cycles [
∆
R/R
≦
±
(2
Ω +3
%)]
10 N {1.02 kgf} minimum
(Tensile strength)
10 N {1.02 kgf} minimum
Sn-Pb : 235 °C, 2 s
Sn (Lead-free) : 245
±
3 °C, 2 ~ 3 s
100 mA or power rating, whichever is smaller
220 ° (1 turn)
1 % or 2
Ω,
whichever is greater
1 % or 3
Ω,
whichever is greater
−
55 ~ 120 °C
10
Ω
~ 20
Ω
:
±
250 10 /°C maximum
50
Ω
~ 2 MΩ :
±
100 10
-6
/°C maximum
-6
{ } : Reference only
■
ENVIRONMENTAL CHARACTERISTICS
Test item
Thermal shock
Humidity
Shock
Vibration
Load life
Low temp. operation
High temp. exposure
Immersion seal
Test conditions
−65
~ 125 °C (0.5 h), 5 cycles
Specifications
[
∆
R/R
≦
1 %]
[S.S.
≦
1 %]
[
∆
R/R
≦
2 %]
[
∆
R/R
≦
1 %]
[S.S.
≦
1 %]
[
∆
R/R
≦
3 %]
[S.S.
≦
1 %]
[
∆
R/R
≦
2 %]
[S.S.
≦
2 %]
[
∆
R/R
≦
3 %]
[S.S.
≦
2 %]
No leaks (No continuous bubbles)
−10
~ 65 °C (Relative humidity 80 ~ 98 %),
10 cycles, 240 h
981 m/s
2
, 6 ms
6 directions for 3 times each
Amplitude 1.52 mm or
Acceleration 196 m/s
2
,
10 ~ 2000 Hz, 3 directions, 12 times each
70 °C, 0.5 W, 1000 h
−55
°C, 2 h
120 °C, 250 h
85 °C, 60 s
Sn-Pb : 350 °C, 3 s
Sn
Flow : 260
±
3 °C, 5 ~ 6 s, two times
maximum
Manual soldering : 380
±
10 °C, 3 ~ 4 s
1000 MΩ minimum (DC500 V)
AC900 V, 60 s
Approx. 0.51 g (CT-6P, W, R, V, EP, EW, ER, EV)
Approx. 0.65 g (CT-6S, X, H, N, ES, EX, EH, EN)
Approx. 0.92 g (CT-6F, EF)
Soldering heat
[
∆
R/R
≦
1 %]
■
MAXIMUM INPUT RATINGS
Nominal resistance values (Ω)
∆
R/R : Change in total resistance
S.S. : Setting stability
Resistance code
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
105
205
Maximum input voltage (V)
1.00
2.00
5.00
7.07
10.0
15.8
22.4
31.6
50.0
70.7
100
158
200
200
200
200
200
Maximum wiper current (mA)
A
A
10
20
50
100
200
500
1k
2k
5k
10 k
20 k
50 k
100 k
200 k
500 k
1M
2M
100
100
100
70.7
50.0
31.6
22.4
15.8
10.0
7.07
5.00
3.16
2.00
1.00
0.40
0.20
0.10
The products indi-
cated by
A
mark are
manufactured upon
receipt of order basis.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
Oct,
2004
COPAL ELECTRONICS
CERMET TRIMMERS
CT-6
■

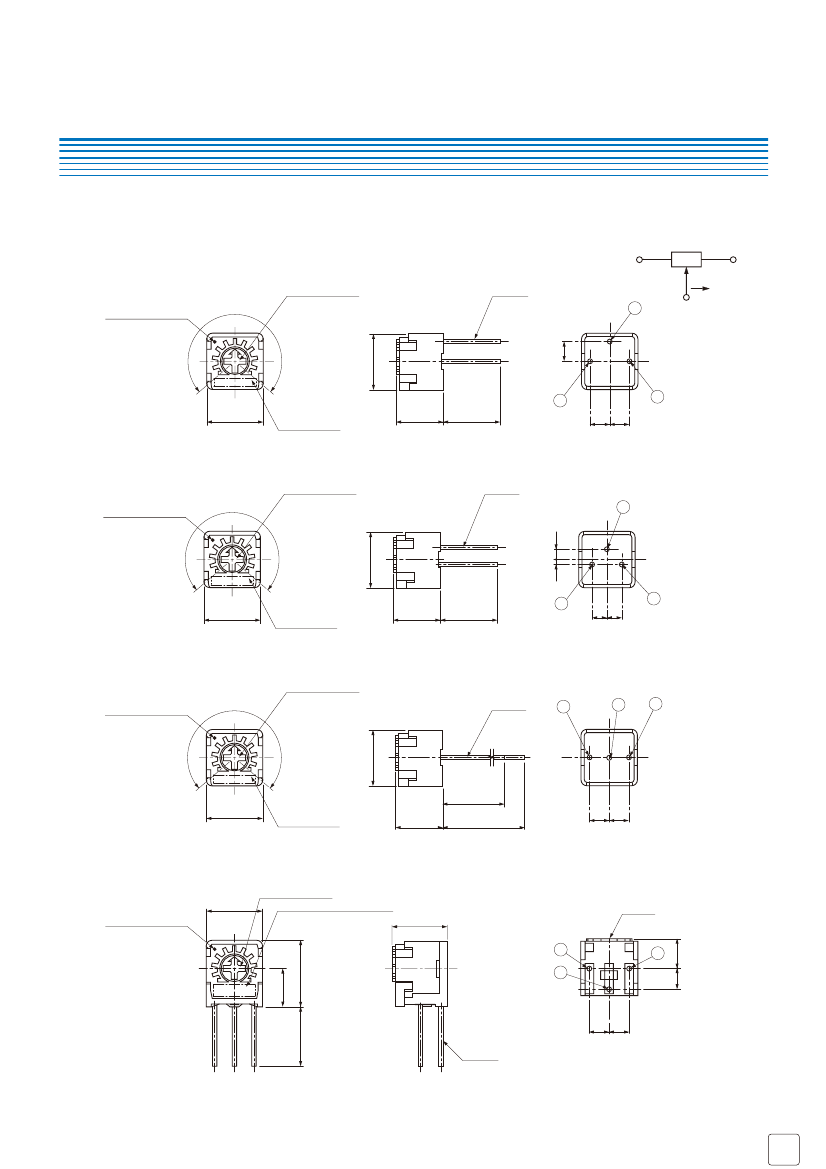

OUTLINE DIMENSIONS
●
CT-6P, CT-6EP
Top adjustment
0.6 W
×
2.6 L
×
1.6 D
Lead-free Identification mark
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
1
3 –
φ
0.45
2
260° Nom.
3
CW rotation
2
7
2.5
3
7
Resistance code &
Production date code
1
2.5 2.5
5.8
7±2
●
CT-6W, CT-6EW
Top adjustment
0.6 W
×
2.6 L
×
1.6 D
260° Nom.
Lead-free Identification mark
3 –
φ
0.45
2
1.3
7
0.6
3
7
Resistance code &
Production date code
1
1.8 1.8
5.8
7±2
●
CT-6V, CT-6EV
Top adjustment
0.6 W
×
2.6 L
×
1.6 D
Lead-free Identification mark
★
: Pin pitch in W type is different from P type.
260° Nom.
3 –
φ
0.45
3
2
1
7
13.5±2
7
Resistance code &
Production date code
5.8
16±2
2.5 2.5
●
CT-6S, CT-6ES
Side adjustment
0.6 W
×
2.6 L
×
1.6 D
0.4
7
+0
Resistance code & Production date code
Adjustment
Lead-free Identification mark
7
+ 0.4
– 0.1
3
3.5
2.5
2.5
3 –
φ
0.45
2.5
1
8.2
2
4.6
7.5±2
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
Oct,
2004
COPAL ELECTRONICS
CERMET TRIMMERS
CT-6
■

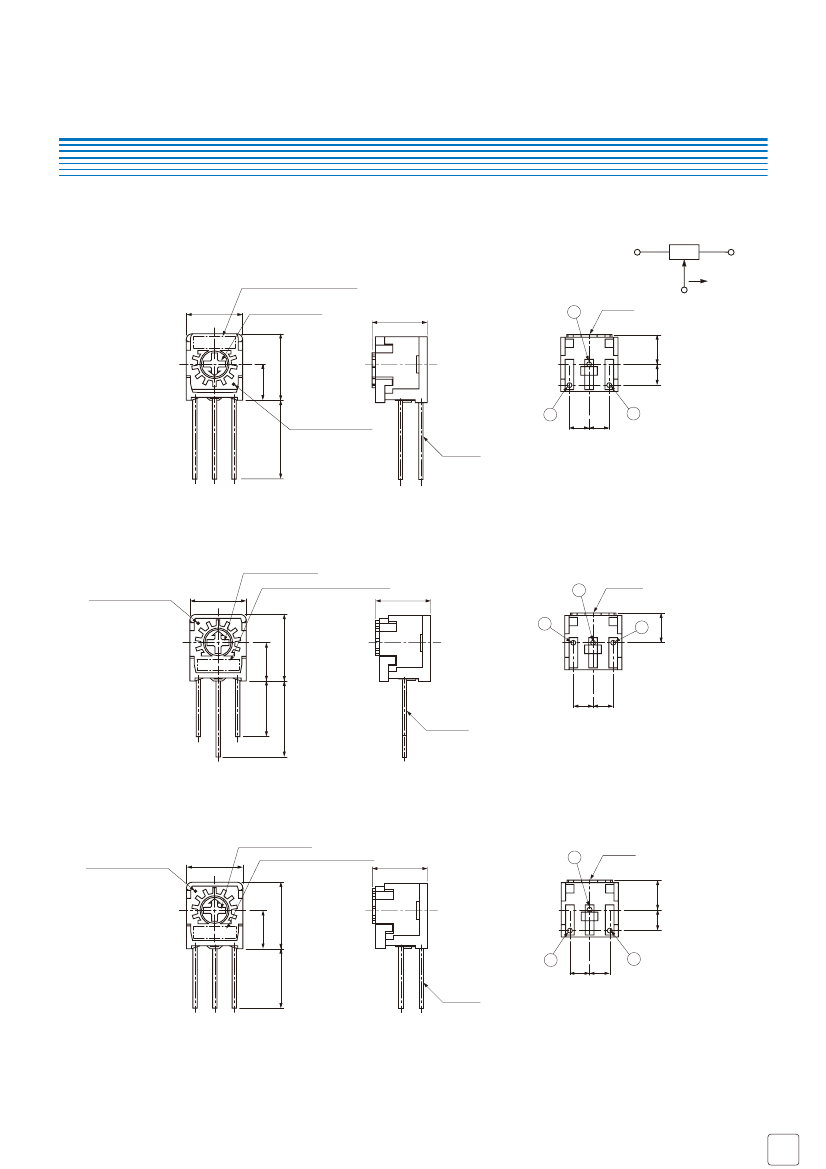

OUTLINE DIMENSIONS
●
CT-6X, CT-6EX
Side adjustment
Resistance code & Production date code
0.4
7
+0
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
1
2
3
CW rotation
0.6 W
×
2.6 L
×
1.6 D
7
+ 0.4
– 0.1
2
Adjustment
8.2
4.6
3
10±2
Lead-free Identification mark
1
2.5
2.5
3 –
φ
0.45
●
CT-6H, CT-6EH
Side adjustment
0.6 W
×
2.6 L
×
1.6 D
Resistance code & Production date code
Lead-free Identification mark
0.4
7
+0
7
+ 0.4
– 0.1
1
4.6
8.2
2
Adjustment
3
7±2
2.5 2.5
9.5±2
3 –
φ
0.45
●
CT-6N, CT-6EN
Side adjustment
0.6 W
×
2.6 L
×
1.6 D
Lead-free Identification mark
0.4
7
+0
Resistance code & Production date code
7
+ 0.4
– 0.1
2
Adjustment
8.2
4.6
1
7.5±2
3
2.5
2.5
3 –
φ
0.45
★
: Terminals
1
&
3
position in N type is different from X type.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
