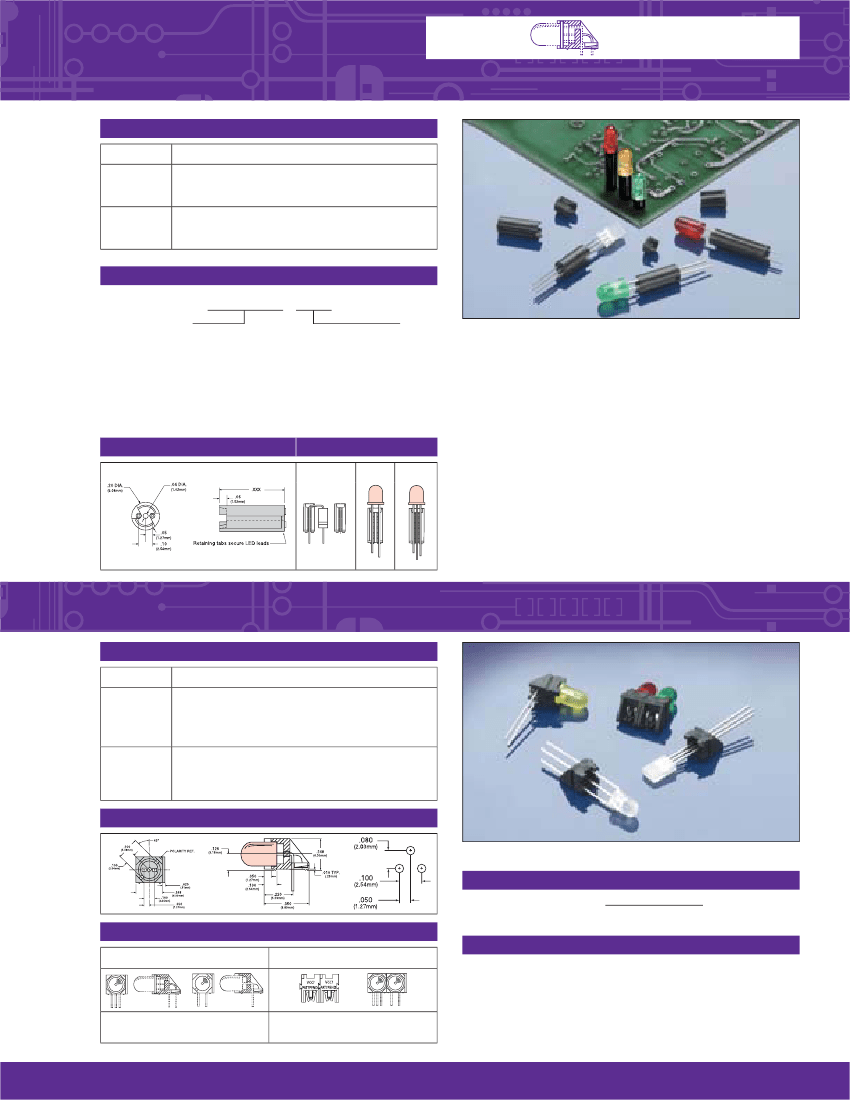

Standoff - Thermoplastic U.L. 94 V0. Color, Black
Channels provide lead separation and lateral stability for components.
Molded tabs retain component leads within the standoff for preassembly.
Raised pads allow for easy PCB cleaning.
Suitable for passive components, bi-lead, tri-lead, 3mm, 5mm, LEDs, re-
sistors, capacitors, diodes. Standoffs vary in height from .100 ˝ minimum
to 1.0˝ maximum, increments of .010˝.
STD XXX BLK
LENGTH IN INCHES
(.100 to 1.0˝ )
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
510
520
530
540
550
560
570
580
590
600
610
620
630
640
650
660
670
680
690
700
710
720
730
740
750
760
770
780
790
800
810
820
830
840
850
860
870
880
890
900
910
920
930
940
950
960
970
980
990
1.0
COLOR
U.S. & Foreign Patents Issued and Pending
P-C-LITE component standoffs are designed for printed circuit board mounting of multi-lead
devices ie. LEDs, IR emitter/detectors, lamps, resistors, capacitors, transistors and diodes.
®
®
P-C-LITE component standoffs cope with various problems in mounting passive components. These
include height control, lateral stability, lead retention, lead shorting and removal of soldering residue.
®
SINGLE LEAD
BI-LEAD
TRI-LEAD
P-C-LITE component standoffs provide lead separation and retention for both bi and tri-lead
components. Molded tabs retain the component and standoff as a unit permitting preassembly
operations. Clearance pads are provided for proper PCB cleaning.
®
P-C-LITE component standoffs permit the use of various shapes and sizes of LEDs, as well as
other bi/tri-lead components. Device height control is simplified with mounts ranging in lengths
from .100 to 1.00˝ in increments of .010 ˝.
Housing – Thermoplastic (black) U.L. 94 V0.
PCH 175 – Right angle through-hole mount for LEDs. Can be used as
a single LED mount or banded together in an array with its dove-tail
interlocking feature.
When banded together with the PCH 175 the LEDs are on .250˝ centers.
5mm size - round or rectangular shape with or without flange. Bi-lead,
standard .100˝ lead spacing. Tri-lead, either .050˝ or .100 ˝ lead spacing.
Both the bi-lead and tri-lead LEDs can also be combined in arrays with
one another.
U.S. & Foreign Patents Issued and Pending
PCH 175
MODEL
BI & TRI-LEAD LEDs
LEDs IN ARRAYS
• Right angle PCB mount for bi and tri-lead LEDs for use as logic and diagnostic indicators.
• Accommodates round and rectangular shapes of LEDs with or without flanges.
• Dove-tail interlock feature allows mounting of both mono and multi-colored LEDs.
• Mount forms LED leads which are locked into position by retaining tabs.
Form leads with the mount, snap leads into
retaining tabs.
Bi-lead and tri-lead LEDs can be combined
with dove-tail interlocking feature.
• Formed LED leads are staggered in their length permitting easier PCB insertion.
• Molded standoffs permit the easy cleaning of PCB after wave soldering operation.
