MO3CL30753G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> MO3CL30753G

MO3CL30753G: DescriptionFixed Resistor, Metal Oxide Film, 3W, 75000ohm, 500V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size104KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

MO3CL30753G Overview

Fixed Resistor, Metal Oxide Film, 3W, 75000ohm, 500V, 2% +/-Tol, 200ppm/Cel, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT

MO3CL30753G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME PROOF
JESD-609 code	e2
Manufacturer's serial number	MO
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	3 W
Rated temperature	70 °C
resistance	75000 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	2%
Operating Voltage	500 V
Base Number Matches	1

Preview

Download Datasheet

View All

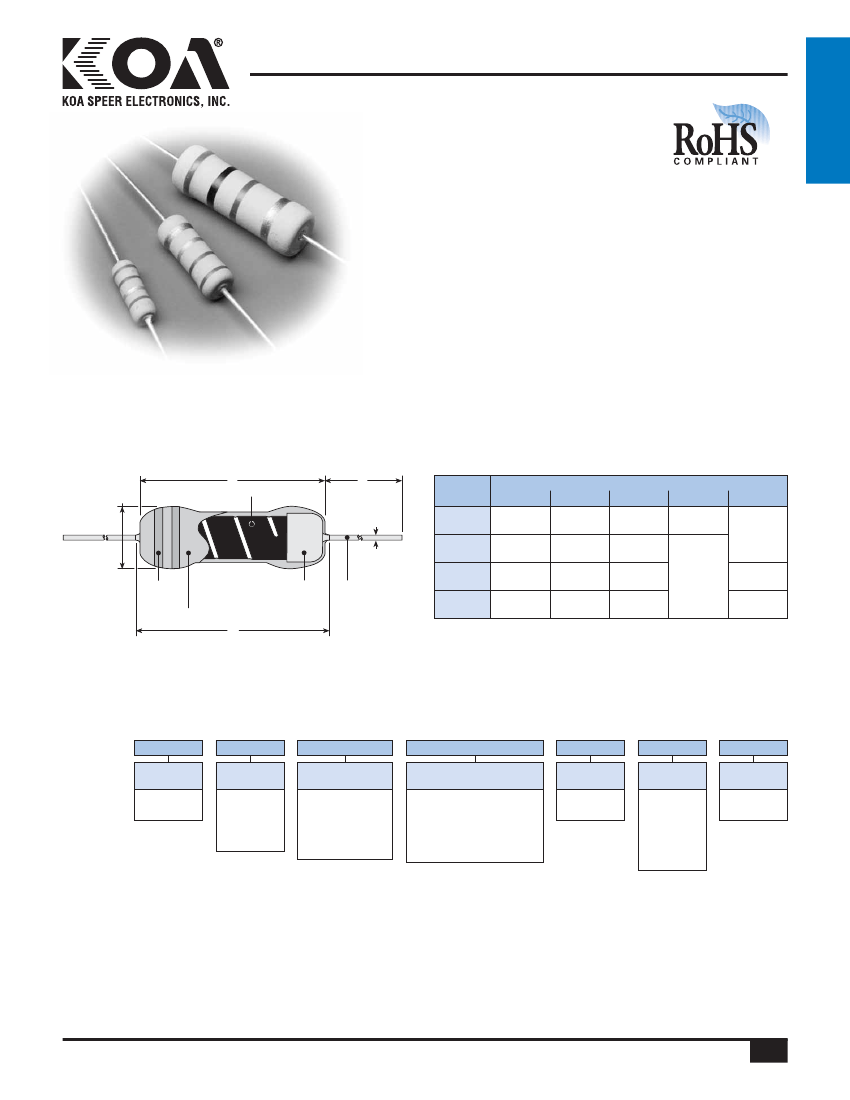

metal oxide power type leaded resistor

features

•

Flameproof silicone coating (UL94V0)

Suitable for automatic machine insertion

High reliability for performance

Marking: Blue-gray body color with color-coded bands

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

dimensions and construction

Ceramic Body

Type

MO1/2

MOX1/2

MO1

MOX1

Marking

Flame Retardant Coating

End

Cap

Lead

Wire

MO2

MOX2

MO3

MOX3

.354±.039

(9.0±1.0)

.472±.039

(12.0±1.0)

.610±.039

(15.5±1.0)

.965±.039

(24.5±1.0)

Dimensions

inches

(mm)

C (max.)

d (nom.)

.437

(11.1)

.575

(14.5)

.709

(18.0)

1.10

(28.0)

.138±.02

(3.5±0.5)

.157±.02

(4.0±0.5)

.236±.039

(6.0±1.0)

.354±.039

(9.0±1.0)

.031

(0.8)

.028

(0.7)

.945 Min.

(24.0 Min.)

1.18±.118

(30.0±3.0)

1.50±.118

(38.0±3.0)

ordering information

New Part #

Type

MOX

Power

Rating

1/2: 0.5W

1: 1W

2: 2W

3: 3W

Termination

Material

C: SnCu

(Other termination

styles available,

contact factory

for options)

T52

Taping and Forming

Axial: T52, T521, T631

Stand-off Axial: L52, L521,

L631, L, U, M Forming

(MO3/MOX3 bulk

packaging only)

Packaging

A: Ammo

R: Reel

473

Nominal

Resistance

2 significant

figures + 1

multiplier

“R” indicates

decimal on

value <10Ω

Tolerance

G: ±2%

J: ±5%

For further information

on packaging, please

refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/11/08

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
