DC5305S: Descriptionled blue-green clr 5mm HI bright; CategoryLED optoelectronic/LED photoelectric; File Size264KB，1 Pages; ManufacturerStanley Electric Co

Download Datasheet Parametric Compare View All

DC5305S Overview

led blue-green clr 5mm HI bright

DC5305S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknow
color	BLUE GREEN
color@wavelength	Blue-Gree
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	4 V
JESD-609 code	e0
Lens type	WATER CLEAR
Nominal luminous intensity	800.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	7.6 mm
method of packing	BULK
peak wavelength	502 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm
perspective	30 deg
Base Number Matches	1

Preview

Download Datasheet

View All

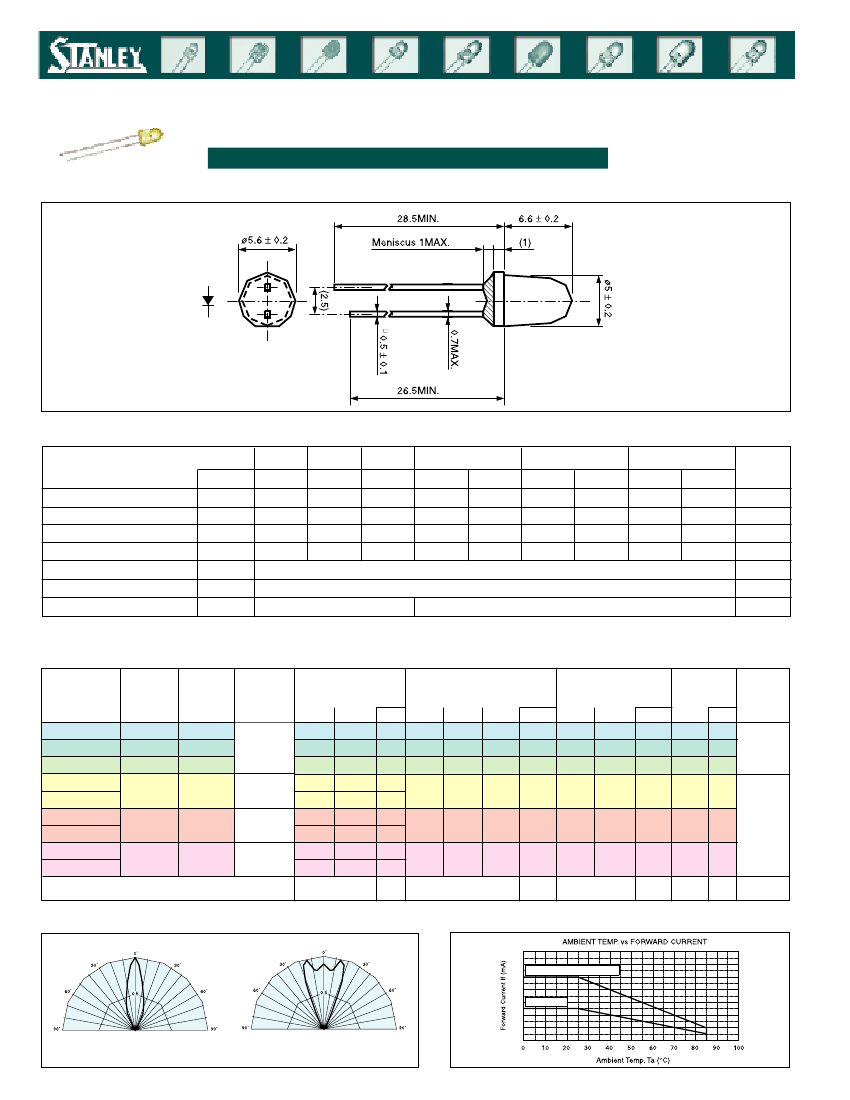

SINGLE COLOR LED

f

5mm Round Shape

D_5305S / F_5365S Series

H I G H

n

Outline Dimensions

B R I G H T N E S S

C O L O R

Unit: mm

n

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Blue

Blue Green

Green

Yellow

Orange

Red

(Ta=25°C)

DB

100

25

60

5

DC

100

25

60

5

DG

100

25

60

5

EFY

125

50

200

5

FY

125

50

200

5

-40 to +85

-40 to +100

0.33

0.67

Symbol

Pd

I

F

I

FM

V

R

Topr

Tstg

DI

F

EFA

125

50

200

5

FA

125

50

200

5

EFR

125

50

200

5

FR

125

50

200

5

Units

mW

mA

V

°C

mA/°C

* Ta=25°C, I

FM

applies for the pulse width

£

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

n

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Blue

Green

Yellow

Orange

Red

Clear

Pastel Yellow

Clear

Pastel Orange

Clear

Pastel Red

*The viewing angle is an average and will vary by color

(Ta=25°C)

Lens

Color

Luminous

Intensity

IV

MIN.

TYP

.

I

F

Spectral Line

Peak Dominant Half Width

lp

ld

Dl

I

F

TYP

.

TYP

.

TYP

.

Wavelength

Forward

Voltage

V

F

TYP

.

MAX.

I

F

Reverse Viewing

Current

IR

Angle

MAX.

V

R

(2

q

1/2)

DB5305S

DC5305S

DG5305S

EFY5365S

FY5365S

EFA5365S

FA5365S

EFR5365S

FR5365S

InGaN/SiC

AlInGaP

InGaN/SiC

Blue Green

Water

Clear

120

400

700

250

820

290

620

220

240

800

1,000

500

1,160

580

880

440

20

mA

467

502

522

592

609

635

470

505

525

590

605

626

nm

26

30

15

20

mA

3.5

1.9

V

4.0

2.4

20

mA

100

µA

5

V

30°

45°

Units

mcd

Deg.

n

Spatial Distribution (x)

n

Operation Current Derating Chart

70

60

50

40

30

DB, DC, DG

20

10

EFY, FY, EFA, FA, EFR, FR

D_5305S

F_5365S

*Spatial distribution is viewed as a typical illustration and will vary by color

0

DC5305S Related Products

	DC5305S	EFY5365S	DB5305S	DG5305S	EFR5365S	EFA5365S
Description	led blue-green clr 5mm HI bright	led yellow clear 5mm high bright	led blue clear 5mm high bright	led green clear 5mm high bright	led red clear 5mm high bright	led orange clear 5mm high bright
Is it Rohs certified?	incompatible	conform to	incompatible	-	-	conform to
Reach Compliance Code	unknow	unknow	unknow	-	unknow	unknow
color	BLUE GREEN	YELLOW	BLUE	-	RED	ORANGE
color@wavelength	Blue-Gree	-	Blue	-	Orange-Red	Ambe
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
Maximum forward current	0.025 A	0.05 A	0.025 A	-	0.05 A	0.05 A
Maximum forward voltage	4 V	-	4 V	-	2.4 V	2.4 V
Lens type	WATER CLEAR	CLEAR PASTEL YELLOW	WATER CLEAR	-	CLEAR PASTEL RED	CLEAR PASTEL ORANGE
Nominal luminous intensity	800.0 mcd	1000.0 mcd	240.0 mcd	-	880.0 mcd	1160.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	-	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	-	1	1
Number of terminals	2	2	2	-	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED
total height	7.6 mm	7.6 mm	7.6 mm	-	7.6 mm	7.6 mm
method of packing	BULK	BULK	BULK	-	BULK	BULK
peak wavelength	502 nm	592 nm	467 nm	-	635 nm	609 nm
Maximum reverse voltage	5 V	-	5 V	-	5 V	5 V
shape	ROUND	ROUND	ROUND	-	ROUND	ROUND
size	5 mm	5 mm	5 mm	-	5 mm	5 mm
surface mount	NO	NO	NO	-	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	-	T-1 3/4	T-1 3/4
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	-	2.5 mm	2.5 mm
perspective	30 deg	45 deg	30 deg	-	45 deg	45 deg
Base Number Matches	1	1	1	-	1	1
