DC5306X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DC5306X

DC5306X: Descriptionled blue-green clr 5mm HI bright; CategoryLED optoelectronic/LED photoelectric; File Size256KB，1 Pages; ManufacturerStanley Electric Co

Download Datasheet Parametric Compare View All

DC5306X Overview

led blue-green clr 5mm HI bright

DC5306X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknow
color	BLUE GREEN
color@wavelength	Blue-Gree
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	4 V
JESD-609 code	e0
Lens type	WATER CLEAR
Nominal luminous intensity	2400.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	502 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm
perspective	10 deg
Base Number Matches	1

Preview

Download Datasheet

View All

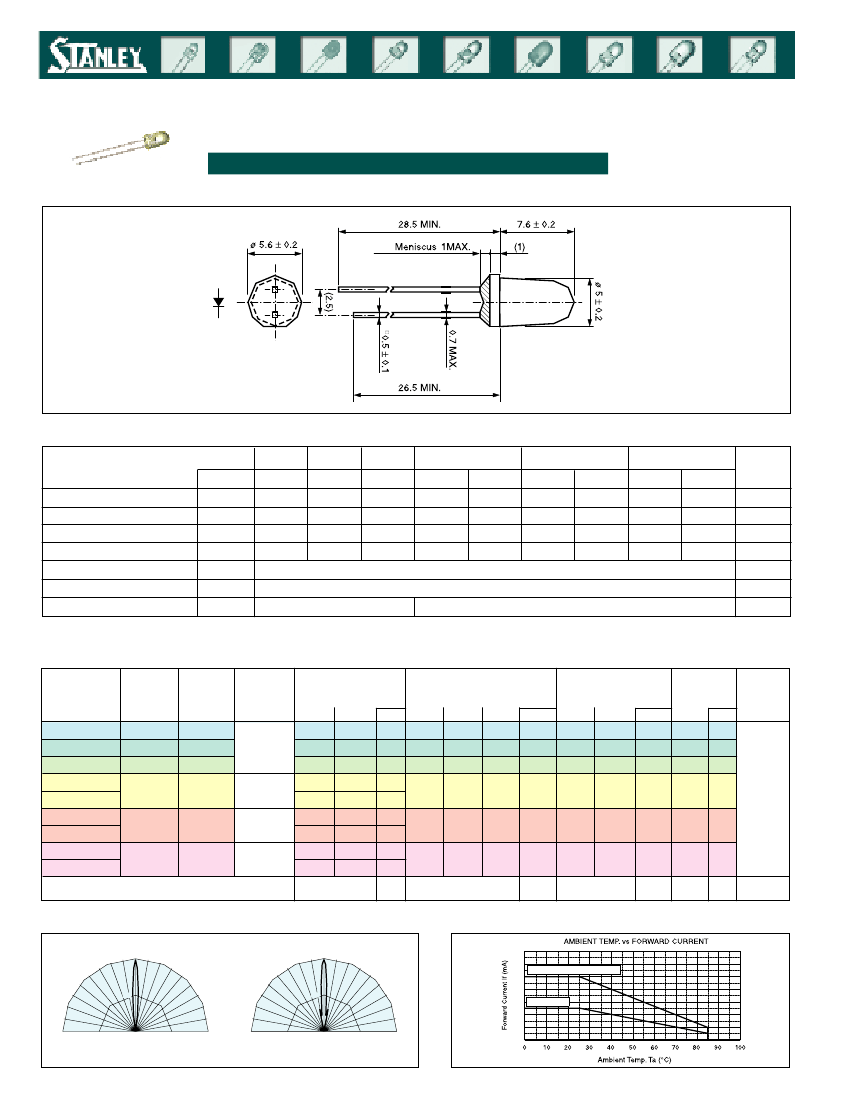

SINGLE COLOR LED

5mm Round Shape

D_5306X / F_5366X Series

H I G H

Outline Dimensions

B R I G H T N E S S

C O L O R

Unit: mm

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Blue

Blue Green

Green

Yellow

Orange

Red

(Ta=25°C)

100

EFY

125

200

125

200

-40 to +85

-40 to +100

0.33

0.67

Symbol

Topr

Tstg

EFA

125

200

125

200

EFR

125

200

125

200

Units

°C

mA/°C

* Ta=25°C, I

applies for the pulse width

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Blue

Green

Yellow

Orange

Red

Clear

Pastel Yellow

Clear

Pastel Orange

Clear

Pastel Red

*The viewing angle is an average and will vary by color

(Ta=25°C)

Lens

Color

Luminous

Intensity

MIN.

TYP

Spectral Line

Peak Dominant Half Width

TYP

Wavelength

Forward

Voltage

TYP

MAX.

Reverse Viewing

Current

Angle

MAX.

1/2)

DB5306X

DC5306X

DG5306X

EFY5366X

FY5366X

EFA5366X

FA5366X

EFR5366X

FR5366X

InGaN/SiC

AlInGaP

500

Water

Clear

1,000

2,400

4,000

2,000

5,000

2,500

3,600

1,800

467

502

522

592

609

635

470

505

525

590

605

626

3.5

1.9

4.0

2.4

100

InGaN/SiC

Blue Green

1,200

2,800

1,000

3,500

1,250

2,520

900

10°

Units

mcd

µA

Deg.

Spatial Distribution (x)

0˚

30˚

0˚

30˚

Operation Current Derating Chart

EFY, FY, EFA, FA, EFR, FR

60˚

0.5

60˚

0.5

60˚

DB, DC, DG

90˚

D_5306X

F_5366X

*Spatial distribution is viewed as a typical illustration and will vary by color

DC5306X Related Products

	DC5306X	EFY5366X	EFR5366X	DG5306X	EFA5366X	DB5306X
Description	led blue-green clr 5mm HI bright	led yellow clear 5mm high bright	led red clear 5mm high bright	led green clear 5mm high bright	led orange clear 5mm high bright	LED BLUE CLEAR 5MM ROUND T/H
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown
color	BLUE GREEN	YELLOW	RED	GREEN	ORANGE	BLUE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.05 A	0.05 A	0.025 A	0.05 A	0.025 A
Lens type	WATER CLEAR	CLEAR PASTEL YELLOW	CLEAR PASTEL RED	WATER CLEAR	CLEAR PASTEL ORANGE	WATER CLEAR
Nominal luminous intensity	2400.0 mcd	4000.0 mcd	3600.0 mcd	2400.0 mcd	5000.0 mcd	1000.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	502 nm	592 nm	635 nm	522 nm	609 nm	467 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	10 deg	10 deg	10 deg	10 deg	10 deg	10 deg
color@wavelength	Blue-Gree	-	Orange-Red	Blue-Gree	Ambe	Blue
Maximum forward voltage	4 V	-	2.4 V	4 V	2.4 V	4 V
Maximum reverse voltage	5 V	-	5 V	5 V	5 V	5 V
Maker	-	Stanley Electric Co	Stanley Electric Co	-	Stanley Electric Co	Stanley Electric Co

Recommended Resources

A DM74LS122 retriggered monostable multivibrator

Internal structure of MC1411 series Darlington current drivera

LA4557 audio IC amplifier circuit diagram

SH84 eight-track four-way music lantern control circuit

Little Swan Sacon range hood circuit diagram

555 electric bicycle pulse speed regulating device circuit

Is this MOS tube drawn wrong?: [i=s]This post was last edited by jishuaihu on 2015-5-22 13:27[/i] Is this MOS tube drawn wrong? As shown in the figure, the function of the circuit is also explained. When looking at this figure, I f...; jishuaihu Integrated technical exchanges

Hercules DIY Week 5 (Content is incorrect): [font=Helvetica, Arial, sans-serif][size=12px]Sorry, I didn't mean to post the post I submitted in the fifth week, but I made some mistakes. I am revising it recently. But thank you all the same!! The...; Sur Microcontroller MCU

How to modify the project name in evc: I want to change the name of an existing evc project without affecting the normal operation of the project. What should I do? Thank you!...; berryfan Embedded System

High fanout solution: Fanout is the number of lower-level modules directly called by a module. If this value is too large, it will directly manifest as a large net delay in the FPGA, which is not conducive to timing conver...; eeleader FPGA/CPLD

When TMR2≥CCPR1L, the PWM function pin starts to output a low level.: When TMR2≥CCPR1L, the PWM function pin starts to output a low level.When TMR2≥PR2, TMR2=0, another cycle count starts again, and the PWM function pin starts to output a high level. How do I write thes...; a372708078 Microchip MCU

Unforgettable 2017, work, work: I am not in good health, so I often take a break after working for a while. In 2017, I took a break until July, when I started looking for a job. It was a company that made water meters and electricit...; chenbingjy Talking
