8403609YX datasheet, PDF - EEWORLD Datasheet

8403609YX: DescriptionStandard SRAM, 2KX8, 45ns, CMOS, CQCC24, CERAMIC, CC-32; Categorystorage storage; File Size187KB，7 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

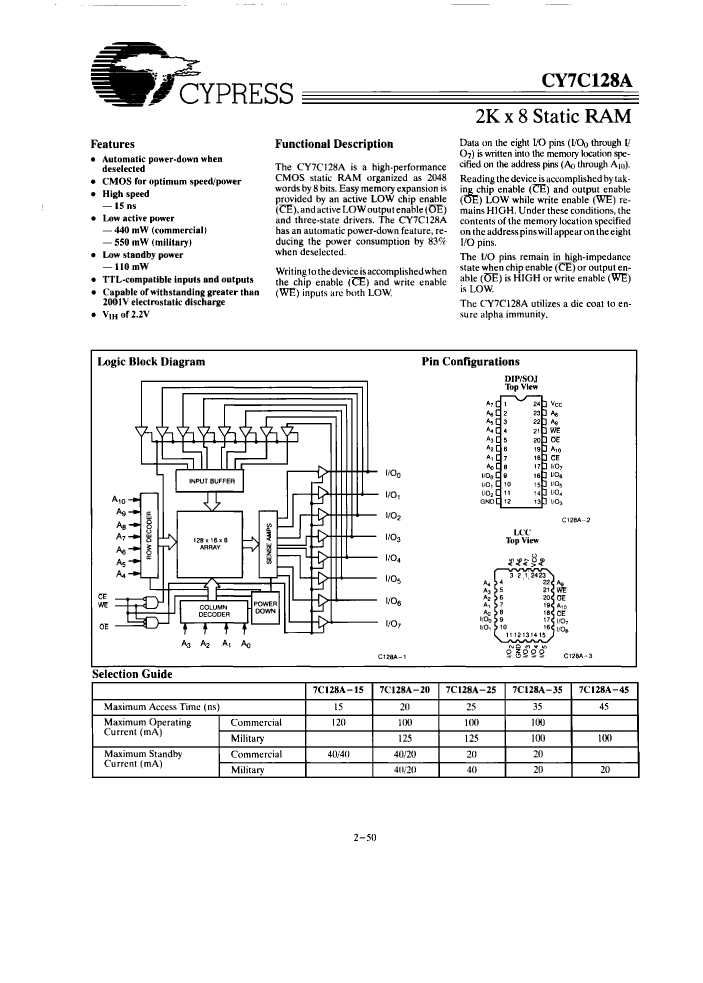

8403609YX Overview

Standard SRAM, 2KX8, 45ns, CMOS, CQCC24, CERAMIC, CC-32

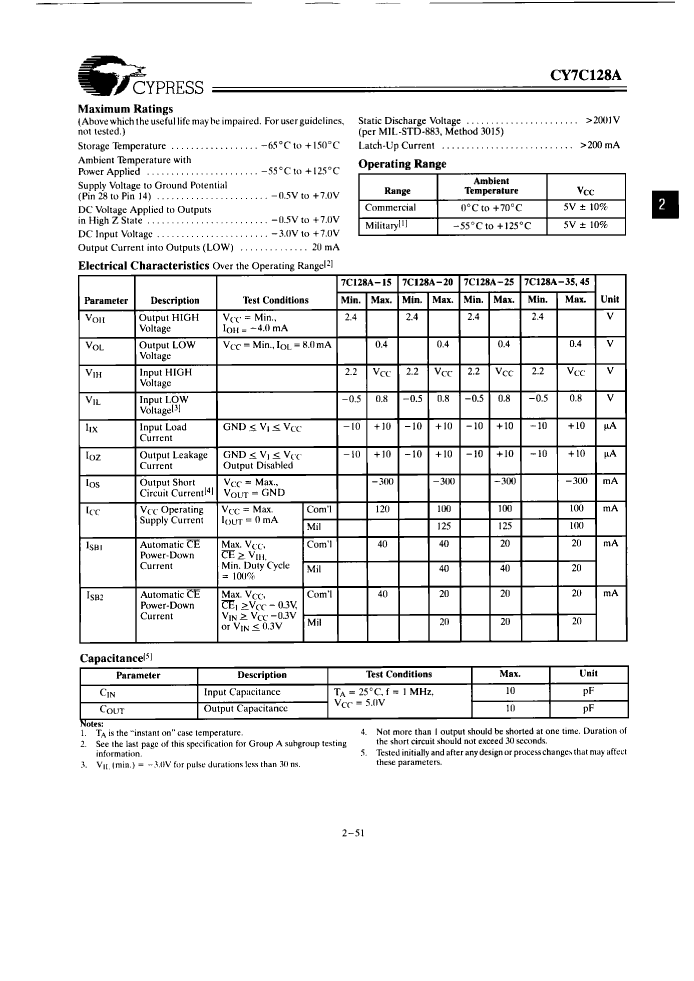

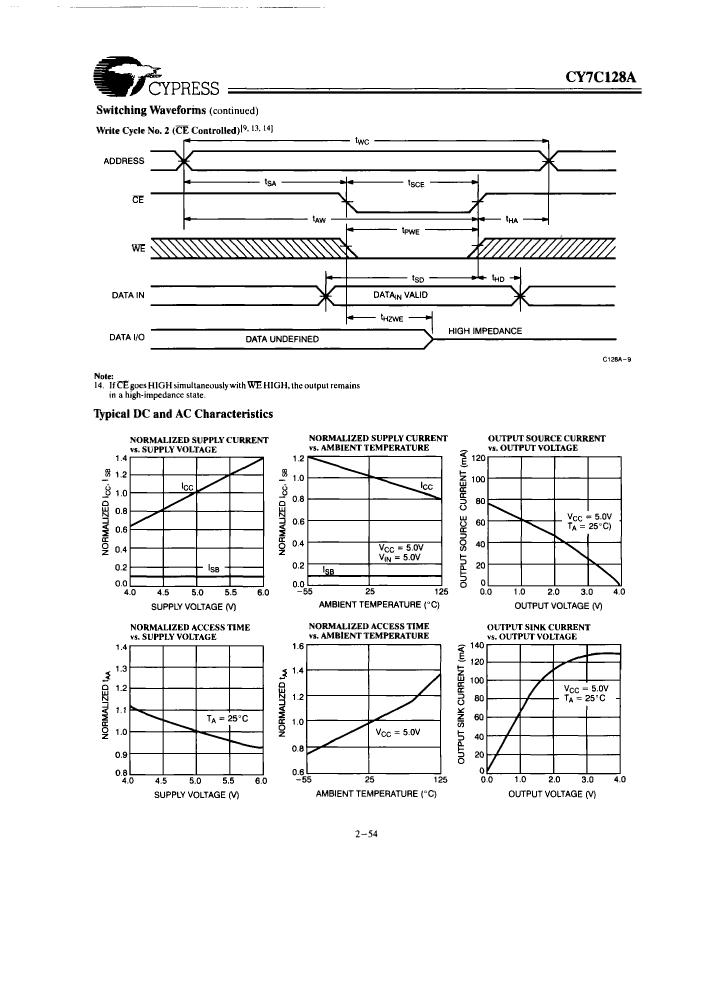

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QFN
package instruction	QCCN, LCC24,.3X.4
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C

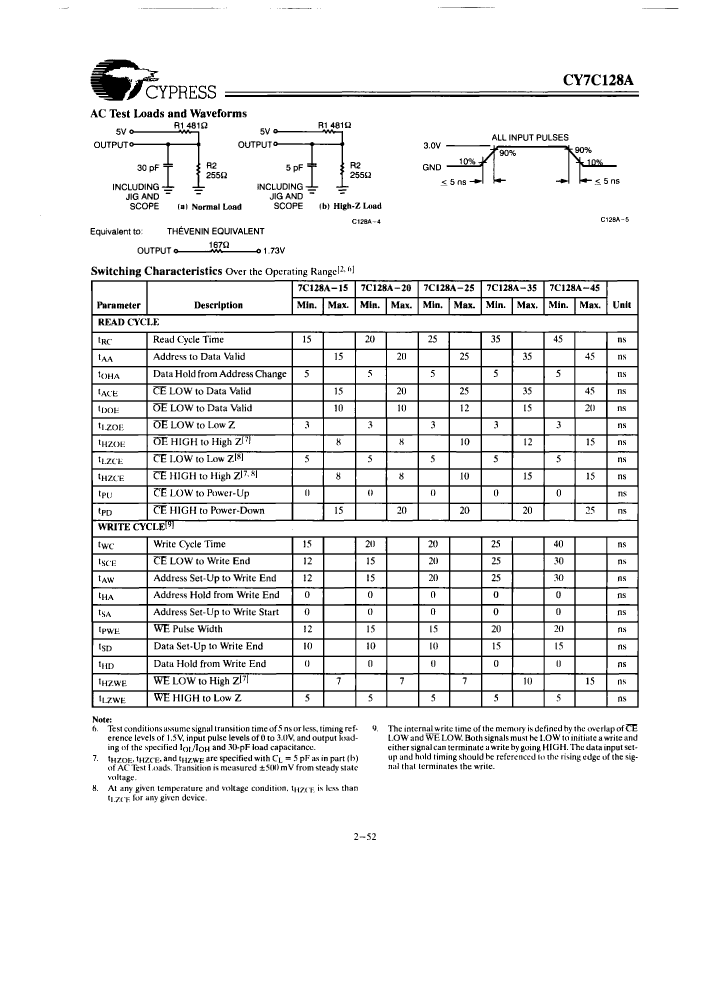

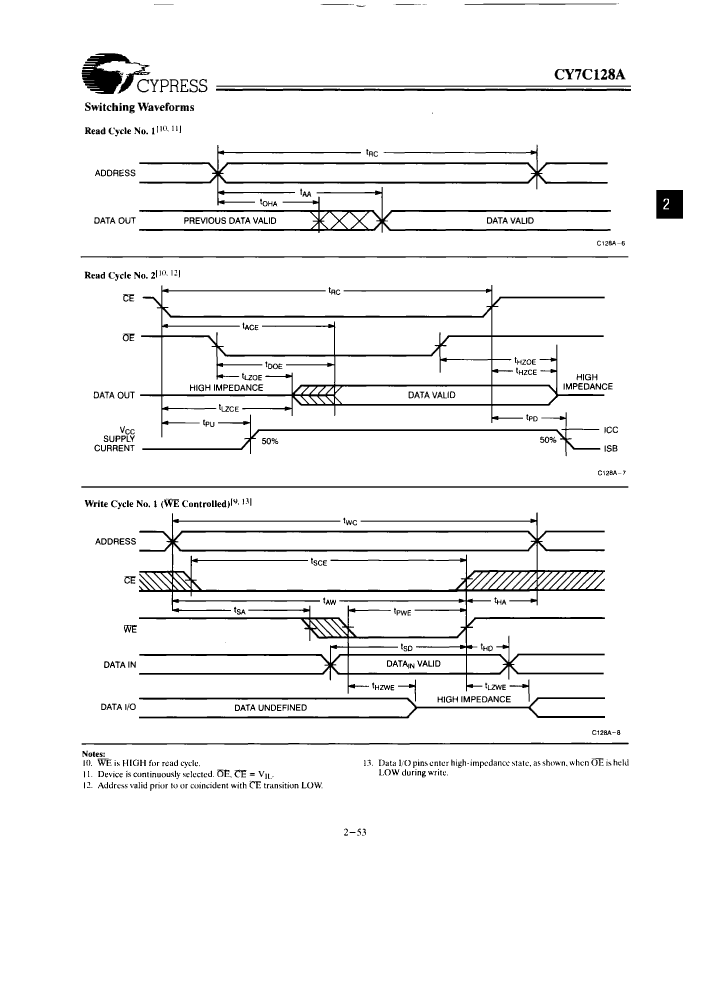

Maximum access time	45 ns
I/O type	COMMON
JESD-30 code	R-CQCC-N24
length	10.16 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC24,.3X.4
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	1.98 mm
Maximum standby current	0.02 A
Minimum standby current	4.2 V
Maximum slew rate	0.12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	7.62 mm
Base Number Matches	1
