Datasheet> All Categories > LED optoelectronic/LED> ELSH-Q91L1-0LPNM-CB4B6

ELSH-Q91L1-0LPNM-CB4B6: Descriptionled shuen 1W HI pwr roy blu smd; CategoryLED optoelectronic/LED; File Size2MB，38 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ELSH-Q91L1-0LPNM-CB4B6 Overview

led shuen 1W HI pwr roy blu smd

ELSH-Q91L1-0LPNM-CB4B6 Parametric

Parameter Name	Attribute value
Datasheets
Shuen 1W Series
Standard Package	400
Category	Optoelectronics
Family	LED Lighting - Col
Packaging	Tape & Reel (TR)
Col	Blue, Royal
Wavelength	458nm (445nm ~ 460nm)
Flux @ 25°C, Current - Tes	275 mW (275 mW ~ 350 mW)
Current - Tes	350mA
Voltage - Forward (Vf) (Typ)	3.25V (2.65 V ~ 4.15 V)
Current - Max	600mA
Viewing Angle	120°
Mounting Type	Surface Mou
Package / Case	2-SMD, No Lead, Exposed Pad
Lumens/Watt @ Current - Tes	-
Flux @ 85°C, Current - Tes	248 mW
Thermal Resistance of Package	10°C/W
Other Names	1080-1295-2ELSH-Q91L1-0LPNM-CB5B6

Preview

Download Datasheet

View All

Shuen

Series

炫

Introduction

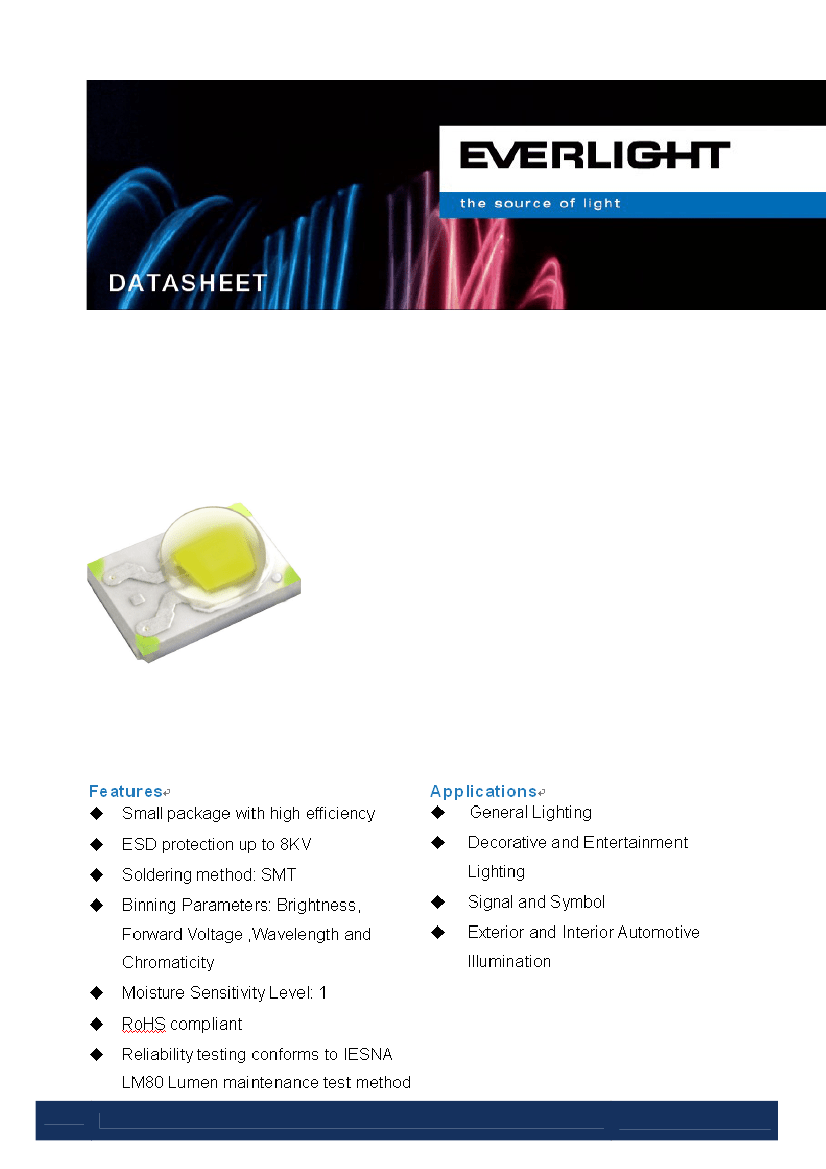

The Shuen series is a surface-mount high-power

device featuring high brightness combined with a compact

size that is suitable for all kinds of lighting applications such as

“Shuen [Xuan] is the English translation for the Chinese word meaning Bright and

Shiny. Both words are relevant descriptions of this Everlight LED series. The modern,

adaptive Chinese definition of the word represents that which is New, Extravagant, and

Highly Sought After.”

general illumination, flash, spot, signal, industrial and commercial

lighting. The thermal pad of this device is electrically isolated providing convenience in

thermal and electrical design. The Shuen series is one of the most promising devices

in Everlight’s high power product offering and is ready to face the challenges of today’s

Solid-State Lighting requirements.

www.everlight.com

DATASHEET

Shuen 1W Series

Table of Contents

Table of Contents ....................................................................................................2

Absolute Maximum Ratings ....................................................................................4

JEDEC Moisture Sensitivity ....................................................................................4

Luminous Flux Characteristics for the Shuen series...............................................5

PN of the Shuen series: White LEDs ......................................................................6

PN of the Shuen High Luminous Series: White LEDs ............................................7

PN of the Shuen series: Color LEDs.......................................................................9

Product Binning..................................................................................................... 11

White Bin Structure ...............................................................................................12

Forward Voltage Bins ............................................................................................17

Color Bins..............................................................................................................18

Optical Characteristics ..........................................................................................19

Mechanical Dimension ..........................................................................................20

Pad Configuration .................................................................................................21

Reflow Soldering Characteristics ..........................................................................22

Wavelength Characteristics ..................................................................................23

Typical Light Output Characteristic vs. Thermal Pad Temperature.......................25

Typical Electrical Characteristics ..........................................................................26

Typical Relative Luminous Flux vs. Forward Current ...........................................27

Typical Wavelength & CCT Shift Characteristics

vs. Forward Current...............29

Current Derating Curves .......................................................................................32

Typical Radiation Patterns ....................................................................................33

Emitter Tape Packaging ........................................................................................35

Emitter Reel Packaging ........................................................................................36

Product Labeling ...................................................................................................36

Storage Conditions................................................................................................37

Revision History ....................................................................................................38

www.everlight.com

ELSH-Q91L1-0LPNM-CB4B6 Related Products

	ELSH-Q91L1-0LPNM-CB4B6	ELSH-F71G1-0LPNM-CG1G2	ELSH-F41R1-0LPNM-AR5R6	ELSH-F41O1-0LPNM-AR3R4	ELSH-F41Y1-0LPNM-AA4A6
Description	led shuen 1W HI pwr roy blu smd	led shuen 1W HI power grn smd	led shuen 1W HI power red smd	led shuen 1W HI power orn smd	led shuen 1W HI power ylw smd
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	EVERLIGHT	EVERLIGHT	-	EVERLIGHT
package instruction	-	ROHS COMPLIANT, SMT, 2 PIN	ROHS COMPLIANT, SMT, 2 PIN	ROHS COMPLIANT, SMT, 2 PIN	ROHS COMPLIANT, SMT, 2 PIN
Reach Compliance Code	-	compli	compli	compli	compliant
color	-	GREEN	RED	ORANGE	AMBER
Configuration	-	SINGLE WITH BUILT-IN ZENER DIODE	SINGLE WITH BUILT-IN ZENER DIODE	SINGLE WITH BUILT-IN ZENER DIODE	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	-	0.4 A	0.4 A	0.4 A	0.4 A
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	-	1	1	1	1
Number of terminals	-	2	2	2	2
Maximum operating temperature	-	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	-	1.95 mm	1.95 mm	1.95 mm	1.95 mm
method of packing	-	TAPE AND REEL 7\"	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7\"
shape	-	ROUND	ROUND	ROUND	ROUND
size	-	2.4 mm	2.4 mm	2.4 mm	2.4 mm
surface mount	-	YES	YES	YES	YES
T code	-	T-1	T-1	T-1	T-1
Terminal pitch	-	1.6 mm	1.6 mm	1.6 mm	1.6 mm
perspective	-	120 deg	120 deg	120 deg	120 deg
