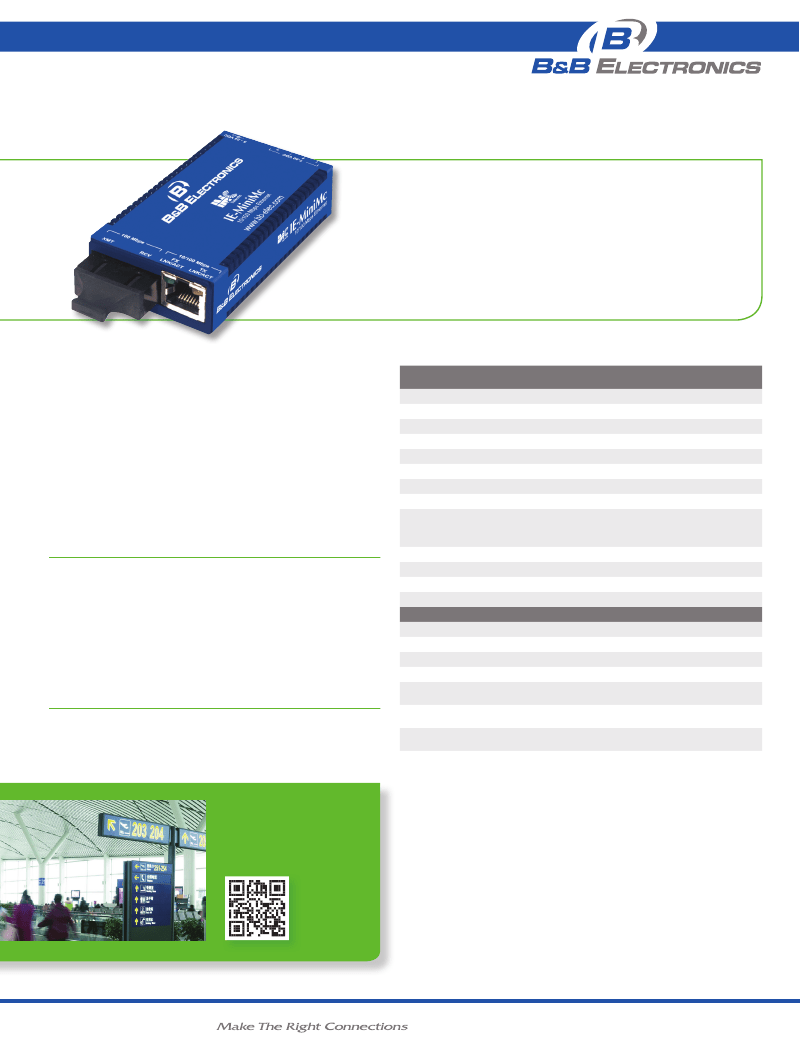

Industrial Grade 10/100 Miniature
Media Converters
IE-MiniMc
PRODUCT FEATURES
•
•
•
•
Value-add industrial grade extended temperature performance
PNP, auto negotiation mode
Auto-cross feature for the twisted pair port cable
Stand-alone unit in a small, rugged metal enclosure with a compact,
external power supply
• IEEE 802.3af compliant
• NEMA TS2 (select models)
Measuring less than 3.5 inches deep and 2 inches wide, the IE-MiniMc
Series converters are some of the industry’s smallest copper-to-fiber
media converters, with both data connections on the same side. The
IE-MiniMc family of media converters are a fraction of the cost of other
industrial grade alternatives. These products provide the ease and
convenience of plug-and-play operation with features including Auto
Negotiation and Auto-Cross.
Multiple powering options include Power over Ethernet (PoE/PD), AC
wall adapter and USB, which offers unsurpassed flexibility for a variety
of installations.
ACCESSORIES
806-39105
- DIN Rail Clip
806-39638 - Double-USB Power Cable, 36”/.9m
806-39650 - 12”/.3m Barrel-Connector Power Cable
850-13086 - IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
806-39753 - IE-Power/5V Module, AC to DC DIN Rail Power Adapter
ORDERING INFORMATION
MODEL
FIBER
FIBER
NUMBER
PORTS RANGE
IE-MiniMc TP-TX/FX
855-19720 MM850-ST
1
2 km
855-19721 MM850-SC
1
2 km
855-19722 MM1300-ST
1
5 km
855-19723 MM1300-SC
1
5 km
855-19724 SM1310/PLUS-ST 1
30 km
855-19725 SM1310/PLUS-SC 1
30 km
855-19726 SM1310/LONG-ST 1
80 km
855-19730 SM1550/LONG-SC 1
80km
IE-MiniMc TP-TX/FX
- NEMA TS2 rated; modular versions without AC adapter
854-19722 MM1300-ST
1
5 km
854-19723 MM1300-SC
1
5 km
854-19724 SM1310/PLUS-ST 1
30 km
854-19725 SM1310/PLUS-SC 1
30 km
SINGLE STRAND FIBER *
855-19750 SSFX-MM1310-SC 1
2 km
855-19751 SSFX-MM1550-SC 1
2 km
855-19752 SSFX-SM1310-SC 1
20 km
855-19753 SSFX-SM1550-SC 1
20 km
SSFX-SM1310/
855-19754 PLUS-SC
1
40 km
855-19755 SSFX-SM1550/
1
40 km
PLUS-SC
855-19756 SSFX-SM1310/
1
60 km
LONG-SC
SSFX-SM1550/
855-19757 LONG-SC
1
60 km
ETHERNET
PORTS
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
ETHERNET
CONNECTOR
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
IN THE FIELD
Long Distance Connections
in Airport Concourse
IE-MiniMc also available in CWDM Fiber. Call for details.
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
Industry: Transaction Management –
Retail & Banking
Product:
IE-MiniMc Fiber/Copper Media Converter
www.bb-elec.com/
Airport
Carrier data charges
may apply.
www
.
bb
-
elec
.
com
|
IE-MiniMc_4314ds
Industrial Grade 10/100 Miniature
Media Converters
IE-MiniMc
SPECIFICATIONS
TECHNICAL
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX fiber
IEEE 802.3af Power Over Ethernet
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ45 and ST or SC ports available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Includes terminal DC power block
Country-specific, high-reliability power adapter
Auto Negotiation
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10
Mbps, 148,100 pps for 100 Mbps)
Status LEDs
MECHANICAL
Dimensions
Shipping Weight
INPUT SPECIFICATIONS
DC Terminal: 7 - 50 VDC, 1A - 0.1A
Barrel Connector: 5 VDC
PoE: Maximum supply voltage is 50V
ENVIRONMENTAL
Operating Temperature:
-13° F to 185° F (-25° C to +85° C)
DC or PoE (PD)
Operating Temperature:
+14° F to +122° F (-10° C to +50° C)
AC wall adapter
Storage Temperature:
-13° F to +185° F (-25° C to +85° C)
Operating Humidity
5% to 95% (non-condensing)
REGULATORY APPROVALS
FCC Class A (using DC terminal or PoE power)
FCC Class B (using any DC jack, optional)
UL/cUL, CSA, CE
NEMA TS2 (select models)
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.7 lbs (.317 kg)

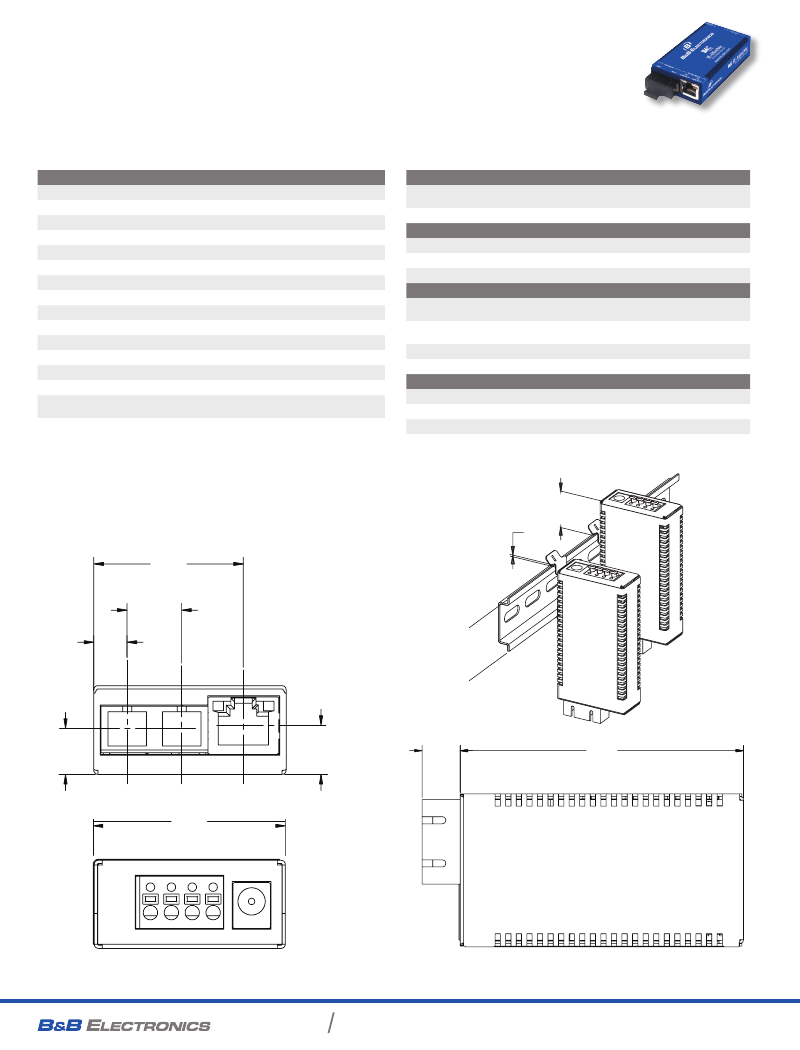

MECHANICAL DIAGRAM
(dimensions in inches & millimeters)
.04
(1.0)
1.04
(26,4)
1.40
(35,6)
.51
(12,9)
REF
.31
(7,9)
1.25
(31,75)
.43
(11,0)
.46
(11,7)
.45
(11,4)
3.35
(85,1)
1.81
(46,0)
orders@bb-elec.com
support@bb-elec.com
