Section 3: Introduction
Foreword
AVX offers a broad line of solid Tantalum capacitors in a wide
range of sizes, styles, and ratings to meet any design needs.
This catalog combines into one source AVX’s leaded tanta-
lum capacitor information from its worldwide tantalum oper-
ations.
The TAP/TEP is rated for use from -55°C to +85°C at rated
voltage and up to +125°C with voltage derating. There
are three preferred wire forms to choose from which are
available on tape and reel, and in bulk for hand insertion.
AVX has a complete tantalum applications service available
for use by all our customers. With the capability to prototype
and mass produce solid tantalum capacitors in special
configurations, almost any design need can be fulfilled.
And if the customer requirements are outside our standard
testing, AVX will work with you to define and implement a test
or screening plan.
AVX is determined to become the world leader in tantalum
capacitor technology and has made, and is continuing to
make, significant investments in equipment and research to
reach that end. We believe that the investment has paid off
with the devices shown on the following pages.
Dipped Radial Capacitors
SOLID TANTALUM RESIN DIPPED
SERIES TAP/TEP
The TAP/TEP resin dipped series of miniature tantalum
capacitors is available for individual needs in both commercial
and professional applications. From computers to automotive
to industrial, AVX has a dipped radial for almost any applica-
tion.

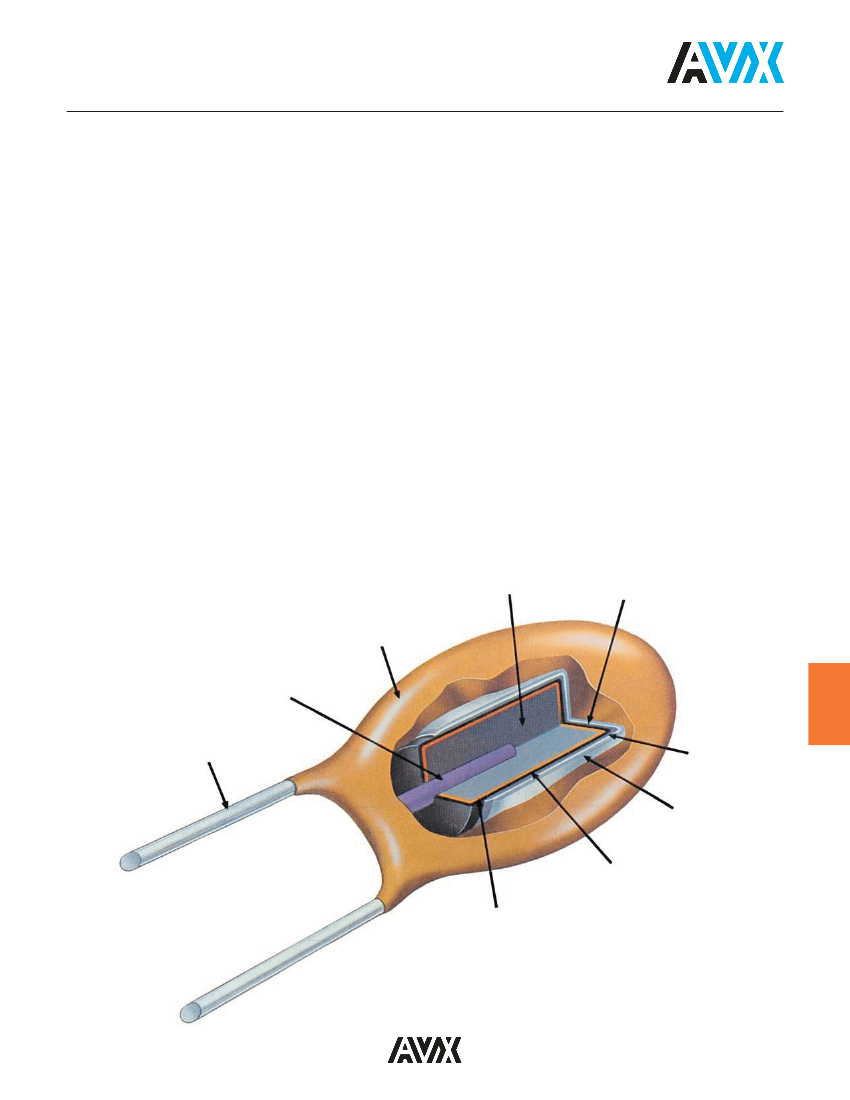

Tantalum
Graphite
Resin encapsulation
Tantalum wire
Terminal Wire
Silver
Solder
Manganese
dioxide
Tantalum
pentoxide
JUNE 2013
I
115
Dipped Radial Capacitors

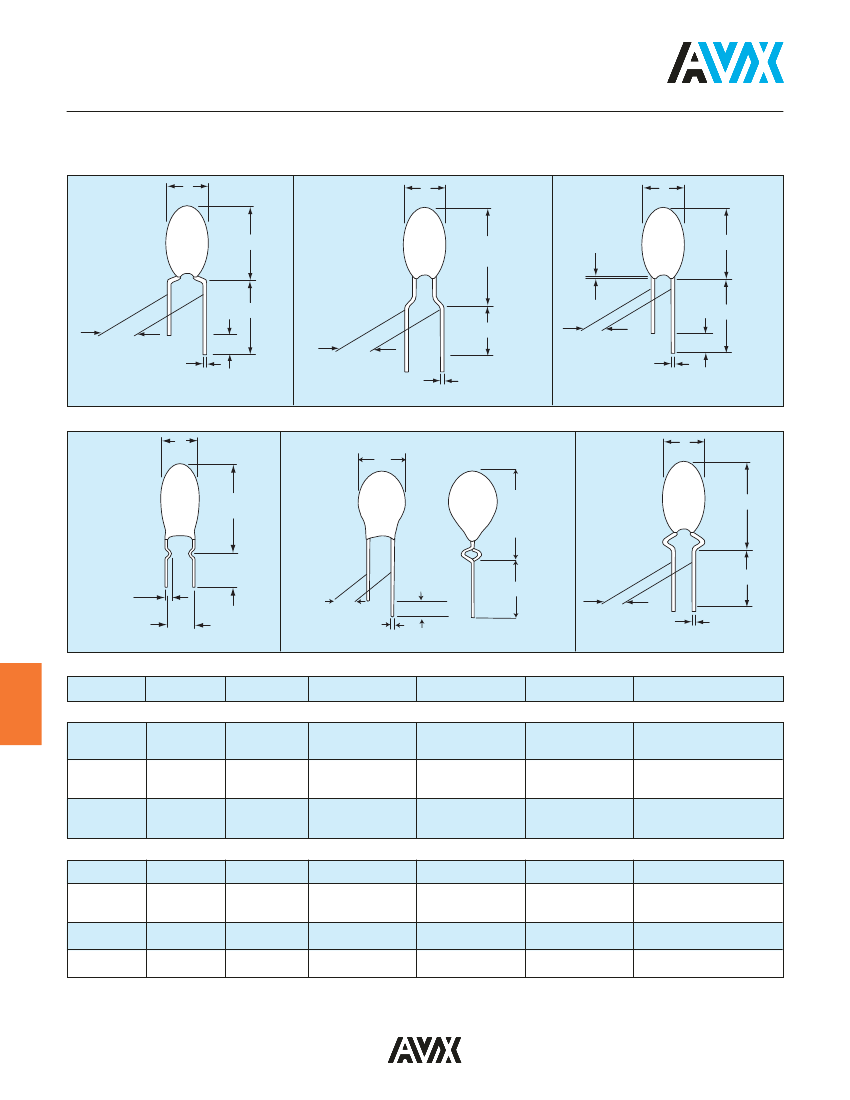

Wire Form Outline
SOLID TANTALUM RESIN DIPPED TAP/TEP
Preferred Wire Forms
Figure 1
D
Figure 2
D
Figure 3
2.0(0.08)
max
+
D
H
+
H
1
+ 4 (0.16)
max
H
1
L
S
S
d
Wire Form C
2.0 (0.079)
min
d
Wire Form B
Wire Form S
d
L
S
L
2 (0.079)
min
Non-Preferred Wire Forms
(Not recommended for new designs)
Figure 4
D
Figure 5
Figure 6
D
D
H + 3.8 (0.15)
max
+
L
1.10
+0.25
-0.10
+0.010
)
(0.4
-0.004
S
Wire Form F
Wire Form D
H
1
max
+0.118
(3.0)
0.079 (2)
min
H
L
S
d
L
S
d
Wire Form G
DIMENSIONS
Wire Form
Figure
Case Size
L (see note 1)
S
d
millimeters (inches)
Packaging
Suffixes Available*
CCS
CRW
CRS
BRW
BRS
SCS
SRW
SRS
Bulk
Tape/Reel
Tape/Ammo
Tape/Reel
Tape/Ammo
Bulk
Tape/Reel
Tape/Ammo
Preferred Wire Forms
C
Figure 1
A - R*
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
5.00±1.00
(0.200±0.040)
5.00±1.00
(0.200±0.040)
2.50±0.50
(0.100±0.020)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
B
S
Figure 2
Figure 3
A - J*
A - J*
Non-Preferred Wire Forms
(Not recommended for new designs)
F
D
G
H
Figure 4
Figure 5
Figure 6
Similar to
Figure 1
A-R
A - H*
A-J
A-R
3.90±0.75
(0.155±0.030)
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
16.0±4.00
(0.630±0.160)
5.00±0.50
(0.200±0.020)
2.50±0.75
(0.100±0.020)
3.18±0.50
(0.125±0.020)
6.35±1.00
(0.250±0.040)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
0.50±0.05
(0.020±0.002)
FCS
DCS
DTW
DTS
GSB
HSB
Bulk
Bulk
Tape/Reel
Tape/Ammo
Bulk
Bulk
Notes: (1) Lead lengths can be supplied to tolerances other than those above and should be specified in the ordering information.
(2) For D, H, and H
1
dimensions, refer to individual product on following pages.
*
For case size availability in tape and reel, please refer to pages 123-124.
116
I
JUNE 2013
Dipped Radial Capacitors

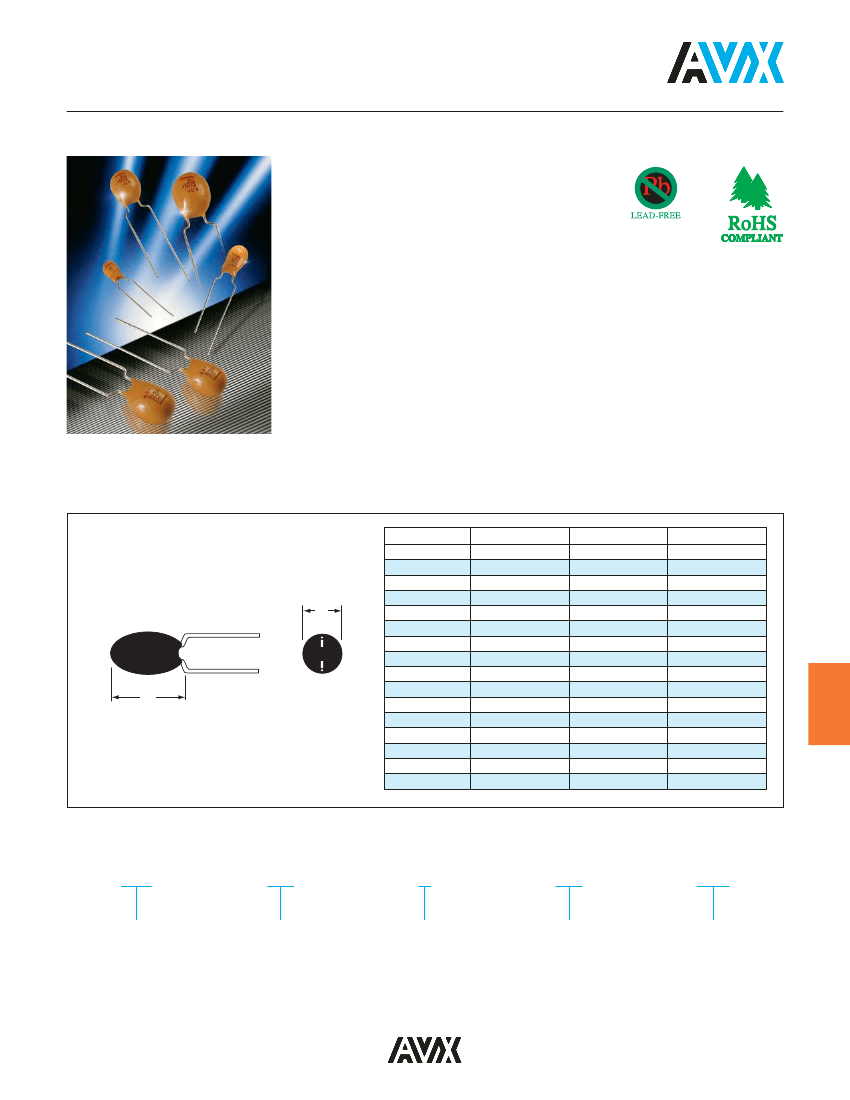

TAP Series
SOLID TANTALUM RESIN DIPPED CAPACITORS
TAP is a professional grade device manufactured
with a flame retardant coating and featuring low
leakage current and impedance, very small
physical sizes and exceptional temperature
stability. It is designed and conditioned to
operate to +125°C (see page 153 for voltage
derating above 85°C) and is available loose or
taped and reeled for auto insertion. The 15 case
sizes with wide capacitance and working voltage
ranges means the TAP can accommodate
almost any application.
LEAD-FREE COMPATIBLE
COMPONENT
MAXIMUM CASE DIMENSIONS:
millimeters (inches)
Wire
Case
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
C, F, G, H
H
8.50 (0.330)
9.00 (0.350)
10.0 (0.390)
10.5 (0.410)
10.5 (0.410)
11.5 (0.450)
11.5 (0.450)
12.0 (0.470)
13.0 (0.510)
14.0 (0.550)
14.0 (0.550)
14.5 (0.570)
16.0 (0.630)
17.0 (0.670)
18.5 (0.730)
B, S, D
*H
1
7.00 (0.280)
7.50 (0.300)
8.50 (0.330)
9.00 (0.350)
9.00 (0.350)
10.0 (0.390)
10.0 (0.390)
10.5 (0.410)
11.5 (0.450)
12.5 (0.490)
12.5 (0.490)
13.0 (0.510)
D
+
H
D
4.50 (0.180)
4.50 (0.180)
5.00 (0.200)
5.00 (0.200)
5.50 (0.220)
6.00 (0.240)
6.50 (0.260)
7.00 (0.280)
8.00 (0.310)
8.50 (0.330)
9.00 (0.350)
9.00 (0.350)
9.00 (0.350)
10.0 (0.390)
10.0 (0.390)
HOW TO ORDER
TAP
Type
475
M
035
SCS
Capacitance Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
Capacitance Tolerance
K = ±10%
M = ±20%
(For J = ±5% tolerance,
please consult factory)
Rated DC Voltage
Suffix indicating wire form
and packaging
(see page 116)
JUNE 2013
I
117
Dipped Radial Capacitors
TAP Series
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Environmental Classification:
Dissipation Factor:
All technical data relate to an ambient temperature of +25°C
0.10 μF to 330 μF
±20%; ±10% (±5% consult your AVX representative for details)
6.3 10 16 20 25 35 50
4 6.3 10 13 16 23 33
8 13 20 26 33 46 65
5
9
12 16 21 28 40
-55°C to +125°C
55/125/56 (IEC 68-2)
0.04 for C
R
0.1-1.5μF
0.06 for C
R
2.2-6.8μF
0.08 for C
R
10-68μF
0.10 for C
R
100-330μF
1% per 1000 hrs. at 85°C with 0.1Ω/V series impedance, 60% confidence level.
CECC 30201 - 032
+85°C:
+125°C:
+85°C:
+125°C:
Reliability:
Qualification:
Capacitance Range
(letter denotes case size)
Capacitance
μF
Code
6.3V
10V
0.10
104
0.15
154
0.22
224
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
A
A
A
B
C
D
E
F
G
H
K
M
P
16V
Rated voltage DC (V
R
)
20V
25V
35V
A
A
A
A
A
A
50V
A
A
A
A
A
B
C
D
E
F
G
H
J
K
L
A
A
A
B
C
D
E
F
G
H
K
N
P
R
A
A
A
B
C
D
E
F
F
J
L
N
N
R
A
A
A
B
C
D
E
F
H
J
K
N
N
A
A
A
B
C
D
E
F
H
J
M
N
A
A
B
C
E
F
F
H
K
M
N
Values outside this standard range may be available on request.
AVX reserves the right to supply capacitors to a higher voltage rating, in the same case size, than that ordered.
MARKING
Polarity, capacitance, rated DC voltage, and an "A" (AVX
logo) are laser marked on the capacitor body which is made
of flame retardant gold epoxy resin with a limiting oxygen
index in excess of 30 (ASTM-D-2863).
•
•
•
•
Polarity
Capacitance
Voltage
AVX logo
• Tolerance code:
±20% = Standard (no marking)
±10% = “K” on reverse side of unit
±5% = “J” on reverse side of unit
+A
10μ
16
118
I
JUNE 2013
Dipped Radial Capacitors
TAP Series
RATINGS AND PART NUMBER REFERENCE
