59628752702QX datasheet, PDF - EEWORLD Datasheet

59628752702QX: DescriptionIC 2 CHANNEL(S), 2M bps, SERIAL COMM CONTROLLER, CDIP40, SIDE BRAZED, CERDIP-40, Serial IO/Communication Controller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，34 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

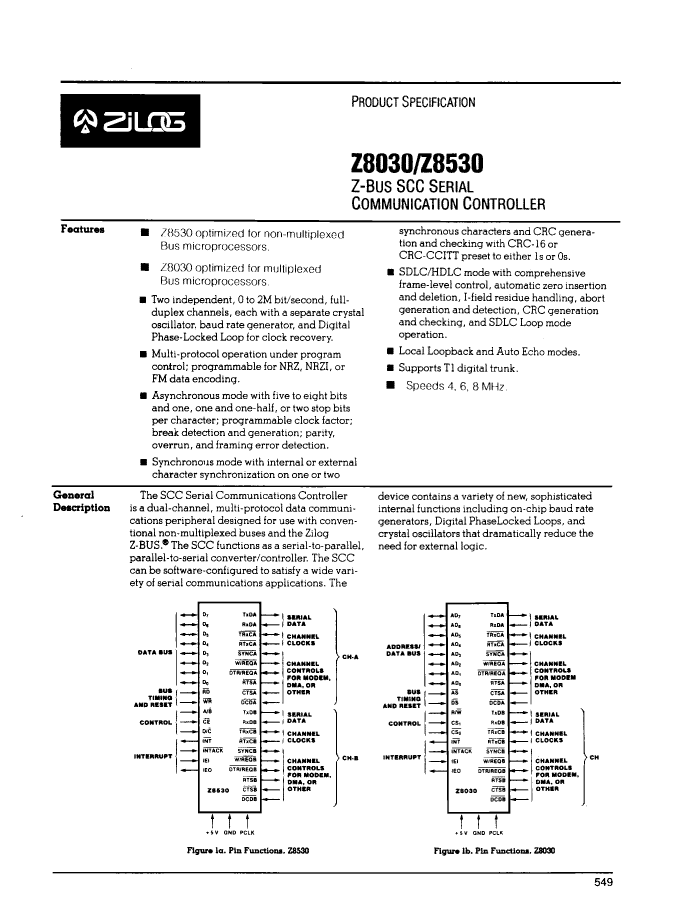

59628752702QX Overview

IC 2 CHANNEL(S), 2M bps, SERIAL COMM CONTROLLER, CDIP40, SIDE BRAZED, CERDIP-40, Serial IO/Communication Controller

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,

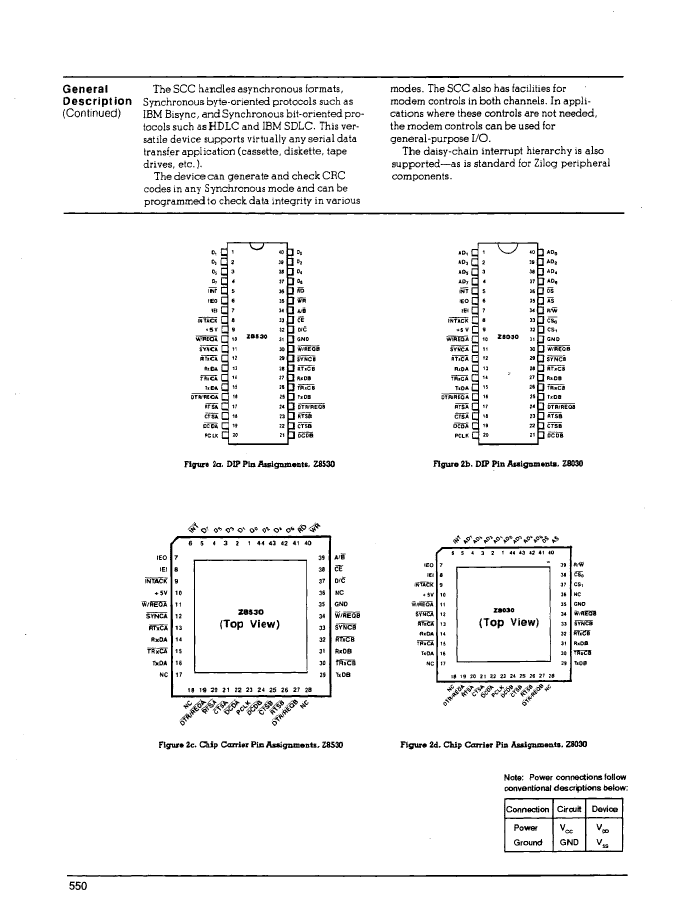

Contacts	40
Reach Compliance Code	unknown
boundary scan	NO

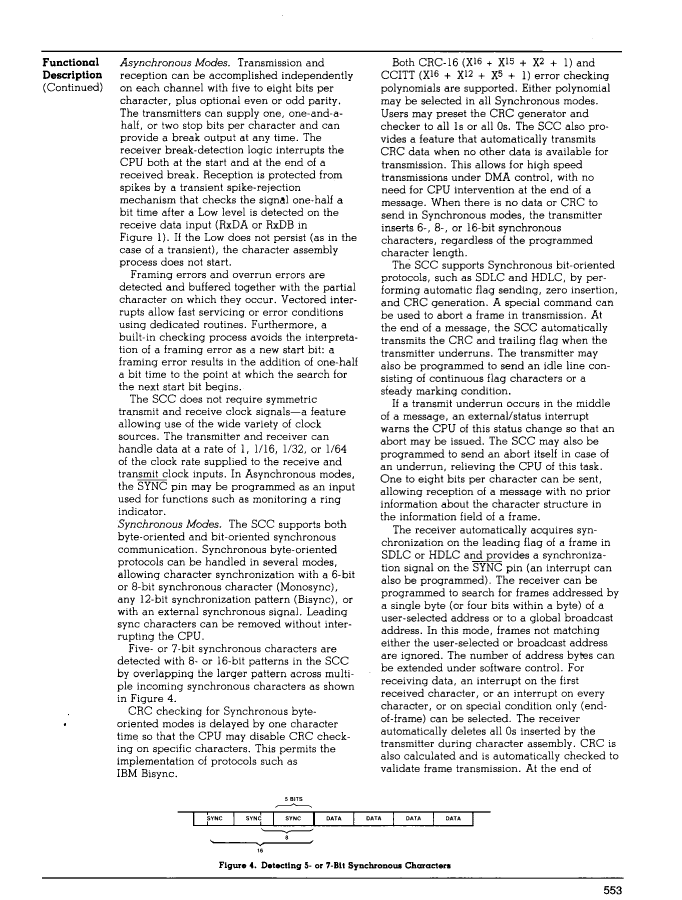

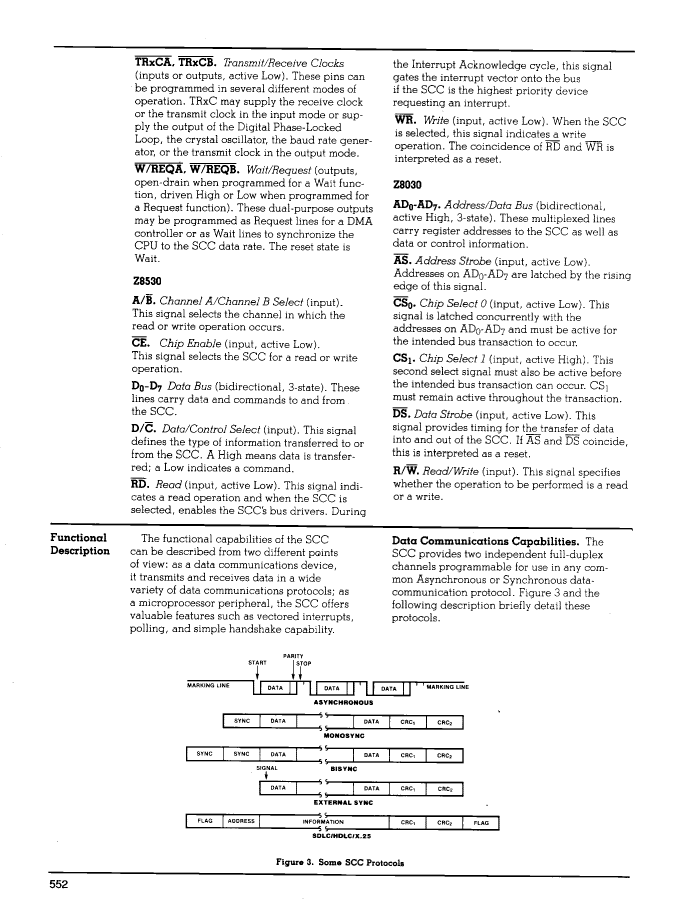

letter of agreement	SYNC, HDLC; SYNC, SDLC
Data encoding/decoding methods	NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0)
Maximum data transfer rate	0.25 MBps
External data bus width	8
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
low power mode	NO
Number of serial I/Os	2
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	4.699 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1
