7343-2USOC/H2/S400-A8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 7343-2USOC/H2/S400-A8

7343-2USOC/H2/S400-A8: Descriptionled 5mm round radial; CategoryLED optoelectronic/LED photoelectric; File Size88KB，5 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

7343-2USOC/H2/S400-A8 Overview

led 5mm round radial

7343-2USOC/H2/S400-A8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli
color	SUPER ORANGE
Configuration	SINGLE
Maximum forward current	0.05 A
Lens type	WATER CLEAR
Nominal luminous intensity	2000.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.65 mm
method of packing	BULK
peak wavelength	621 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	30 deg

Preview

Download Datasheet

View All

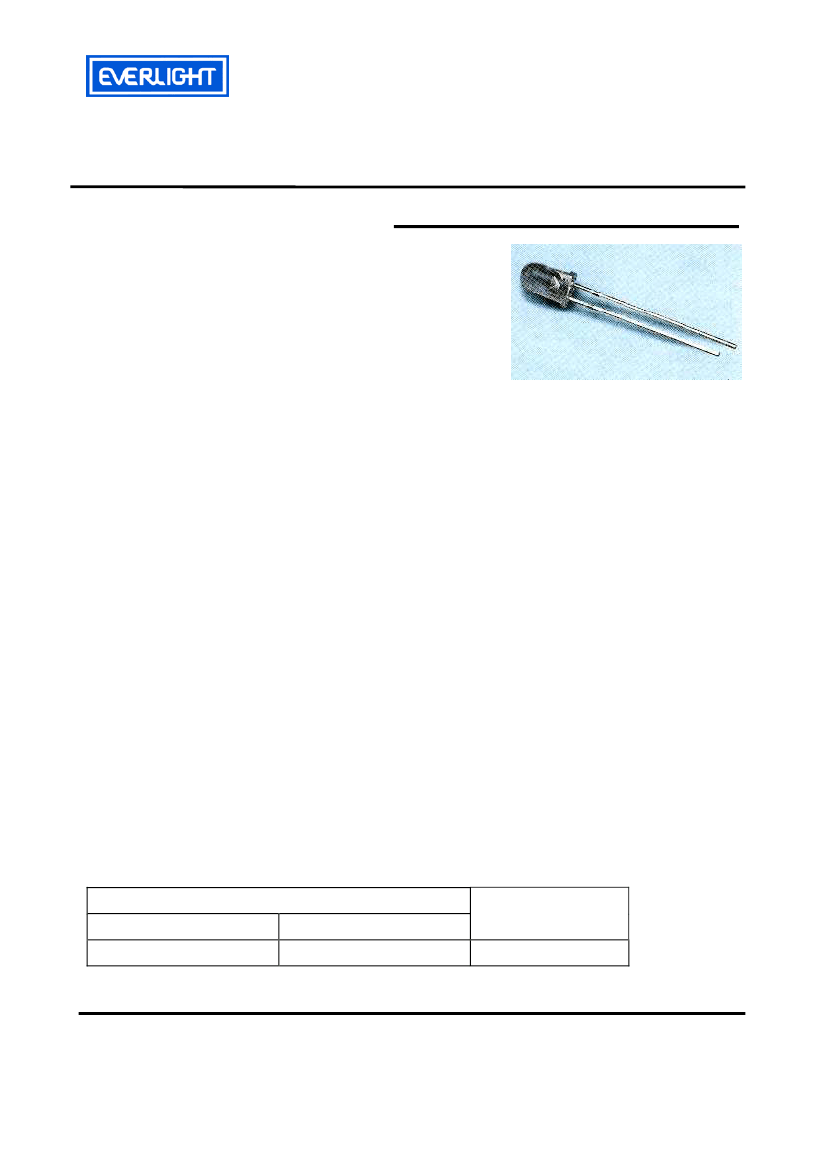

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

Light Emitting Diode

mm Round LED,T-1 3/4)

7343-2USOC/H2/S400-AX

Features

․Popular

T-1 3/4 diameter package.

․Choice

of various viewing angles.

․Reliable

and robust.

․Pb

free

․The

product itself will remain within RoHS

compliant version.

Descriptions

․The

series is specially designed for

applications requiring higher

brightness.

․The

LED lamps are available with

different colors,intensities,epoxy

colors, etc.

Applications

․TV

set.

․Monitor.

․Telephone.

․Computer.

Device Selection Guide

Chip

Material

AlGaInP

Emitted Color

Super Orange

Water Clear

Lens Color

Everlight Electronics Co., Ltd.

Device Number : DLE-734-094

http\\:www.everlight.com

Prepared date: 09-02-2005

Rev :2

Page: 1 of 5

Prepared by: Grace Shen

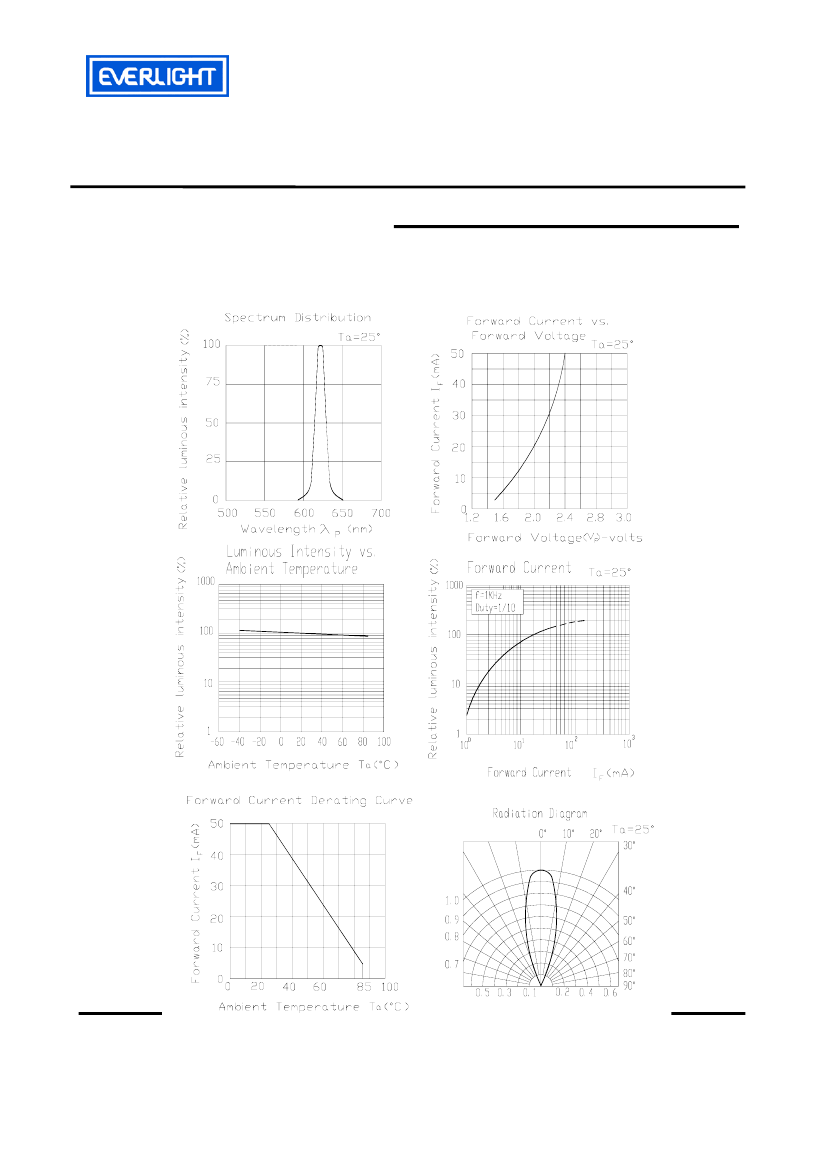

7343-2USOC/H2/S400-A8 Related Products

	7343-2USOC/H2/S400-A8	7343-2USOC/H2/S400-A7	7343-2USOC/H2/S400-A9
Description	led 5mm round radial	led 5mm round radial	Single Color LED, Super Orange, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	EVERLIGHT	EVERLIGHT	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compli	compli	compliant
color	SUPER ORANGE	SUPER ORANGE	SUPER ORANGE
Configuration	SINGLE	SINGLE	SINGLE
Maximum forward current	0.05 A	0.05 A	0.05 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	2000.0 mcd	1600.0 mcd	2500.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.65 mm	8.65 mm	8.65 mm
method of packing	BULK	BULK	BULK
peak wavelength	621 nm	621 nm	621 nm
shape	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm
surface mount	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
perspective	30 deg	30 deg	30 deg
