515119400350F Overview

optopipe vertical lightpipe.350"

515119400350F Parametric

Parameter NameAttribute value
Datasheets
515-119x-xyyyyF
Product Photos
515119400350F
Standard Package100
CategoryOptoelectronics
FamilyOptics - LEDs - Light Pipes
ColCle
ConfiguratiSingle
TypeRigid
Mounting Type*
Lens Style/SizeRound with Convex T
Dynamic Catalog515 Series
Other Names350-2589515-1193-0350F515-1194-0350F51511940350F
Application
Dialight Optopipe
®
vertical light pipes provide an excellent solution
for products that contain a PCB that is parallel to the panel in need
of indication. These UL94-V0 Water Clear Polycarbonate light pipes
are secured to the PCB using a custom snap-fit base that is easy
to install. Vertical light pipes are ideal for building automation and
other industrial applications where light needs to be transferred
from a parallel PC board, or the environment is subject to shock
and vibration. A good way to utilize low voltage and low current
LEDs, Dialight's optopipes provide a great way to efficiently transfer
light.

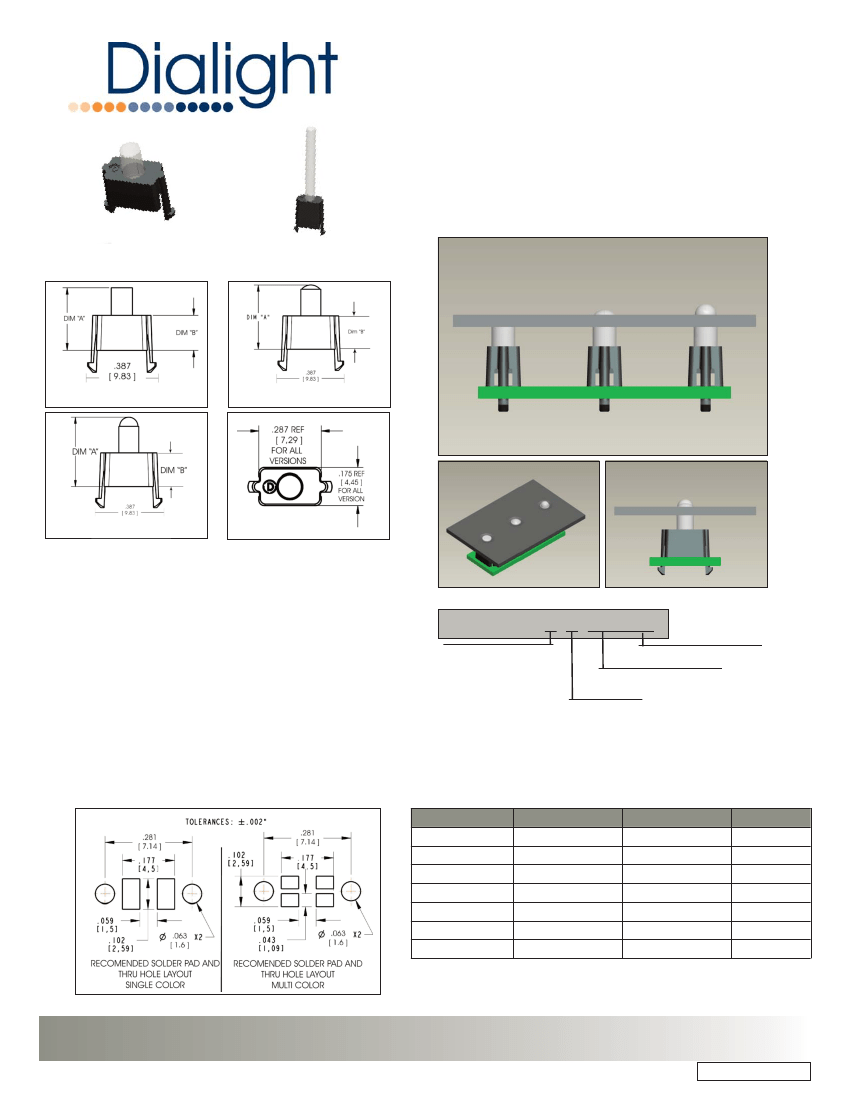

Optopipe
®
Vertical Lightpipes
3mm Diameter
Flat Lens
515-1192-XXXXXF
Convex Lens
515-1193-XXXXXF
Domed Lens
515-1194-XXXXXF
Features & Benefits:
Lengths varying from .250” to 1.250”
Three lens styles for optimal viewing angles; Flat, Domed, and Convex
Designed for both single and multi-color LEDs
Positive snap in mounting to PCB with opaque light barrier
Low-voltage and minimal power consumption
Light is produced through photonic emission, not as a
by-product of a radiating heat source
Molded from RoHS compliant UL94-V0 Water Clear
Polycarbonate with an oxygen index of 35%.
Designed to be used with Dialight surface mount led's plcc-2 and
plcc-4 pad layout shown, 597-XXXX-207f. See the surface mount
selector guide for led operating characteristics. Lower profile surface
mount led's in 598 and 597 series can be used as well as, reverse
mount led's. Please consult factory for availability.
Available in clear lens (F) and diffused textured lens (DF)
5 1 5 -1 19 X-X X X X X F
Lens Shape
2 - Flat
3 - Convex
4 - Domed
F= Clear, DF= Diffused
Length inches (mm) see dim A
LED Type
0 - PLCC2 or PLCC 4
1 - Chip LED
2 - Reverse Mount
Order Codes
PLCC2
PLCC4
Part Number
515-1192-00250F
515-1192-00550F
515-1192-01000F
515-1194-00300F
515-1194-00350F
515-1194-00450F
515-1194-01000F
DIM “A” inches (mm) DIM “B” inches (mm)
.250 (6.35)
.550 (13.97)
1.000 (25.4)
.300 (7.62)
.350 (8.89)
.450 (11.43)
1.000 (25.4)
.197 (5)
.375 (9.53)
.375 (9.53)
.197 (5)
.197 (5)
.197 (5)
.375 (9.53)
Lens Shape
Flat
Flat
Flat
Domed
Domed
Domed
Domed
Custom length available, consult factory
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available
at:http://www.dialight.com/Assets/Brochures_And_Catalogs/Indication/MDEOPVLPX001.pdf
Warranty Statement: EXCEPT FOR THE WARRANTY EXPRESSLY PROVIDED FOR [HEREIN/ABOVE/BELOW], DIALIGHT DISCLAIMS ANY AND ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT.
www.dialight.com
MDEOPVLPX001_B
