IE-iMcV-E1-Mux/4(Enhanced)
Modular, Managed Four E1 Plus Data Extension Over Fiber
M
edia
C
onversion
The IE-iMcV-E1-Mux/4 Transports Four E1 Extensions and One RS-232
Serial Link Over a Fiber Optic Line With Optional 1+1 Protection and
Full-Bandwidth 10/100 Ethernet Support.
Features and Benefits
• Four independent E1 ports on RJ-48
connectors with surge protection
• AIS generation on signal loss on all E1 and
fiber interfaces
• AIS Detection
• Supports local and remote loopback
functions
• Dual SFP fiber ports with 1+1 protection
switching
• One optional full bandwidth, Ethernet
10/100BaseT port
• User defined bandwidth limiting on
Ethernet port
• Auto Negotiation or forced modes on the
Ethernet port
• E1 ports can be remotely disabled by user
• Supports Jumbo Ethernet frames to 1916
• Supports “Pause” Frames
• AutoCross MDI/MDI-X on Ethernet port
• Supports the Link Fault Pass-Through
Function (LFPT)
• DDMI register retrieval supported on
SFP port
• One end-to-end serial RS-232 port to
120 Kbps on an RJ-45 connector
• Both Host/Remote are managed from the
Host unit
• Command Line Interface (CLI)
management provided via one MiniJack
RS-232 console port
• Remote Graphical User Interface (GUI)
management through a managed
iMediaChassis
• SNMP Alarm TRAP reporting in managed
chassis, including Last Gasp
• Full LED diagnostics on front panel
• IE model supports extended temperature

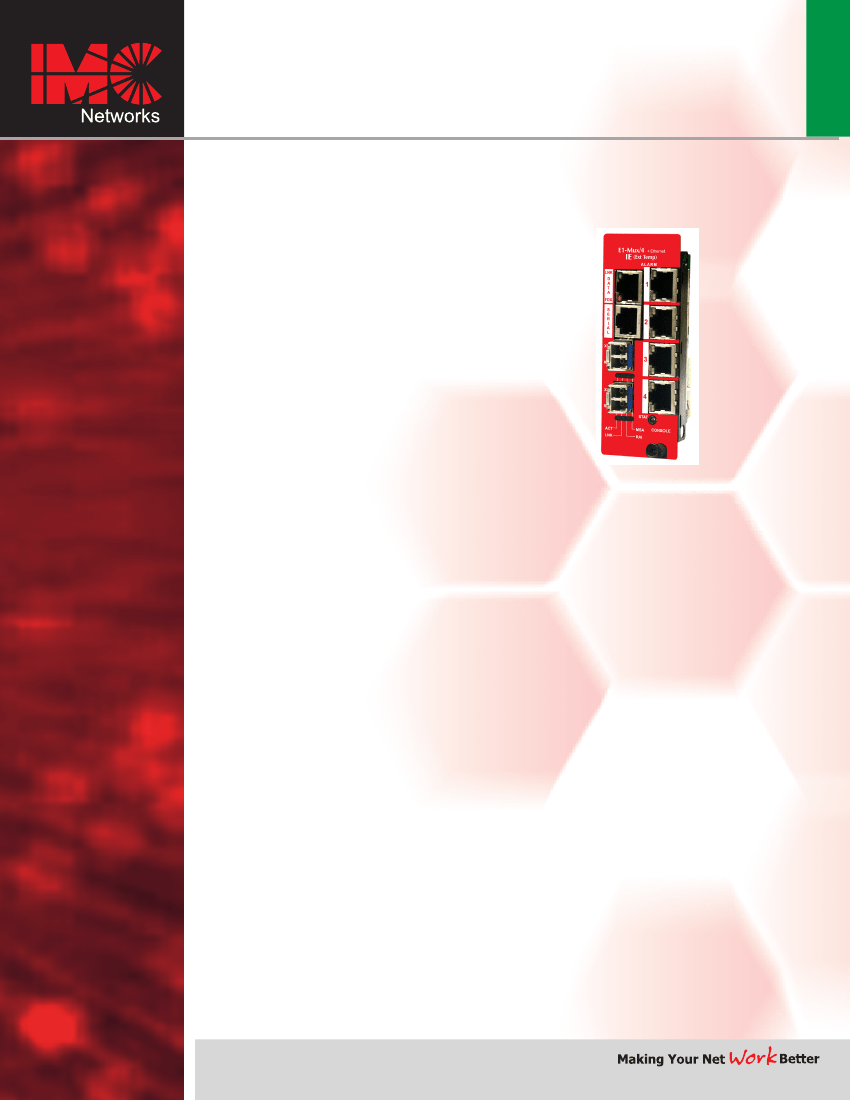

The IE-iMcV-E1-Mux/4 is a managed modular media converter,
installed as a Host/Remote pair, that transports four independent
E1 lines over a single or dual fiber optic line. The module is ideal
for applications requiring TDM extension, such as remote office
PABX connectivity, with support for a full bandwidth 10/100BaseT
Ethernet connection over the same optical link.
The IE-iMcV-E1-Mux/4 allows for Bandwidth Limiting control in
32 Kbps increments up to 100 Mbps. It also detects Ethernet,
AIS, E1 and fiber LOS events as well as degraded lines with full
LED indications including a Remote Alarm Indicator (RAI) over
the fiber link. E1 ports can also be enabled or disabled via the
CLI, Telnet or SNMP management software, allowing the user to
perform maintenance on a particular line without affecting others.
Fiber redundancy (1+1) on removable SFP modules offers the
enhanced reliability of a protected fiber link while supporting
the complete range of optical types and distances. The 1+1
protection system automatically switches to the best fiber line
within 50 milliseconds, should one line become impaired or fail.
The module also features an independent serial link (RS-232)
which is carried over the same fiber link(s), and can be used for
transporting serial traffic from other equipment located at the
remote point of presence (POP) back to the central office. This
unit also supports an independent RS-232 console port for local
monitoring and configuration of the unit by technical support
personnel.
www.imcnetworks.com
800-624-1070
RoHS Compliant
Technical Specifications
•
•
•
•
•
•
•
•
•
•
•
2 x MSA compliant optical SFP slots
4 x E1 (RJ-48) copper ports
Local RS-232 Console port
RS-232 transparent to 120 Kbps
IEEE 802.3x Flow Control
IEEE 802.3i 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX or SX fiber
ITU G.775
GR-820-CORE
Supports over-sized packets up to
1916 bytes per packet
• Configureable as Host/ Remote pairs
(DIP Switch selection)
• SNMP management via GUI-based
iView
2
application software
• 10/100BaseT Full Bandwidth
(144,800 fps/FDX)
• RoHS compliant
• Last Gasp Trap
Connectors:
•
•
•
•
•
Four E1 (RJ-48) copper ports
Two SFP slots
One RS-232 on MiniJack
One 10/100BaseT on RJ-45
One RS-232 on RJ-45
Shipping Weight:
1.1 lbs. (0.50 kg)
Operating Temp:
-40°F to 158°F (-40°C to +70°C)
5% to 95% (non-condensing),
0 – 10,000 ft. altitude
Regulatory Approvals:
• IEEE-802.3u
• ITU G.775 (AIS, LOS)
• GR-820-CORE
Storage Temp:
-40°F to 158°F (-40°C to +70°C)
5 to 95% (non-condensing)
Power Consumption (Typical):
0.96A @ +5 VDC
Dimensions:
Double-wide chassis module
Fiber Optics Specifications
The unit supports any MSA compliant SFP with a 155 Mbps bandwidth rating. DDMI capabilities are supported through the iView
2
management
software when the unit is installed in a managed chassis. IMC Networks provides a complete range of SFP units in both Single and Dual fiber
versions with a full range of wavelengths and distance ratings. For complete power budgets and information on calculating specific distances, visit
www.imcnetworks.com/go/fcs or contact IMC Networks Fiber Consulting Services at 949-465-3000 for a free consultation.
Ordering Information
PART NUMBER
IE-iMcV-E1-Mux/4
857-18111
825-39951
§
DESCRIPTION
IE-iMcV-E1-Mux/4+Ethernet, 2 x SFP (requires one or two SFP/155 Modules)
§
Serial Cable, MiniJack to DB9 (female)
DISTANCE
2 km to 80 km
IE-iMcV-E1-Mux/4 Accessories
SFP modules are sold separately. For more information on IMC Networks’ SFPs, go to: www.imcnetworks.com/Products/product.cfm?family=32
Application Example

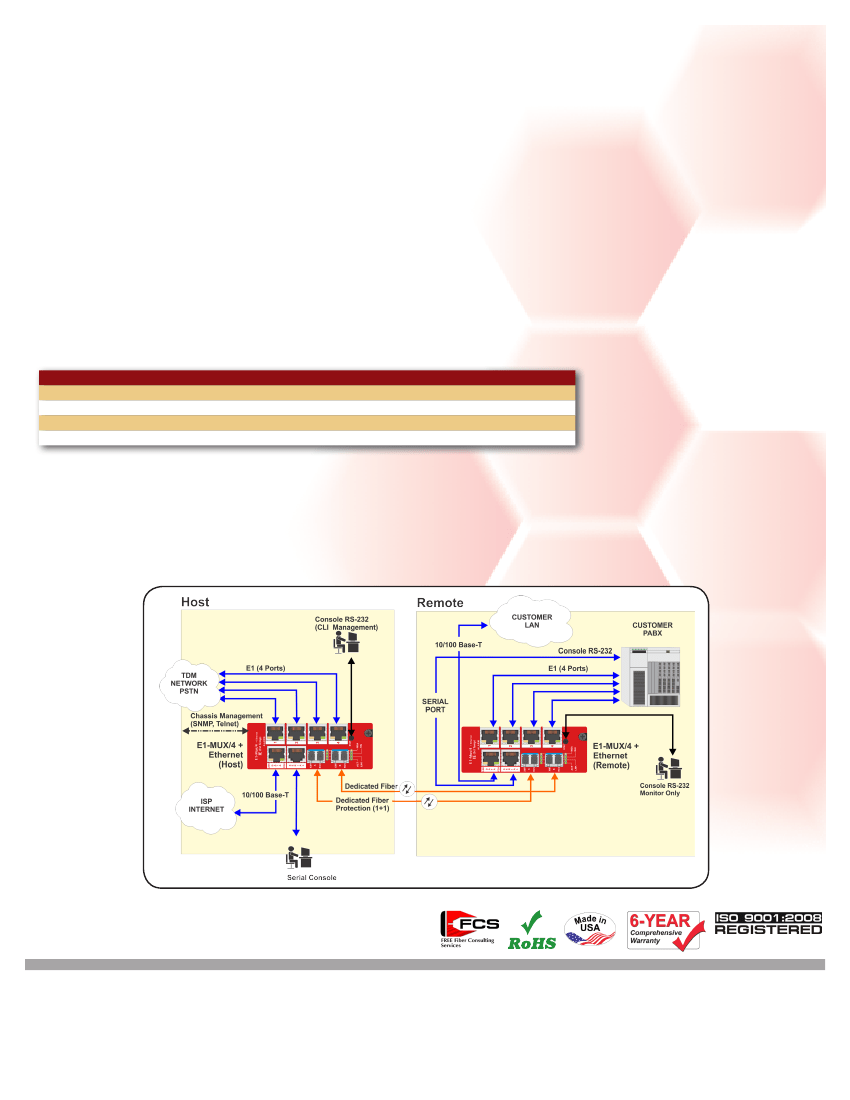

In a typical application, a Customer PABX is provided with up to four E1 lines from the Public Switch Telephone Network (PSTN) over a protected
optical link. In addition, the customer location can receive a full bandwidth, 100BaseT Ethernet connection to the Internet from the local Internet
Service Provider (ISP) over the same, protected, optical link. Operation Administration and Management (OAM) functions for the link are provided
from the Host location through either a “Console” RS-232 connection on the Host unit or a SNMP connection through the management interface at
the Host chassis. In this example, the RS-232 “Console” port of the remote PABX is also carried back to the Host location for remote management of
the customer located PABX, using the end-to-end serial RS-232 port on the iMcV-E1-Mux/4.
