PANEL LAMPS
PANEL LAMPS/LED’s
Fig.2
Fig.1
Fig.3
Fig.4

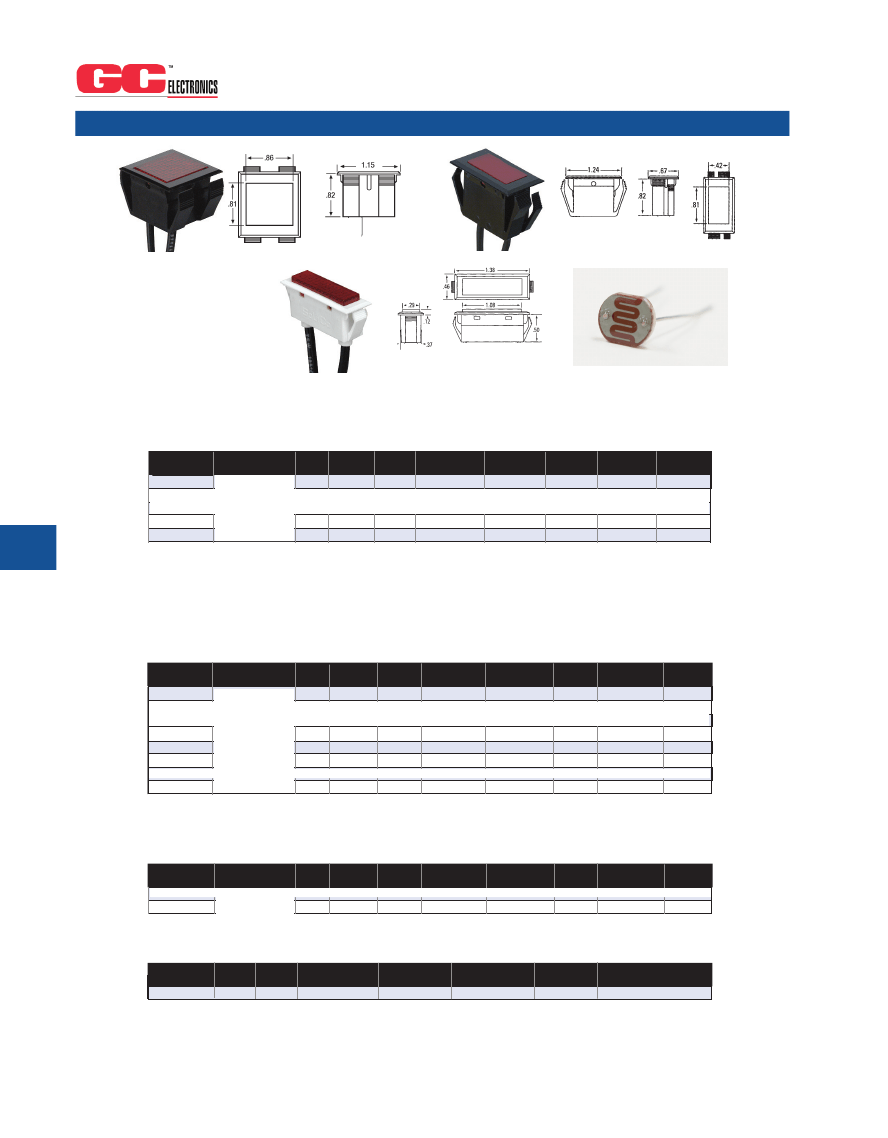

Large Square Snap-in Panel Lamps
These press-to- t panel lamps are available in several colors and voltages. They are made
from Nylon material and have 18 AWG 6” wire leads.
Retail
Part No.
38-1132-50
38-1132-12
38-1133-50
38-1133-12
38-1135-50
38-1135-12
38-1139-50
38-1139-12
Bulk
Part No.
38-1132-50BU
38-1132-12BU
38-1133-50BU
38-1133-12BU
38-1135-50BU
38-1135-12BU
38-1139-50BU
38-1139-12BU
Figure
No.
1
1
1
1
1
1
1
1
Lamp
Lamp
Voltage
Current
125V
12V/14V .08A
125V
12V/14V .08A
125V
12V/14V .08A
125V
12V/14V .08A
Lamp
Type
Neon
Incandescent
Neon
Incandescent
Neon
Incandescent
Neon
Incandescent
Lamp
Termination
Wire Leads
Wire Leads
Wire Leads
Wire Leads
Wire Leads
Wire Leads
Wire Leads
Wire Leads
Lamp
Life
25,000
50,000
25,000
50,000
25,000
50,000
25,000
50,000
Lamp
Shape
Square
Square
Square
Square
Square
Square
Square
Square
Lamp
Color
Red
Red
Amber
Amber
Green
Green
White
Whit
Panel
Lamps
Rectangular Snap-in Panel Lamps
This is the most popular of the rectangular lamps used today. The device snaps into a panel
cutout with a minimum panel thickness of .020”-.025”. All lamps are made of a Nylon material
with 18 AWG 6” wire leads.
Retail
Part No.
38-1022-50
38-1022-12
38-1023-50
38-1023-12
38-1025-50
38-1025-12
38-1029-50
38-1029-12
Bulk
Part No.
38-1022-50BU
38-1022-12BU
38-1023-50BU
38-1023-12BU
38-1025-50BU
38-1025-12BU
38-1029-50BU
38-1029-12BU
Figure
No.
2
2
2
2
2
2
2
2
Lamp
Voltage
125V
12V/14V
125V
12V/14V
125V
12V/14V
125V
12V/14V
Lamp
Current
.08A
.08A
.08A
.08A
Lamp
Type
N eon
I nc andesc ent
N eon
I nc andesc ent
N eon
I nc andesc ent
N eon
I nc andesc ent
Lamp
Termination
W i re Leads
W i re Leads
W i re Leads
W i re Leads
W i re Leads
W i re Leads
W i re Leads
W i re Leads
Lamp
Life
25, 000
50, 000
25, 000
50, 000
25, 000
50, 000
25, 000
50, 000
Lamp
Shape
R ec tangul ar
R ec tangul ar
R ec tangul ar
R ec tangul ar
R ec tangul ar
R ec tangul ar
R ec tangul ar
R ec tangul ar
Lamp
Color
R ed
R ed
A mber
A mber
G reen
G reen
W hi te
W hi te
3/8 Snap-in Rectangular Panel Lamps
Snaps into panel cutout of .375” x 1.28” x 0.5”. The Nylon body comes with 6”
18 AWG wire leads.
Retail
Part No.
38-3002-50
38-3003-50
38-3005-50
Bulk
Part No.
38-3002-50BU
38-3003-50BU
38-3005-50BU
Figure
No.
3
3
3
Lamp
Voltage
125V
125V
125V
Lamp
Current
Lamp
Type
N eon
N eon
N eon
Lamp
Termination
W i re Leads
W i re Leads
W i re Leads
Lamp
Life
25, 000
25, 000
25, 000
Lamp
Shape
R ec tangul ar
R ec tangul ar
R ec tangul ar
Lamp
Color
R ed
A mber
G reen
Photoconductive Cell
Retail
Part No.
J4-805
Figure
No.
4
Ambient
Voltage Power
Temperature
Max.
Disippation
120Vdc 50mW continuous (26.6 to 158)°F
Spectral
Response Max.
(520 to 580)mm
Lead
Spacing
5mm
Body
Size
(7 x 5.9 x 2)mm
232
Phone (815) 316-9080 • Fax (815) 316-9081
All quantities are single; BU’s are packages of 10 Unless otherwise noted.
