3-204688-0: Description48 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

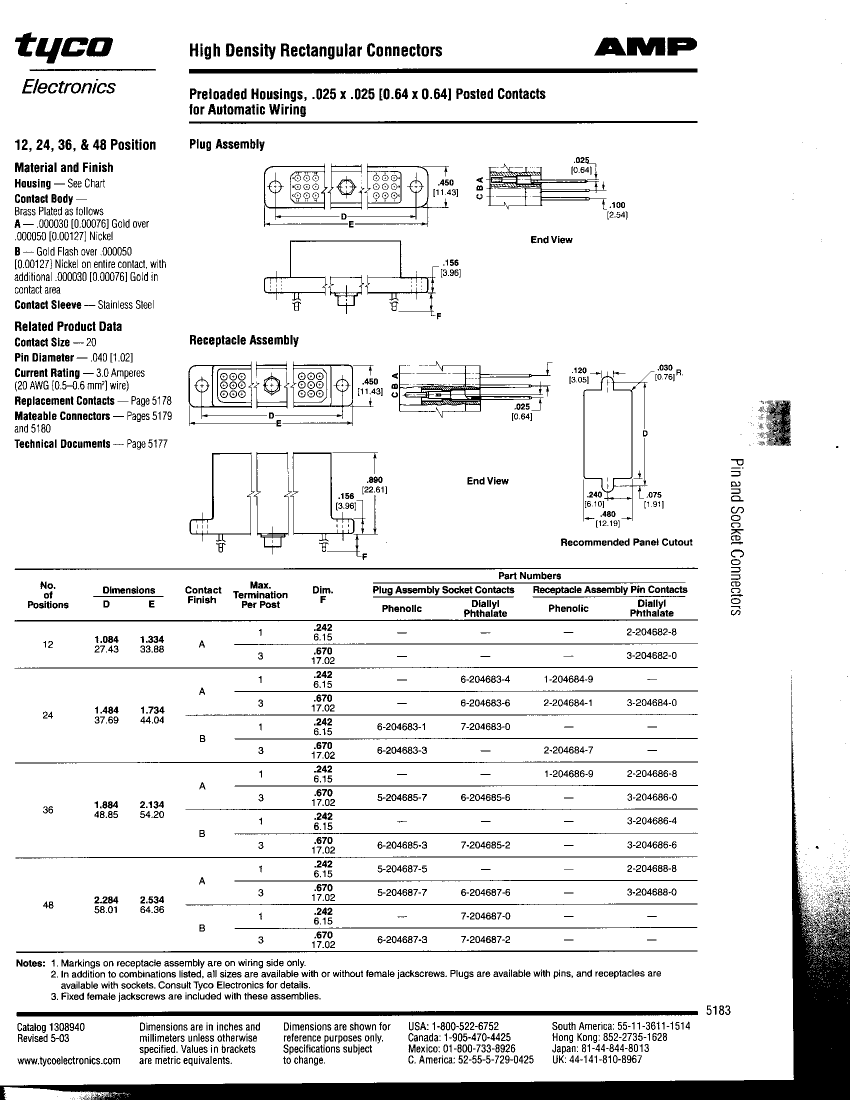

3-204688-0 Overview

48 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE

3-204688-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1420220927
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	RACK AND PANEL CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	WIRE WRAP
Total number of contacts	48

Preview

Download Datasheet

View All

3-204688-0 Related Products

	3-204688-0	2-204684-1	2-204686-8	2-204688-8	6-204685-3	6-204683-1	3-204686-6	7-204683-0	177-740-5-51GS8K1-18LAN
Description	48 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE	24 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE	36 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE	48 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE	36 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, PLUG	24 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, PLUG	36 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, RECEPTACLE	24 CONTACT(S), FEMALE, MULTIWAY RACK AND PANEL CONN, WIRE WRAP, PLUG	Cable Assembly, 28AWG,
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	YES
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE	PLUG	-
Connector type	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	RACK AND PANEL CONNECTOR	-
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	-
Contact completed and terminated	GOLD OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	-
Contact point gender	MALE	MALE	MALE	MALE	FEMALE	FEMALE	MALE	FEMALE	-
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	-
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	-
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	-
Total number of contacts	48	24	36	48	36	24	36	24	-
Manufacturer's serial number	-	204684	204686	204688	204685	204683	204686	204683	-
Shell material	-	PHENOLIC	DIALLYL PHTHALATE	DIALLYL PHTHALATE	PHENOLIC	PHENOLIC	DIALLYL PHTHALATE	DIALLYL PHTHALATE	-
Base Number Matches	-	1	1	1	-	-	1	1	-
