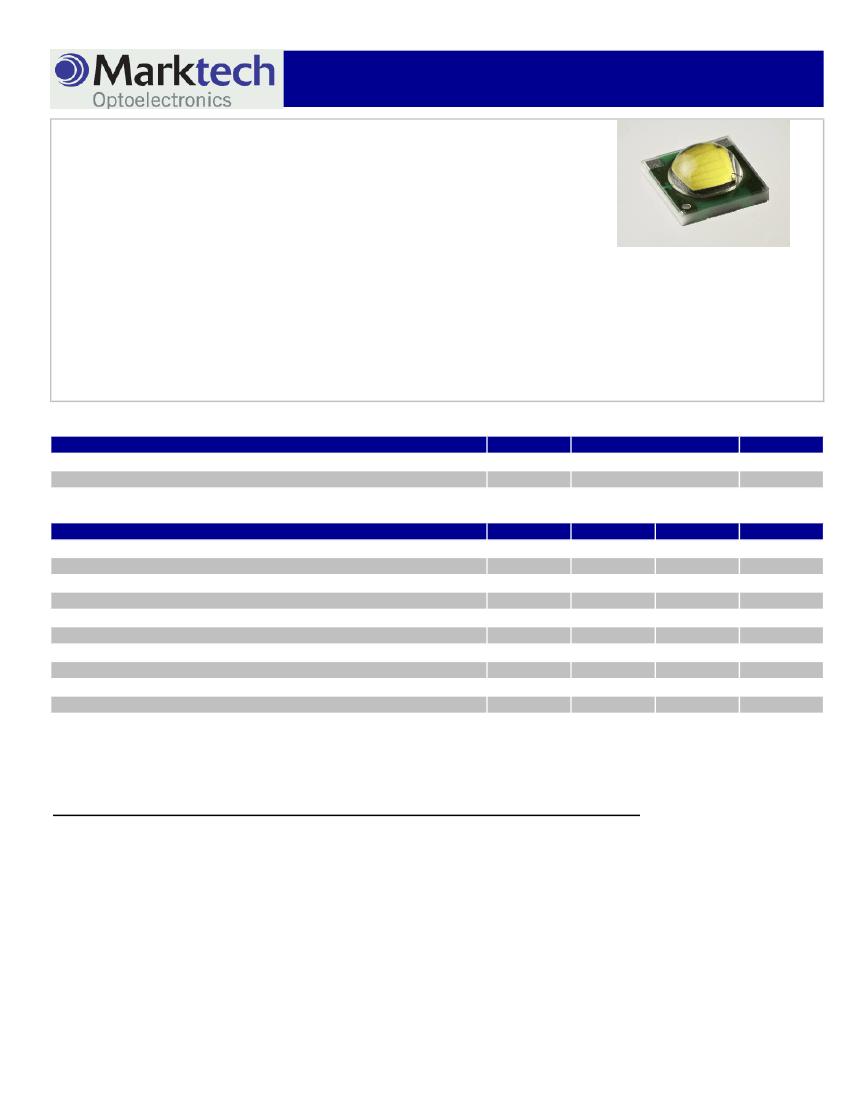

Cree XP-G Color Series on Board
Cree XP-G Color Series on Board
Optimized for high lumen directional lighting applications, the XLamp XP-G LED set
a new standard for light output and efficacy in a small form factor LED. The XLamp
XP-G LED is capable of delivering up to 493 lumens at 93 lumens per watt when
driven at 1.5 A. Others have tried to match its performance but no one has come
close. Now, the XLamp XP-G LED is even brighter.
FEATURES
> Maximum drive current: 1500mA
> Low thermal resistance: 4 °C/W
> Wide viewing angle: 125°
APPLICATIONS
> Directional
> High-End Portable
> Low & High Bay
> Roadway & Parking
FLUX CHARACTERISTICS
COLOR
Cool White
Neutral White
Warm White
CHARACTERISTICS
Viewing angle (FWHM)
Effective Thermal Resistance, Junction to Solder Point
ESD classification (HBM per Mil-Std-883D)
DC forward current
Reverse voltage
Forward voltage (@ 350 mA, 25 °C)
Forward voltage (@ 700 mA, 25 °C)
Forward voltage (@ 1000 mA, 25 °C)
Forward voltage (@ 1500 mA, 25 °C)
Temperature coefficient of voltage (6V)
CCT (TYP.) MIN.FLUX (LM) @350MA KIT USED
139
6000K
0H53
114
4000K
0EE5
100
3000K
0CE7
UNIT
degrees
°C/W
mA
V
V
V
V
V
mV/°C
MINIMUM
TYPICAL
125
4
Class 2
MAXIMUM
2.9
3.05
3.15
3.25
-2.1
1500
5
3.25
It is highly recommended for the user to review the CREE Series page for additional and most recent technical data at:
http://www.cree.com/led-components-and-modules/products/xlamp/discrete-directional/xlamp-xpg
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA www.marktechopto.com
TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: 518-785-4725 • EMAIL: info@marktechopto.com

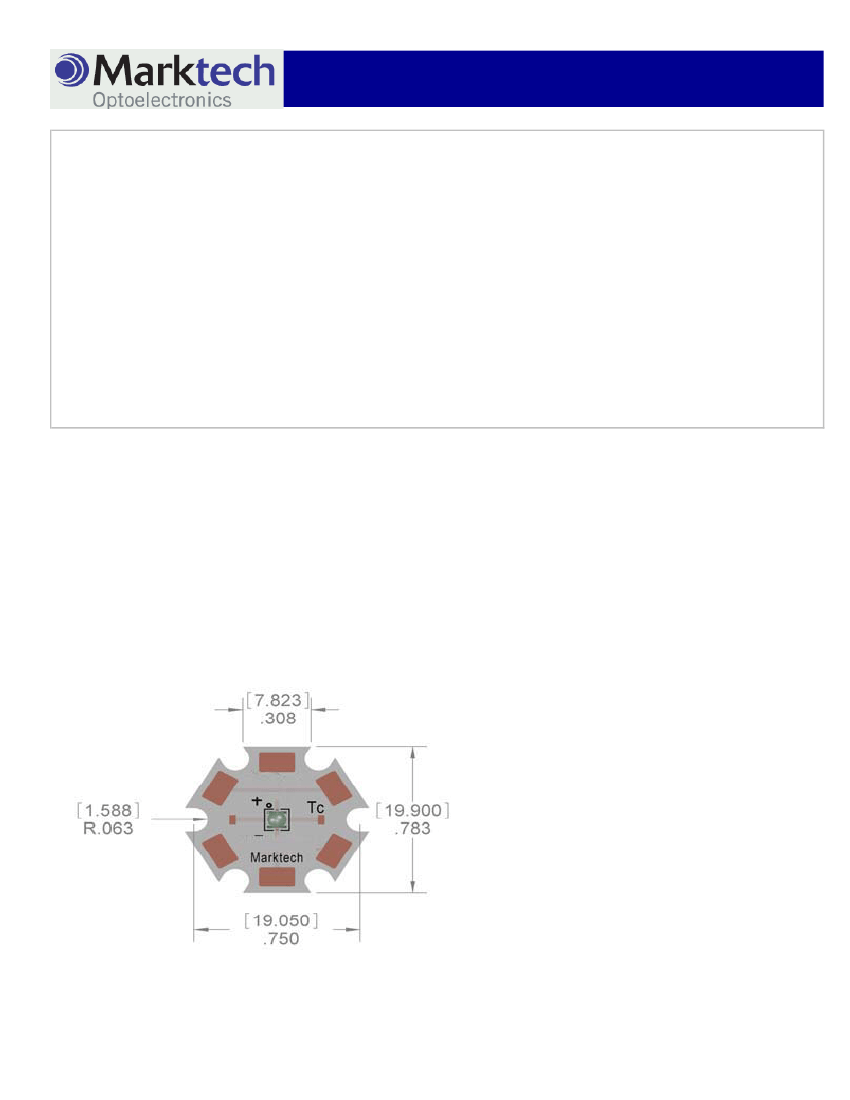

Cree XP-G Color Series on Board
* Exceeding maximum ratings may damage the LED and cause potential safety hazards.
* Elevated operating temperatures can be expected to negatively impact the service life (lumen output)
* All data is related to entire assembly. Data reflects statistical mean values. Actual data may differ depending on variances
in the manufacturing process.
* End users need to take into account the lumen depreciation as the temperature rises with various thermal solutions
installed.
Note 1: Using continuously under elevated loads (i.e. the application of high temperature/current/voltage or a significant
change in temperature, etc.) may cause this product to significantly decrease in reliability even if the operating conditions are
within the
absolute maximum ratings.
Note 2: The thermal resistance from the LED junction to ambient temperature, Rth(j-a), should be kept below 100C/W so that
the LED is not exposed to a condition beyond the absolute maximum ratings.
Note 3: The temperature of the LED assembly must be measured at the TC-point according to EN60598-1 in a thermally
constant status with a temperature sensor or a temperature sensitive label.
Hardware (not included)
> Mount with #4 Machine Screws.
> 16AWG Maximum Wire Gauge.
> Use only with constant current power supplies.
PCB Fabrication
> Layer Count: 1
> Core Material: 6061-T6 Aluminum
> Single Layer Copper Weight: 1oz
> Solder Mask: White
> Finishing Plating: Pb Free HASL
Global Headquarters, 3 Northway Lane North, Latham, NY 12110, USA www.marktechopto.com
TOLL FREE: 1-800-984-5337 • PHONE: 518-956-2980 • FAX: 518-785-4725 • EMAIL: info@marktechopto.com
