29066-3

Description
RF Connector Adapter, N-SMA, Panel Mount, Female-Male, Jack-plug
CategoryThe connector    The connector
File Size114KB，3 Pages
ManufacturerAstrolab Inc
Download Datasheet Parametric View All

29066-3 Overview

RF Connector Adapter, N-SMA, Panel Mount, Female-Male, Jack-plug

29066-3 Parametric

Parameter NameAttribute value
MakerAstrolab Inc
Reach Compliance Codecompliant
Adapter typeN-SMA
Body/casing typeJACK-PLUG
Connector typeRF CONNECTOR ADAPTER
Contact point genderFEMALE-MALE
Contact styleCOAX
Coupling typeTHREADED-SNAP
Insertion loss0.35 dB
Installation methodSTRAIGHT
Installation typePANEL
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
voltage standing wave ratio1.25
Base Number Matches1

Preview

Download Datasheet
Astrolab - Product Catalog
q
q
q
q
q
q
q
q
q
q
About Us
Products
minibend
mini 141
microbend
Contact Us
Online Catalog
Search
Request Catalog
Your Cart

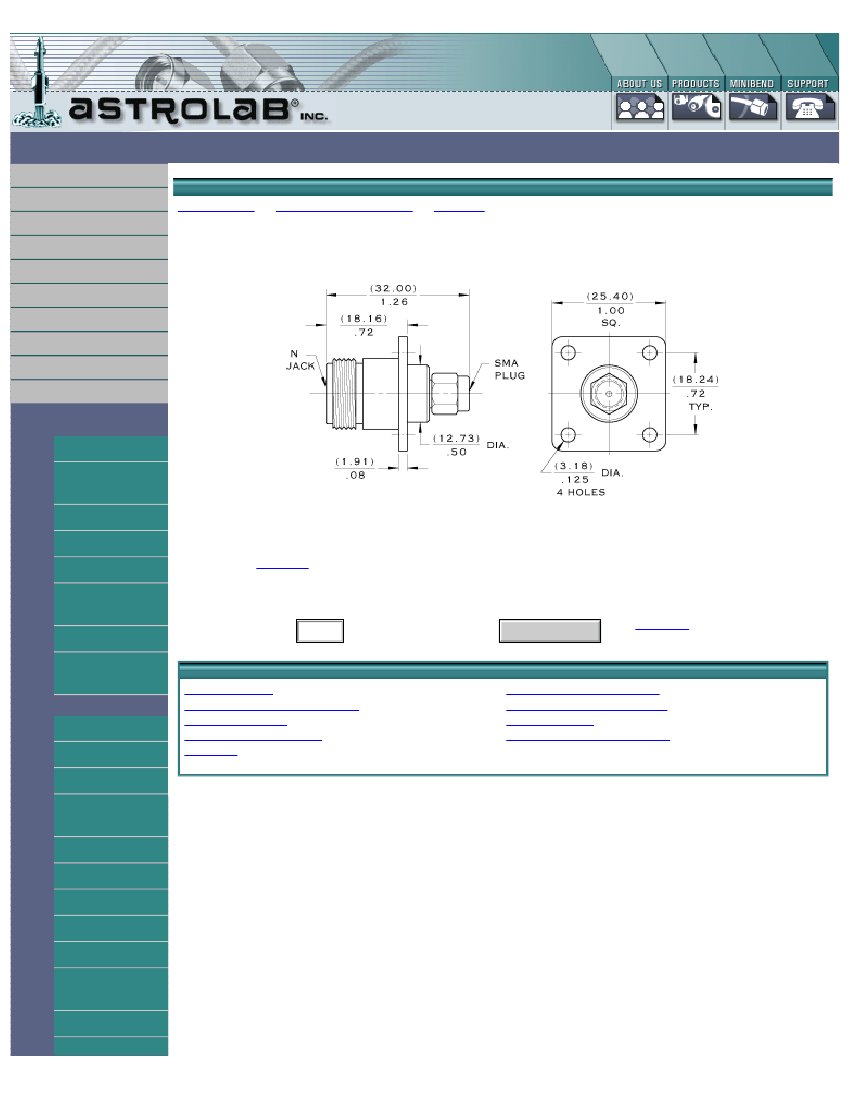

N jack - SMA plug, flanged - 29066-3
Catalog Home
->
Adaptors Between Series
->
N to SMA
-> N jack - SMA plug, flanged - 29066-3
N jack - SMA plug, flanged
29066-3
q
q
About Us Home
Message From
President
Programs
q
q
q
q
q
Management
Quality by Design
Facilities &
Equipment
Quality Systems
Employment
Opportunities
q
q
q
frequency 18 GHz max.
VSWR 1.25:1 max.
I.L. 0.35 dB max.
figure
N2 flange
detail
