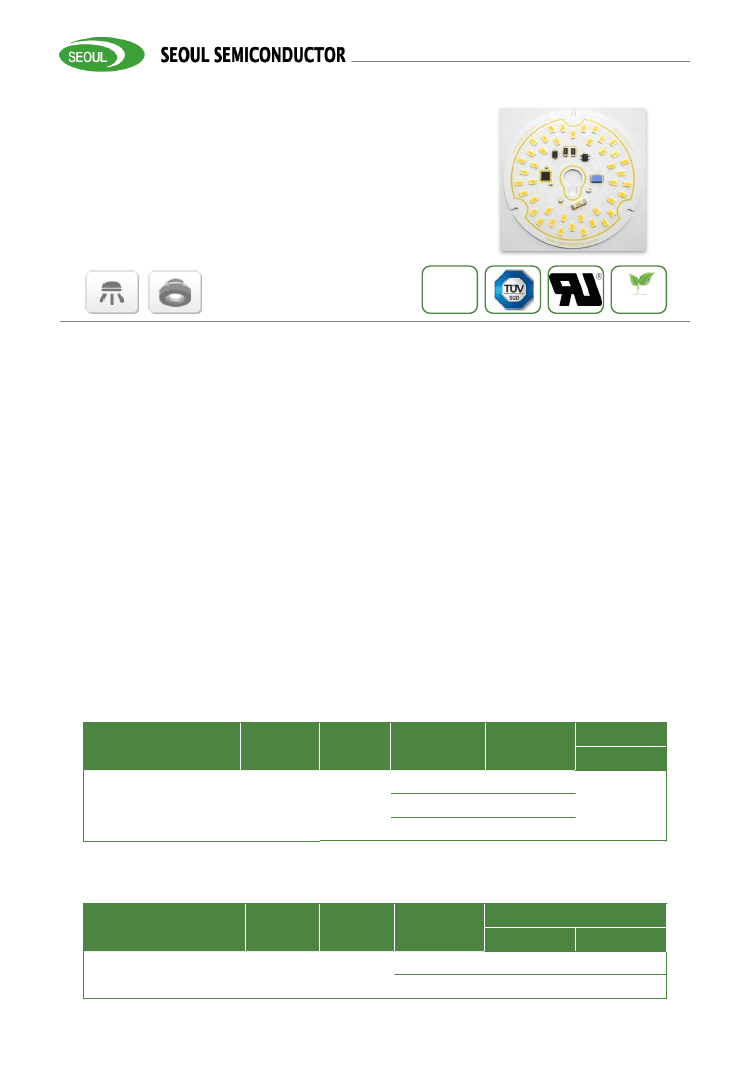

Product Data Sheet
Acrich2 – 17W
Integrated AC LED Solution
Acrich2 – 17W
SMJD-XV16W2P3
MacAdam
3-Step
RoHS
Product Brief
Description
•
The Acrich2 series of products are
designed to be driven directly off of AC
line voltage, therefore they do not need
the standard converter essential for
conventional general lighting products.
The converter or driver found in most
general lighting products can limit the
overall life of the product, but with the
Acrich2 series of products the life of the
product can more closely be estimated
from the LED itself. This will also allow
for a much smaller form factor from an
overall fixture design allowing for higher
creativity in the fixture.
The modules have a high power factor
which can contribute to a higher energy
savings in the end application.
Features and Benefits
•
•
•
•
•
•
•
•
Connects directly to AC line voltage
High Power Efficiency & Factor
Low THD
Long Life Time
Simple BOM
Miniaturization
Lead Free Product
RoHS Compliant
•
Key Applications
•
•
•
•
Down Llight
Factory Ceiling Light
Industrial Light
Flush Mount
•
Table 1. Product Selection (CCT)
CRI
Part No.
Vin [Vac]
P [W]
Color
Cool
17
SMJD-3V16W2P3
220
Neutral
Warm
CCT [K]
Min.
SMJD-2V16W2P3
120
4700 – 6000
3700 – 4200
2600 – 3200
80
Table 2. Product Selection (Flux)
Flux [lm]
Part No.
SMJD-2V16W2P3
SMJD-3V16W2P3
Vin [Vac]
120
17
220
17b
1480
1590
P [W]
Flux Bin
Min.
17a
1140
Typ.
1300
Rev5.3, January 15, 2014
1
www.seoulsemicon.com
Product Data Sheet
Acrich2 – 17W
Table of Contents
Index
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Product Brief
Table of Contents
Performance Characteristics
Absolute Maximum Ratings
Thermal Resistance
Relative Spectral Distribution
Relative Power Distribution
Relative Luminous Distribution
Luminous Flux Characteristics
Color Bin Structure
Part List
Mechanical Dimensions
Circuit Drawing
Marking Information
Packing & Label Information
Handling of Silicone Resin for LEDs
Precaution for Use
Company Information
Rev5.3, January 15, 2014
2
www.seoulsemicon.com
Product Data Sheet
Acrich2 – 17W
Performance Characteristics
Table 3. Electro Optical Characteristics, T
a
= 25ºC
Value
Parameter
Symbol
Min.
1140
Luminous Flux
Ф
V [2]
1480
5300
4700
Correlated Color
Temperature
[3]
CCT
3700
2900
2600
CRI
Input Voltage
[4]
Unit
Typ.
1300
1590
5600
5000
4000
3000
2700
-
120
Max.
1480
lm
1700
6000
5300
4200
3200
2900
-
-
K
Mark
17a
17b
B
C
E
G
H
Ra
V
in
80
2V
Vac
3V
18
W
Hz
-
deg.
-
-
V
V
16W
220
Power Consumption
Operating Frequency
Power Factor
Viewing Angle
Tolerance of Surge
[5]
P
f
PF
2Θ
1/2
V
s
16
17
50 / 60
Over 0.95
120
500
2500
-
-
Transient Protection
[6]
V
s
Notes :
(1) At 120Vac/220Vac, T
a
= 25ºC
(2) Ф
V
is the total luminous flux output measured with an integrated sphere.
(3) Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
(4) Operating Voltage doesn't indicate the maximum voltage which customers use but means
tolerable voltage according to each country’s voltage variation rate. It is recommended that the
solder pad temperature should be below 70℃.
(5) Surge withstand in accordance with IEC61000-4-5
(6) At 120Vac, seven strikes, 100kHz 2.5kV in accordance with ANSI/IEEE C62.41.2-2002 Category
A operation
Rev5.3, January 15, 2014
3
www.seoulsemicon.com
Product Data Sheet
Acrich2 – 17W
Absolute Maximum Ratings
Table 4. Absolute Maximum Ratings, T
a
= 25ºC
Parameter
Maximum Input Voltage @120Vac
V
in
Maximum Input Voltage @220Vac
Power Consumption
Operating Temperature
Storage Temperature
ESD Sensitivity
P
T
opr
T
stg
-
W
ºC
ºC
-
Vac
264
23
-30 ~ 85
-40 ~ 100
±4,000V
HBM
Symbol
Unit
Value
140
Rev5.3, January 15, 2014
4
www.seoulsemicon.com
Product Data Sheet
Acrich2 – 17W
Thermal Resistance
Part
Acrich2 LED
Package
Power Dissipation [W]
SAW8KG0B Max 0.58
Maximum
Junction Temperature [℃]
125
Rθ
j-s
[℃/W]
27
The Acrich2 LED has a thermal resistance of 27℃/W from junction of the LED to the
LED lead.
The maximum junction temperature of the Acrich2 LED package is 125℃, therefore the maximum
lead temperature T
s_max
is
T
s_max
= T
j_max
- (Rθ
j-s
* P
d
)
= 125℃ - (27℃/W * 0.58W) = 109.34℃
Although this is the maximum lead temperature, it is recommended to keep the lead temperature
under 70℃.
Rev5.3, January 15, 2014
5
www.seoulsemicon.com
