About the iMcV-T1/E1/J1 Repeater

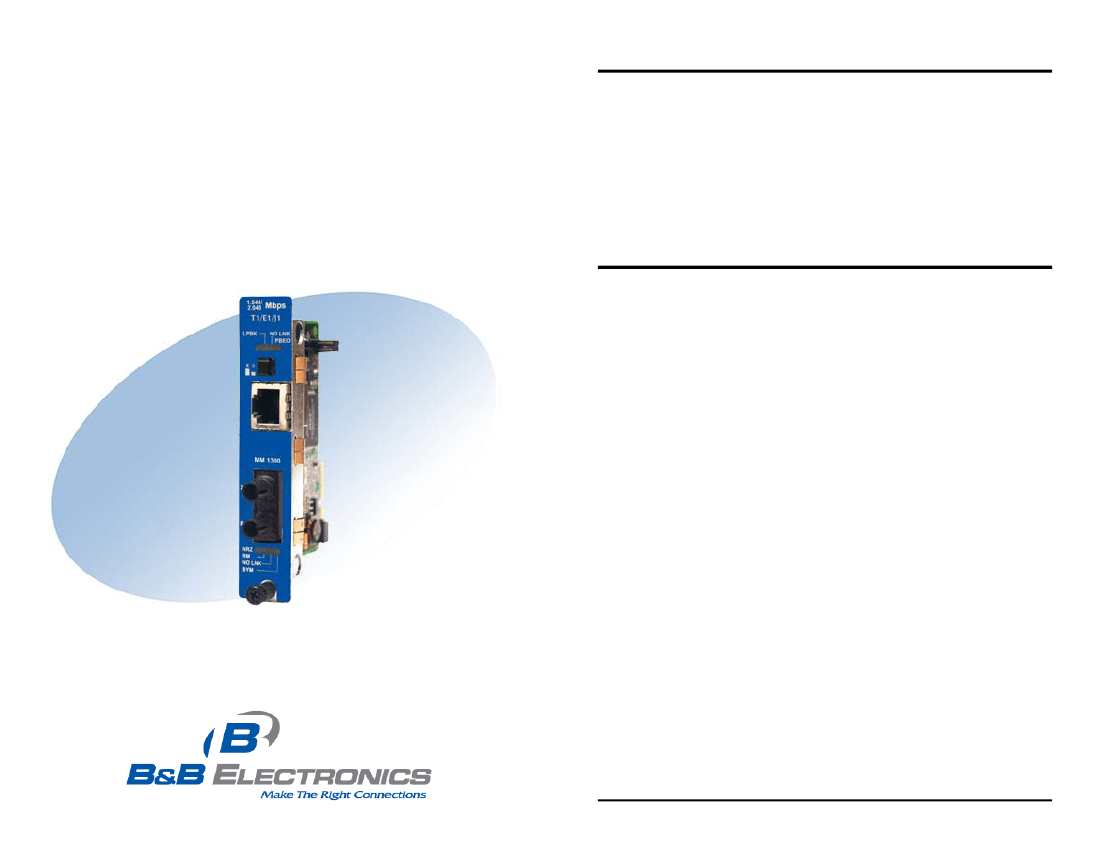

The iMcV-T1/E1/J1 Repeater chassis mounted media conversion module allows the
end user to extend the distances between T1, J1, and E1 copper telephony systems
by adding a fiber segment. The distances can support up to 100km depending on the
module used and the fiber type available.
Each iMcV-T1/E1/J1 Repeater includes one RJ-48 connector and one pair of SC or ST
fiber optic connectors, which can support any fiber type in MultiMode or
SingleMode. The Repeater series is also available in Single Strand Fiber, with SC
connectors.
Installating an iMcV-T1/E1/J1 Repeater
Each module requires one slot in the chassis. To install a module, remove the blank
brackets covering the slots where the module is to be installed (if present), by
removing the screws on the outside edges of the bracket. Slide the module into the
chassis, via the card guides, until the module is seated securely in the connector.
Secure the module to the chassis by tightening the captive screw. Save any “blanks”
removed during installation for future use should the configuration requirements
change.
Crossover/Straight-Through Connection
iMcV-T1/E1/J1 Repeater comes with an RJ-48 UTP connector that features a push-
button switch, located next to the port, for selecting a crossover or straight-through
connection. To select a cross-over connection, press the push-button IN. A straight-
through connection is selected when the push-button is OUT. When unsure what
type of connection is needed, set the push button to the position that turns the NO
LNK LED off.
The iMcV-T1/E1/J1 Repeater Host and Remote modules cannot be both installed in
managed chassis. The recommendation, if using a managed chassis, is to install the
Host in the managed chassis; the Remote Unit should be installed in an unmanaged
chassis.
NOTE
Before installing the modules, they must be configured for Host/Remote via the DIP
Switches. The Master/Slave condition requires this configuration:
S3-2: ON Remote Unit Enabled (only at the REMOTE end)
S3-2: OFF Remote Unit Disabled (only at the LOCAL end)
iii
1
Configuration Instructions
The iMcV-T1/E1/J1 Repeater module is factory-configured to use the following default
features:
T1/E1 Mode
Receive Equalizer Gain Limit (EGL)
Line Encoding
Transmit LIU Waveshape (Build-out)
Receive LIU Termination
Transmit Data Source
Jitter Attenuator Select
Remote Unit
Loopback Selection
Monitor/Boost Mode
NRZ Selection
T1
-30 dB (Limited Long Haul)
AMI (Passive Mode)
DSX-1 (0 to 133 ft) 0 dB CSU
Receive Side 100 ohms Enabled
Standard Data
Place Jitter Attenuator on TX Side
Remote Unit Disabled
No Loopback
No Boost
Disable NRZ (Passive Mode)
Managed Modules
To manage iMcV-T1/E1/J1 Repeater modules, an SNMP agent must be present; the
iMediaChassis requires an SNMP management module. For a managed environment,
first manually configure all of the desired DIP Switch selectable features to match
what will be configured through the SNMP Management Module.
NOTE
Before installing the modules, they must be configured for Host/Remote via the DIP
Switches. The Master/Slave condition requires this configuration:
S1-10: ON Remote Unit Enabled (only at the REMOTE end) (Remote)
S1-10: OFF Remote Unit Disabled (only at the LOCAL end) (Host)
Use the Graphical User Interface (GUI) to enable features by using the iView
2
SNMP
management software. In a managed chassis, the software settings take priority over
the SNMP enabled feature DIP Switch settings. Make sure that the software settings
match the desired configuration requirements for the installation.
iView² Management Software
iView² is the B&B Electronics management software designed specifically for the B&B
Electronics “iMcV” family of modules. It features a
GUI
and gives network managers
the ability to monitor and control the manageable B&B Electronics products.
iView² is available in several versions, including WebServer version 3.0, and can also
function as a snap-in module for HP OpenView Network Node Manager and other
third party SNMP Management software.
iView
2
supports the following platforms:
Windows 2000
Windows XP
Windows Vista
Windows 7
The iView
2
management software can be used to change some of the iMcV-T1/E1/J1
Repeater features after installing the modules in the chassis. Refer to the iView
2
online help for more information.
Passive Mode
It is recommended that the default Passive mode configuration is used for most
typical applications. Passive mode allows the fiber segment to pass data unchanged
between the T1/E1 segments independent of the actual line coding (AMI, B8ZS, or
HDB3). All errors and fault conditions from one T1/E1 end will pass through the fiber
to the other end as if there were one long T1/E1 connection.
Requirements
Before installing the iMcV-T1/E1/J1 Repeater modules, perform the following:
Make sure the modules are correct for the fiber type and distance requirements.
Make sure that T1 UTP lines
DO NOT
use simplex power (no wet lines).
Before installing the iMcV-T1/E1/J1 Repeater modules, verify the DIP Switches
are configured for the feature wanted.
Make sure to deploy the iMcV-T1/E1/J1 Repeater modules in pairs, as
Host/Remote.
Make sure the Remote Chassis is not managed.
Please see the
SNMP
Management Module installation guide for software
configuration options.
NOTE
B&B Electronics’ iView
2
software is available for downloading from the web site:
www.bb-elec.com.
2
3
Managed Modules
Before installing the iMcV-T1/E1/J1 Repeater module into an unmanaged chassis,
configure the modules for Host/Remote Units. For further information concerning the
remaining DSW support Passive Module, see the Passive Mode section of this
manual.

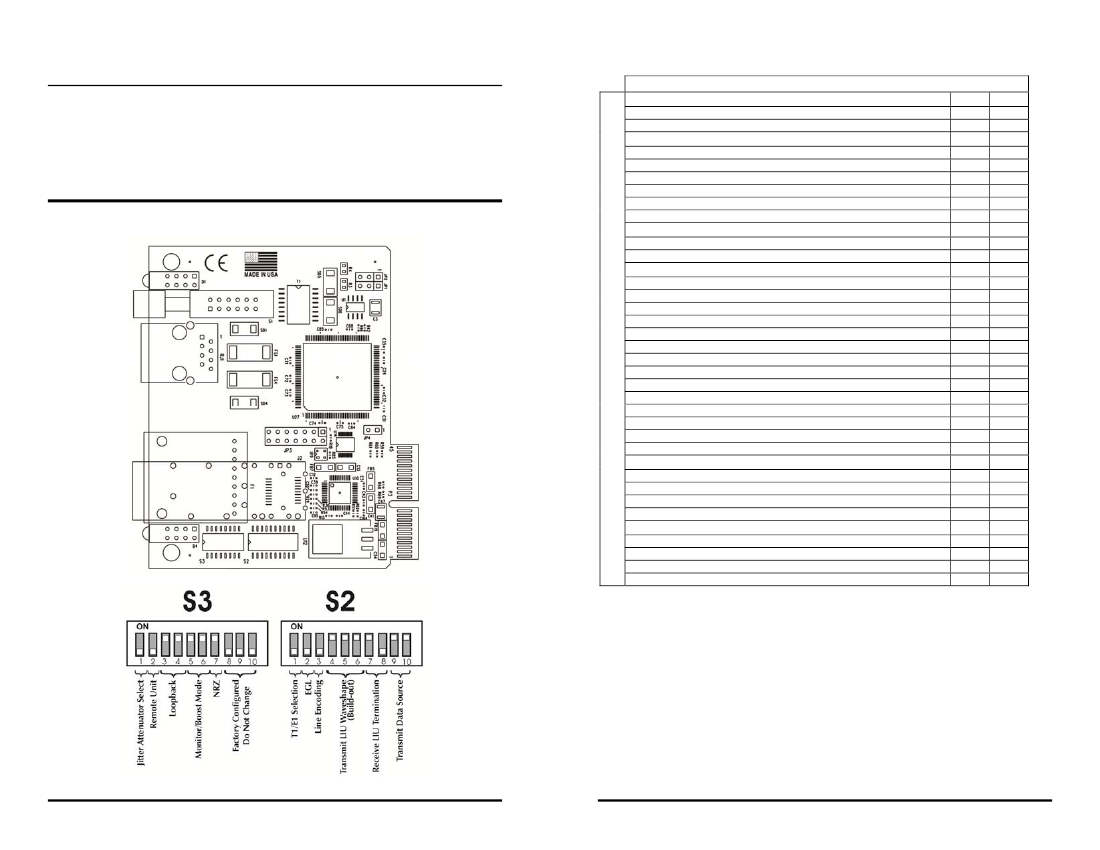

DIP Switches
All
iView
enabled switches are overridden by management software.
2
Switch Settings for Switch S2
T1/E1 Selection
S2-1: OFF
S2-1: ON
E1
S2-2: ON -12 dB (Short Haul)
S2-2: OFF -43 dB (Long Haul)
T1
S2-2: ON -36 dB (Long Haul)
S2-2: OFF -30 dB (Limited Long Haul)
T1 Mode Selected
E1 Mode Selected
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
default
Receive Equalizer Gain Limit (EGL)
default
Line Encoding
iVIEW
2
S2-3: ON HDB3 (E1) / B8ZS (T1)
S2-3: OFF AMI
(Required for Passive Mode)
iVIEW
2
iVIEW
2
default
Transmit LIU Waveshape (Build-out)
E1
SWITCH S2
S2-4: ON
S2-4: OFF
S2-4: ON
S2-4: OFF
T1
S2-4: ON
S2-4: OFF
S2-4: ON
S2-4: OFF
S2-4: ON
S2-4: OFF
S2-4: ON
S2-4: OFF
S2-7: ON
S2-7: OFF
S2-7: ON
S2-7: OFF
S2-9: ON
S2-9: OFF
S2-9: ON
S2-9: OFF
S2-5: ON
S2-5: ON
S2-5: ON
S2-5: ON
S2-5: ON
S2-5: ON
S2-5: OFF
S2-5: OFF
S2-5: ON
S2-5: ON
S2-5: OFF
S2-5: OFF
S2-8: ON
S2-8: ON
S2-8: OFF
S2-8: OFF
S2-10: ON
S2-10: ON
S2-10: OFF
S2-10: OFF
S2-6: ON
S2-6: ON
S2-6: OFF
S2-6: OFF
S2-6: ON
S2-6: ON
S2-6: ON
S2-6: ON
S2-6: OFF
S2-6: OFF
S2-6: OFF
S2-6: OFF
75 ohms
125 ohms
75 S ohms w/ High Return Loss
125 S ohms w/ High Return Loss
DSX-1 (0 to 133 ft) 0 dB CSU
DSX-1 (133 to 266 ft)
DSX-1 (266 to 399 ft)
DSX-1 (399 to 533 ft)
DSX-1 (533 to 655 ft)
-7.5 dB CSU
-15 dB CSU
-22.5 dB CSU
default
Receive LIU Termination
Receive Side Termination Disabled
Receive Side 120 ohms Enabled
Receive Side 100 ohms Enabled
Receive Side 75 ohms Enabled
Standard Data
Transmit Pseudorandom Bit Sequence (PRBS)
Transmit Alternating Ones and Zeros
Transmit Unframed All Ones
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
default
Transmit Data Source
iVIEW
2
default
4
5
Line Encoding
Switch Settings for Switch S3
Jitter Attenuator Select
S3-1: ON
S3-1: OFF
Place Jitter Attenuator on RCV Side
Place Jitter Attenuator on XMT Side
Remote Unit Enabled (only at the REMOTE end)
Remote Unit Disabled (only at the LOCAL end)
S3-4: ON
S3-4: ON
S3-4: OFF
S3-4: OFF
S3-6: ON
S3-6 ON
S3-6 OFF
S3-6 OFF
None
Local Loopback
Analog Loopback
Remote Loopback
Normal Operation (No Boost)
20 dB
26 dB
32 dB
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
iVIEW
2
default
This option allows the user to set the transmit/receive encoding for HDB3, B8ZS or
AMI (default).
NOTE
There are currently no applications that use any other settings than
AMI encoding
and
NRZ disabled
(Passive mode). Changing the encoding setting to anything other than
AMI
can result in data corruption.
Remote Unit
S3-2: ON
S3-2: OFF
S3-3: ON
S3-3: OFF
S3-3: ON
S3-3: OFF
S3-5: ON
S3-5: OFF
S3-5: ON
S3-5: OFF
S3-7: ON
S3-7: OFF
default
default
Loopback Selection
iVIEW
2
SWITCH S3
Transmit LIU Waveshape (Line Build-out)
default
Monitor/Boost Mode
NRZ Selection
iVIEW
2
Disable NRZ
(Required for Passive Mode)
Enable NRZ (Line Terminating Mode)
DO NOT CHANGE
DO NOT CHANGE
DO NOT CHANGE
default
The copper line driver for T1 applications can be adjusted to provide standard pre-
distortion (LBO) of the transmitted signal for DSX1 connections. The transmitted
signal level can also be reduced (-7.5dB to -22.5dB) when connecting directly to a
CSU that has limited input range.
For E1 circuits, the transmitter can be configured for either 75 ohm or 120 ohm drive
with normal or high (21db) return loss.
NOTE
The receive termination resistance should match this setting.
Fiber Type
S3-8: Factory Configured
S3-9: Factory Configured
S3-10: Factory Configured
Description of DIP Switch-Selectable Options
The iMcV-T1/E1/J1 Repeater module includes DIP Switches for hardware settings for
the optional features. Some of these switch options are overridden by the SNMP
configuration of a managed chassis (refer to the
DIP Switch Table
section for a list of
the iView
2
managed switches).
The following section contains a brief description of the available options.
T1/E1/J1 Mode
This option allows the user to select the data rate standard that the module will use
when converting: T1/J1 (default) or E1. The default is OFF, T1/J1 mode selected.
Receive Equalizer Gain Limit (EGL)
The copper line receiver sensitivity can be adjusted with this setting. This can be
used to extend the service distance beyond the normal line length.
T1 Lines
E1 Lines
Can extend the effective received signal level from -30dB to -36dB
Can extend the effective received signal level from -12dB to -43dB
Receive LIU Termination (Line Termination)
This option allows the user to set the receive termination. This is used to properly
terminate cables in order to prevent signal reflections which can cause signal
degradation.
Transmit Data Source
This option allows the user to set the module to send normal data (default) or to send
specific test-patterns of data to determine problems along the cable as a diagnostic
tool. The user can set the module to send a PRBS (2
15
-1 for E1 and 2
20
-1 for T1), an
alternating ones and zeros, or an unframed all ones code, depending on the
diagnostic requirements.
Jitter Attenuator Select
This option allows the user to select Jitter Attenuation on the UTP transmit or receive
side. This decreases jitter in the data stream which increases data reliability.
NOTE
The jitter attenuator must always be enabled on the transmit side of the copper line.
The addition of this gain can extend the service distance of these lines to 2K feet.
6
7
京公网安备 11010802033920号
EEWORLD
