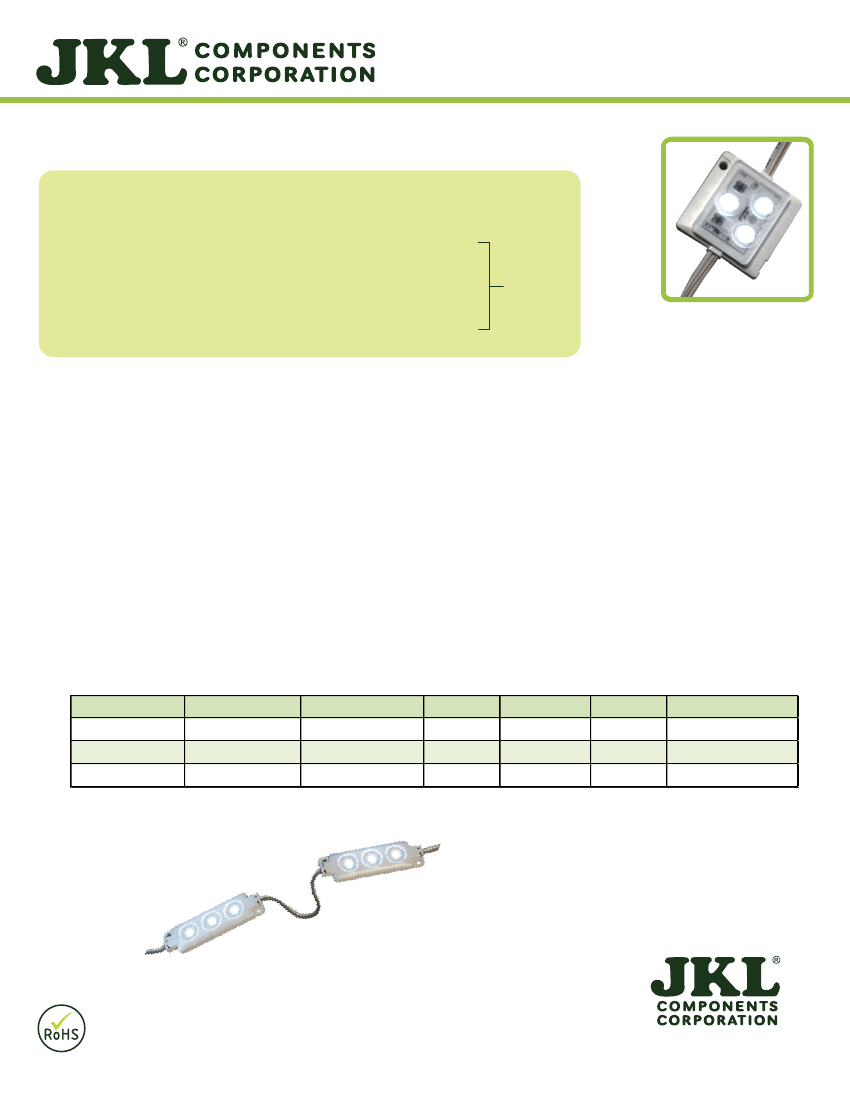

APPLICATION SHEET
channel lights
Accessories:
ZM-4047-CW
Channel Max
4 -LED Modules - Cool White
ZM Series:
ZM-1957-CW
2-LED Modules - Cool White
ZDM-01 PWM Dimmer
ZM-1968-CW
3-LED Modules - Cool White
ZPS-01
ZM-1543-R
2-LED Modules - Red
ZM-1968-WW
3-LED Modules - Warm White
ZPS-1220
12 Volt
ZM-1968-CW
3-LED Modules -
White
White
Cool
ZM-3537-CW
3-LED Modules - Cool
Power
ZM-SERIES
Wide Beam + High Brightness
ZPS-1225
ZPS-1235
ZPS-1260
Supplies
ZM-3537-CW
APPLICATIONS
LED Channel Lights are most commonly used in illuminating signs, architectural accent lighting
and in backlighting channel letters. They are well suited for both fluorescent and neon retrofitting.
POWER INPUT
The ZM Channel lights require 12VDC and are compatible with the JKL series of 12 Volt power
supplies listed above. Technical details and UL information can be found on the specification
sheets for each product on our website: www.jkllamps.com
SINGLE
MAXIMUM
LENGTH
Part Number
The chart below shows the light output of the Channel Lights per foot of material and per watt of
input power. The maximum length given is for a single string of modules wired from the power
source. JKL can provide sections of the ZM-series channel lights in specific segment lengths.
LEDs per Module
3
3
3
Modules per Reel
20
20
30
Lm/Ft
90
75
150
90
Max length
38 ft.
38 ft.
33 ft.
38 ft.
Lm/Watt
80
65
100
80
Total Power Used
43 Watts
43 Watts
30 Watts
43 Watts
ZM-1968-CW
ZM-1968-WW
ZM-3537-CW
ZM-1968-CW
a
l
L
ity
ighti
ng
Solu
ti
on
Qu
s
RoHS Compliant
ISO9001 Certified
WWW.JKLLAMPS.COM
SALES@JKLLAMPS.COM
800-421-7244
Since 1972
APPLICATION SHEET p.2
ZM SERIES
SERIES
APPLICATIONS
Optimum dimming for the channel lights can be accomplished with a PWM dimmer, such as the
ZDM-01 from JKL Components Corporation. This type of dimmer varies the duty-cycle to the LED
modules which will permit smooth changes to the light output. Less sophisticiated applications and
designs can simply reduce applied voltage (from 12VDC to 8VDC) to the modules to obtain desired
brightness levels.

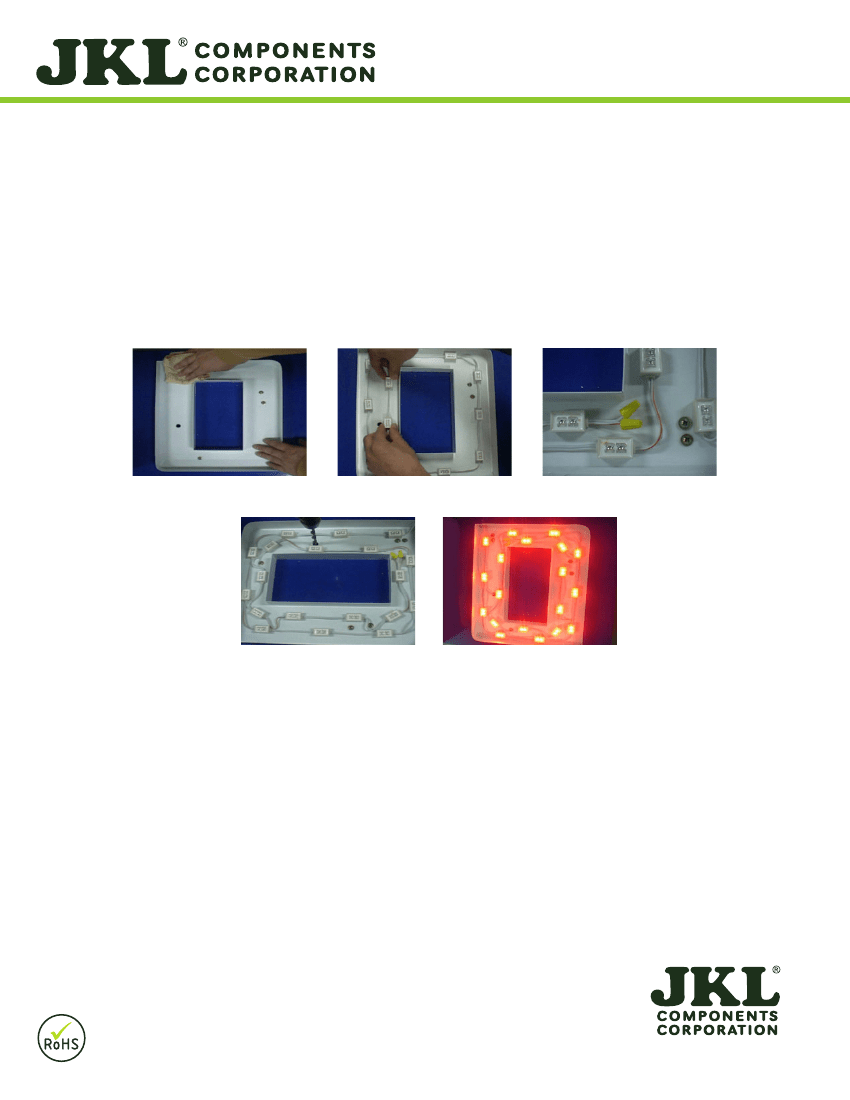

Channel Light modules can be mounted with either a #6 screw or with mounting tape installed on
the back of the modules. Photographs below show the process of installing the LED modules into
open channel lettering.
INSTALLATION
fig. 1
fig. 2
fig. 3
fig. 4
fig. 5
1
- Clean the inside surface of the Channel Letters.
2
- Expose the adhesive backing on the modules and attach according to desired layout. For additional
rigidity use screws or silicone adhesive.
3
- Connect modules with wire nuts, considering the maximum number of modules which can be connected.
Be sure to cap any exposed wires. Apply silicone into the wire nuts for additional outdoor protection.
CAUTION: Be sure to check the polarity of all connections. Red is positive (+) and White is negative (-).
4
- Drill holes at the bottom or side of the letters to facilitate wire connection to a DC power supply. Connect
the wires from the letters to the power supply. Be sure to check the DC polarity (+ positive, - negative) and
AC connection (100~240VAC, 50/60Hz) CAUTION: Electric power should be off when wires are being
connected.
5
-
Turn the power on and check that all modules are lit and mount the letters.
a
Lighti
ng
Solu
y
ti
lit
on
Qu
s
RoHS Compliant
ISO9001 Certified
WWW.JKLLAMPS.COM
SALES@JKLLAMPS.COM
800-421-7244
Since 1972
