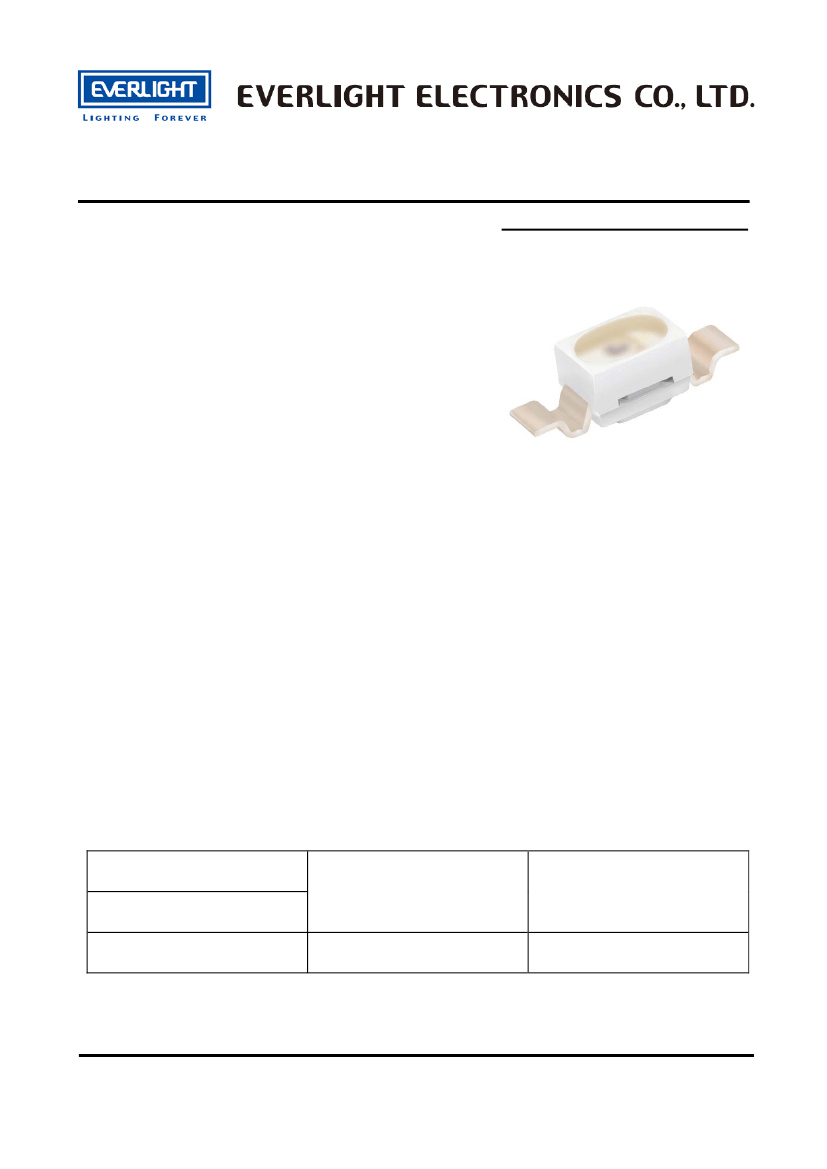

Technical Data Sheet
Mini Top LEDs (Reverse Gull Wing)
65-21/G6C-AQ1R2B/2AA
Features
․White
SMT package.
․Optical
indicator.
․Wide
viewing angle.
․Soldering
methods: IR reflow soldering
․Available
on tape and reel
․Pb-free
․The
product itself will remain within RoHS
compliant version.
Descriptions
The 65-21 series is available in soft orange, green, blue, and yellow. Due to the package
design, the LED has wide viewing angle and optimized light coupling by inter reflector.
Besides, LED is mounted top down and emits through the PCB. This feature makes the
ideal for light pipe application.
Applications
․Optical
indicators.
․Coupling
into light guides.
․Backlighting
(LCD, cellular phones, switches, keys,
displays, illuminated advertising, general lighting).
․Coupling
into light guides; Interior automotive
lighting (e.g. dashboard backlighting, etc.).
Device Selection Guide
Chip
Emitted Color
Material
AlGaInP
Brilliant Yellow Green
Water Clear
Resin Color
Everlight Electronics Co., Ltd.
Device No.: DSE-0000652
http://www.everlight.com
Prepared date: 31-Dec-2008
Rev. 1
Page: 1 of 10
Prepared by: Josh Chou
Technical Data Sheet
Mini Top LEDs (Reverse Gull Wing)
65-21/G6C-AQ1R2B/2AA

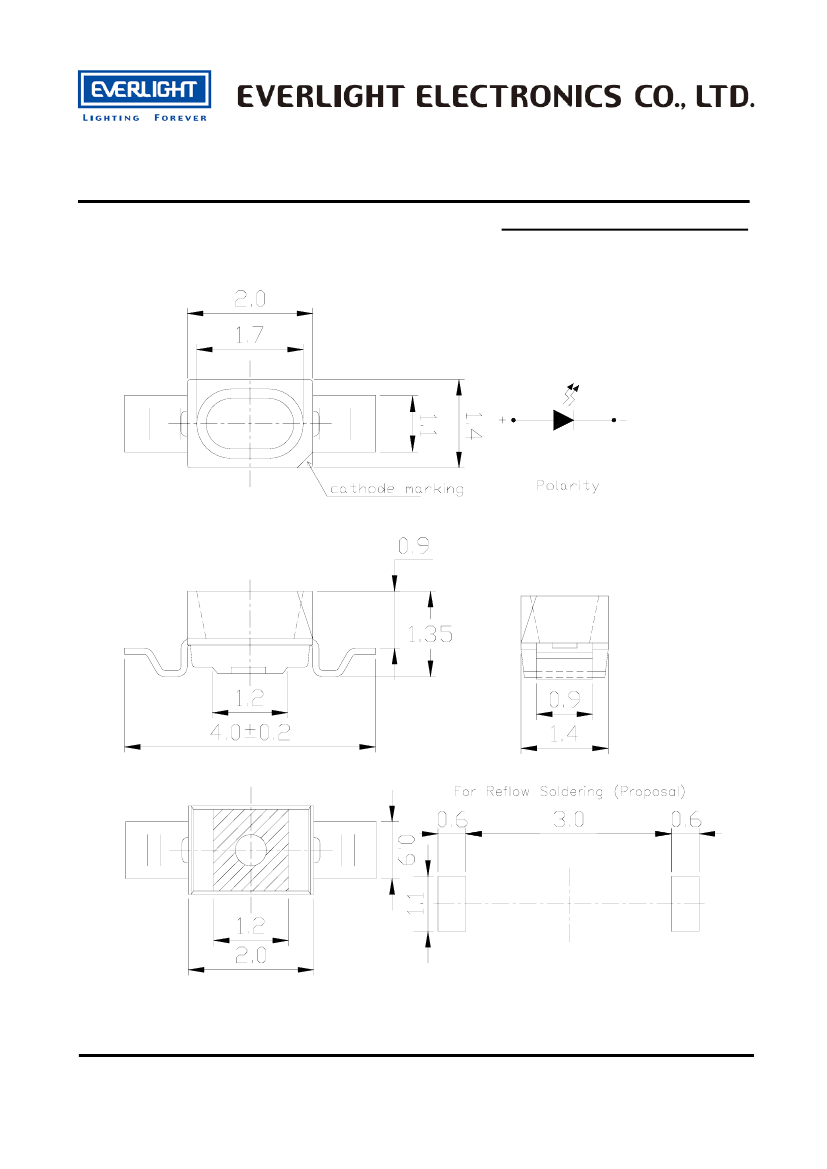

Package Outline Dimensions
Note:
Tolerance unless mentioned is ±0.1mm; Unit = mm
Everlight Electronics Co., Ltd.
Device No.: DSE-0000652
http://www.everlight.com
Prepared date: 31-Dec-2008
Rev. 1
Page: 2 of 10
Prepared by: Josh Chou
Technical Data Sheet
Mini Top LEDs (Reverse Gull Wing)
65-21/G6C-AQ1R2B/2AA
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Power Dissipation
Peak Forward Current
(Duty 1/10 @1KHz)
Electrostatic Discharge (HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
Pd
I
FP
ESD
Topr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mW
mA
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
λp
λd
Δλ
V
F
I
R
Min.
72
-----
-----
569.5
-----
1.75
-----
Typ.
-----
120
575
-----
20
-----
-----
Max.
180
-----
-----
577.5
-----
2.35
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Notes:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd.
Device No.: DSE-0000652
http://www.everlight.com
Prepared date: 31-Dec-2008
Rev. 1
Page: 3 of 10
Prepared by: Josh Chou
Technical Data Sheet
Mini Top LEDs (Reverse Gull Wing)
65-21/G6C-AQ1R2B/2AA
Bin Range of Dominant Wavelength
Group
Bin
C16
A
C17
C18
C19
Bin
Q1
Q2
R1
R2
Min
569.5
571.5
573.5
575.5
Min
72
90
112
140
Bin
0
B
1
2
Min
1.75
1.95
2.15
Max
571.5
573.5
575.5
577.5
Max
90
112
140
180
Max
1.95
2.15
2.35
V
I
F
=20mA
Condition
mcd
I
F
=20mA
Condition
nm
I
F
=20mA
Unit
Condition
Bin Range of Luminous Intensity
Unit
Bin Range of Forward Voltage
Group
Unit
Notes:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Dominant Wavelength: ±1nm
3. Tolerance of Forward Voltage: ±0.1V
Everlight Electronics Co., Ltd.
Device No.: DSE-0000652
http://www.everlight.com
Prepared date: 31-Dec-2008
Rev. 1
Page: 4 of 10
Prepared by: Josh Chou
Technical Data Sheet
Mini Top LEDs (Reverse Gull Wing)
65-21/G6C-AQ1R2B/2AA

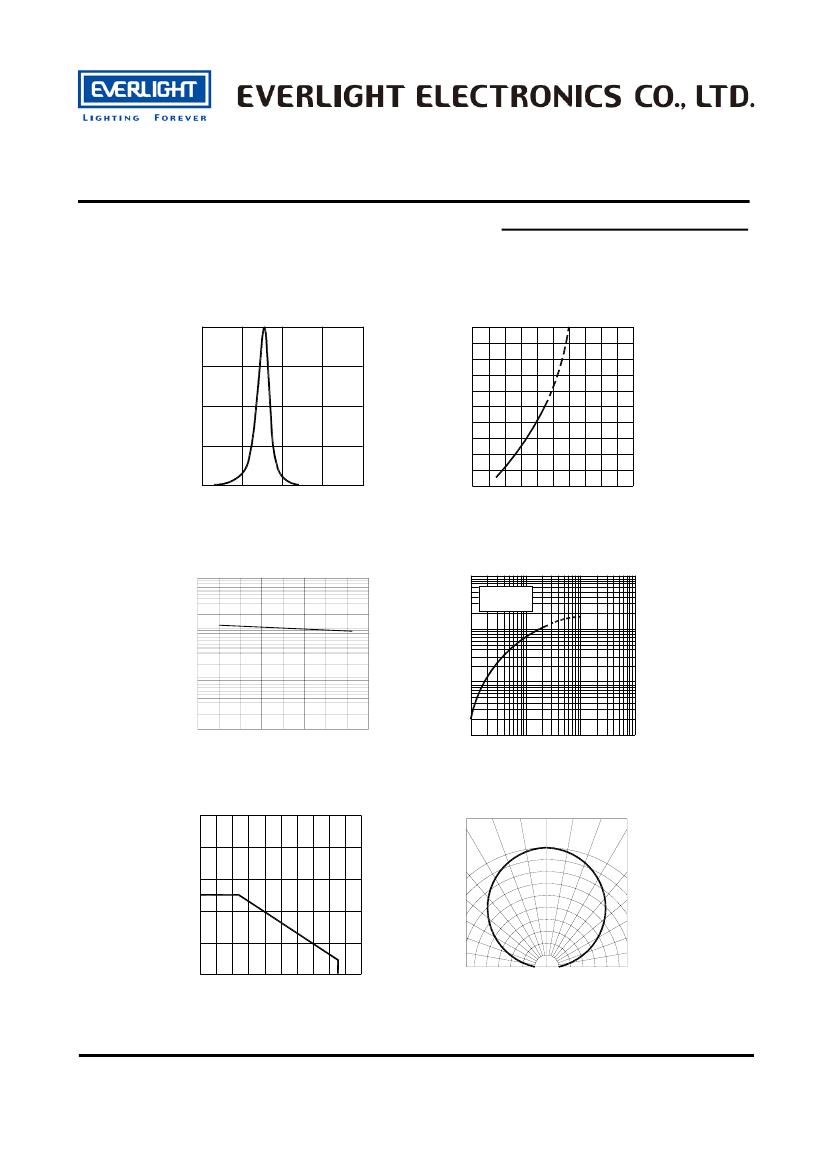

Typical Electro-Optical Characteristics Curves
Spectrum Distribution
Relative luminous intensity (%)
100
75
Ta=25°C
Forward Current I
F
(mA)
50
40
30
20
10
0
1.2
1.6
2.0
2.4
2.8
3.0
Forward Current vs.
Forward Voltage
Ta=25°C
50
25
0
500
600
650
550
Wavelength
λ
(nm)
700
Forward Voltage V
F
(volts)
Relative Luminous Intensity vs.
Forward Current
Ta=25°C
f=1KHz
Duty=1/10
Relative Luminous Intensity vs.
Ambient Temperature
Relative luminous intensity (%)
1000
Relative luminous intensity (%)
0 20 40 60 80 100
1000
100
100
10
10
1
-60 -40 -20
Ambient Temperature Ta(°C)
Forward Current Derating Curve
50
Forward Current I
F
(mA)
40
30
20
10
0
0
20
40
60
80
100
1
0
10
10
10
Forward Current I
F
(mA)
Radiation Diagram
0°
10°
20° Ta=25°C
30°
1
2
1.0
0.9
0.8
0.7
0.5 0.3
0.1
0.2 0.4 0.6
40°
50°
60°
70°
80°
90°
Ambient Temperature Ta(°C)
Everlight Electronics Co., Ltd.
Device No.: DSE-0000652
http://www.everlight.com
Prepared date: 31-Dec-2008
Rev. 1
Page: 5 of 10
Prepared by: Josh Chou
