PPPC162LFBN-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PPPC162LFBN-RC

PPPC162LFBN-RC: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, ROHS COMPLIANT; CategoryThe connector The connector; File Size297KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

PPPC162LFBN-RC Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, ROHS COMPLIANT

PPPC162LFBN-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Sullins Connector Solutions
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.197 inch
subject depth	0.334 inch
body length	1.62 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

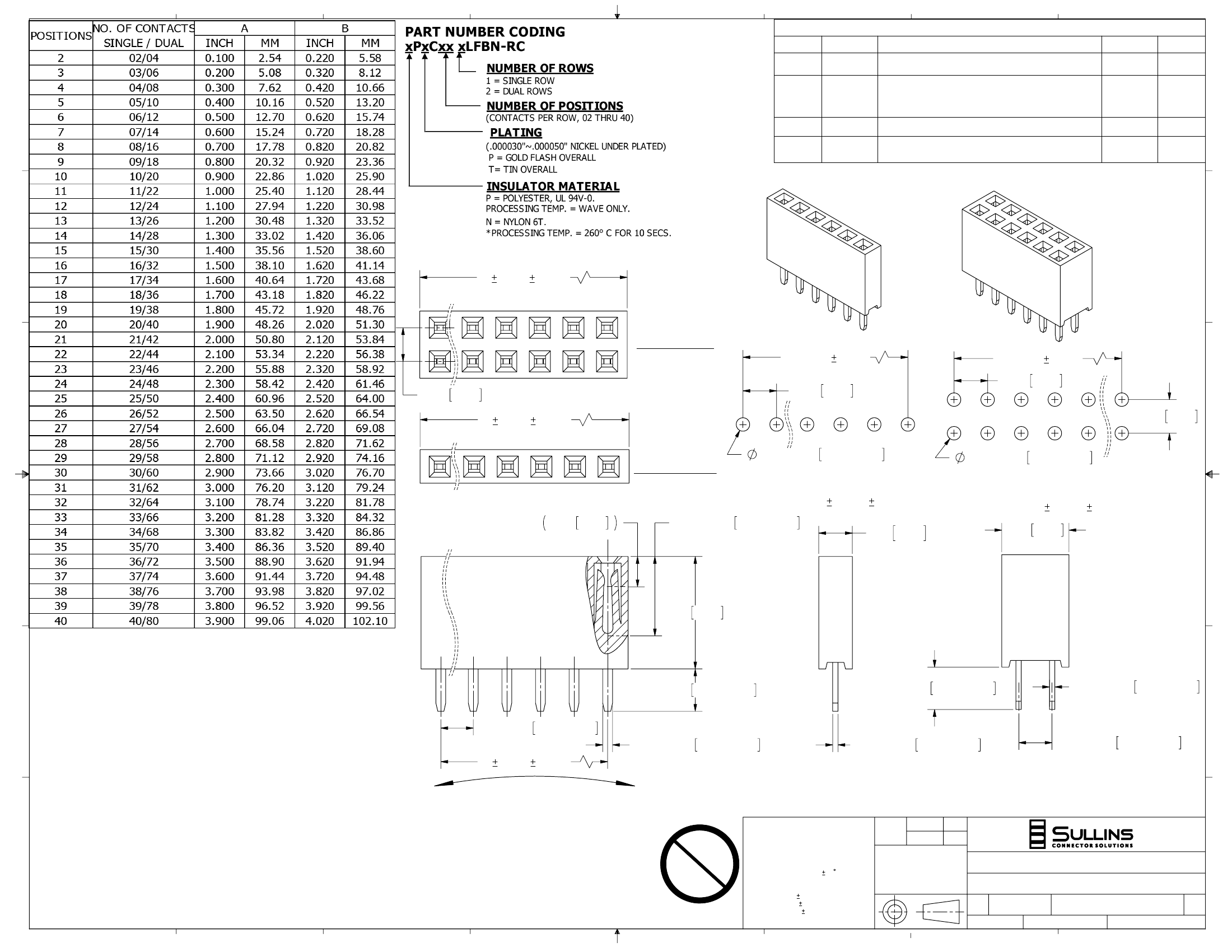

REVISIONS

REV.

ECO. NO

1869

2055

2164

2516

DESCRIPTION

DATE

UPDATE MAX CONTACT DEPTH, TOLERANCE &

12/23/2008

NOTE, ADD SINGLE ROW PCB LAYOUT

UPDATE MIN. CONTACT DEPTH TO 2.29mm (WAS

3.175), MAX. CONTACT DEPTH TO 6.00mm (WAS

11/12/09

6.05), INSULATOR WIDTH TO 2.50mm (WAS 2.54)

FOR 1-ROW, 5.08mm (WAS 5.00) FOR 2-ROW

CORRECT STANDOFF ON THE RIGHT VIEW AND THE 7/28/2010

ISO VIEW.

UPDATE CONTACT POINT DIST TO REF, ADD NOTE 02/14/2012

10 PROCESSING TEMP. & NOTE 11 MATING PARTS

B .014[ 0.35]

DUAL ROWS

A±.004[ 0.10]

.100 2.54

B .014[ 0.35]

SINGLE ROW

.100 2.54

.040±.002 1.02±0.05

RECOMMENDED PCB LAYOUT

SINGLE ROW

TOLERANCE: .002[ 0.05]

.100 2.54

.040±.002 1.02±0.05

RECOMMENDED PCB LAYOUT

DUAL ROWS

TOLERANCE: .002[ 0.05]

.200 5.08

.090 2.29

.236±.008 6.00±0.20

.335 8.50

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING.

2. CONTACT MATERIAL: .PHOSPHOR BRONZE.

.100±.002 2.54±0.05

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 3 AMPS PER CONTACT.

A .008[ 0.20]

5. VOLTAGE RATING: 250V AC/DC

6. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

7. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

02-20, 0.20mm MAX.

8. DIELECTRIC WITHSTANDING: 500V AC.

21-30, 0.30mm MAX.

9. OPERATING TEMPERATURE: -40° C TO +105° C.

31-40, 0.40mm MAX.

10.*MAX PROCESSING TEMP.: SEE PART NUMBER CODING.

11.MATES WITH SULLINS .100 [2.54] CONTACT CENTER MALE HEADER SERIES.

(.025 [0.64] SQUARE POSTS)

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT

INSULATOR. HIGHER PROCESSING TEMPERATURES MAY BE USED,

PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB, AND INSULATOR

DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

.126±.012 3.20±0.30

.126±.008 3.20±0.20

.016±.002 0.40±0.05

.030±.002 0.75±0.05

.016±.002 0.40±0.05

.100±.002 2.54±0.05

RoHS

COMPLIANT

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

DRAWN

DATE

NAME

12/15/2008 JH

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

TITLE

PART NUMBER

SIZE

HEADER FEMALE, 2.54mm CC, ST

CAGE CODE

DECIMALS

.X= .012 [.30]

.XX= .008 [.20]

.XXX= .006 [.15]

SCALE: 16:1

54453

DWG. NO.

xPxCxxxLFBN-RC

10492

SHEET 1 OF 1

REV

FILE NAME: 10492, P(N)PxCxxxLFBN-RC
