Technical Data Sheet
3.0mm Round Type LED Lamps
3294-15SUGC/S400-A5
█
Features :
●
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Pb free
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
3294-15SUGC/S400-A5
Material
InGaN
Emitted Color
Super Green
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-329-021
http : //www.everlight.com
Prepared date: 2005/8/8
BG0411076,R0403206
Rev.:
2
Page: 1 of 6
Prepared by:
LiPing Ding
Technical Data Sheet
3.0mm Round Type LED Lamps
3294-15SUGC/S400-A5
Package Dimensions
Notes:
1.All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is ±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Peak Forward Current
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
Pd
I
F
(Peak)
V
R
Rating
25
-40 to +85
-40 to +100
260
±
5
110
100
5
Unit
mA
℃
℃
℃
mW
mA
V
Note: *1:I
FP
Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
*2:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-329-021
http : //www.everlight.com
Prepared date:
2005/8/8
0.8±0.2
Rev.: 2
Prepared by:
Page: 2 of 6
LiPing Ding
Technical Data Sheet
3.0mm Round Type LED Lamps
3294-15SUGC/S400-A5
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
VF
IR
Iv
2θ1/2
λp
λd
△λ
Condition
I
F
=
V
R
=
I
F
=
I
F
=
I
F
=
I
F
=
I
F
=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
630
／
／
／
／
Typ.
3.4
／
1000
45
525
530
35
Max.
4.0
10
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-329-021
http : //www.everlight.com
Prepared date:
2005/8/8
Rev.:
2
Page: 3 of 6
LiPing Ding
Prepared by:
Technical Data Sheet
3.0mm Round Type LED Lamps
3294-15SUGC/S400-A5
█

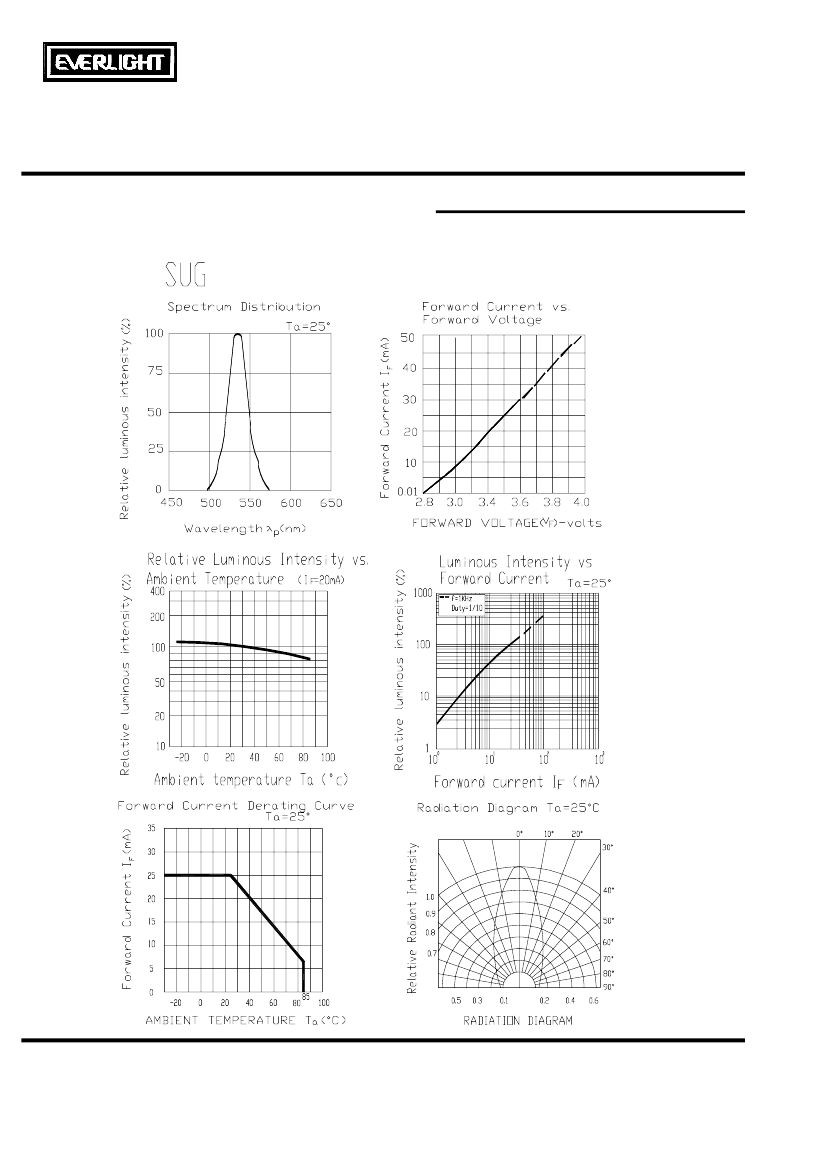

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-329-021
http : //www.everlight.com
Prepared date:
2005/8/8
Rev.:
2
Page: 4 of 6
LiPing Ding
Prepared by:
