MOFH & MOFZ Series – 14 Pin Dip OCXO
Oven Controlled Oscillator
1.0 MHz to 150.0 MHz Available
SC Crystal Option
RoHS Option Available
±10ppb to ±500ppb
Frequency Range
Frequency Stability
Operating Temperature
Storage Temperature
1.0 MHz to 150.0MHz
±50ppb to ±500ppb
-40°C to 85°C max*
* All stabilities not available, please consult MMD for availablity.
-40°C to 95°C
Sinewave
±3 dBm
10% Vdd max
HCMOS 3.3V, 5V
90% Vdd min
Logic ‘0’= .5V max
HCMOS 12V
Logic ‘1’ = 4.5V min
3.3V
5V
typ
220mA
200mA
max
550mA
400mA
3min. @ 25°C
100K Ohms typical
AT or SC Cut options
SC
10 Hz Offset
-100dBc
100 Hz Offset
-127dBc
-140dBc
1000 Hz Offset
±3ppm typ
±0.5ppm/yr.
50Ω
15pF
Output
Supply Voltage (Vdd)
Supply Current
Warm-up Time
Input Impedance
Crystal
Phase Noise @ 10MHZ
12V
80mA
150mA
Voltage Control 0 to VCC
Aging (after 30 days)
AT
-92dBc
-118dBc
-135dBc
±10ppm typ
±1.5ppm/yr.
Environmental & Mechanical Detail
Shock
Solderability
Solvent Resistance
Vibration
Gross Leak Test
Fine Leak Test
MSL
MIL-STD-883, Method 2002 Cond B
MIL-STD-883, Method 2003
MIL-STD-202, Method 215
MIL-STD-883, Method 2007, Cond A
MIL-STD-883, Method 1014, Cond C
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
=
=
=
Internal Code
4 Numerical Digit Date Code
(Year / Week)
Denotes RoHS Compliant
=
=
MMD
Frequency in MHZ
MIL-STD-883, Method 1014, Cond A2
Level 1 per IPC/JEDEC J-STD 20
Internal use only
May vary with lots
Pin 1 Designator
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Revisions only with customer approval
MOF070711K
Pg 1 of 2

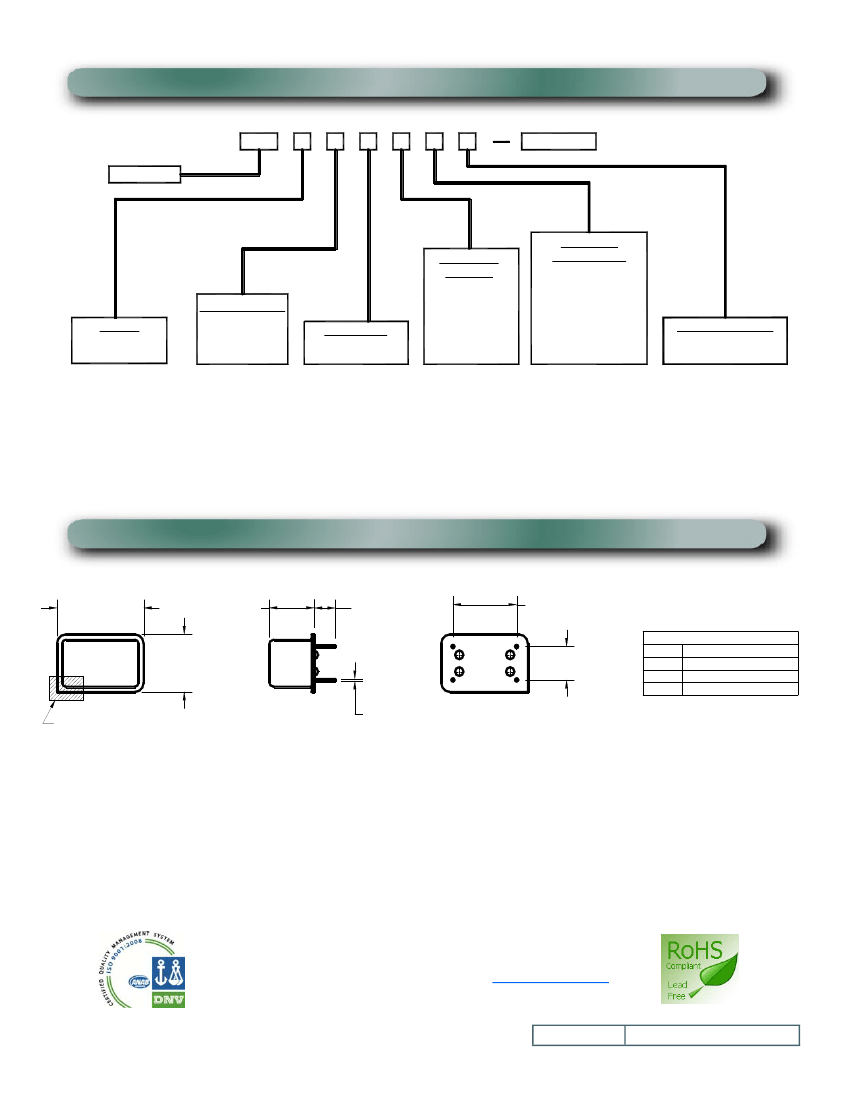

Part Number Guide
MOF
14 PIN DIP
Frequency
Frequency
Stability
Supply Voltage
3 = +3.3 VDC
5 = +5 VDC
12 = +12 VDC
Operating
Temperature
Output
H = HCMOS
Z = Sinewave
Crystal Cut
Blank = AT Cut
*S = SC Cut
050
100
250
500
= ±50PPB
= ±100PPB
= ±250PPB
= ±500PPB
A = 0°C to + 50°C
B = -10°C to + 60°C
C = -20°C to +70°C
D = -30°C to +70°C
E = -30°C to +80°C
F = -40°C to +85°C
Pin 1 Connection
Blank = No Connection
V = Voltage Control
Please Consult with MMD Sales Department for any other Parameters or Options
*SC Crystal must be used under specific aging and stabilities
Mechanical Details
20.70 [.815]
MAX
10.80 [.425]
5.08 [.200]
MIN
8
7
.46 [.018]
14
15.24 [.600]
PIN CONNECTIONS
PIN 1 VC OR NC
PIN 7 GROUND
PIN 8 OUTPUT
PIN 14 SUPPLY VOLTAGE
MXXXXX
SYYWWL
XXXXX
13.10 [.516]
MAX
7.62 [.300]
1
PIN 1 INDICATOR LOCATED
IN THIS AREA
DIMENSIONS IN BRACKETS ARE IN INCHES
EXTERNAL BYPASS CAPACITOR IS RECOMMENDED
MMD Monitor/Quartztek
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Revision:
Revisions only with customer approval
MOF070711K
Pg 2 of 2
