PXD3024D15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> PXD3024D15

PXD3024D15: Descriptionconv DC-DC pcb +/-15v 1A 30w; Categorysemiconductor Power management; File Size392KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric View All

PXD3024D15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PXD3024D15	-	-	View	Buy Now

PXD3024D15 Overview

conv DC-DC pcb +/-15v 1A 30w

PXD3024D15 Parametric

Parameter Name	Attribute value
Datasheets
PXD Series
Standard Package	1
Category	Power Supplies - Board Mou
Family	DC DC Converters
Packaging	Bulk
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Voltage - Output 3	-
Current - Output (Max)	1A, 1A
Power (Watts) - Manufacture Series	30W
Voltage - Isolati	1.6kV (1600V)
Features	Remote On/Off, OCP, OVP, SCP
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimensi	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Operating Temperature	-40°C ~ 85°C
Efficiency	87%
Power (Watts) - Max	30W

Preview

Download Datasheet

View All

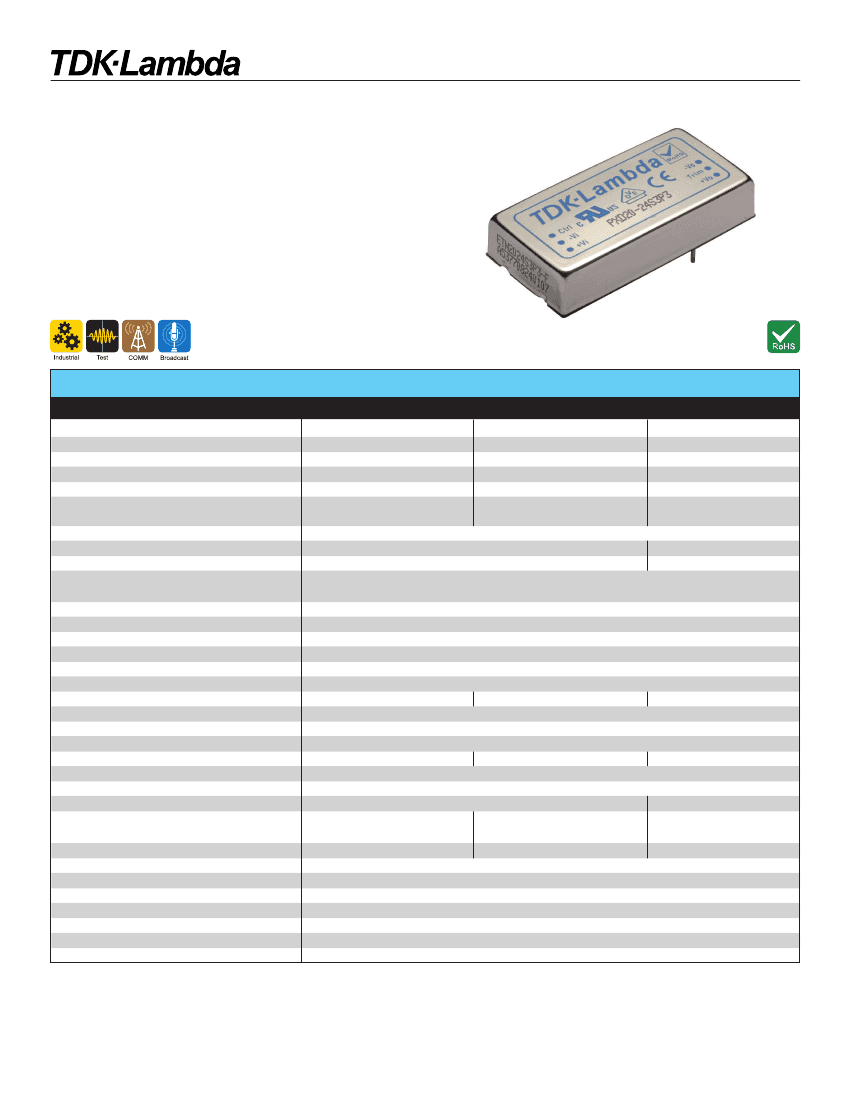

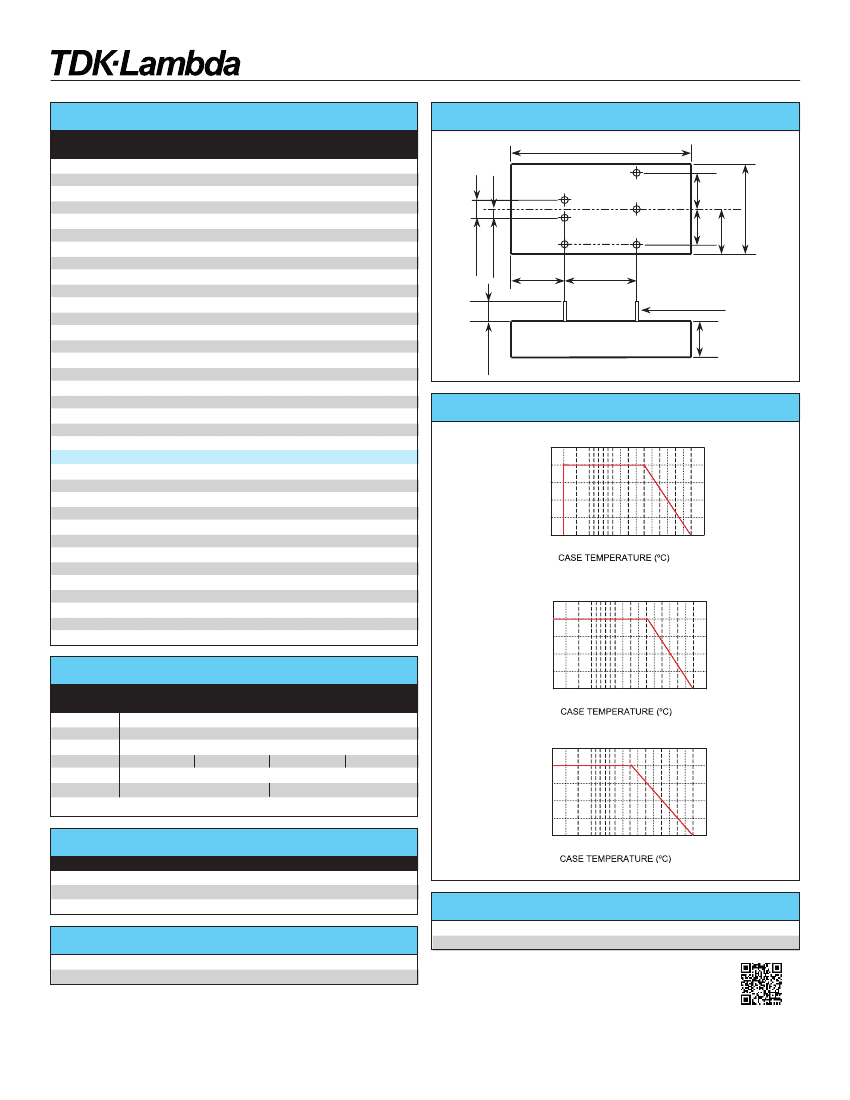

PXD Series

Single and Dual Output 10 to 20W DC-DC Converters

Features

Industry Standard 2” x 1” Footprint

Six Sided Shielding

Agency Approved

12V, 24V and 48V Inputs

UL, CSA, EN, CE approvals

Wide range input

Key Market Segments & Applications

Speciﬁcations

Model

Max Output Power

Voltage Accuracy

Voltage Adjustment (Single Output Only)

Minimum Load, each output

(1)

Line Regulation

Load Regulation (10% to 100%)

Cross Regulation (25% to 100%)

Ripple and Noise

Start up time

Remote on/off

PXD10

10W

±2%

None

10%

±1%

Single Output: ±1%

Dual Output: ±2%

PXD15

PXD20

15W

20W

±1%

None

±10%

10%

Single 0%; Dual 10%

±1%

±0.2%

Single Output: ±1%

±0.5%

Dual Output: ±2%

±5%

Single 50mV, Dual 75mV

Single 75mV, Dual 100mV

20ms

10ms

Positive Logic: ON: Open or 3.5-12V, OFF Short or <1.2V

Negative Logic: ON: Short or <1.2V, OFF: Open or 3.5-12V

<±0.02%/°C

See derating curves

100°C

-55 to 105°C

MIL-STD-810D

5 to 95% (non condensing)

500us recovery

300us recovery

1.5-3.3V: 3.9V, 5V: 6.2V, 12V: 15V, 15V: 18V

Typically at 150%, hiccup with self recovery

12V input: 36V, 24V input: 50V, 48V input: 100V

30mA

20mA

1600VDC minimum

Ohms minimum

300pF

1000pF

300kHz

Single: 500kHz

500kHz

Dual: 300kHz

1,976,000 hours

2,041,000 hours

1,791,000 hours

10 - 55Hz, 2G, 30 minutes each X, Y, Z axis

EN55022 Level A

EN61000-4-2, -3, -4, -5, -6 Pref Criteria 2

IEC60950-1, UL60950-1, EN60950-1, CE Mark (48V input only)

2x1x0.4”

0.95 oz (27g)

Two Year

* See website for detailed speciﬁcations

(3)

Temperature Coefﬁcient

Operating Temperature

Maximum Case Temperature

Storage Temperature

Thermal Shock

Relative Humidity

Transient Response (25% step load chg.)

Overvoltage Protection (Zener clamp)

Overcurrent & Short Circuit Protection

Input Surge Voltage (Max. for 100ms)

Reﬂected input ripple (peak to peak) (2)

Isolation Voltage

Isolation Resistance

Isolation Capacitance (max)

Typical Switching Frequency (Fixed)

MTBF (BELLCORE TR-NWT-000332)

Vibration

Conducted and Radiated Emissions

Immunity

Safety Agency Approval

Size (L x W x H)

Weight

Warranty

Notes:

(1) To meet regulation & noise speciﬁcations. Operation at zero load will not damage the device

(2) 12uH source impedance in series with + input

(3) Positive logic standard on 20W (see options table). Input current 2.5mA

1-800-526-2324 • www.us.tdk-lambda.com/lp/

161

Disclaimer: us.tdk-lambda.com/lp/legal.htm
