54S135FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S135FMQB

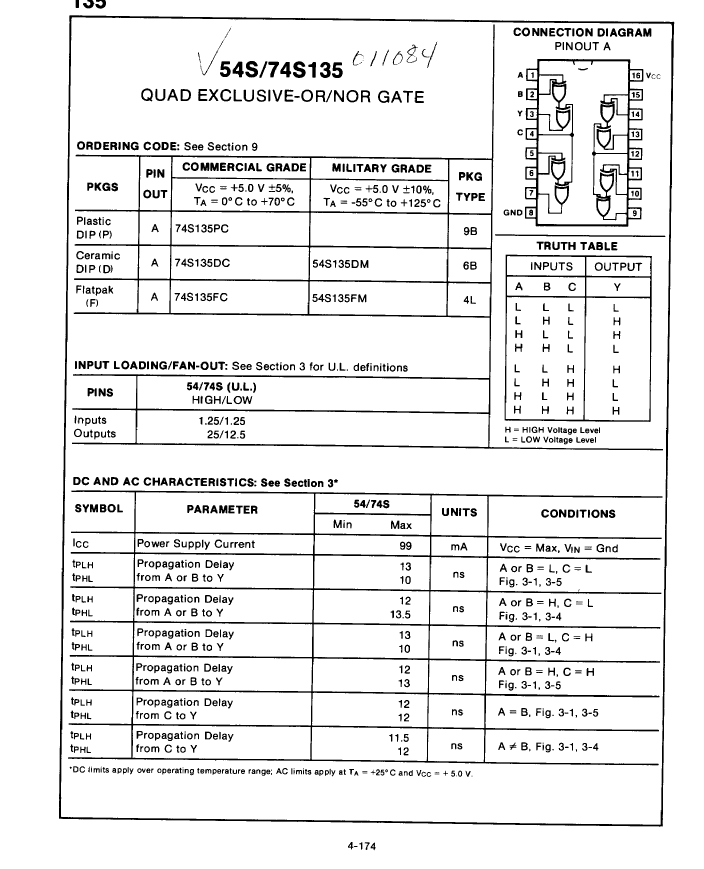

54S135FMQB: DescriptionXOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, PDFP14, DFP-14; Categorylogic logic; File Size57KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54S135FMQB Overview

XOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, PDFP14, DFP-14

54S135FMQB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL16,.3
Reach Compliance Code	compliant
series	TTL/H/L
JESD-30 code	R-PDFP-F14
JESD-609 code	e0
Logic integrated circuit type	XOR/XNOR GATE
Humidity sensitivity level	2A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5 V
propagation delay (tpd)	13.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

54S135FMQB Related Products

	54S135FMQB	54S135DMQB	74S135FCQR	74S135FCQM	74S135DCQM	74S135DCQR	74S135PCQM	74S135PCQR
Description	XOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, PDFP14, DFP-14	XOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	XOR/XNOR Gate, TTL, CDFP16,	XOR/XNOR Gate, TTL, CDFP16,	XOR/XNOR Gate, TTL, CDIP16,	XOR/XNOR Gate, TTL, CDIP16,	XOR/XNOR Gate, TTL, PDIP16,	XOR/XNOR Gate, TTL, PDIP16,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-PDFP-F14	R-CDIP-T14	R-XDFP-F16	R-XDFP-F16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A	2A
Number of terminals	14	14	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DFP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250	250
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified	-
