PLT133/T6A: Descriptiontransmitter fbr opt IR photolink; CategoryWireless rf/communication Optical fiber; File Size242KB，5 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PLT133/T6A Overview

transmitter fbr opt IR photolink

PLT133/T6A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
Reach Compliance Code	compli
Samacsys Descripti	Fiber Optic Transmitters, Receivers, Transceivers Photo Link
Other features	IT ALSO OPERATES FOR 5V SUPPLY
body width	9.7 mm
body height	12 mm
Body length or diameter	13.5 mm
data rate	16 Mbps
Emitter/Detector Type	LED
Fiber optic equipment types	TRANSMITTER
Fiber type	980/1000, POF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Maximum operating wavelength	680 nm
Minimum operating wavelength	640 nm
Nominal operating wavelength	660 nm
Nominal optical power output	0.0158 mW
Maximum supply voltage	3.25 V
Minimum supply voltage	2.75 V
Nominal supply voltage	3 V
surface mount	NO
Transmission type	DIGITAL

Preview

Download Datasheet

View All

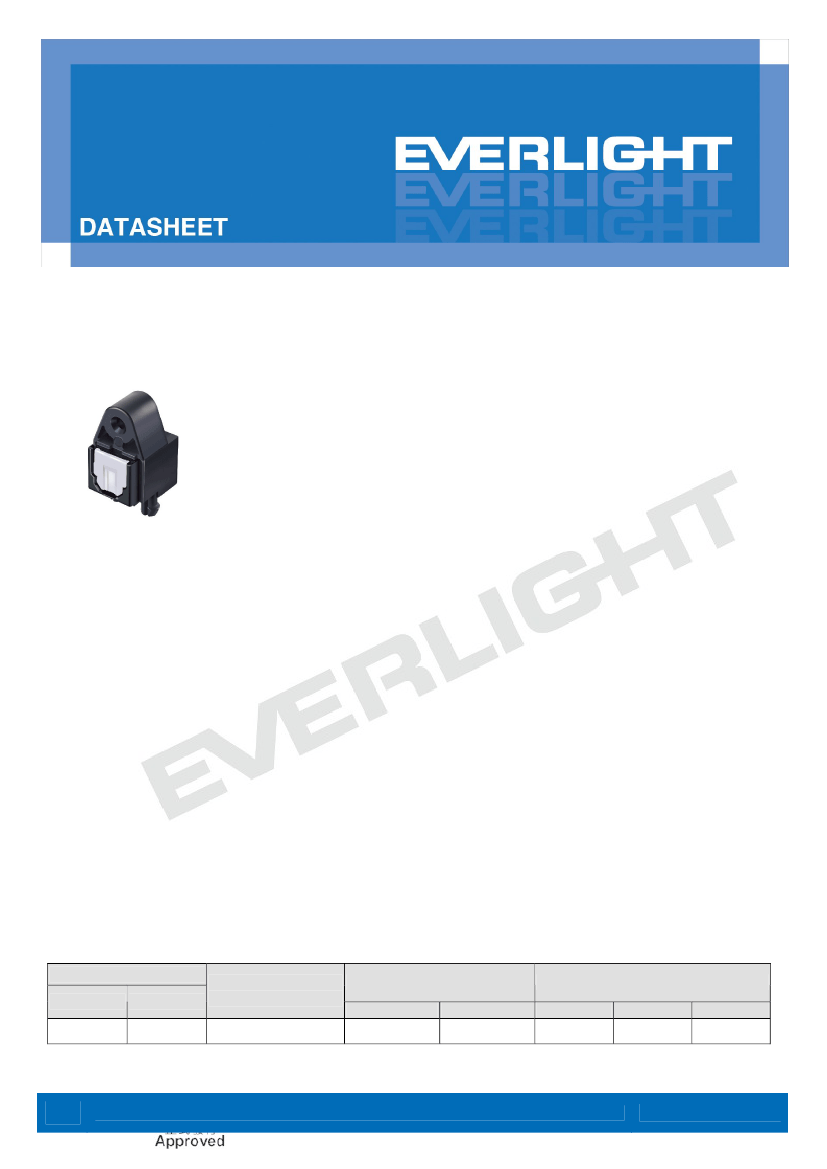

Photo-link Light Transmitter Unit

PLT133/T6

Features



High speed signal transmission（16Mbps NRZ Signal）

TTL interface compatible

+3~+5V single power source

The product itself will remain within RoHS compliant version.

Description

The opto-electrical component is assembled with a 660nm AlGaInP LED and a

driver IC. It transforms the electrical signal to optical signal and be transmitted by

1mm diameter plastic optical fiber.

The component is operated at +3~+5V and has good performance at low

dissipation current, steady light output and efficient light coupling.

Applications



Digital audio equipment



CD player



DVD player

Device Selection Guide

Chip

Material

AlGaInP

λp(nm)

660

Operating Voltage

(Vcc)

+3.0~5.0

Dissipation Current (mA)

Typ.

5.5

Max.

Fiber Coupling Light Output (dBm)

Min.

-21

Typ.

---

Max.

-15

Revision

LifecyclePhase:

Release Date:2013-05-29 11:06:12.0

No: DPL-0000117_Rev.3

www.everlight.com

Expired Period: Forever

PLT133/T6A Related Products

	PLT133/T6A	PLT133/T6
Description	transmitter fbr opt IR photolink	transmitter fbr opt IR photolink
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	EVERLIGHT	EVERLIGHT
Reach Compliance Code	compli	compli
Other features	IT ALSO OPERATES FOR 5V SUPPLY	IT ALSO OPERATES FOR 5V SUPPLY
body width	9.7 mm	9.7 mm
body height	12 mm	12 mm
Body length or diameter	13.5 mm	13.5 mm
data rate	16 Mbps	16 Mbps
Emitter/Detector Type	LED	LED
Fiber optic equipment types	TRANSMITTER	TRANSMITTER
Fiber type	980/1000, POF	980/1000, POF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
Maximum operating wavelength	680 nm	680 nm
Minimum operating wavelength	640 nm	640 nm
Nominal operating wavelength	660 nm	660 nm
Nominal optical power output	0.0158 mW	0.0158 mW
Maximum supply voltage	3.25 V	3.25 V
Minimum supply voltage	2.75 V	2.75 V
Nominal supply voltage	3 V	3 V
surface mount	NO	NO
Transmission type	DIGITAL	DIGITAL
