388ACPSOX-162-120VAC: DescriptionOn-Delay Relay, DPDT, Momentary, 2338mW (Coil), 12A (Contact), 28VDC (Contact), 1.2s Adj Min, 120s Adj Max, AC Input, AC/DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size177KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

388ACPSOX-162-120VAC Overview

On-Delay Relay, DPDT, Momentary, 2338mW (Coil), 12A (Contact), 28VDC (Contact), 1.2s Adj Min, 120s Adj Max, AC Input, AC/DC Output, Panel Mount

388ACPSOX-162-120VAC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 102 V
Maximum adjustable time delay	120 s
Minimum adjustable time delay	1.2 s
Coil current (AC) maximum value	0.019 A
Coil power	2338 mW
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	12A@240VAC
Maximum contact current (AC)	12 A
Maximum contact current (DC)	12 A
Contact (DC) maximum rated R load	12A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	388
Installation features	PANEL MOUNT
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	ON-DELAY RELAY
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

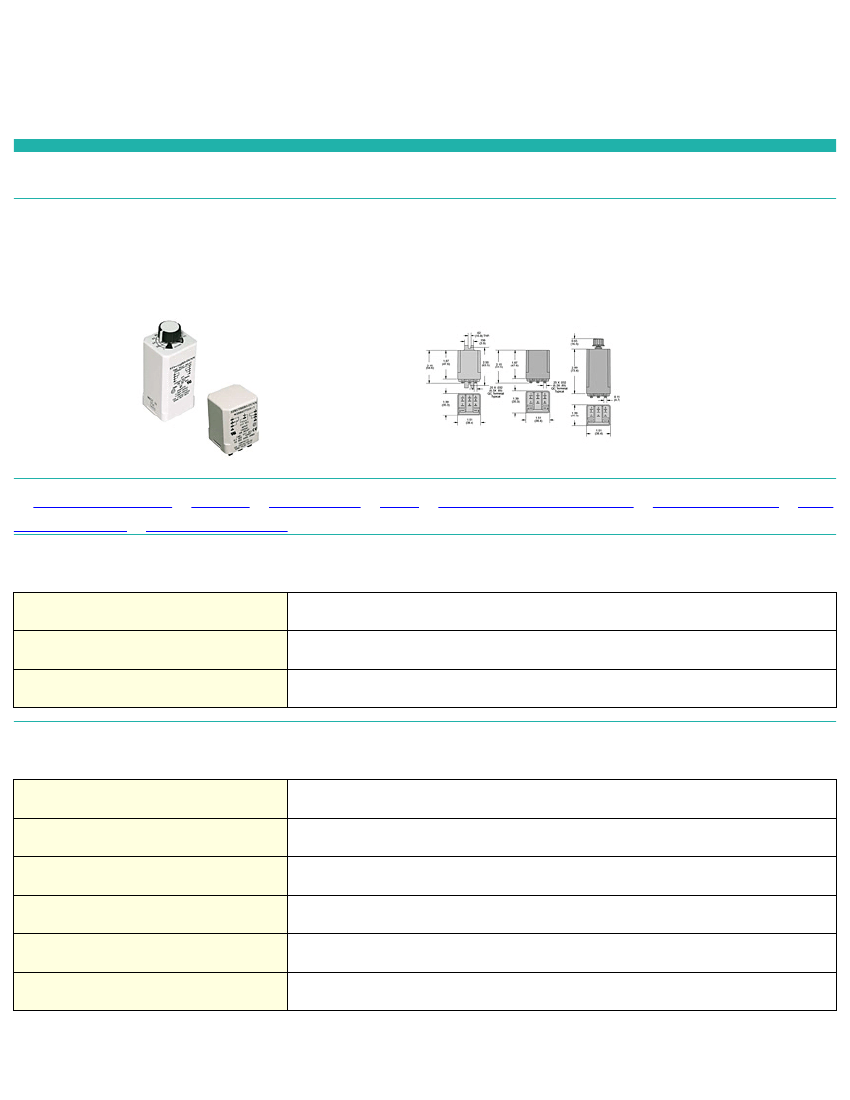

Item # 388ACPSOX-162-120VAC, 388 Series - Time Delay Relays

The 388 timers are square base, bladed versions of time delay relays. On delay, off delay and interval functions are all available with either AC or DC inputs. On delay

and interval products can have up to three poles. Off delays have two poles. The timing circuit is oscillator based. Fixed time and externally adjustable versions. Both

socket and flange mount versions are available.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

TIMING

·

CONTACTS

·

COIL

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

LIFE

EXPECTANCY

·

MISCELLANEOUS

SPECIFICATIONS

Series

388

Type

On delay plug-in

Nominal Input Voltage

120 VAC

TIMING

Functions Available

On-delay

Timing Range

1.2 to 120 s

External Resistor

20,000 ohms/s

Timing Adjustment

Timing Repeatability (Constant voltage and

temperature)

Reset Time maximum

External R

0.1%

150mS

7/31/2013 | Page 1 of 3
