XDUR14C4-1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XDUR14C4-1A

XDUR14C4-1A: Descriptiondisplay 14.2mm red 4digit CC; CategoryLED optoelectronic/LED photoelectric; File Size234KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XDUR14C4-1A Overview

display 14.2mm red 4digit CC

XDUR14C4-1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-12
Reach Compliance Code	compli
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED
Configuration	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.03 A
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

Part Number: XDUR14C4-1A

14.22mm(0.56") FOUR DIGIT NUMERIC DISPLAY

Features

●

Low power consumption

●

Robust package

●

I.C. Compatible

●

Standard configuration: Gray face w/ white

segments

●

Optional black face provides superior color

contrast

●

RoHS Compliant

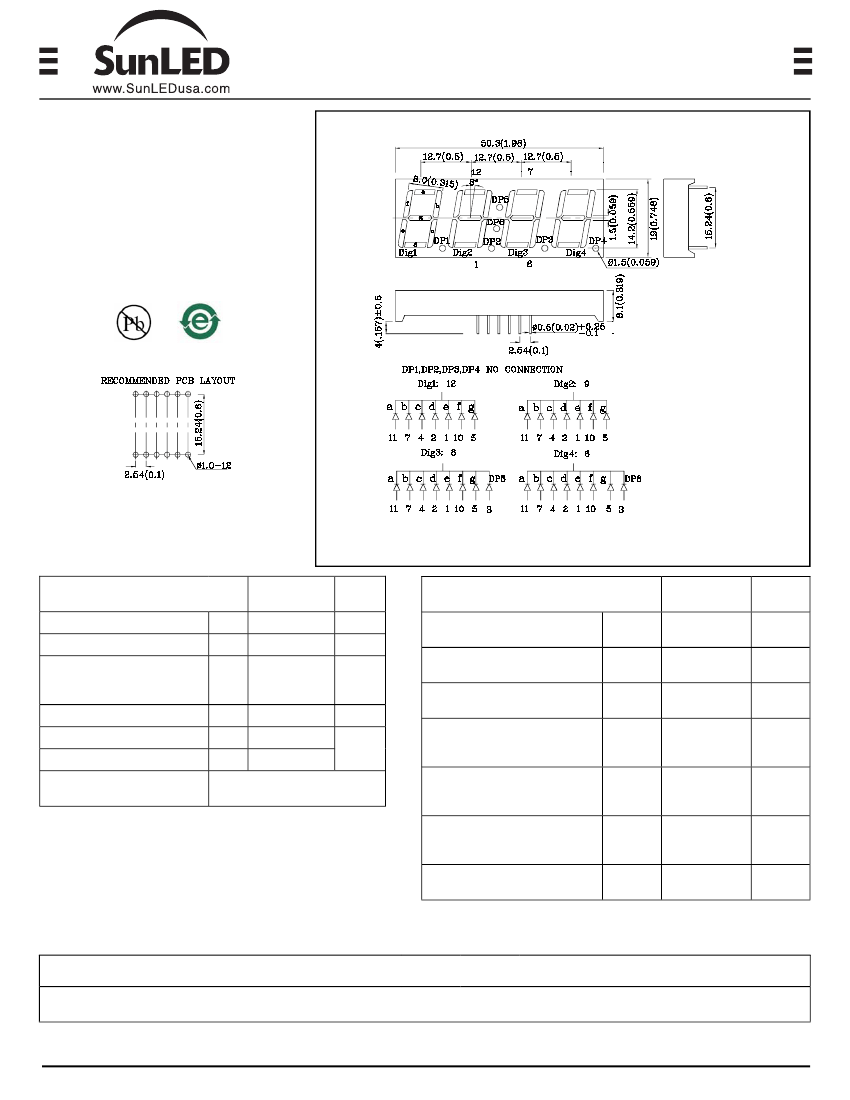

Package Schematics

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Tstg

(GaAsP/GaP)

160

-40 ~ +85

Unit

°C

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak

Emission CIE127-2007* (Typ.)

=10mA)

Wavelength of Dominant

Emission CIE127-2007* (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Part

Number

Emitting

Color

Emitting

Material

Luminous Intensity

CIE127-2007*

=10mA) ucd

min.

XDUR14C4-1A

Red

GaAsP/GaP

3600

1400*

typ.

5790

2390*

627*

Common Cathode

Wavelength

CIE127-2007*

λP

(GaAsP/GaP)

1.9

2.5

Unit

λP

627*

260°C For 3-5 Seconds

λD

617*

△λ

Description

*Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.

Feb 26,2014

XDSA1093

V7-X

Layout: Maggie L.

P. 1/3
