Technical Data Sheet
3474AN/GADB-AMNA/X/MS

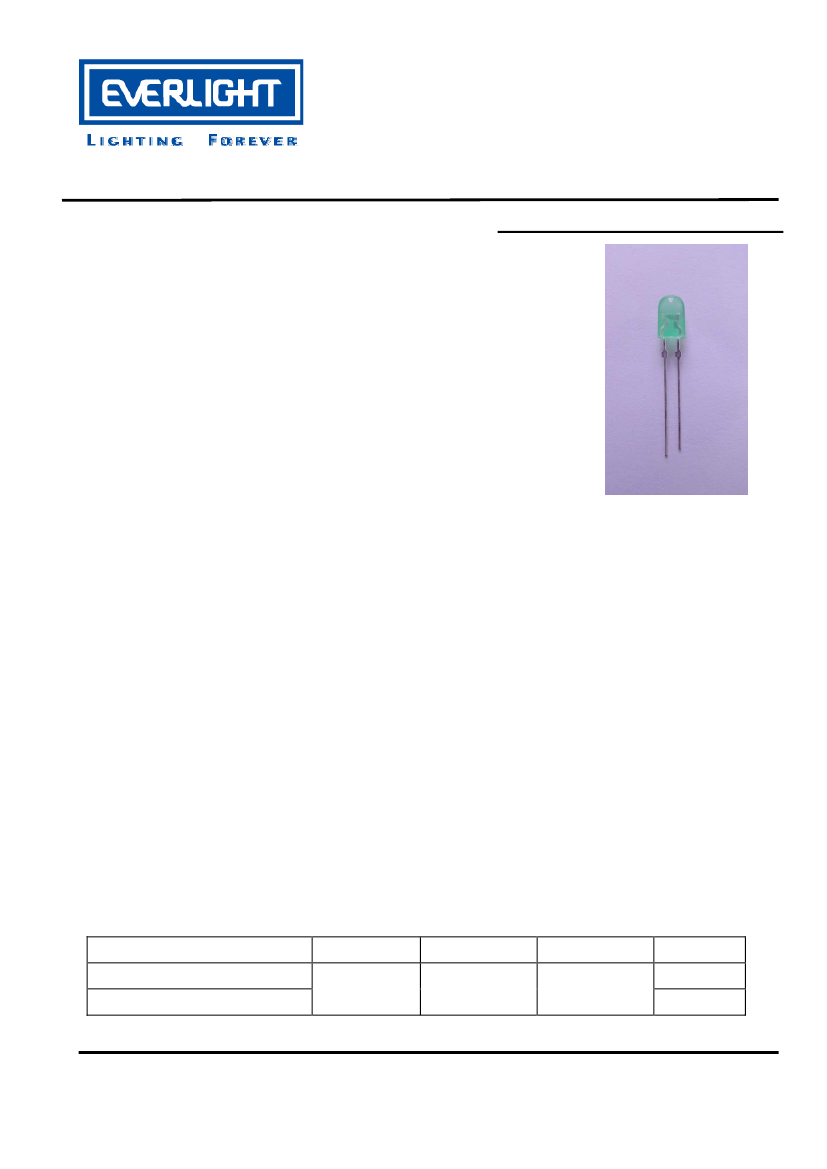

Features
․High
luminous intensity output
․Oval
Shape
․Well
defined spatial radiation
․Wide
viewing angle (2θ
1/2
) : 110
o
/ 50
o
․The
product itself will remain within RoHS compliant version
․UV
resistant epoxy
Descriptions
․This
precision optical performance oval LED is specifically
designed for passenger information signs
․This
lamp has matched radiation patterns with red and blue
mixing color applications
Applications
․Color
Graphic Signs
․Message
boards
․Variable
message signs (VMS)
․Commercial
outdoor advertising
Device Selection Guide
LED Part No.
3474AN/GADB-AMNA/MS
3474AN/GADB-AMNA/P/MS
Chip Material Emitted Color
InGaN
Lens Color
Stopper
No
Yes
Brilliant Green Green Diffused
Everlight Electronics Co., Ltd.
Device Number :
DLE-0000640
http:\\www.everlight.com
Prepared date:12-23-2008
Rev 1
Page: 1 of 9
Prepared by: Flourix Chen
Technical Data Sheet
3474AN/GADB-AMNA/X/MS

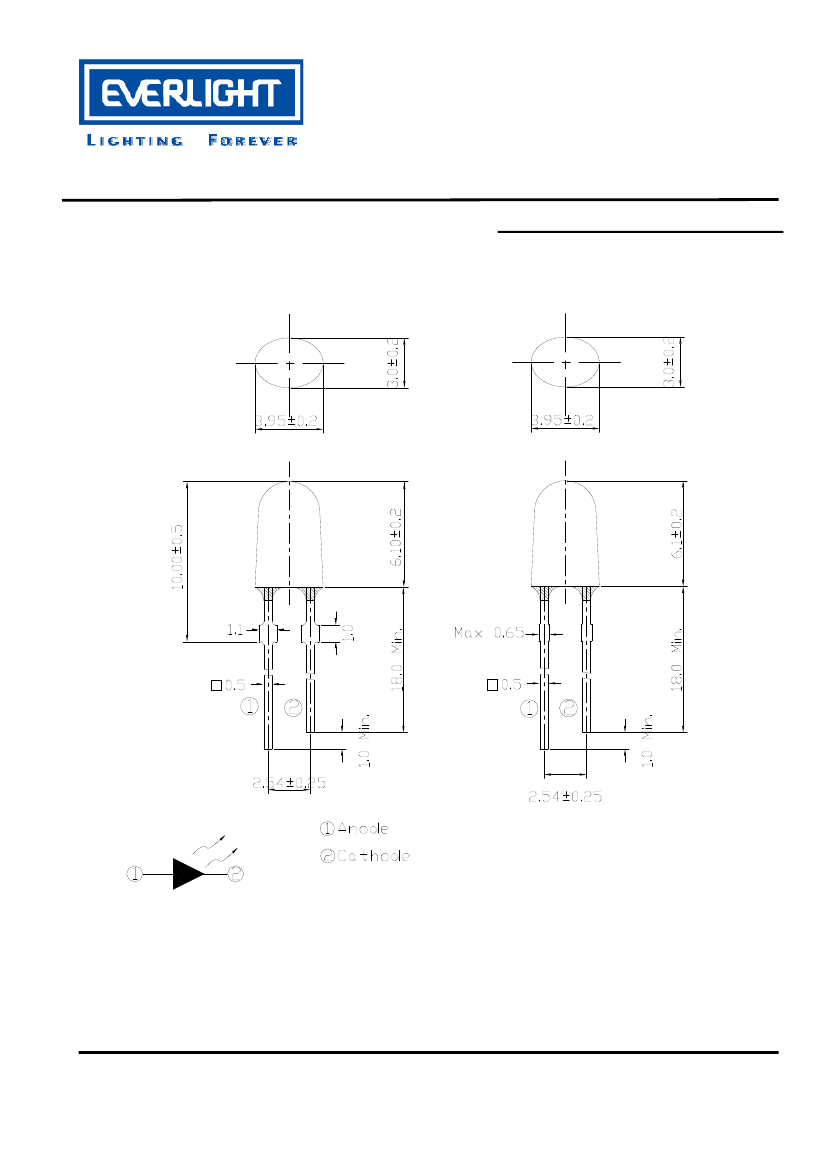

Package Dimensions
Stopper Type
No Stopper Type
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Everlight Electronics Co., Ltd.
Device Number :
DLE-0000640
http:\\www.everlight.com
Prepared date:12-23-2008
Rev 1
Page: 2 of 9
Prepared by: Flourix Chen
Technical Data Sheet
3474AN/GADB-AMNA/X/MS
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Reverse Voltage
Electrostatic Discharge
Symbol
I
F
I
FP
T
opr
T
stg
T
sol
P
d
V
R
ESD
Absolute Maximum Rating
30
100
-40 ~ +85
-40 ~ +100
260
100
5
1K
Unit
mA
mA
℃
℃
℃
mW
V
V
Notes: Soldering time≦5 seconds.
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Min.
2880
--
--
525
--
2.8
--
Typ.
--
X:110 Y:50
522
--
35
--
--
Max.
4970
--
--
535
--
3.6
50
Unit
mcd
deg
nm
V
μA
Condition
I
F
=20mA
V
R
=5V
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
M1
2880~3450
M2
3450~4140
N1
4140~4970
Unit:mcd
*Measurement Uncertainty of Luminous Intensity:
±10%
Rank
Dominant Wavelength
1
525~530
2
530~535
Unit:nm
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device Number :
DLE-0000640
http:\\www.everlight.com
Prepared date:12-23-2008
Rev 1
Page: 3 of 9
Prepared by: Flourix Chen
Technical Data Sheet
3474AN/GADB-AMNA/X/MS

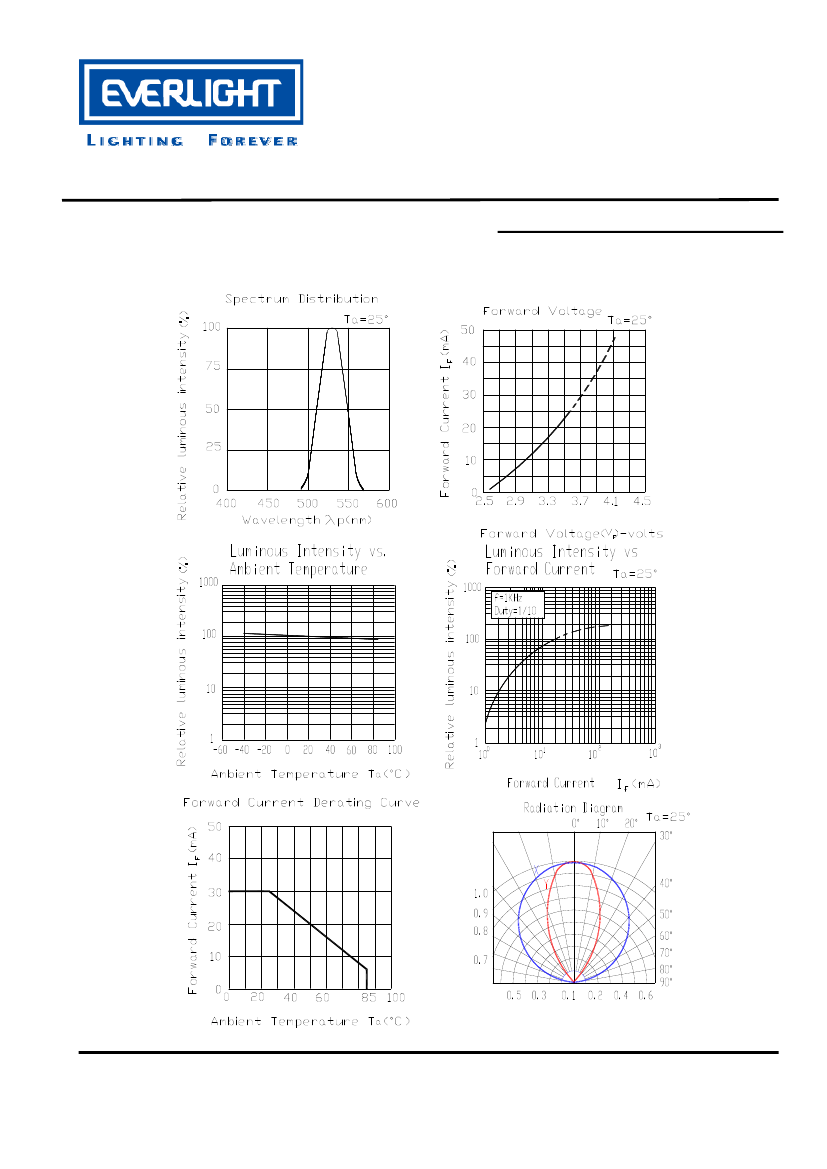

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number :
DLE-0000640
http:\\www.everlight.com
Prepared date:12-23-2008
Rev 1
Page: 4 of 9
Prepared by: Flourix Chen
Technical Data Sheet
3474AN/GADB-AMNA/X/MS

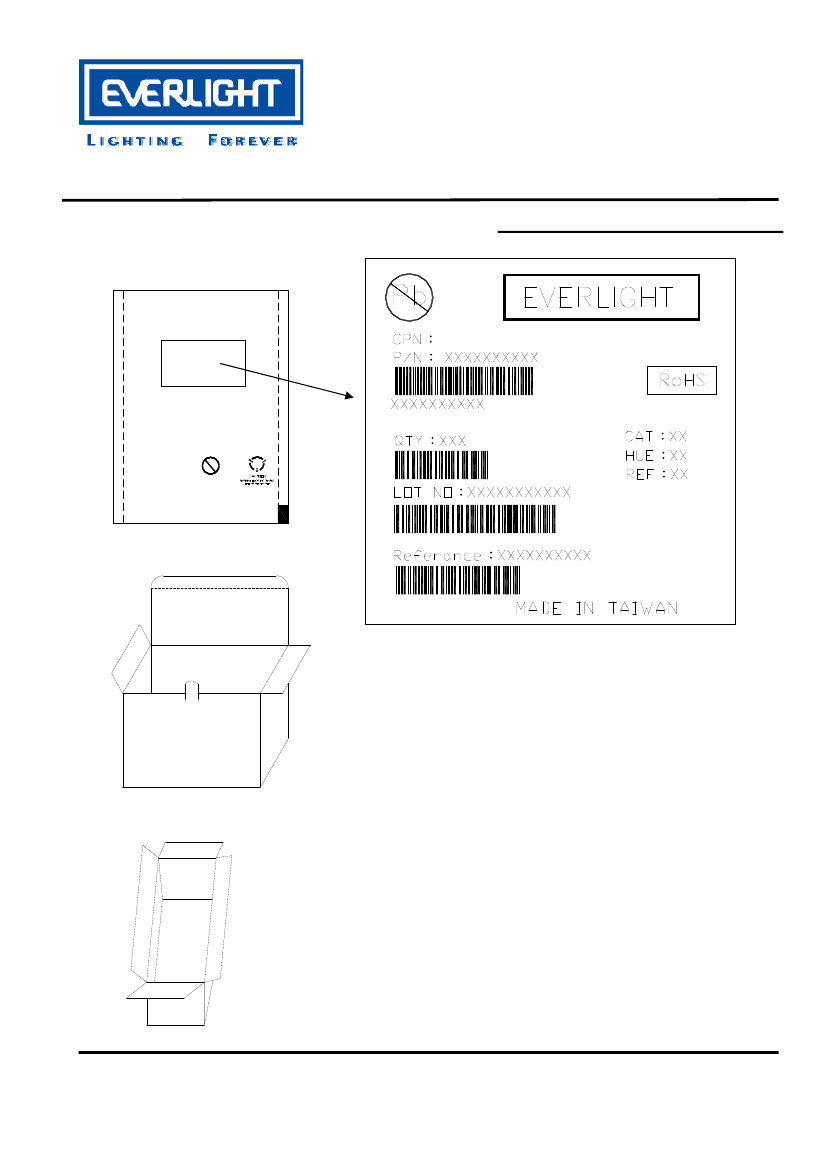

Packing Specification
■
Anti-electrostatic bag
Label
Pb
EL ECTROSTATIC ELECTRONAGNETIC
MAGNETIC OR RADIOACTIVE RELDS
anti-static for 750
■
Inner Carton
■
Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks of Luminous Intensity and Forward Voltage
HUE: Rank of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
■
Outside Carton
■
Packing Quantity
1. 1000 PCS/1 Bag, 5 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
Everlight Electronics Co., Ltd.
Device Number :
DLE-0000640
http:\\www.everlight.com
Prepared date:12-23-2008
Rev 1
Page: 5 of 9
Prepared by: Flourix Chen
