3-440372-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL; CategoryThe connector The connector; File Size81KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-440372-6 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL

3-440372-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	PACKAGING 1000 PER REEL
Board mount options	SOLDER HOLDING FLANGE
body width	0.136 inch
subject depth	0.185 inch
body length	0.504 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Manufacturer's serial number	440372
Plug contact pitch	0.049 inch
Installation option 1	LOCKING MECH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	ENDS
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

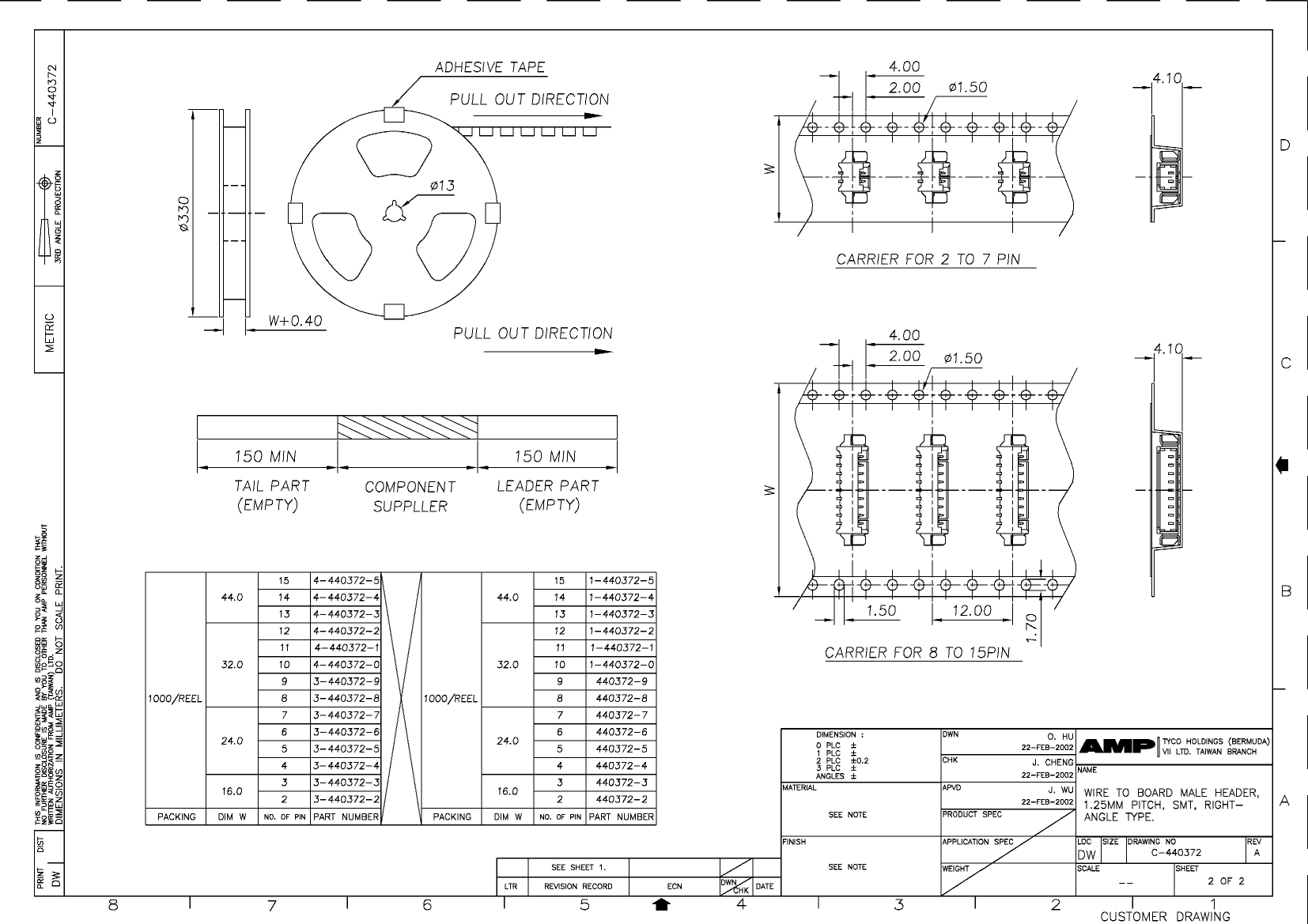

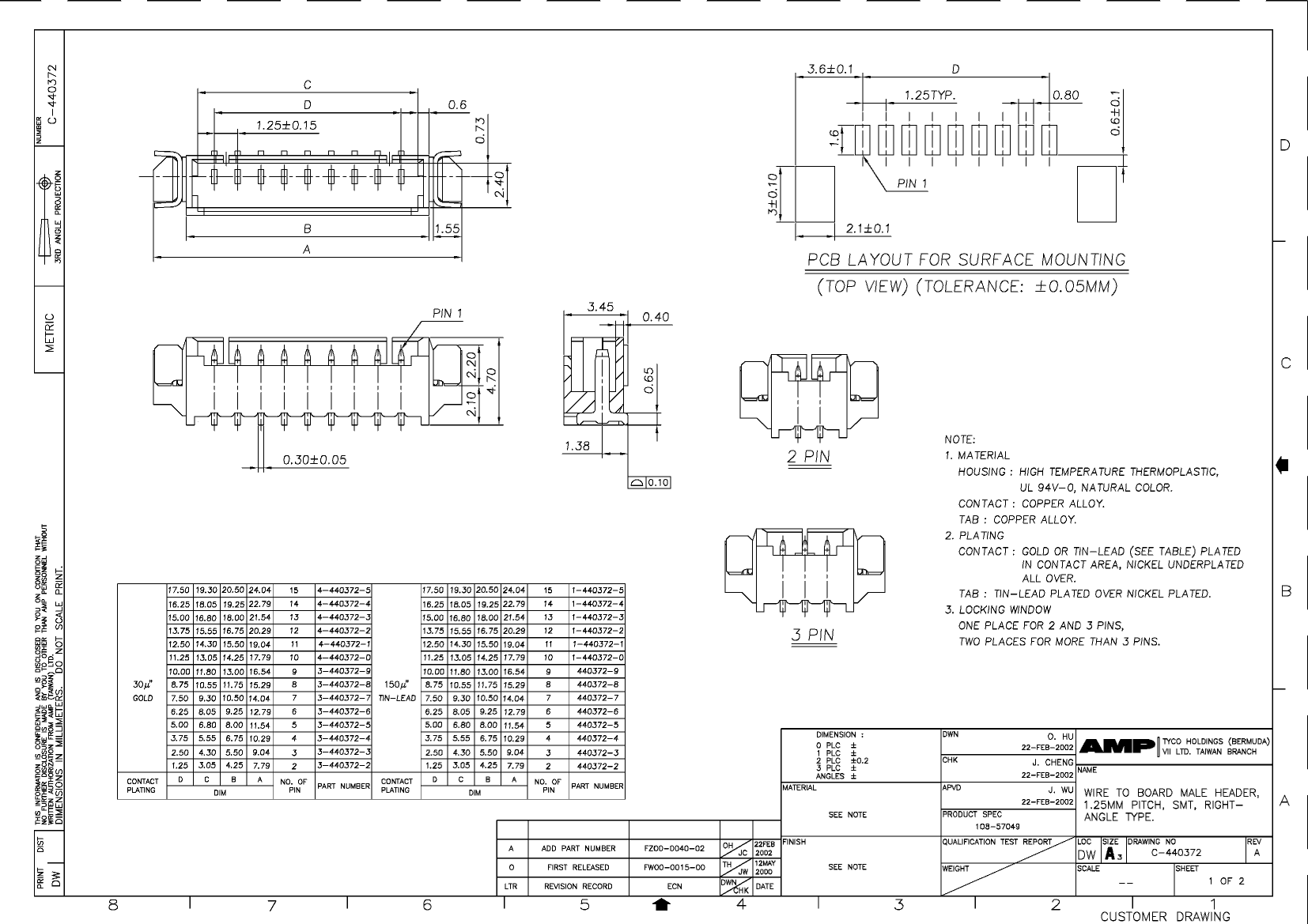

Preview

Download Datasheet

View All

3-440372-6 Related Products

	3-440372-6	3-440372-7	4-440372-3	3-440372-3	3-440372-2	4-440372-2	4-440372-4	4-440372-5	3-440372-5
Description	HEADER CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,13 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,3 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,2 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,14 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL	HEADER CONNECTOR,PCB MNT,RECEPT,5 CONTACTS,PIN,0.049 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH,NATURAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli
Other features	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL	PACKAGING 1000 PER REEL
Board mount options	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE
body width	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch	0.136 inch
subject depth	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch
body length	0.504 inch	0.553 inch	0.848 inch	0.356 inch	0.307 inch	0.799 inch	0.897 inch	0.946 inch	0.454 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	440372	440372	440372	440372	440372	440372	440372	440372	440372
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	6	7	13	3	2	12	14	15	5
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	-	-	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Base Number Matches	1	1	1	1	1	1	1	1	-
Maker	-	-	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
