32Z2451 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 32Z2451

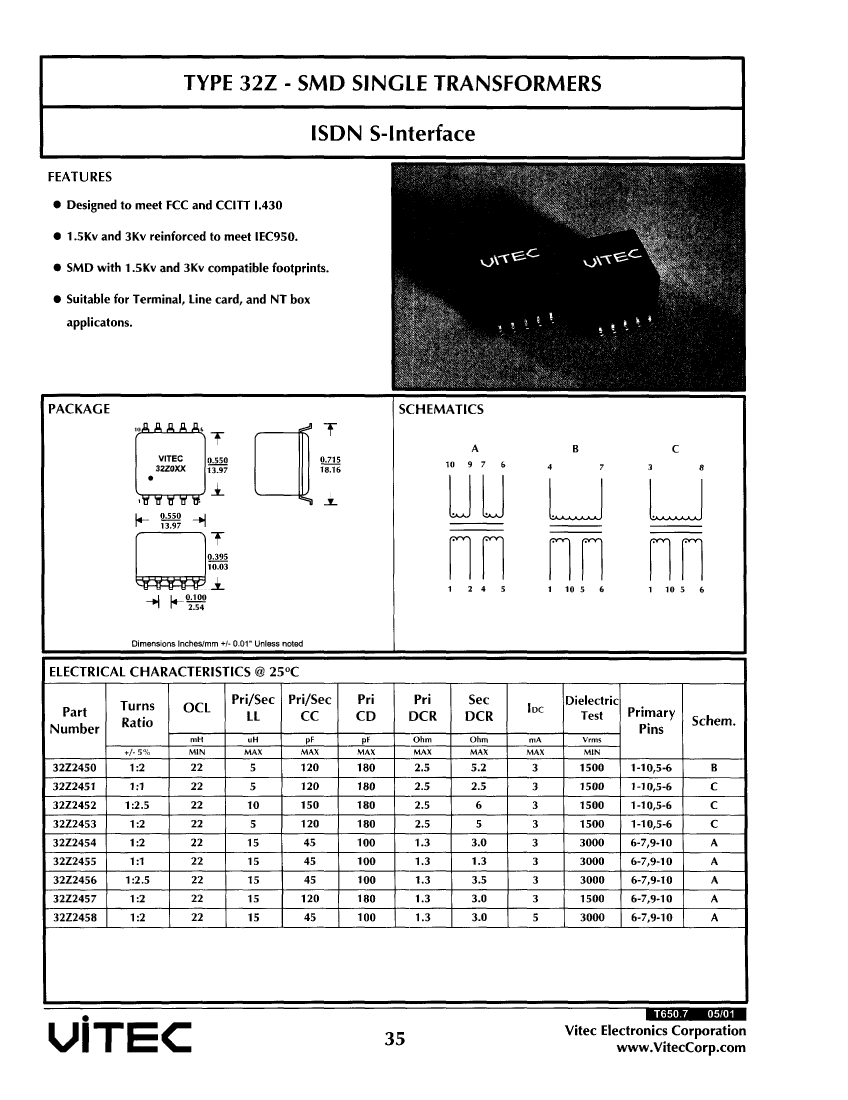

32Z2451: DescriptionDatacom Transformer, ISDN Application(s), 1:1; CategoryPower management transformer; File Size105KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

32Z2451 Overview

Datacom Transformer, ISDN Application(s), 1:1

32Z2451 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
application	ISDN
high	10.03 mm
Insulation voltage	1500 V
length	13.97 mm
Manufacturer's serial number	32Z
Installation features	SURFACE MOUNT
Number of functions	1
physical size	13.97mm X 13.97mm X 10.03mm
Primary inductance	22000 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	13.97 mm
Base Number Matches	1

Preview

Download Datasheet

View All

32Z2451 Related Products

	32Z2451	32Z2457	32Z2456	32Z2452	32Z2453	32Z2454	32Z2450	32Z2458	32Z2455
Description	Datacom Transformer, ISDN Application(s), 1:1	Datacom Transformer, ISDN Application(s), 1:2	Datacom Transformer, ISDN Application(s), 1:2.5	Datacom Transformer, ISDN Application(s), 1:2.5	Datacom Transformer, ISDN Application(s), 1:2	Datacom Transformer, ISDN Application(s), 1:2	Datacom Transformer, ISDN Application(s), 1:2	Datacom Transformer, ISDN Application(s), 1:2	Datacom Transformer, ISDN Application(s), 1:1
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN	ISDN
high	10.03 mm	10.03 mm	10.03 mm	10.03 mm	10.03 mm	10.03 mm	10.03 mm	10.03 mm	10.03 mm
Insulation voltage	1500 V	1500 V	3000 V	1500 V	1500 V	3000 V	1500 V	3000 V	3000 V
length	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm
Manufacturer's serial number	32Z	32Z	32Z	32Z	32Z	32Z	32Z	32Z	32Z
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
physical size	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm	13.97mm X 13.97mm X 10.03mm
Primary inductance	22000 µH	22000 µH	22000 µH	22000 µH	22000 µH	22000 µH	22000 µH	22000 µH	22000 µH
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1	1:2	1:2.5	1:2.5	1:2	1:2	1:2	1:2	1:1
width	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm	13.97 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
