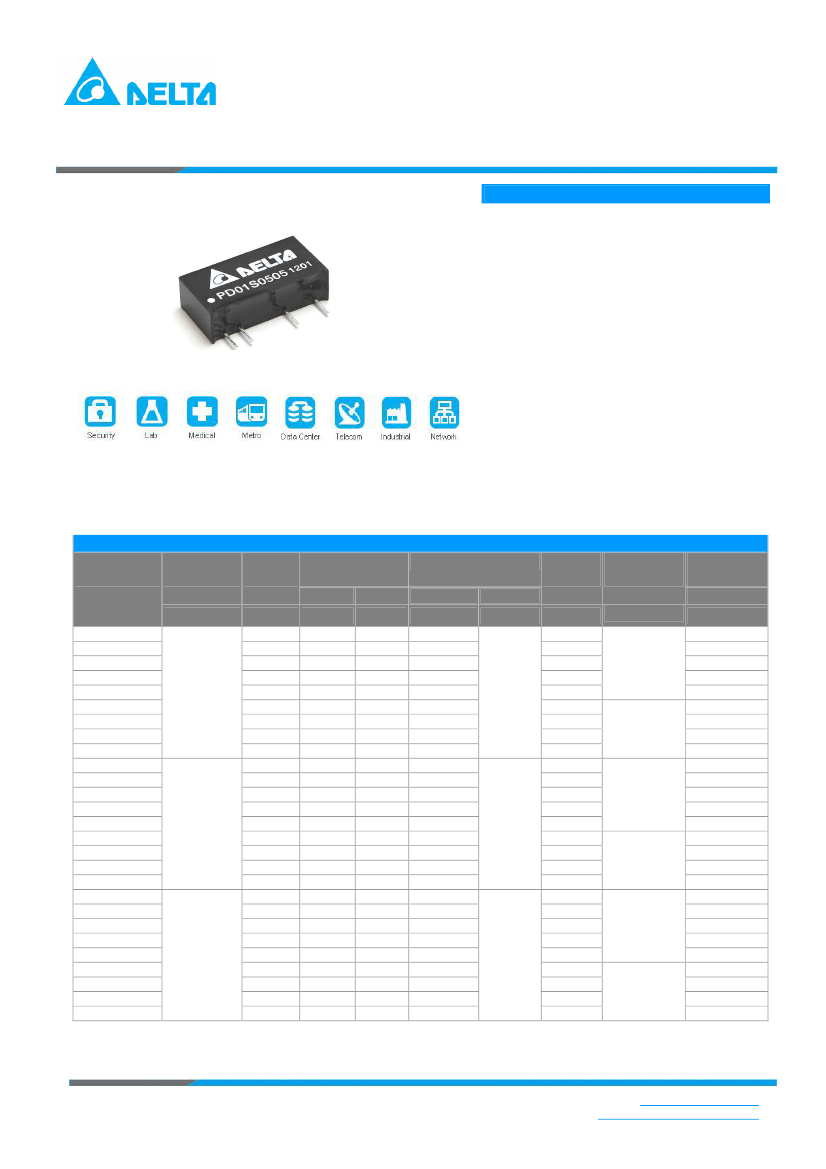

PD01S/D series
1W DC/DC CONVERTER, SIP-Package, High Isolation
FEATURES
Efficiency up to 81%
SIP Package with Industry Standard Pinout
Package Dimension:
5V&12V Models:
19.5 x 10.2 x 6.1 mm (0.77”x 0.4”x 0.24”)
15V&24V Models:
19.5 x 10.2 x 7.1 mm (0.77”x 0.4”x 0.28”)
High Isolation Voltage 3000 VDC
Operating Temperature Range -40°C to +85°C
Single and Dual Outputs
>2 MHours MTBF
3 Years Product Warranty
The PD01S/D series are miniature, SIP Package, isolated 1W DC/DC converters with 3,000VDC isolation. It offers short circuit protection and
allows a wide operating temperature range of –40°C to +85°C. These isolated DC/DC converters are the latest offering from a world leader in
power systems technology and manufacturing
―
Delta Electronics, Inc
Model List
Model
Number
Input
Voltage
(Range)
VDC
PD01S0503A
PD01S0505A
PD01S0509A
PD01S0512A
PD01S0515A
PD01D0505A
PD01D0509A
PD01D0512A
PD01D0515A
PD01S1203A
PD01S1205A
PD01S1209A
PD01S1212A
PD01S1215A
PD01D1205A
PD01D1209A
PD01D1212A
PD01D1215A
PD01S2403A
PD01S2405A
PD01S2409A
PD01S2412A
PD01S2415A
PD01D2405A
PD01D2409A
PD01D2412A
PD01D2415A
Output
Voltage
VDC
3.3
5
9
12
15
±5
±9
±12
±15
3.3
5
9
12
15
±5
±9
±12
±15
3.3
5
9
12
15
±5
±9
±12
±15
Output Current
Max.
mA
260
200
110
84
67
±100
±56
±42
±34
260
200
110
84
67
±100
±56
±42
±34
260
200
110
84
67
±100
±56
±42
±34
Min.
mA
5
4
2
1.5
1
±2
±1
±0.8
±0.7
5
4
2
1.5
1
±2
±1
±0.8
±0.7
5
4
2
1.5
1
±2
±1
±0.8
±0.7
Input Current
@Max. Load @No Load
mA(typ.)
235
281
260
258
258
278
262
258
258
96
114
106
105
104
113
106
104
105
49
59
54
54
53
58
55
53
53
mA(typ.)
% (max.)
10
10
8
7
7
10
8
7
7
8
8
5
5
5
8
5
5
5
8
8
5
5
5
8
5
5
5
Load
Max. capacitive
Regulation
Load
Efficiency
(typ.)
@Max. Load
VDC
73
71
76
78
78
72
77
78
79
74
73
78
80
80
74
79
81
81
73
71
76
78
79
72
76
79
80
* For each output
220
5
(4.5 ~ 5.5)
30
100*
220
12
(10.8 ~ 13.2)
12
100*
24
(21.6 ~ 26.4)
220
7
100*
DS_PD01S/D_03152012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P1
Input Characteristics
Parameter
Input Voltage Range
Model
5V Input Models
12V Input Models
24V Input Models
5V Input Models
12V Input Models
24V Input Models
All Models
---
Min.
4.5
10.8
21.6
-0.7
-0.7
-0.7
---
Typ.
Max.
5
5.5
12
13.2
24
26.4
---
9
---
18
---
30
---
0.3
Internal Capacitor
---
450
Unit
VDC
Input Surge Voltage (1 sec. max.)
Reverse Polarity Input Current
Input Filter
Internal Power Dissipation
A
mW
Output Characteristics
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Ripple & Noise (20MHz)
Temperature Coefficient
Short Circuit Protection
Conditions
Dual Output, Balanced Loads
For Vin Change of 1%
Io=20% to 100%
Over Line, Load & Temp.
Min.
---
---
---
---
---
---
---
Typ.
Max.
±1.0
±3.0
±0.1
±1.0
±1.2
±1.5
See Model Selection Guide
65
100
---
150
---
15
±0.01
±0.02
0.5 Second Max.
Unit
%
%
%
mV
P-P
mV
P-P
mV rms
%/℃
General Characteristics
Parameter
I/O Isolation Voltage (rated)
I/O Isolation Resistance
I/O Isolation Capacitance
Switching Frequency
MTBF (calculated)
Conditions
60 Seconds
500 VDC
100KHz, 1V
MIL-HDBK-217F@25℃, Ground Benign
Min.
3000
10
---
70
2,000,000
Typ.
---
---
60
100
-----
Max.
---
---
100
120
-----
Unit
VDC
GΩ
pF
KHz
Hours
Recommended Outside Input Fuse
5V Input Models
500mA Slow-Blow Type
12V Input Models
200mA Slow-Blow Type
24V Input Models
100mA Slow-Blow Type
Environmental Specifications
Parameter
Operating Temperature Range (with Derating)
Case Temperature
Storage Temperature Range
Humidity (non condensing)
Cooling
Lead Temperature (1.5mm from case for 10Sec.)
Conditions
Ambient
Min.
Max.
-40
+85
---
+90
-50
+125
---
95
Free-Air convection
---
260
Unit
℃
℃
℃
% rel. H
℃
DS_PD01S/D_03152012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P2

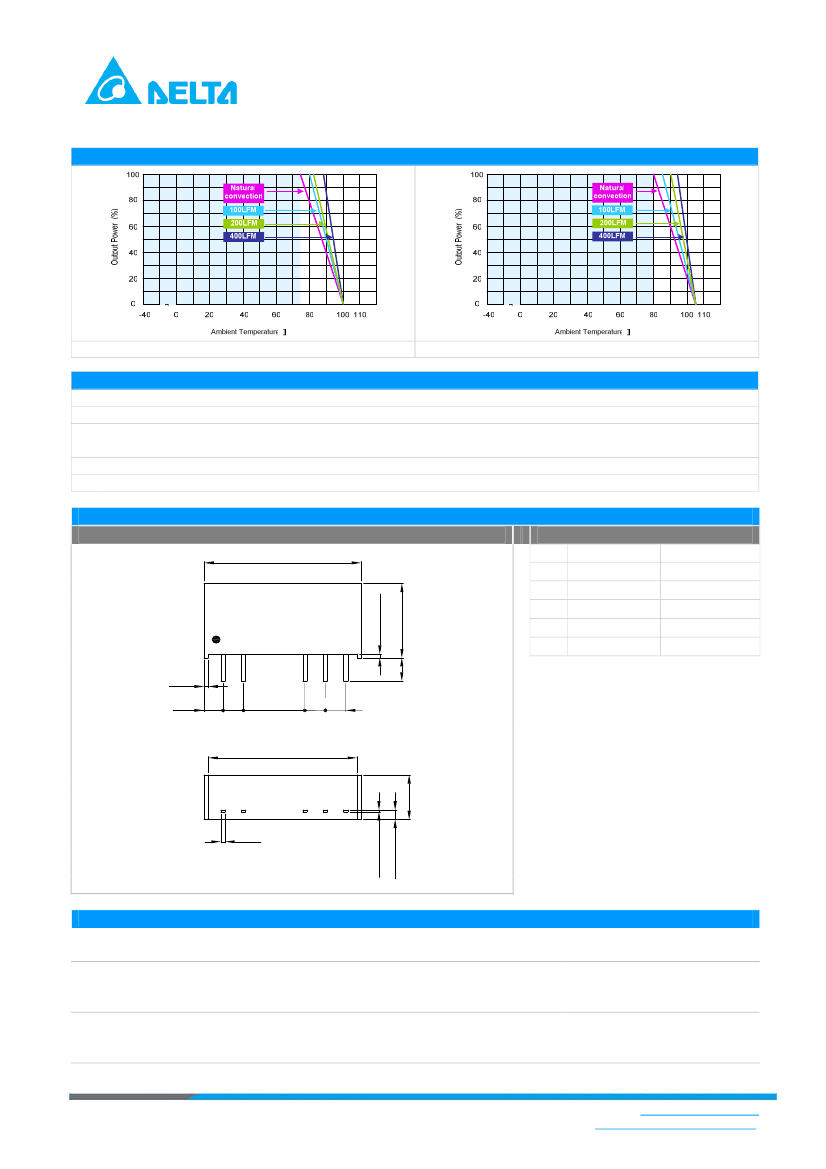

Power Derating Curve
(3.3V, 5V & ±5V}
(all other output)
Notes
1
2
3
4
5
Specifications typical at Ta=+25℃, resistive load, nominal input voltage and rated output current unless otherwise noted.
Ripple & Noise measurement bandwidth is 0-20MHz.
These power converters require a minimum output loading to maintain specified regulation, operation under no-load conditions will
not damage these modules; however they may not meet all specifications listed.
All DC/DC converters should be externally fused at the front end for protection.
Specifications subject to change without notice.
Mechancial Drawing
Mechanical Dimensions
19.5 [0.77]
Pin Connections
Pin
1
0.5 [0.02]
Single Output
+Vin
-Vin
-Vout
No Pin
+Vout
Dual Output
+Vin
-Vin
-Vout
Common
+Vout
2
10.2 [0.40]
5
6
7
[0.13]
0.5
[0.02]
2.35
[0.09]
2.54
[0.10]
7.62
[0.30]
2X2.54
[2X0.10]
3.2
5V&12V Input :
T: 6.1mm(0.24 inch)
15V&24V Input:
T: 7.1mm(0.28 inch)
18.5 [0.73]
Bottom View
1
2
5
6
7
T
►All
dimensions in mm (inches)
►Tolerance:
X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
0.25 [0.01]
Physical Outline
Case Size (5V&12V Input)
Case Size(15V&24V Input)
Case Material
:
Weight (5V&12V Input)
Weight (15V&24V Input)
:
:
2.2g
2.6g
:
:
19.5x6.1x10.2mm (0.77x0.24x0.40 Inches)
19.5x7.1x10.2mm (0.77x0.28x0.40 Inches)
Non-Conductive Black Plastic (flammability to UL 94V-0
rated)
1.3 [0.05]
0.50
[0.02]
►
Pins ±0.05(±0.002)
DS_PD01S/D_03152012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P3
Part Numbering System
P
Form factor
D-DIP
P-SIP
S-SMD
D
Family series
A~Z
01
Watt
01:1W
02:2W
03:3W
04:4W
06:6W
S
Number of
Outputs
S - Single
D- Dual
05
Input Voltage
03:3.3V
05: 5V
12:12V
24: 24V
48:48V
05
Output Voltage
03:3.3V
05: 5V
12:12V
15: 15V
24: 24V
A
Option Code
A - Std. Functions
WARRANTY
Delta offers a three(3) years limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any
infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under
any patent or patent rights of Delta. Delta reserves the right to revise these specifications at any time, without notice.
DS_PD01S/D_03152012
E-mail: DCDC@delta.com.tw
http://www.delta.com.tw/dcdc
P4
