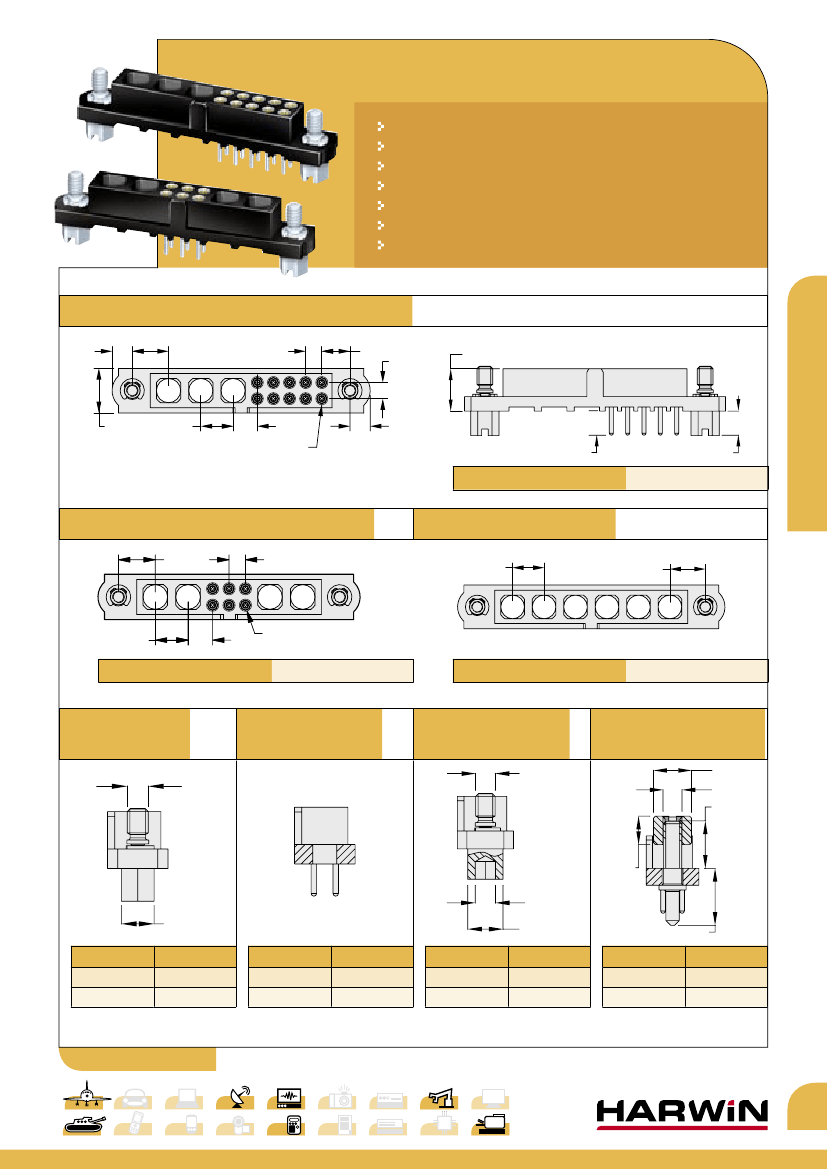

Datamate Connectors
Female PC Tail
Customer defined contact configurations.
Jackscrews assembled where specified.
Fully shrouded contacts.
Polarised mouldings.
Mates with connectors shown on pages 96 to 98.
Special contacts are assembled where specified.
For loose special contact see pages 101 to 107.
NON-SYMMETRICAL CONTACT CONFIGURATION
2.50
4.50
2.00
3.50
2.00
5.20
5.55
4.00
3.00
Contact No. 1
2.50
Tail
Tail
EXAMPLE OF PART NUMBER
M80-4TX10XX-03-000
SYMMETRICAL CONTACT CONFIGURATION
4.50
2.00
SPECIAL CONTACTS ONLY
4.00
4.50
4.00
3.00
Contact No. 1
EXAMPLE OF PART NUMBER
M80-4TX06XX-22-000
EXAMPLE OF PART NUMBER
M80-4TX00XX-60-000
WITH SLOTTED
JACKSCREWS
M2
NO JACKSCREWS
WITH HEX SOCKET
JACKSCREWS
M2
WITH PANEL MOUNT
Ø4.00
M2
5.00
3.00
2.00 A/F
3.00 A/F
Ø3.50
6.00
TAIL LENGTH
3mm
4.5mm
SERIES CODE
M80-4T1XXF1
M80-4T2XXF1
TAIL LENGTH
3mm
4.5mm
SERIES CODE
M80-4T1XX00
M80-4T2XX00
TAIL LENGTH
3mm
4.5mm
SERIES CODE
M80-4T1XXF2
M80-4T2XXF2
TAIL LENGTH
3mm
4.5mm
SERIES CODE
M80-4T1XXF3
M80-4T2XXF3
For special contacts (coaxial and power) please see page 101 to 107
